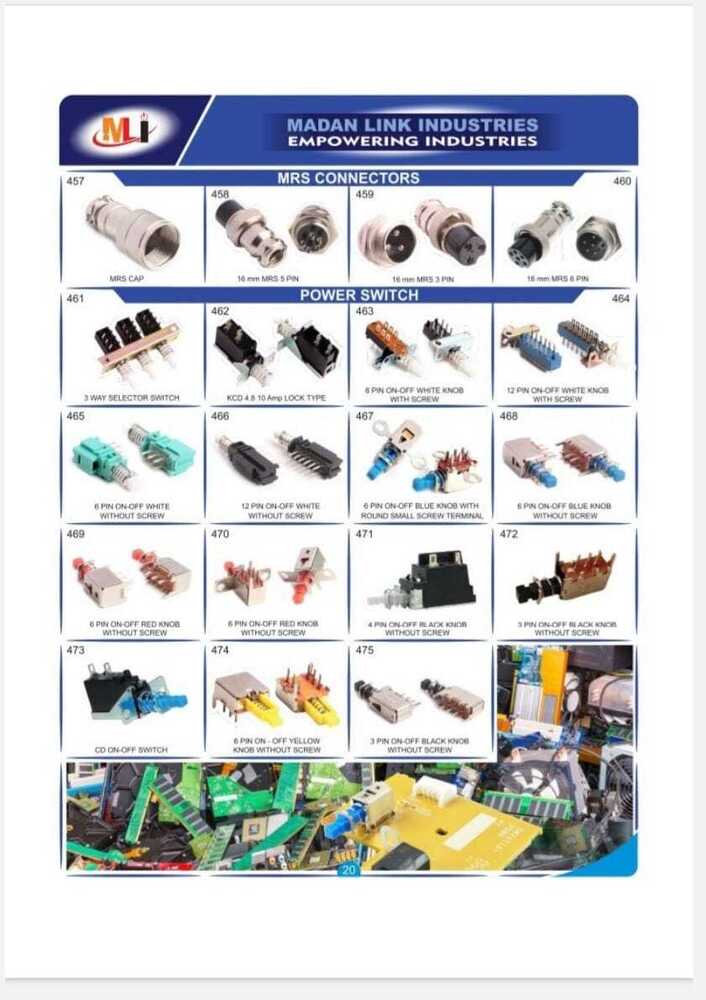

6 PIN ON-OFF BLUE KNOB WITH ROUND SMALL SCREW TERMINAL

Price 5 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

6 PIN ON-OFF BLUE KNOB WITH ROUND SMALL SCREW TERMINAL Specification

Protection Level
IP20

Response Time
Instant (Mechanical)

Max. Current
6A

Number of Module
Single

Rated Voltage
250V AC

Mechanical Life
10,000 operations

Automation Grade
Manual

Temperature Range
-25C to +85C

Finish Type
Matte Black/Satin Base, Glossy Blue Knob

Circuit Type
DPDT (Double Pole Double Throw)

Product Type
6 Pin ON-OFF Switch with Blue Knob

Material
Polycarbonate (Knob), Brass (Contacts), Bakelite (Base)

Insulation Resistance
100M at 500V DC

Contact Resistance
50m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
~3 mm (Actuation travel)

Size
Approx. 22mm (W) x 29mm (L) x 29mm (H) including knob

Color
Blue (Knob)

Weight
Approx. 18g

Mounting Type
Panel Mount (screw terminals)

Current Rating
6A

No Of Poles
2-pole double throw (DPDT)

6 PIN ON-OFF BLUE KNOB WITH ROUND SMALL SCREW TERMINAL Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About 6 PIN ON-OFF BLUE KNOB WITH ROUND SMALL SCREW TERMINAL

P Rating	5A
Size	STANDARD
Brand	NO
Color	WHITE / BLACK/ BLUE
Model Name/Number	POWER06
Quantity Per Pack	100
Minimum Order Quantity	100

6-pin on-off power switch featuring a distinctive BLUE knob design.
Screwless installation for quick and hassle-free setup.
Provides easy on-off functionality for various electronic devices

Reliable ON-OFF Switching

Designed for precision ON-OFF control, this switch employs a double pole double throw (DPDT) circuit, suitable for demanding power supply and control panel applications. Its instant mechanical response and compact actuation travel (~3mm) ensure quick and efficient operation.

Durable Construction & Safety Features

Made with a flame-retardant Bakelite base that meets UL94V-0 grade, plus a robust polycarbonate blue knob and silver alloy plated brass contacts, the switch offers high electrical and mechanical endurance. IP20 protection and 100M insulation resistance provide additional safety during prolonged use.

Easy Panel Mounting

The round small screw terminals and approximate 19mm panel cut-out size offer hassle-free installation in various setups and equipment. The single module design fits seamlessly into space-limited panels without sacrificing performance.

FAQs of 6 PIN ON-OFF BLUE KNOB WITH ROUND SMALL SCREW TERMINAL:

Q: How do I install the 6 PIN ON-OFF Blue Knob Switch with round small screw terminals?

A: Mount the switch by inserting it into a panel cut-out of approximately 19mm diameter and secure using the provided screw terminals. Wiring is straightforward since the round small screw terminals accommodate common connection types.

Q: What applications is this switch best suited for?

A: This switch is ideal for power supply switching, control panels, and test equipment where reliable DPDT ON-OFF functionality at up to 250V AC and 6A is required.

Q: When should I use a flame-retardant switch like this model?

A: Use flame-retardant switches in environments where electrical safety is critical, especially around high power equipment or areas requiring UL94V-0 grade safety standards.

Q: Where can I use the 6 PIN ON-OFF Blue Knob Switch in my setup?

A: It can be installed in any panel-mount application within the specified temperature range (-25C to +85C), such as industrial control panels and home automation equipment.

Q: What is the process for replacing a faulty switch?

A: Turn off power to your equipment, unscrew the faulty switch from the panel, disconnect the wires from the round small screw terminals, and replace with the new switch, following identical mounting and wiring steps.

Q: What benefits does the silver alloy plated brass contact material offer?

A: Silver alloy plated brass ensures low contact resistance (50m), high conductivity, and enhanced durability, supporting long-term use and reliable electrical connections.
