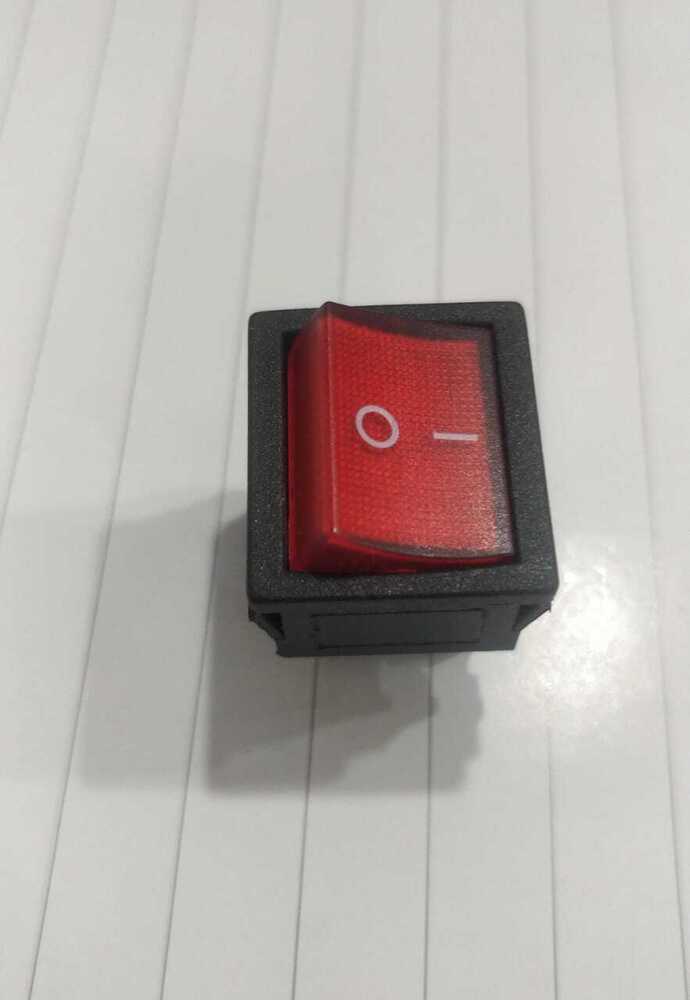

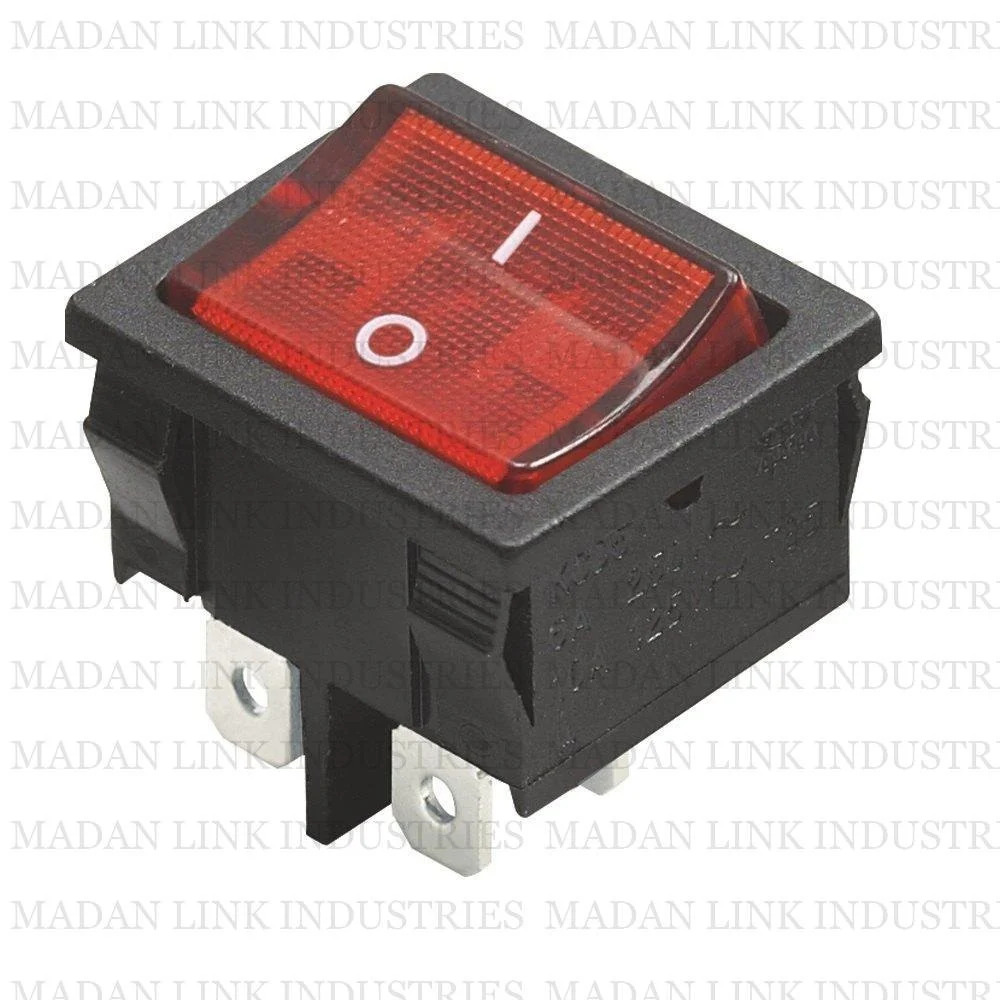

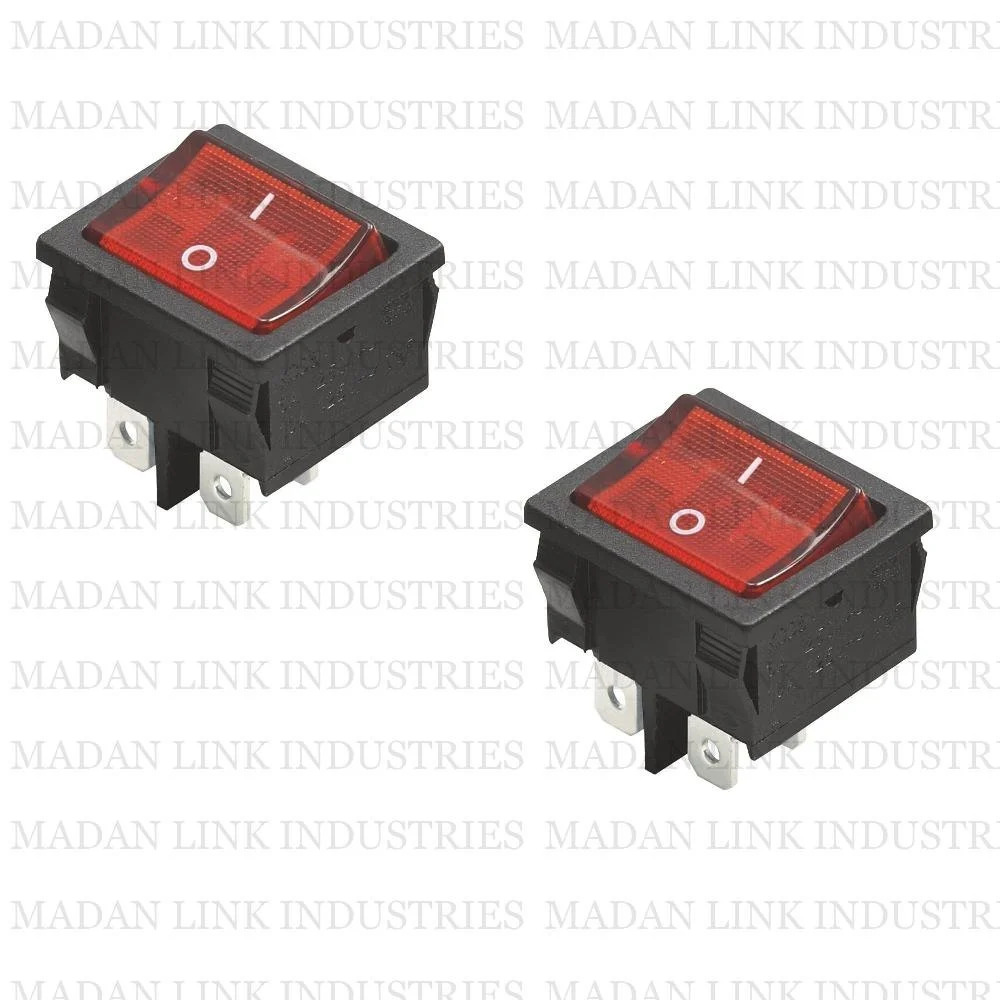

Rocker Switch Red Light 6 Pin On Off

Name: Rocker Switch Red Light 6 Pin On Off
Brand: Madan Link Industries
Price: 12 INR
Availability: InStock

Price 12 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Rocker Switch Red Light 6 Pin On Off Specification

Automation Grade
Manual

Rated Voltage
250V AC Volt (V)

Max. Current
15A Ampere (amp)

Temperature Range
-25C to +85C Celsius (oC)

Finish Type
Matte

Number of Module
Single

Protection Level
IP20

Circuit Type
DPST (Double Pole Single Throw)

Product Type
Rocker Switch

Material
Plastic and Metal Contacts

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m Milliohm (m)

Max. Voltage
250V AC Volt (V)

Operating Temperature
-25C to +85C Celsius (oC)

Stoke
Click Type (Momentary Action)

Size
30 x 26 x 23 mm (approx.)

Color
Red with Black Housing

Weight
12g (approx.) Grams (g)

Mounting Type
Panel Mount

Current Rating
15A @ 250V AC

No Of Poles
Double Pole

Rocker Switch Red Light 6 Pin On Off Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
100000 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

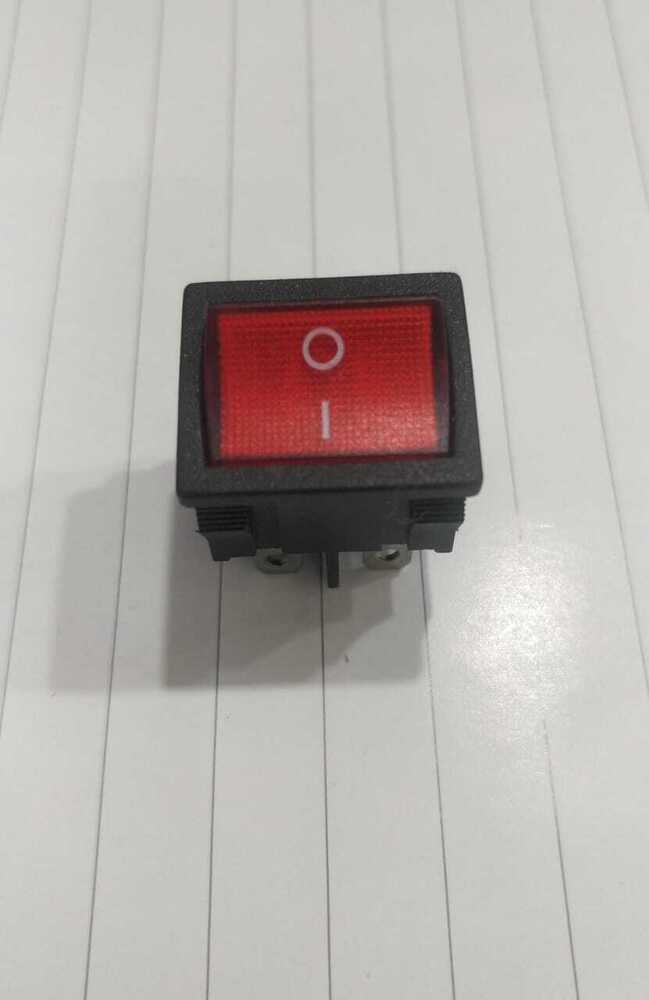

About Rocker Switch Red Light 6 Pin On Off

This is a small size switch. The color of this switch is shiny RED. It can withstand high room temperature. The switch offers a simple on/off switch on both the output and input at the same time. The switch is built from high plastic material which gives the switch strength and hardness. The wear and tear properties are also very high. It can work for longer durations. The life cycle continues for approximately 10,000 clicks. It has a simple O and I indication for your help.

Switch Function

ON/OFF

Usage/Application	Power Strips, Stabilizers, Water Dispensers, Coffee Machines, Automobiles, USB Hubs, Machinery
Model Name/Number	BR35
Illuminated	Illuminated
Switch Throw Type	DPDT
Color	Red
Size/Dimension	24*21
Max. current withstand	250V
Max. power rating	6A
Minimum Order Quantity	1000 Piece

Sturdy and Reliable Design

This panel-mount rocker switch features a strong matte plastic housing, silver alloy contacts, and is built for longevity with an electrical and mechanical life of at least 10,000 cycles. Its IP20 protection class suits indoor applications, and compliance with RoHS regulations ensures environmental safety.

Versatile Functionality and Easy Installation

With a DPST ON-OFF function, the switch offers instant response and click-type momentary action. Its 6-pin configuration with quick-connect or solder lugs provides flexibility for a range of connection types, making installation straightforward for manufacturers, importers, and panel builders alike.

FAQs of ROCKER SWITCH RED LIGHT 6 PIN ON-OFF:

Q: How do I install the ROCKER SWITCH RED LIGHT 6 PIN ON-OFF with LED Indicator?

A: To install, cut a panel opening measuring approximately 28 x 22 mm. Connect your circuit wires to the 6 quick-connect or solder lug terminals, ensuring secure and correct polarity. Mount the switch securely and verify LED indication upon powering.

Q: What are the benefits of using this DPST rocker switch with red LED?

A: This switch allows simultaneous ON-OFF control of two separate AC circuits, provides clear on-status indication via the red LED, and supports high current loads up to 15A at 250V AC. Its robust construction ensures sustained performance in demanding environments.

Q: When should I use a double pole single throw (DPST) switch like this?

A: Use a DPST switch when you need to control two circuits together, often for isolating both live and neutral connections in AC mains applications. This adds an extra layer of safety and reliability over single-pole switches.

Q: Where can the ROCKER SWITCH 6 PIN ON-OFF be applied?

A: The switch is ideal for use in power control panels, machinery, industrial equipment, automotive electronics, and household appliances. Its compact size and panel-mount design make it suitable for a wide range of indoor electrical control applications.

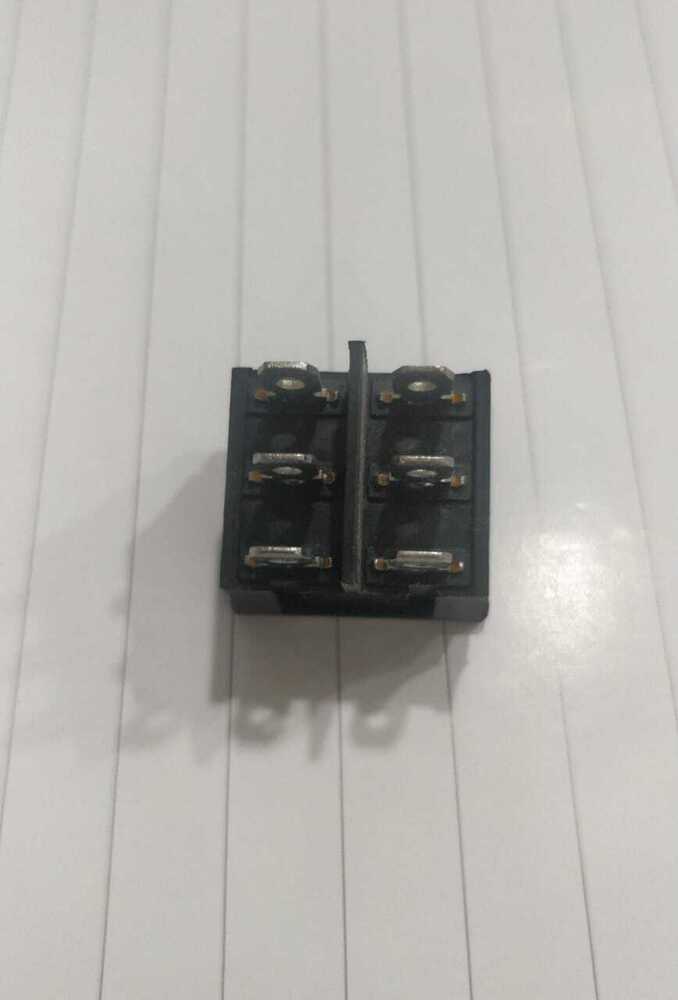

Q: What is the process for wiring the 6-pin configuration?

A: The wiring process involves connecting both input and output wires to the designated terminals, as per your circuit needs. Ensure you follow the correct wiring diagram, and use either quick-connect clips or solder for a secure fit. Always disconnect power before installation.

Q: What environmental and safety standards does this switch comply with?

A: This switch is RoHS compliant, ensuring it meets strict environmental safety standards by restricting hazardous materials. It also offers insulation resistance of 100 M at 500V DC and features a protection level of IP20 for safe indoor usage.
