Price 12 आईएनआर/ टुकड़ा

मूल्य/उद्धरण प्राप्त करें

MOQ : 1000 टुकड़ाs

सतह का उपचार

मोटाई
3.5mm

मुहरबंद

केबल का व्यास
6 mm - 8 mm

प्रॉडक्ट टाइप

मटेरियल

एप्लीकेशन
Electrical Panel, Consumer Electronics

संपर्क प्रतिरोध
<20 mΩ

इन्सुलेशन प्रतिरोध
>100MΩ at 500V DC

व्यास
19mm

टर्मिनल सॉकेट
3 Pin

स्टाइल
Right Angle

फिटिंग्स
Screw Mount

रेटेड वोल्टेज
250V AC

वज़न
Approx. 12g

रंग

Minimum Order Quantity
1000 टुकड़ाs

नमूना उपलब्ध
Yes

नमूना नीति
नमूना लागत, शिपिंग और करों का भुगतान खरीदार द्वारा किया जाना चाहिए।

मुख्य घरेलू बाज़ार
ऑल इंडिया

Pin Type	3 Pin Socket
Material	Plastic
Socket With Shutter	No
Number Of Sockets	1
Usage/Application	Industrial
Color	Black
Brand	Imported
Size	Standard
Voltage max	250
Current max	10amp
Minimum Order Quantity	100 टुकड़ा

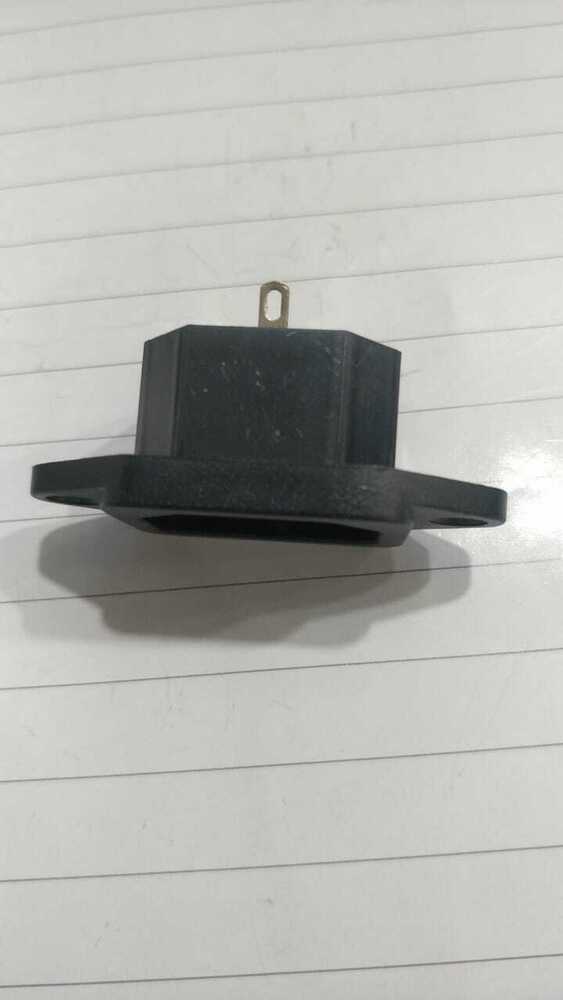

Power Entry Connects are great for devices powered by mains voltages and for cable applications. This connector is designed to accept a standard C8-style cable for powering mains devices. It comes with easy-to-mount snap-fit mounts. Pins are provided at the back for soldering or crimp connections.

Reliable Panel Mount Solution

Engineered for panel mounting, this AC socket ensures a secure and stable electrical connection. Its right angle pin design facilitates space-saving inside enclosures, while the screw mount fittings deliver a solid mechanical attachmentideal for robust, vibration-prone settings.

Safe and Durable Construction

Manufactured using high-grade thermoplastic and nickel-plated brass, the socket upholds rigorous safety standards. With a UL94-V0 flammability rating, RoHS compliance, and insulation resistance over 100M at 500V DC, it is well suited for demanding environments, ensuring long-term reliability.

FAQs of AC SOCKET SCREW RIGHT ANGLE PIN:

Q: How is the AC Socket Screw Right Angle Pin typically installed?

A: This socket is designed for panel mounting using screw mount fittings. Mount the socket onto the designated panel cutout, secure it using screws, and connect cables through the terminals for reliable electrical performance.

Q: What are the main benefits of the right angle pin design?

A: The right angle pin arrangement allows for efficient cable routing in tight spaces, minimizing cable stress and enabling a compact installation within electrical panels or devices.

Q: When should I choose this socket for my application?

A: This socket is ideal for situations requiring a reliable, panel-mounted AC connector, especially where safety, space savings, and current rating up to 10A at 250V AC are priorities. Its wide temperature range suits various environments.

Q: Where can the AC Socket Screw Right Angle Pin be used?

A: It is commonly used in electrical panels, consumer electronics, and equipment requiring a detachable AC power connection. Its robust build makes it apt for commercial, industrial, and domestic applications.

Q: What is the process for connecting wires to this socket?

A: After panel mounting, strip the insulation from the wires. Insert the ends into the right angle pin terminals, and secure them firmly using the corresponding screws for each pin, ensuring good electrical contact.

Q: What safety features does this socket provide?

A: The socket meets IEC60320 C14 standards, is UL94-V0 flame retardant, and offers dielectric strength up to 2000V AC/min and insulation resistance over 100M at 500V DC, significantly enhancing operational safety.

Q: Is this product suitable for export or commercial distribution in India?

A: Yes, as a RoHS compliant and standardized connector (IEC60320 C14), this product meets international safety and environmental requirements and is distributed, exported, and imported by manufacturers and traders in India.
