M Shape Switch PTS 04 2PIN WHITE TICK TOCK

Send Inquiry

Request To Call Back

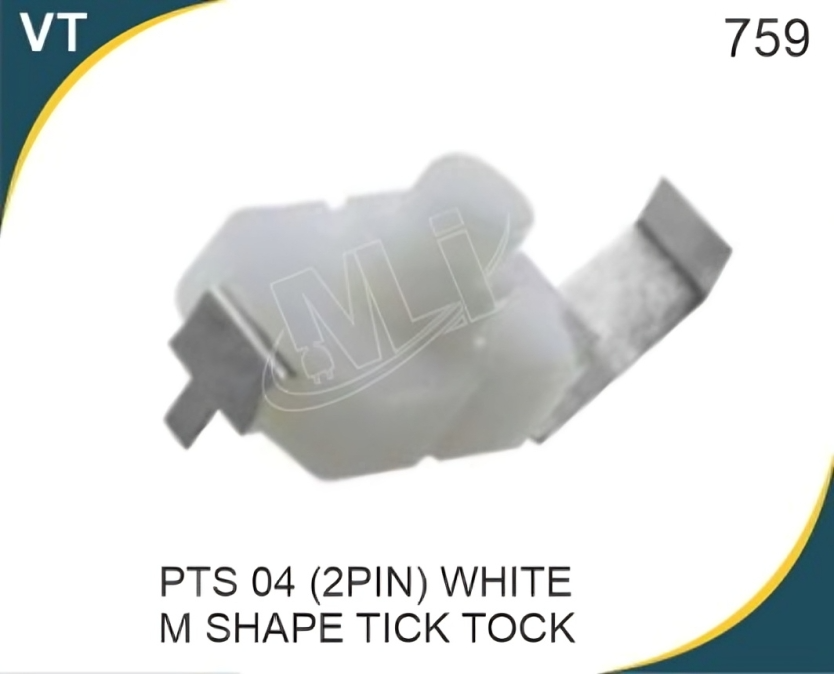

M Shape Switch PTS 04 2PIN WHITE TICK TOCK

Price 3 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

M Shape Switch PTS 04 2PIN WHITE TICK TOCK Specification

Temperature Range
-25C to +70C

Automation Grade
Manual

Protection Level
IP40

Response Time
<10ms

Finish Type
Matte

Circuit Type
SPST

Mechanical Life
100,000 cycles

Rated Voltage
1A

Max. Current
0.1A

Number of Module
1

Product Type
M Shape Switch PTS 04 2PIN WHITE TICK TOCK

Material
Plastic Housing, Copper Alloy Terminals

Insulation Resistance
100M at 500V DC

Contact Resistance
100m

Max. Voltage
30V

Operating Temperature
-25C to +70C

Stoke
2.50mm

Size
4.2mm x 3.2mm

Color
White

Weight
Approx. 0.3g

Mounting Type
Through Hole

Current Rating
0.1A

No Of Poles
Single Pole

M Shape Switch PTS 04 2PIN WHITE TICK TOCK Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About M Shape Switch PTS 04 2PIN WHITE TICK TOCK

Material/Body	Plastic
Number Of Switch Positions	2
Usage/Application	Industrial
Model Name/Number	MLISLN02
Color	White
Rated Voltage	30V DC
Rated Current	1A
Function	ON-OFF
Minimum Order Quantity	1000 Pack

It is a mini self-lock push-button switch widely used in electromagnetic starters, torches, and other electric circuits to control signals manually.
Feature(s):It can easily and effeciently control the power on and power off functioning in a circuit and is widely used in DIY electronics design projects. Its unique design ensures that it can fit your requirements with ease.

Reliable and Durable Design

Engineered for consistent performance, the PTS 04 switch boasts robust silver-plated contacts and copper alloy terminals within a sturdy plastic housing. It offers excellent mechanical life of up to 100,000 cycles, making it suitable for demanding applications. The momentary action and tick tock actuator ensure precise control in every use.

Wide Application Versatility

Ideal for consumer electronics, PCBA, and remote control devices, this switchs adaptable design allows seamless integration in varied circuits. Its manual operation, through-hole mounting, and compact dimensions (4.2mm x 3.2mm) ensure suitability for projects requiring reliable tactile response and compact form factor.

Safety and Compliance Assurance

This switch meets RoHS compliance standards and provides robust dielectric strength (250V AC for one minute) and insulation resistance (100M at 500V DC). With an IP40 protection rating and an operational temperature range from -25C to +70C, it offers dependable performance even in diverse environments.

FAQs of M Shape Switch PTS 04 2PIN WHITE TICK TOCK:

Q: How is the M Shape Switch PTS 04 2PIN WHITE TICK TOCK used in electronic applications?

A: This switch is typically integrated into consumer electronic devices, remote controls, and PCBA, where a momentary push functionality is required. Its SPST circuit type and quick response time make it ideal for triggering actions or sending signals with a tactile feel.

Q: What benefits does the tick tock M-Shape actuator provide?

A: The tick tock M-Shape actuator offers dependable tactile feedback with every press, making it easier for users to identify actuation. It also contributes to the switchs durability and consistent operating force, enhancing the overall user experience in devices.

Q: Where can the M Shape Switch PTS 04 be mounted?

A: The switch features a through-hole mounting type, allowing it to be securely installed on PCBs in consumer electronics and remote control applications. Its compact design makes it suitable for space-constrained settings.

Q: What process should be followed for soldering the 2-pin switch?

A: To ensure reliable connectivity, position the switch on the PCB through designated holes and solder the copper alloy terminals, avoiding excessive heat to protect the plastic housing. Always verify correct orientation and secure attachment for optimal performance.

Q: What is the operating temperature range and why is it important?

A: The switch operates between -25C to +70C, guaranteeing stability and consistent performance even in environments with fluctuating temperatures. This versatility ensures suitability for a range of electronic devices used in varying climates.

Q: When is it advantageous to choose a momentary push switch like this model?

A: A momentary push switch is ideal when a temporary current flow is needed, such as in resetting devices, initiating secondary functions, or providing input signals that require quick, manual activation.

Q: What are the main usage benefits of the silver-plated contacts and IP40 protection level?

A: Silver-plated contacts reduce electrical resistance and enhance switch conductivity, leading to reliable switching action. The IP40 rating provides basic protection against solid objects, supporting dependable operation in typical indoor environments.
