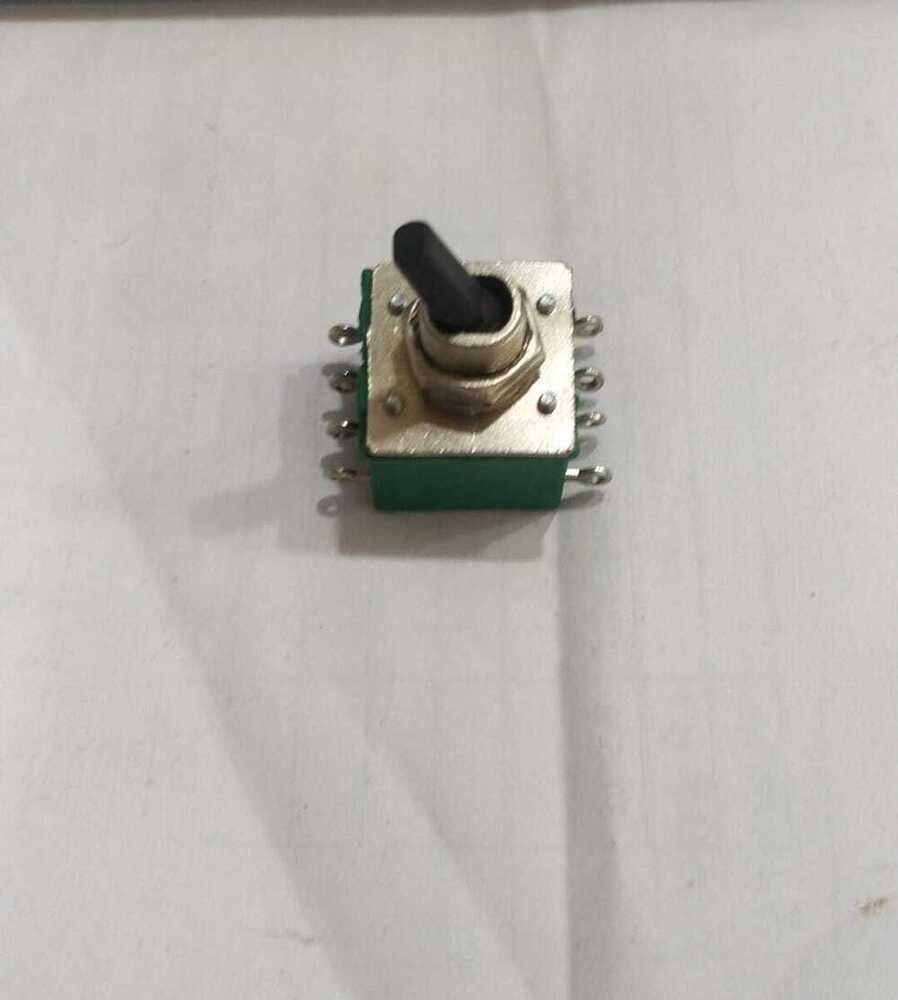

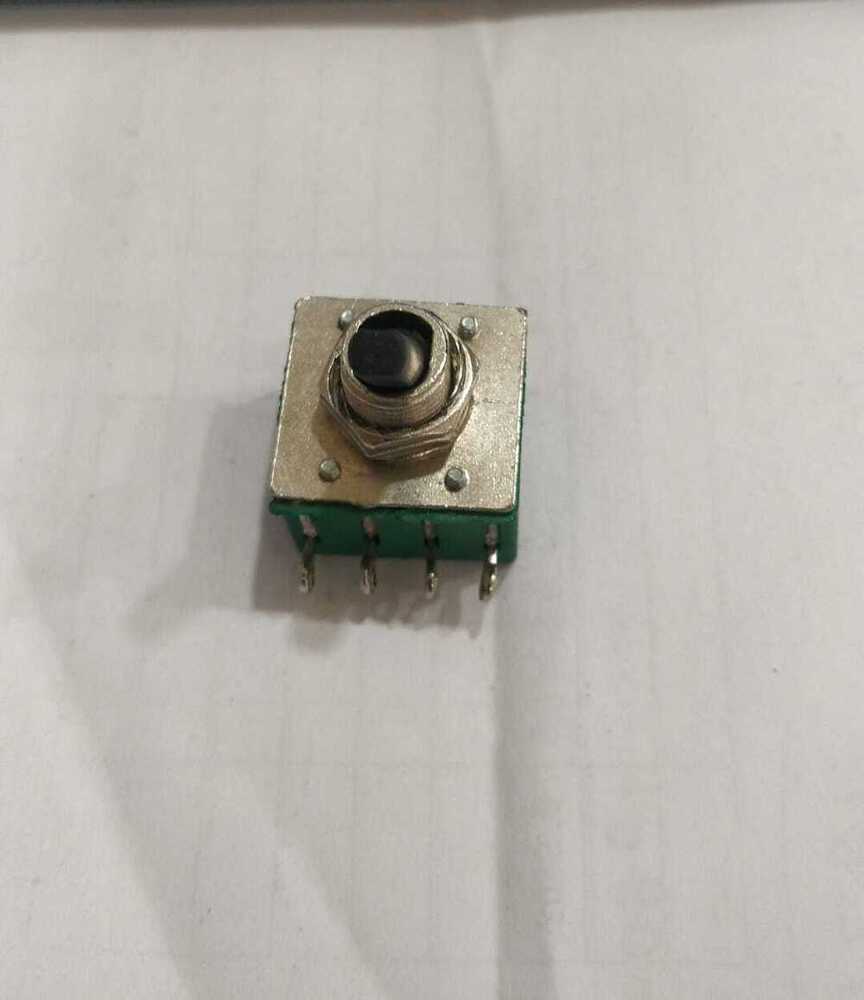

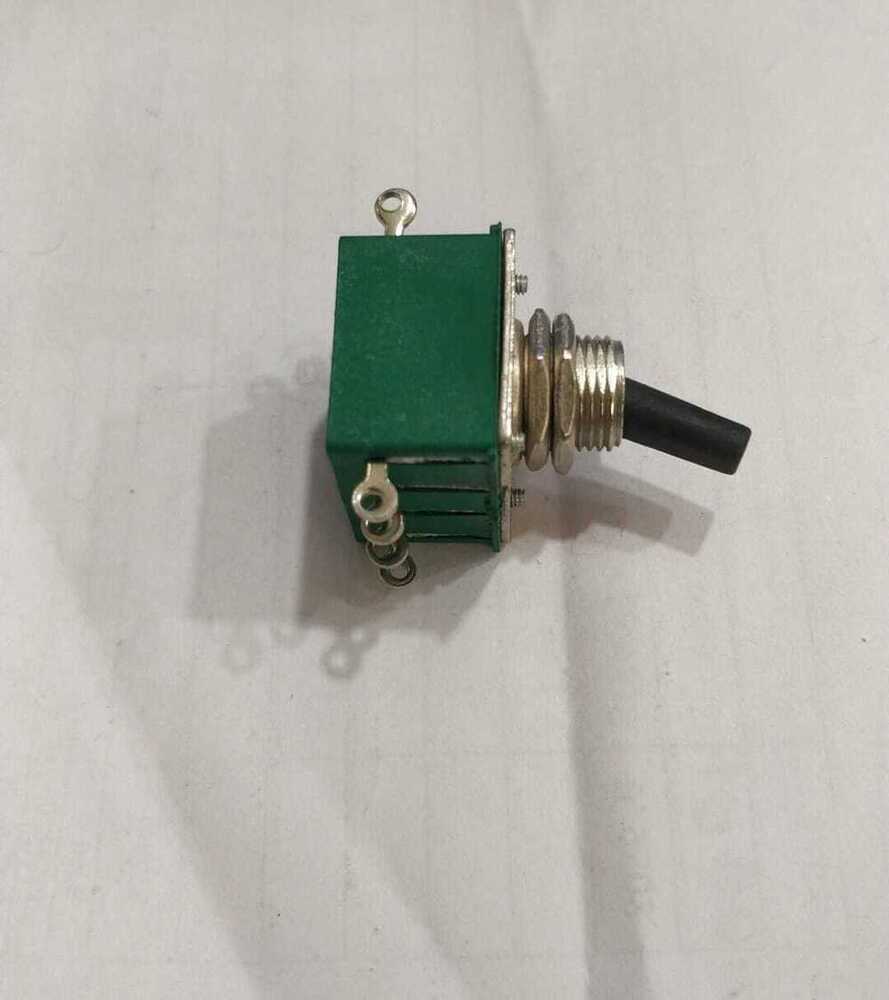

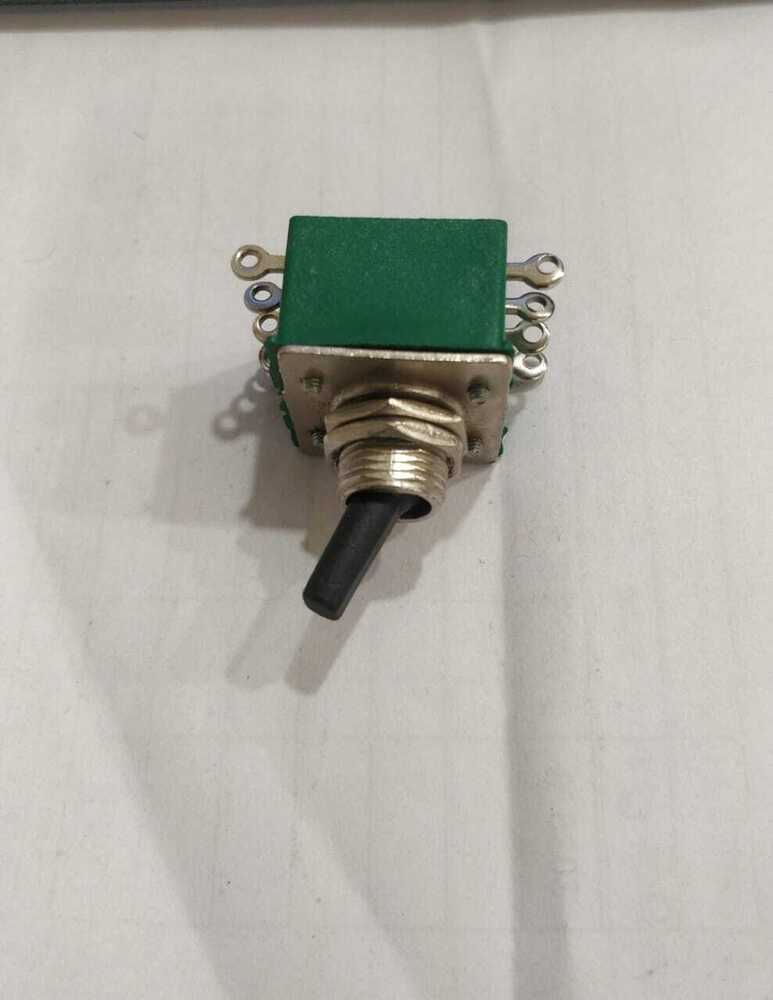

Toggle Switch 2/5 AMP DPDT 8 Pin

Price 25 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Toggle Switch 2/5 AMP DPDT 8 Pin Specification

Response Time
Instant

Protection Level
IP40

Finish Type
Polished Metal & Plastic

Max. Current
5A

Automation Grade
Manual

Rated Voltage
250V AC

Temperature Range
-25C to +85C

Circuit Type
DPDT

Mechanical Life
30,000 operations min

Number of Module
Single Module

Product Type
DPDT 8-Pin Toggle Switch

Material
Plastic and Metal Alloy

Insulation Resistance
100 M min at 500 VDC

Contact Resistance
20 m max

Max. Voltage
250 VAC

Operating Temperature
-25C to +85C

Stoke
ON-OFF-ON

Size
Standard Panel Mount

Color
Silver & Black

Weight
Approx. 12g

Mounting Type
Panel Mount

Current Rating
2A/5A

No Of Poles
Double Pole

Toggle Switch 2/5 AMP DPDT 8 Pin Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Toggle Switch 2/5 AMP DPDT 8 Pin

Current Rating	6A CUSTOM AMP
Switch Function	ON/OFF
Material/Body	Metal
ROHS Compliant	No
Color	Silver

TOGGLE GREEN 8 PIN ON-OFF DPDT
Easy Operation: Simple to use with a straightforward on/off or changeover action.
Panel Mounting: Designed for easy mounting on panels, with options for screw or snap-in installations.
Compact Design: Space-saving design suitable for tight spaces and compact electronic devices.
Current Ratings: Available in various current ratings to suit different electrical loads, from low-power to high-power applications.

Reliable Performance in Demanding Environments

This toggle switch is built to handle challenging settings, with an IP40 protection rating and vibration resistance of 10-55Hz at 1.5mm amplitude. The phenolic insulation and silver alloy contacts provide durability, while the wide operating temperature range (-25C to +85C) ensures consistent performance indoors and outdoors. The high dielectric strength keeps operations safe, even at maximum voltages.

Versatile Application and Simple Installation

Its DPDT configuration and ON-OFF-ON functionality make this switch suitable for controlling two circuits simultaneously. It mounts easily in standard 6mm diameter panel cutouts using solder lug terminals. The device supports manual switching, with an actuator designed for a reliable tactile response, ensuring both professional and hobbyist users enjoy straightforward, stable operation.

Long-Lasting and Efficient

Designed with mechanical endurance in mind, this toggle switch offers a lifespan of over 30,000 cycles, instant response time, and low contact resistance. With current ratings of 2A at 250VAC or 5A at 125VAC, it is ideal for use in industrial, automotive, instrumentation, and home automation where reliability and longevity are paramount.

FAQs of Toggle Switch 2/5 AMP DPDT 8 Pin:

Q: How do I install the Toggle Switch 2/5 AMP DPDT 8 Pin?

A: This toggle switch is designed for standard panel mounting using a 6mm diameter cutout. You can connect the circuit via the 8 solder lug terminals. Ensure the panel is de-energized before installation for safety.

Q: What electrical loads is this switch rated for?

A: The switch can handle loads up to 2A at 250VAC or 5A at 125VAC. This makes it suitable for a range of low to moderate power applications such as lighting, motor control, or instrument switching.

Q: Where can I use this toggle switch?

A: Thanks to its rugged construction and vibration resistance, the switch is ideal for use in industrial control panels, automotive dashboards, electrical appliances, and hobbyist electronic projects.

Q: What are the benefits of the DPDT ON-OFF-ON function?

A: The double pole double throw (DPDT) ON-OFF-ON mechanism enables the control of two independent circuits and allows for versatile switching, such as reversing motor direction or selecting between multiple power sources.

Q: What materials are used in this switch, and why are they important?

A: The switch uses silver alloy contacts for excellent conductivity and low wear, while phenolic insulation ensures safety and high thermal resistance. The actuator lever combines polished metal and plastic for both durability and comfort.

Q: Can this switch withstand high temperatures or humidity?

A: Yes, with a specified operating temperature of -25C to +85C and a storage range from -30C to +85C, it performs reliably in a variety of climates. However, its IP40 rating means it is best used in relatively dry, indoor environments.
