16 MM 4 PIN Circular Connectors

Price 20 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

16 MM 4 PIN Circular Connectors Specification

Voltage Rating
250V AC/DC

Connector
Circular Connector

Application
Industrial Equipment, Automation, Sensors, Control Systems

Male End Type
MALE AND FEMALE

Connector Type
4-PIN Circular

Temperature
-20C to +80C

Material
Other

Pairs
1 Pair

Female End Type
Female Socket

Outer Diameter
16 mm

Cable Type
Round Cable

Number of Conductor
4

Color
Black

Jacket Material
PVC

Insulation
PVC

Wire Gauge
16 MM

Cable Length
Custom Length Available

16 MM 4 PIN Circular Connectors Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 16 MM 4 PIN Circular Connectors

No. of Pins	4
Material	Copper
Telecom/Data/Network	YES
Electrical Fitting	YES
Year	AS PER USE
Minimum Order Quantity	100 Piece

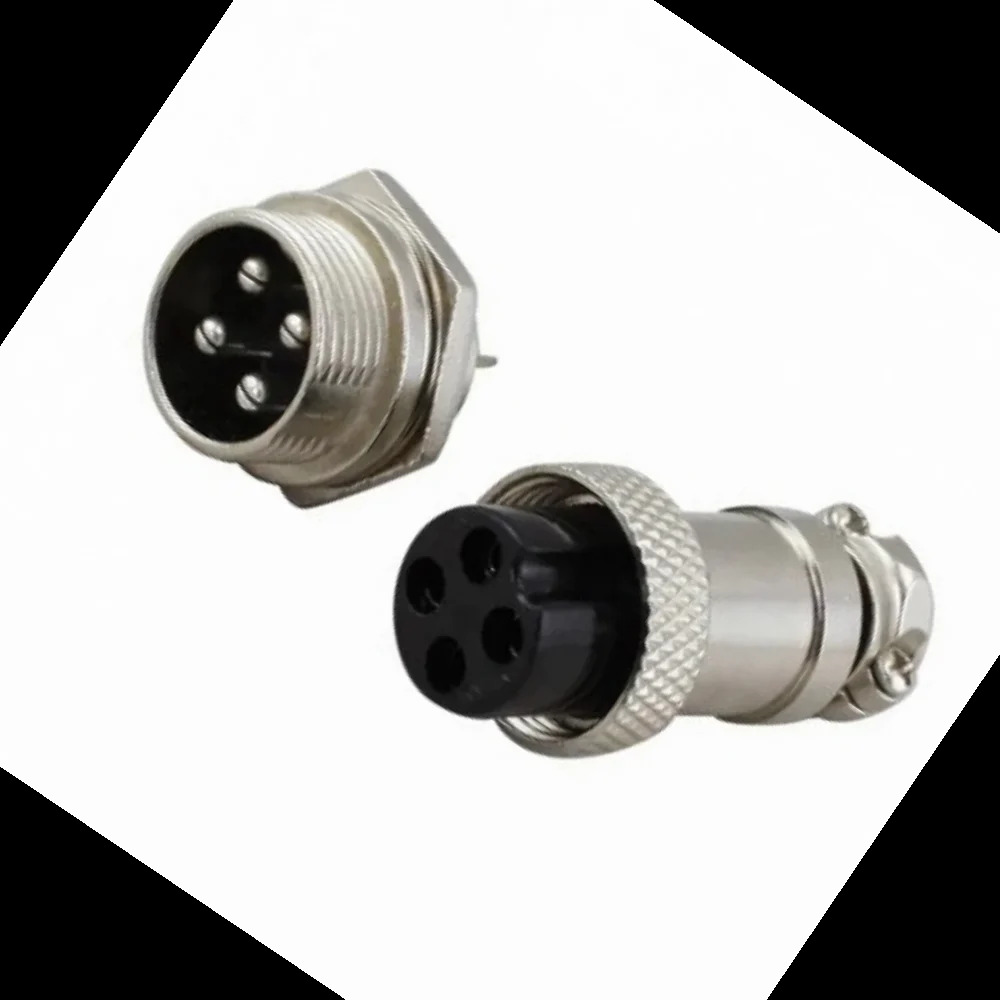

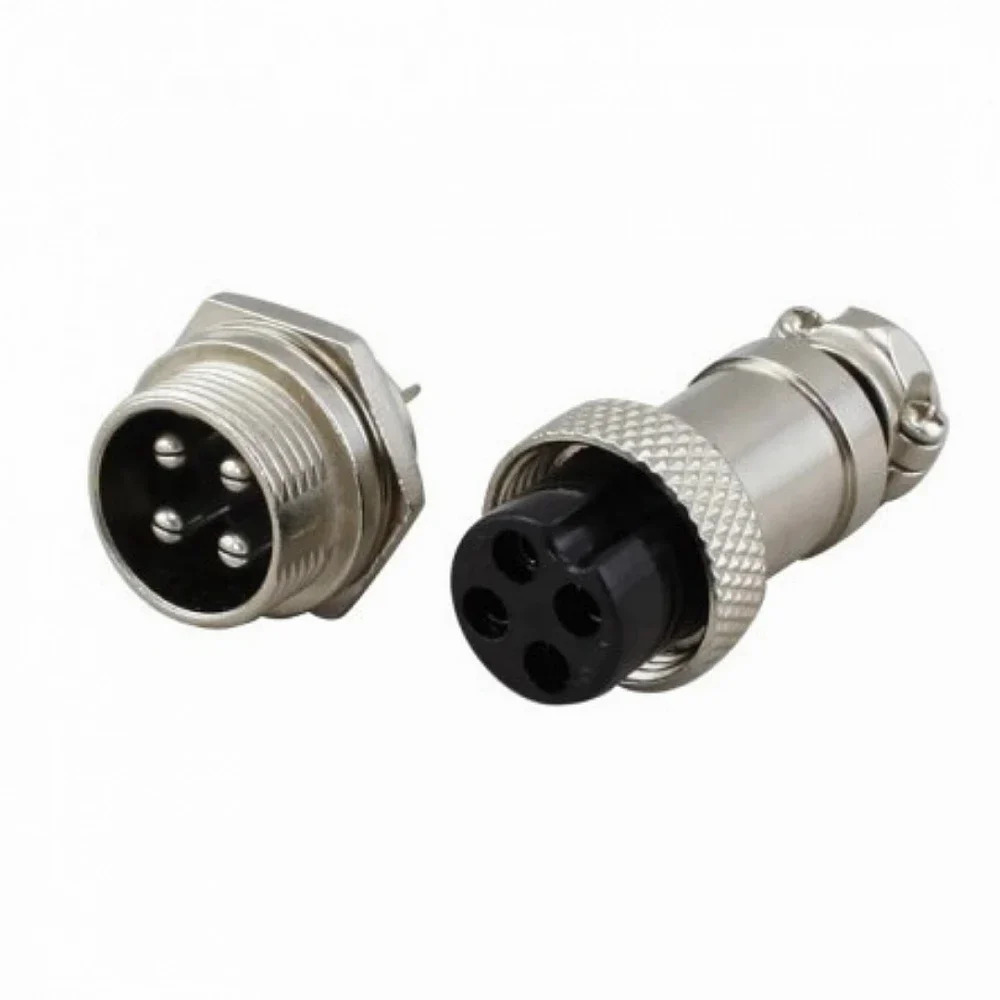

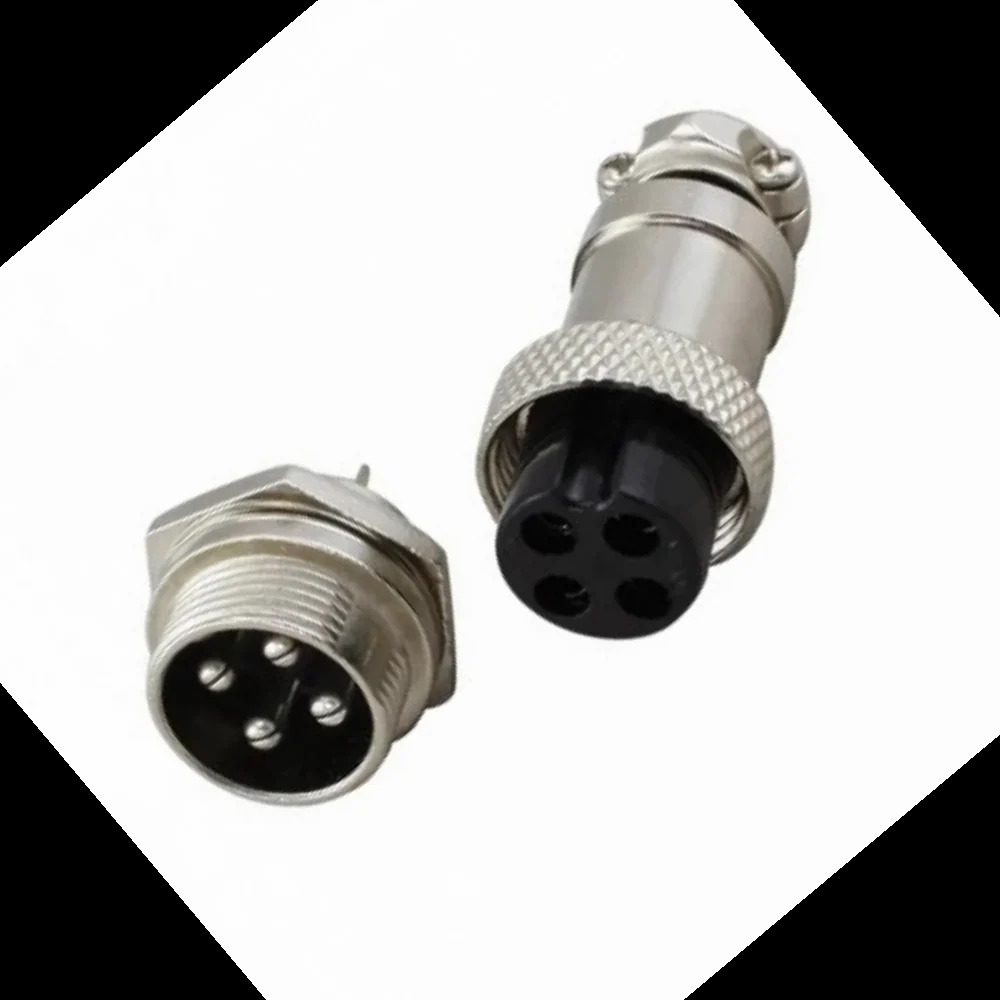

It is a GX-16 4-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-4 Pin air plug socket. Made of solid material, more durable. One set includes one male and one female Connector.
The connector is ideal for panel mounting and has separate male and female pins. The cable can be soldered directly on them

Superior Durability and Protection

Designed for demanding environments, these circular connectors offer IP67 ingress protection, safeguarding against dust and temporary water immersion. With a dielectric strength of 1500V AC and less than 5 m resistance, they ensure reliable data and power transmission in industrial equipment, automation, and sensor networks.

Flexible Installation Options

Available in both panel mount and inline versions, these connectors accommodate solder, screw, or crimp termination for quick and secure connections. Their threaded coupling mechanism enhances locking security, supporting over 500 mating cycles for long-term usability in control systems.

Customizable for Precise Requirements

The 16 mm connectors feature customizable cable lengths and support a standard 4-pin configuration with both male and female ends. The PVC jacket and insulation offer protection across -20C to +80C, making them suitable for varied operational settings.

FAQs of 16 MM 4 PIN Circular Connectors:

Q: How do I mount the 16 mm 4-pin circular connector for my application?

A: You can install the connector using either a panel mount or inline configuration, depending on your equipment setup. For secure attachment, the threaded coupling mechanism provides reliable locking, and termination can be accomplished through soldering, screwing, or crimping methods.

Q: What environments are suitable for these circular connectors?

A: These connectors are ideal for industrial, automation, sensor, and control system applications, thanks to their IP67 rating. They offer protection against dust and water immersion, perform reliably between -20C and +80C, and withstand harsh operational conditions.

Q: When should I choose solder, screw, or crimp termination for installation?

A: The termination type depends on your assembly and maintenance needs. Soldering provides a strong permanent connection, screws enable easier adjustments or repairs, and crimping is suitable for quick, efficient wiring in high-volume installations.

Q: Where are these connectors commonly used in India?

A: Circular connectors of this kind are widely used in Indian industries for automation equipment, sensor arrays, and control systems, distributed by manufacturers, exporters, importers, and traders nationwide.

Q: What are the usage benefits of the threaded coupling mechanism?

A: The threaded coupling offers high mechanical strength and consistent connectivity, supporting over 500 mating cycles. This ensures continued performance and ease of maintenance in demanding environments.

Q: How does the nickel-plated brass contact material benefit the connector?

A: Nickel-plated brass contacts provide excellent conductivity, corrosion resistance, and durability, supporting up to 5A per pin and reliable performance at voltages up to 250V AC/DC.

Q: What customization options are available for the cable length and configuration?

A: Custom cable lengths can be specified to meet installation requirements, with 4-pin configurations, black PVC jacket, and selectable male and female end types to suit various control and sensor setups.
