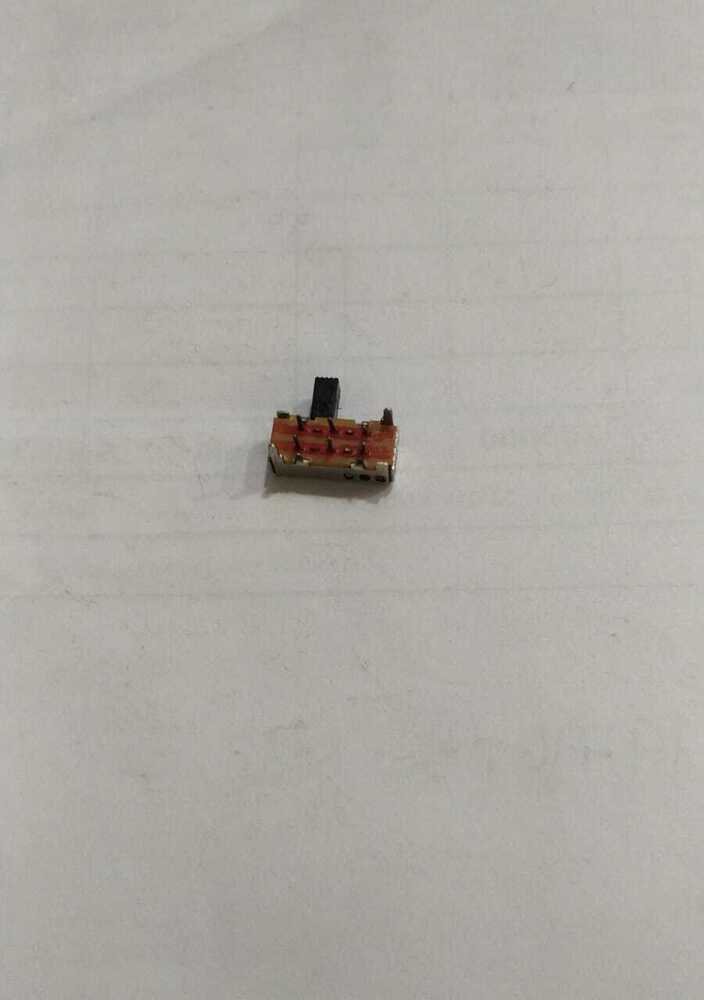

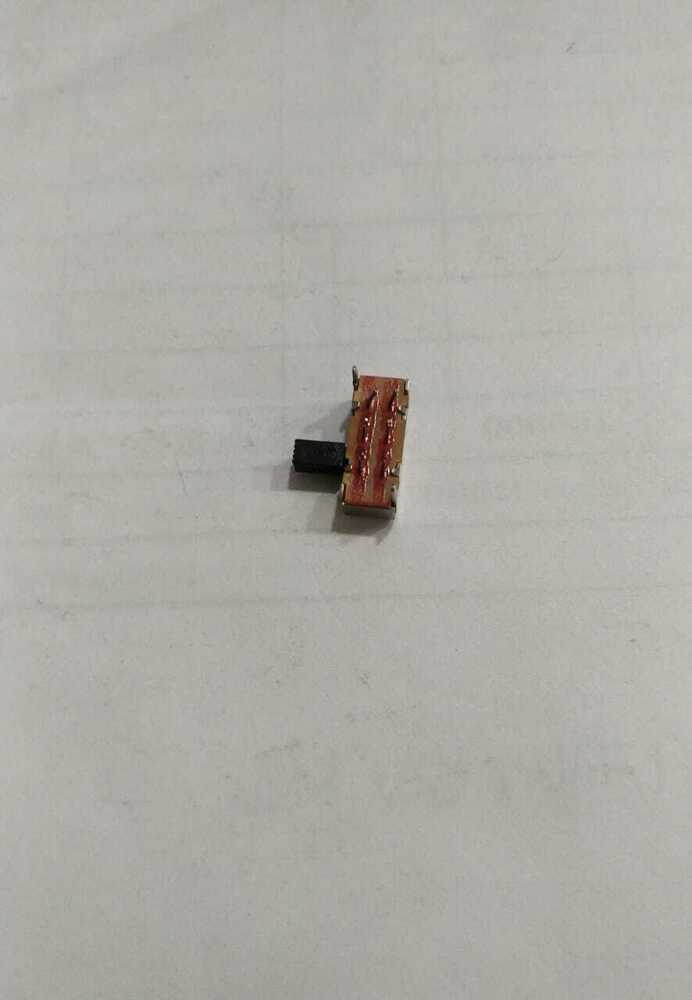

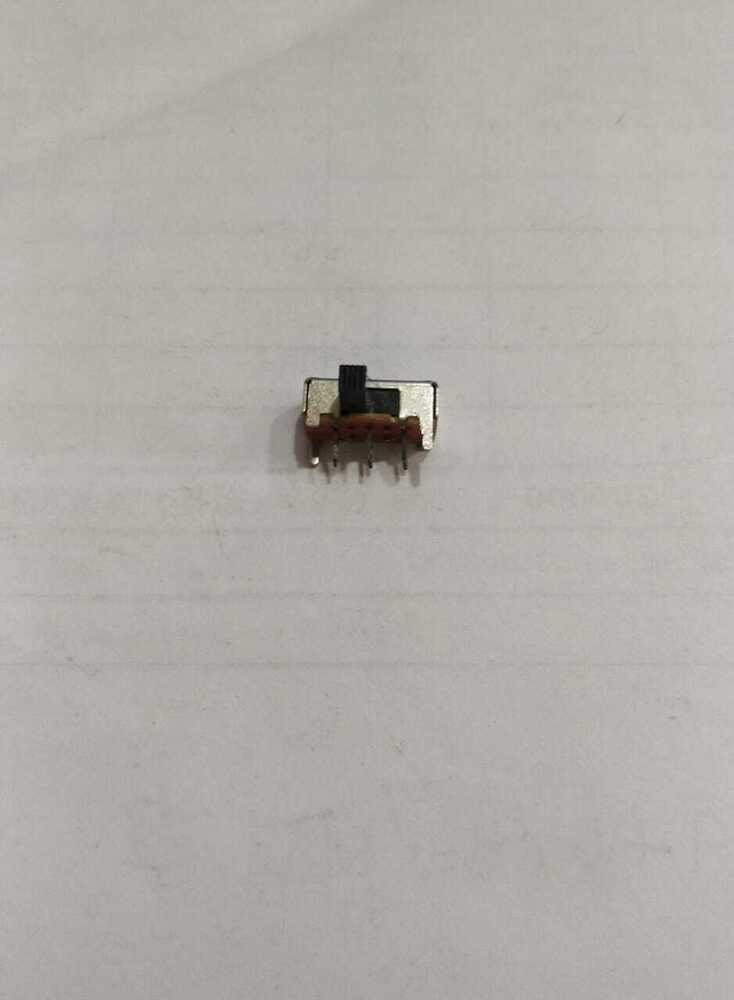

Mini Slide Switch L 3 Pin On Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Mini Slide Switch L 3 Pin On Off Specification

Rated Voltage
DC 12V Volt (V)

Max. Current
1A Ampere (amp)

Mechanical Life
10,000 cycles Months

Number of Module
1

Circuit Type
SPST (Single Pole Single Throw)

Finish Type
Mattel

Protection Level
IP20

Response Time
Instantaneous Seconds

Temperature Range
-20 C to +70 C Celsius (oC)

Automation Grade
Manual

Product Type
3 PIN L MINI SLIDE SWITCH ON-OFF

Insulation Resistance
100M at 500V DC

Contact Resistance
50m Ohm ()

Max. Voltage
50V DC Volt (V)

Operating Temperature
-20 C to +70 C Celsius (oC)

Warranty
no

Stoke
2.5mm

Usage & Applications
toy and electrical components

Size
12mm x 5mm x 3.5mm (L x W x H)

Color
Black

Weight
Approx. 1 gram Grams (g)

Material
iron

Mounting Type
PCB Mount

Current Rating
1A

No Of Poles
1

Mini Slide Switch L 3 Pin On Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Mini Slide Switch L 3 Pin On Off

Discover rare access to ace-level switching performance with the 3 PIN L MINI SLIDE SWITCH ON-OFF. Perfect for PCB mounting, this triumphant switch combines high-grade plastic and copper alloy contacts for reliable conductivity and durability. With a maximum current rating of 1A and superior insulation resistance, its a valuable addition to your projects. Featuring through-hole terminals and environmental RoHS compliance, this compact switch excels in stringent conditions, enduring up to 10,000 mechanical cycles while upholding UL94V-0 flammability safety standards. Suitable for Indias distributors, exporters, importers, manufacturers, and traders.

Advantages, Applications, and Features

The 3 PIN L MINI SLIDE SWITCH ON-OFF stands out for its competitive value in electrical assemblies. Its compact design, IP20 protection level, and high-performance SPST circuit make it perfect for space-restricted panels. Additional features such as excellent contact resistance and robust operating temperature range allow for dependable usage in electronic devices, control boards, and automation panels, ensuring precise and efficient ON-OFF operations across sectors.

Payment Terms, Certifications, and Market Valuation

Available for the export market, this high-value switch is offered at a competitive sale price, reflecting its robust features and certification credibility. With UL94V-0 flammability documentation and RoHS compliance, bulk buyers benefit from favorable payment terms. Samples are available to support product evaluation and quality assurance processes, optimizing buyer confidence and enhancing market valuation.

FAQs of 3 PIN L MINI SLIDE SWITCH ON-OFF:

Q: How is the 3 PIN L MINI SLIDE SWITCH ON-OFF installed on a circuit board?

A: The switch features a through-hole terminal design, allowing easy and secure mounting onto a PCB using standard soldering techniques.

Q: What are the key benefits of the copper alloy contacts in this slide switch?

A: Copper alloy contacts provide excellent conductivity and low contact resistance, ensuring reliable electrical performance over time.

Q: Where can the 3 PIN L MINI SLIDE SWITCH ON-OFF be used?

A: It is suitable for use in electronic projects, control panels, automation devices, and other applications where precise ON-OFF switching is required.

Q: What is the typical electrical and mechanical lifespan of the switch?

A: The switch offers an electrical life of over 5,000 operations and a mechanical life exceeding 10,000 cycles, making it highly durable.

Q: Which standards and certifications does this slide switch comply with?

A: It is UL94V-0 certified for flammability and fully compliant with RoHS regulations, supporting safe and environmentally responsible usage.

Q: What is the process to request a product sample before bulk purchase?

A: Interested buyers or distributors can contact the supplier to request samples for product evaluation and quality verification prior to placing bulk orders.
