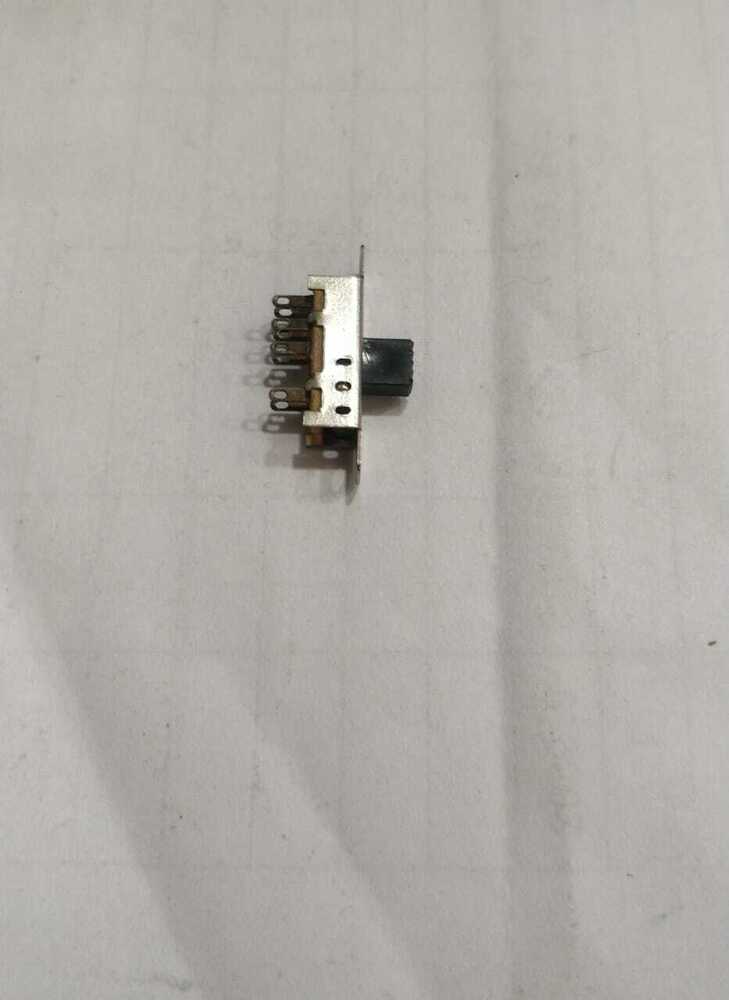

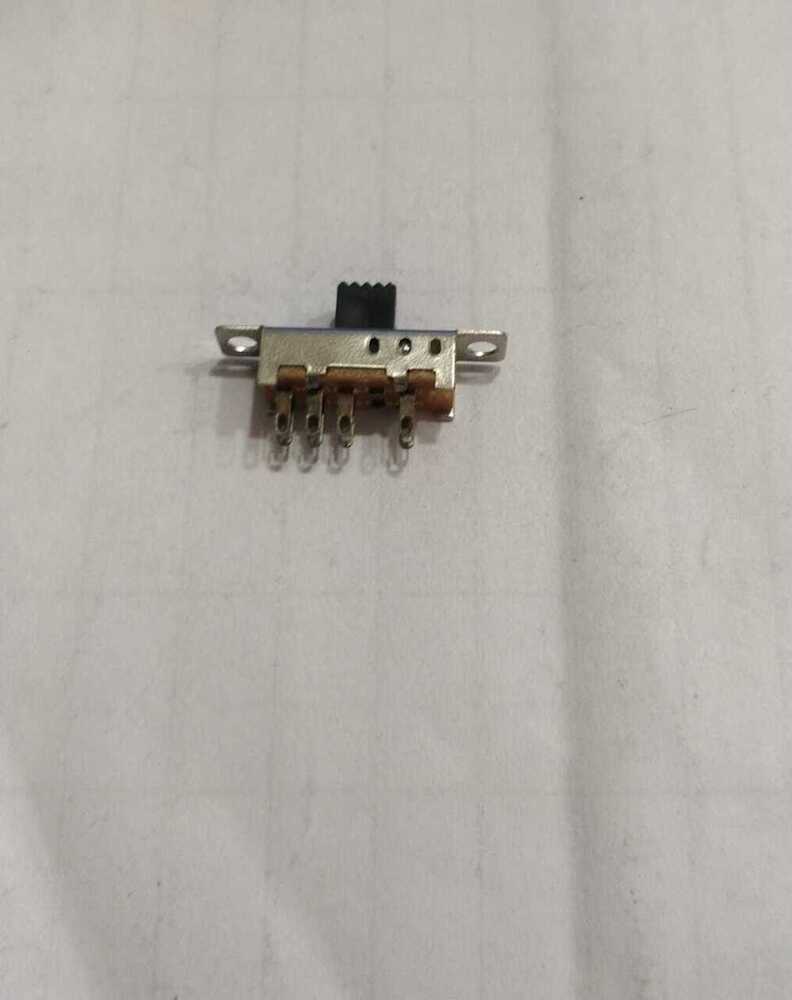

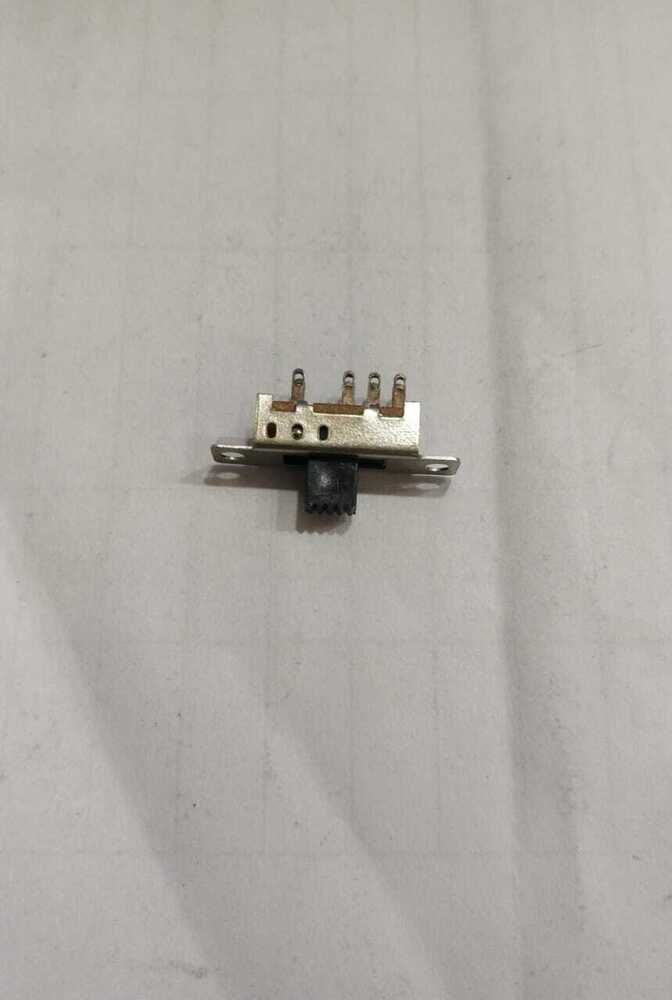

Slide Switch With Screw 8 pin Center Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide Switch With Screw 8 pin Center Off Specification

Temperature Range
-25 C to +85 C Celsius (oC)

Mechanical Life
> 10,000 cycles Months

Number of Module
Single

Circuit Type
DPDT (Double Pole Double Throw)

Response Time
Instantaneous Seconds

Max. Current
3A Ampere (amp)

Automation Grade
Manual

Protection Level
IP20

Rated Voltage
250V AC Volt (V)

Finish Type
Matte finish

Power Rating
3A

Product Type
8 Pin Center-Off Slide Switch with Screw

Insulation Resistance
>= 100 M at 500V DC

Contact Resistance
<= 30 m initial Ohm ()

Max. Voltage
250V AC/DC Volt (V)

Warranty
No Warranty

Stoke
3 Positions (ON-OFF-ON)

Usage & Applications
toy and electrical components

Size
49mm x 13mm x 19mm (Approx)

Operating Temperature
-25 C to +85 C Celsius (oC)

Cable Type
screw type

Color
Black Body with Silver Screw

Weight
Approx 1g Grams (g)

Display Type
No display type

Material
metal case

Mounting Type
Panel Mount with Screw

Current Rating
3A

No Of Poles
8 Pole

Slide Switch With Screw 8 pin Center Off Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About Slide Switch With Screw 8 pin Center Off

Discover the unassailable quality of our Popular 8 PIN CENTER-OFF SLIDE SWITCH WITH SCREW. Engineered for value and durability, it features a radiant matte finish black body with silver screws and robust silver-plated brass contacts. This best-in-class switch promises an efficient ON-OFF-ON (Center-Off) function, supporting 3A at 250V AC/DC. RoHS-compliant and housed in tough polycarbonate, it exhibits exceptional insulation and dielectric strength. Its screw mounting simplifies installation, making it ideal for manual operation in diverse electrical applications. Promotion available for bulk orders!

Applications & Proper Usage of the 8 PIN CENTER-OFF SLIDE SWITCH

The 8 PIN CENTER-OFF SLIDE SWITCH WITH SCREW is tailored for a variety of plant machinery and electrical panels. Its primarily used as a manual control for circuit selection, mode switching, and signal routing. To operate, simply mount it on your control panel using the provided M2.5 screws, wire terminals via the solder lugs, and actuate using the smooth slide function. This device is invaluable for processes demanding quick and reliable multi-position switching.

Packaging, Certifications, and Sample Availability

Each 8 PIN CENTER-OFF SLIDE SWITCH is carefully handed over in secure, branded packaging to prevent transit damage. Certified RoHS compliant, this product meets strict environmental and safety standards. For urgent requirements, we offer express shipping with transparent list prices. Samples are available upon request for quality assurance and evaluation prior to large volume orders, ensuring satisfaction and confidence in every transaction.

FAQs of 8 PIN CENTER-OFF SLIDE SWITCH WITH SCREW:

Q: How do I mount the 8 PIN CENTER-OFF SLIDE SWITCH WITH SCREW?

A: This switch is designed for easy panel mounting using the included M2.5 screw thread. Panel cutout should be approximately 11mm x 47mm for a secure and precise fit.

Q: What certifications does this switch have?

A: The switch is RoHS compliant, ensuring it meets international environmental and safety standards.

Q: Where can the 8 PIN CENTER-OFF SLIDE SWITCH be used?

A: Its ideal for use in industrial plants, automation panels, control boxes, and wherever reliable circuit selection or signal routing is needed.

Q: What is the benefit of the Center-Off slide switch design?

A: The ON-OFF-ON (Center-Off) configuration allows quick toggling between two circuits or switching off entirely, adding flexibility and safety to your electrical setups.
