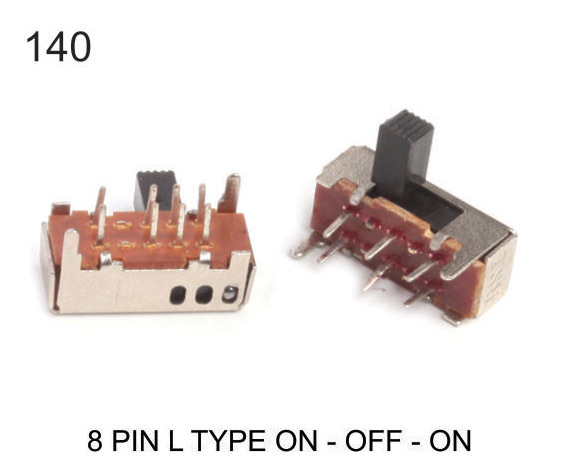

Slide Switch L Type 8 Pin On Off On

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 2000 Pieces

Slide Switch L Type 8 Pin On Off On Specification

Protection Level
IP20

Automation Grade
Manual

Mechanical Life
10,000 cycles Months

Rated Voltage
250V AC Volt (V)

Temperature Range
-25 C to +85 C Celsius (oC)

Circuit Type
ON-OFF-ON

Max. Current
0.3A Ampere (amp)

Number of Module
8 Pin

Finish Type
Matte

Response Time
Instant Seconds

Product Type
8 PIN L TYPE ON-OFF-ON Slide Switch

Power Rating
-25 C to +85 C

Insulation Resistance
100 M at 500VDC

Contact Resistance
50 m Ohm ()

Max. Voltage
250V AC Volt (V)

Warranty
No Warranty

Stoke
2.5 mm

Usage & Applications
Toys

Size
Length 13.5mm x Width 5.2mm x Height 9.5mm (approx)

Operating Temperature
-25 C to +85 C Celsius (oC)

Cable Type
Slide Switch L Type

Color
Black

Weight
Approx 2g Grams (g)

Display Type
No display type

Material
matel case

Mounting Type
PCB Through Hole

Current Rating
0.3A at 50V DC

No Of Poles
DPDT (Double Pole Double Throw)

Storage Temperature
-40°C to +90°C

Terminal Type
Solder type

RoHS Compliance
Yes

Application
Electronic circuits, DIY projects

Actuator Type
Flat L Type

Mounting Orientation
Horizontal

Switch Travel
2.5mm

Dielectric Strength
AC 1000V for 1 min

Package Inclusion
1 Piece per pack

Vibration Endurance
10~55Hz, amplitude 1.5mm

Switching Function
2-position & Center Off

Contact Material
Copper Alloy with Silver Plating

Contact Configuration
DPDT

Slide Switch L Type 8 Pin On Off On Trade Information

Minimum Order Quantity
2000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Slide Switch L Type 8 Pin On Off On

Unlock impeccable circuit control with our splendid 8 PIN L TYPE ON-OFF-ON Slide Switch. Featuring a customizable configuration, this DPDT switch combines a robust copper alloy contact optimized with silver plating to ensure towering performance. Enjoy a special rate on each piece packed for convenience. Its flat L type actuator, solder terminals, and horizontal mounting offer flexibility for DIY projects or professional electronics. Certified RoHS compliant and boasting a mechanical life of 10,000 cycles, this switch promises reliability. Instantly responsive, rated 250V AC/0.3A, it includes a plastic matte body and metal lever for lasting durability.

Versatile Usage and Competitive Edge

The 8 PIN L TYPE ON-OFF-ON Slide Switch is utilized in electronic circuits and DIY projects, benefiting hobbyists and professionals alike. Its key advantages include precise DPDT contact configuration, superb insulation resistance, and splendid vibration endurance. Featuring instant response and robust mechanical life, it stands out with superior customization for diverse mounting needs. This products competitive edge lies in its reliable switching function, impeccable build, and adherence to strict RoHS standards, making it ideal for various applications.

Premium Supply and Swift Logistics

Experience premium delivery with prompt supply and efficient logistics for the 8 PIN L TYPE ON-OFF-ON Slide Switch. Samples are available to assess quality before bulk purchase. Delivery time is minimized thanks to our streamlined logistics network and reliable FOB port in India. We ensure every switch arrives in flawless condition, supporting distributors, exporters, importers, and manufacturers. With attention to timely distribution, buyers enjoy convenience and peace of mind with every shipment.

FAQs of 8 PIN L TYPE ON-OFF-ON SLIDE SWITCH:

Q: How is the 8 PIN L TYPE ON-OFF-ON Slide Switch installed?

A: The switch is designed for easy installation using PCB through-hole mounting, with its solder type terminals enabling secure connectivity in electronic circuits.

Q: What makes this slide switch beneficial for DIY projects?

A: Its customizable features, impeccable switching accuracy, and splendid mechanical endurance make it highly suitable for DIY electronics and hobbyist applications.

Q: Where can distributors or manufacturers get samples of the switch?

A: Samples are available from authorized suppliers or manufacturers, allowing for product evaluation prior to bulk procurement and integration into projects.

Q: When should I use this switch in my electronic designs?

A: This switch is ideal when you require a DPDT ON-OFF-ON configuration, robust vibration endurance, and reliable performance in electronic circuits and prototyping.

Q: What is the process to order and receive delivery?

A: Ordering involves contacting the distributor or manufacturer in India, who will facilitate swift logistics through a reliable FOB port, ensuring timely supply and secure delivery.

Q: How does the protection level and mechanical life contribute to usage?

A: With an IP20 protection rating and mechanical life of 10,000 cycles, it ensures enduring performance and safety in electronic switching, supporting long-term, dependable operation.
