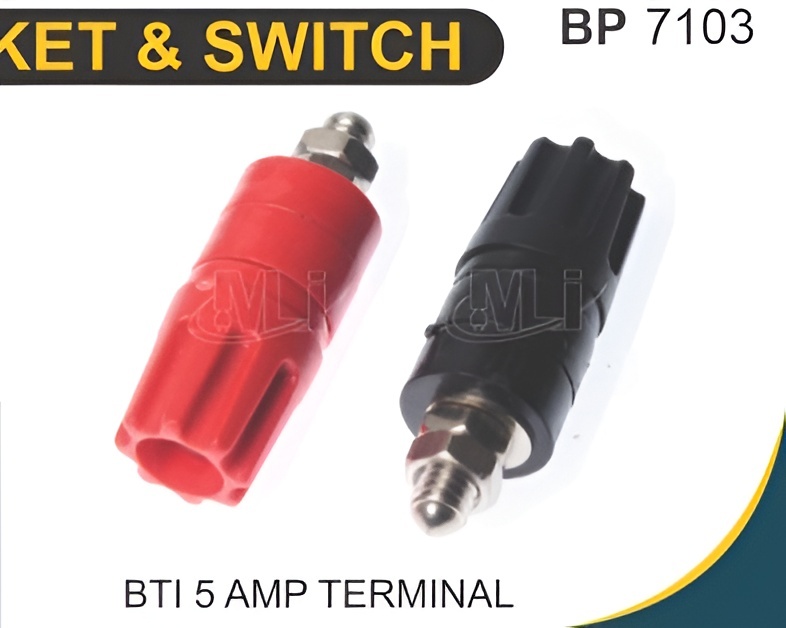

BTI 5 AMP Terminal - Best Price in Delhi for Electronics Applications

जांच भेजें

Request To Call Back

Price 11 आईएनआर/ टुकड़ा

मूल्य/उद्धरण प्राप्त करें

MOQ : 1000 टुकड़ाs

Specification

सतह का उपचार

मोटाई
3 mm

मुहरबंद

केबल का व्यास
2.5 mm max

प्रॉडक्ट टाइप

मटेरियल

एप्लीकेशन
Control Panel, Distribution Boards

संपर्क प्रतिरोध
<10 mΩ

इन्सुलेशन प्रतिरोध
>1000 MΩ at 500V DC

व्यास
7 mm (mounting hole)

टर्मिनल सॉकेट
5 Amp Single Pole

स्टाइल
Open Mount

फिटिंग्स
Screw Type

रेटेड वोल्टेज
250 V AC

वज़न
Approx. 15 g

रंग

Trade Information

Minimum Order Quantity
1000 टुकड़ाs

नमूना उपलब्ध
Yes

नमूना नीति

मुख्य घरेलू बाज़ार

About

Material	Brass
Usage/Application	Electronics
Size	5 AMP
Brand	IMPORTED
Packaging Size	STANDARD
Number Of Holes	2
Number Of टुकड़ा	2
Surface Finished	MATT
Minimum Order Quantity	100 टुकड़ा

Powering electronic projects and prototypes.
Temporary and permanent battery connections in devices.
Laboratory and educational use for experiments and testing.
Battery-powered devices and gadgets.

Precision Engineering for Safety

Designed with a sturdy bakelite body and copper contacts, the BTI 5 AMP Terminal ensures excellent insulation resistance (>1000 M at 500V DC) and low contact resistance (<10 m). The material selection and nickel-plated contacts enhance both electrical performance and product longevity, critical for safe operation in control panels and distribution boards.

Flexible Panel Mount Solution

This single-pole, panel-mounted terminal is tailored for straightforward integration into your electrical systems. The open mount style, 3 mm thickness, and 7 mm mounting hole diameter simplify installation, while M3 steel screws with a maximum torque of 0.5 Nm ensure firm clamping for wires up to 2.5 mm diameter.

Compliant & Versatile Application

BTI 5 AMP Terminals comply with RoHS and meet UL94 V-0 flammability standards, making them suitable for a broad range of applications requiring reliability and environmental compliance. Whether used by manufacturers, distributors, or traders, these terminals support safe and consistent operation across various industrial environments.

FAQs of BTI 5 AMP TERMINAL:

Q: How should the BTI 5 AMP Terminal be installed in a control panel?

A: To install the BTI 5 AMP Terminal, fit it into a 7 mm diameter mounting hole on your panel. Secure the terminal with the provided screw fittings, ensuring wires are clamped using the brass strip and steel screws. Tighten the M3 screws up to a maximum torque of 0.5 Nm for optimal contact.

Q: What are the main benefits of using a bakelite body with copper contacts in this terminal?

A: A bakelite body ensures high insulation and durability, while copper contacts (with nickel plating) provide excellent electrical conductivity and resistance to corrosion, resulting in reliable long-term performance.

Q: When should this terminal be chosen over multi-pole terminals?

A: The BTI 5 AMP Terminal is ideal when a single-pole, compact solution is required for individual connections, commonly in applications like control panels or distribution boards where separation or isolation of circuits is necessary.

Q: Where can the BTI 5 AMP Terminal be effectively utilized?

A: This terminal is best suited for installation in control panels and distribution boards within commercial and industrial environments. It is widely used throughout India by manufacturers, exporters, and distributors.

Q: What is the process for wire clamping in this terminal?

A: Wires up to 2.5 mm in diameter should be inserted into the terminal and secured using the integrated brass strip and steel screws. The design ensures a firm and reliable electrical connection, minimizing contact resistance.

Q: What makes this terminal compliant with safety regulations?

A: The terminal complies with RoHS environmental standards and UL94 V-0 flammability requirements, ensuring it is safe to use in regulated environments while providing fire retardancy and eco-friendliness.
