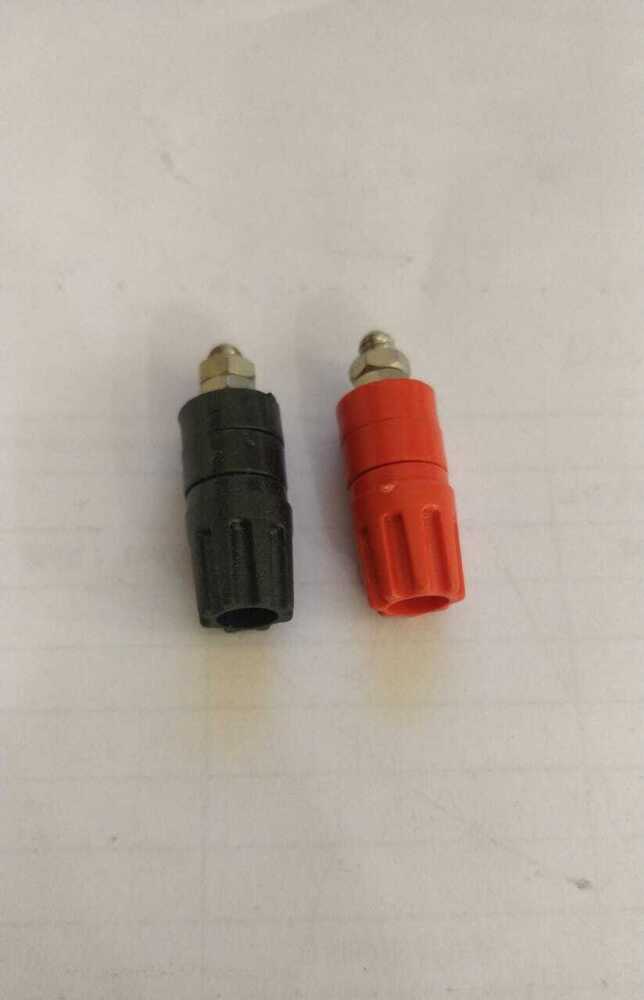

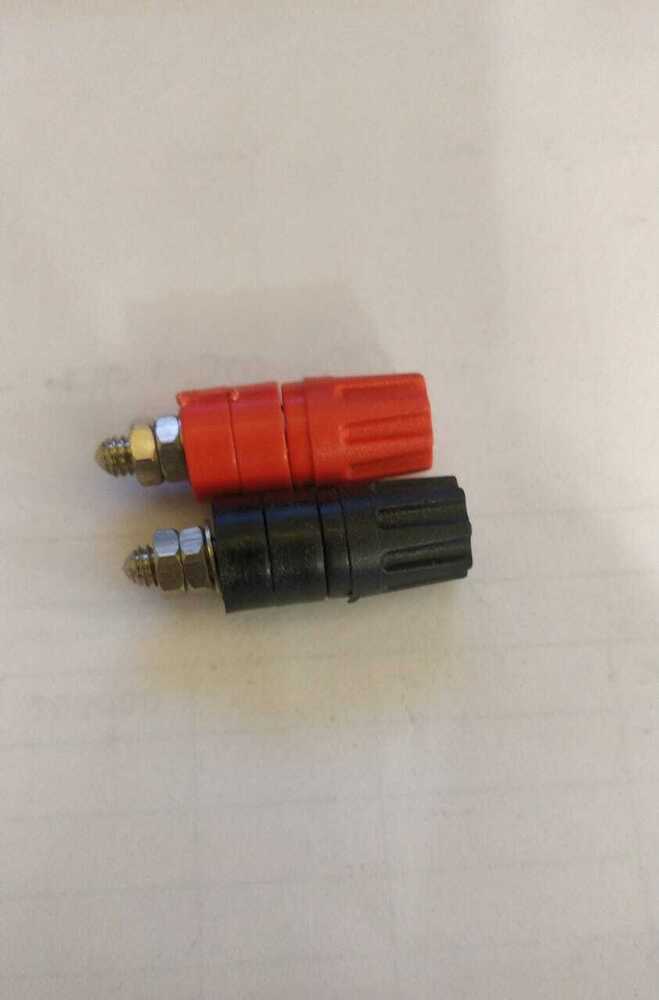

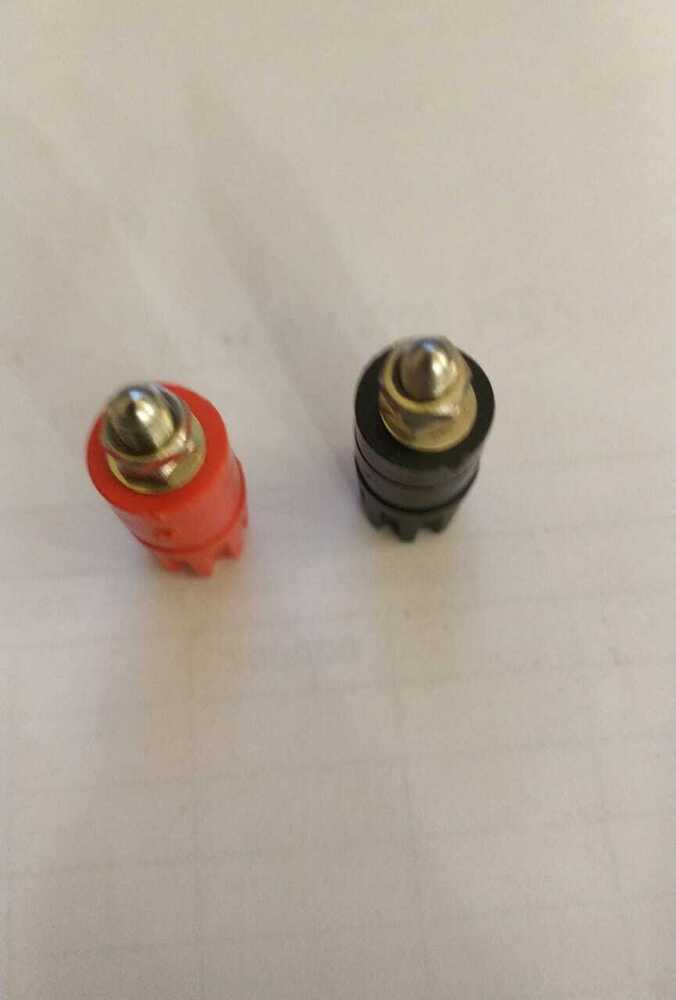

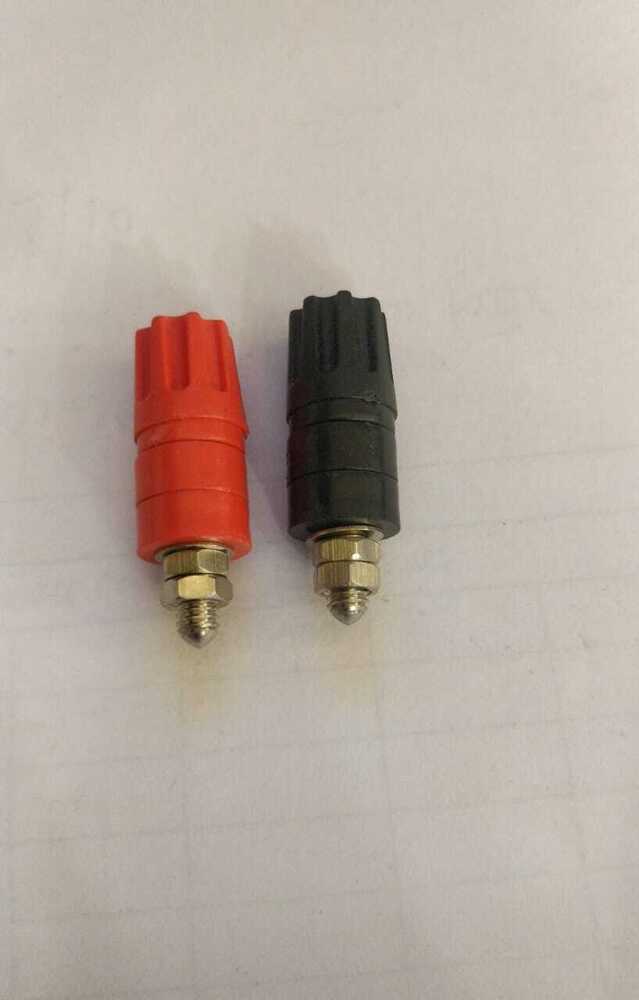

BTI 5 AMP TERMINAL

Price 11 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

BTI 5 AMP TERMINAL Specification

Thickness
3 mm

Surface Treatment
Nickel Plated Contacts

Cable Diameter
2.5 mm max

Sealed
NO

Product Type
Terminal Block

Material
Bakelite Body, Copper Contacts

Application
Control Panel, Distribution Boards

Contact Resistance
<10 m

Insulation Resistance
>1000 M at 500V DC

Diameter
7 mm (mounting hole)

Terminal Socket
5 Amp Single Pole

Style
Open Mount

Fittings
Screw Type

Rated Voltage
250 V AC

Weight
Approx. 15 g

Color
Black

Number of Ways
Single Pole

Current Carrying Capacity
5 Amps Continuous

RoHS Compliance
Yes

Operating Temperature
-25C to +85C

Flammability
Complies with UL94 V-0

Mounting Type
Panel Mount

Torque
0.5 Nm Max for Screws

Wire Clamping
Brass Strip with Steel Screws

Screw Size
M3

BTI 5 AMP TERMINAL Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About BTI 5 AMP TERMINAL

Material	Brass
Usage/Application	Electronics
Size	5 AMP
Brand	IMPORTED
Packaging Size	STANDARD
Number Of Holes	2
Number Of Piece	2
Surface Finished	MATT
Minimum Order Quantity	100 Piece

Powering electronic projects and prototypes.
Temporary and permanent battery connections in devices.
Laboratory and educational use for experiments and testing.
Battery-powered devices and gadgets.

Precision Engineering for Safety

Designed with a sturdy bakelite body and copper contacts, the BTI 5 AMP Terminal ensures excellent insulation resistance (>1000 M at 500V DC) and low contact resistance (<10 m). The material selection and nickel-plated contacts enhance both electrical performance and product longevity, critical for safe operation in control panels and distribution boards.

Flexible Panel Mount Solution

This single-pole, panel-mounted terminal is tailored for straightforward integration into your electrical systems. The open mount style, 3 mm thickness, and 7 mm mounting hole diameter simplify installation, while M3 steel screws with a maximum torque of 0.5 Nm ensure firm clamping for wires up to 2.5 mm diameter.

Compliant & Versatile Application

BTI 5 AMP Terminals comply with RoHS and meet UL94 V-0 flammability standards, making them suitable for a broad range of applications requiring reliability and environmental compliance. Whether used by manufacturers, distributors, or traders, these terminals support safe and consistent operation across various industrial environments.

FAQs of BTI 5 AMP TERMINAL:

Q: How should the BTI 5 AMP Terminal be installed in a control panel?

A: To install the BTI 5 AMP Terminal, fit it into a 7 mm diameter mounting hole on your panel. Secure the terminal with the provided screw fittings, ensuring wires are clamped using the brass strip and steel screws. Tighten the M3 screws up to a maximum torque of 0.5 Nm for optimal contact.

Q: What are the main benefits of using a bakelite body with copper contacts in this terminal?

A: A bakelite body ensures high insulation and durability, while copper contacts (with nickel plating) provide excellent electrical conductivity and resistance to corrosion, resulting in reliable long-term performance.

Q: When should this terminal be chosen over multi-pole terminals?

A: The BTI 5 AMP Terminal is ideal when a single-pole, compact solution is required for individual connections, commonly in applications like control panels or distribution boards where separation or isolation of circuits is necessary.

Q: Where can the BTI 5 AMP Terminal be effectively utilized?

A: This terminal is best suited for installation in control panels and distribution boards within commercial and industrial environments. It is widely used throughout India by manufacturers, exporters, and distributors.

Q: What is the process for wire clamping in this terminal?

A: Wires up to 2.5 mm in diameter should be inserted into the terminal and secured using the integrated brass strip and steel screws. The design ensures a firm and reliable electrical connection, minimizing contact resistance.

Q: What makes this terminal compliant with safety regulations?

A: The terminal complies with RoHS environmental standards and UL94 V-0 flammability requirements, ensuring it is safe to use in regulated environments while providing fire retardancy and eco-friendliness.
