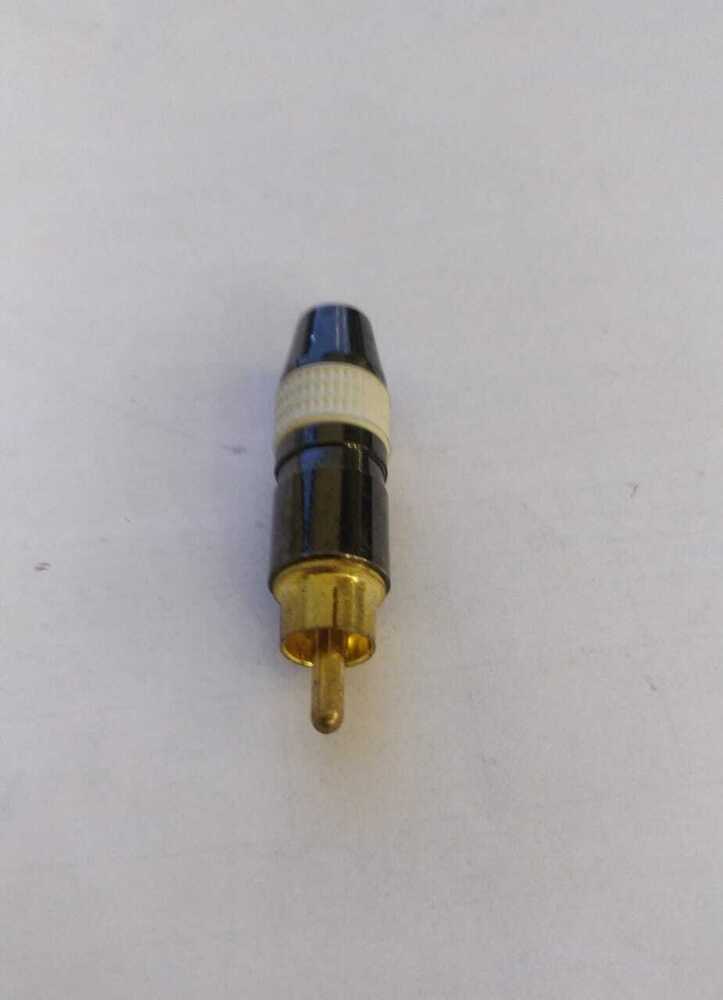

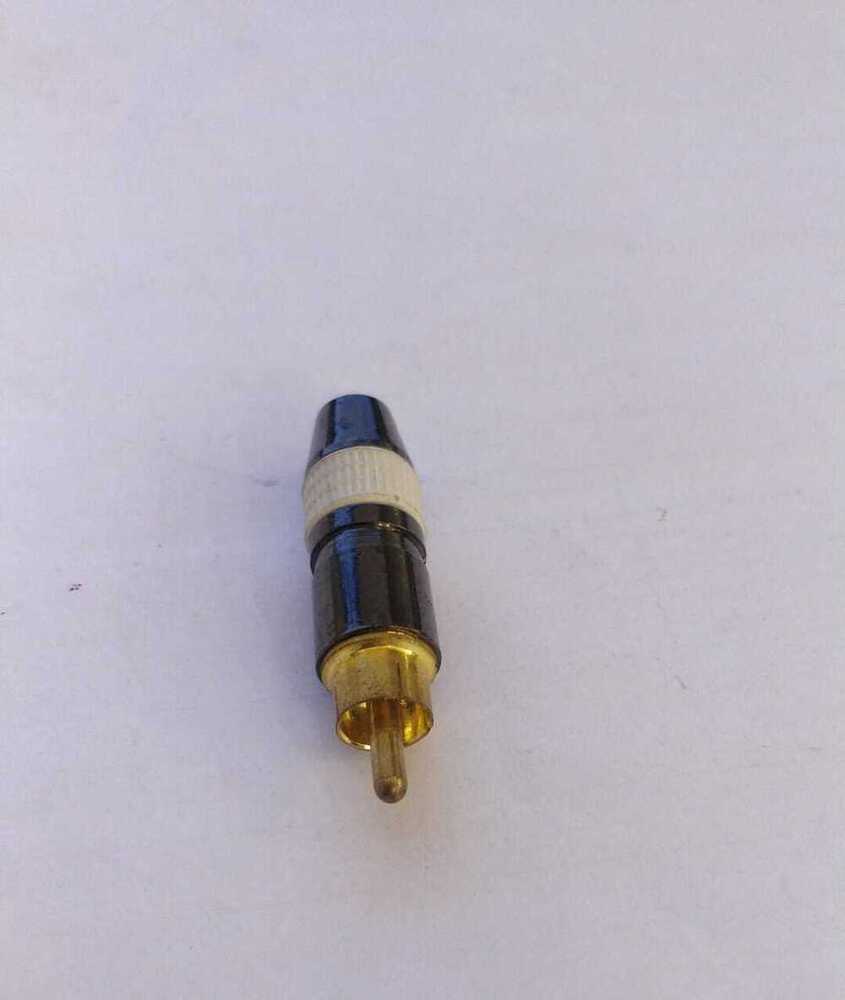

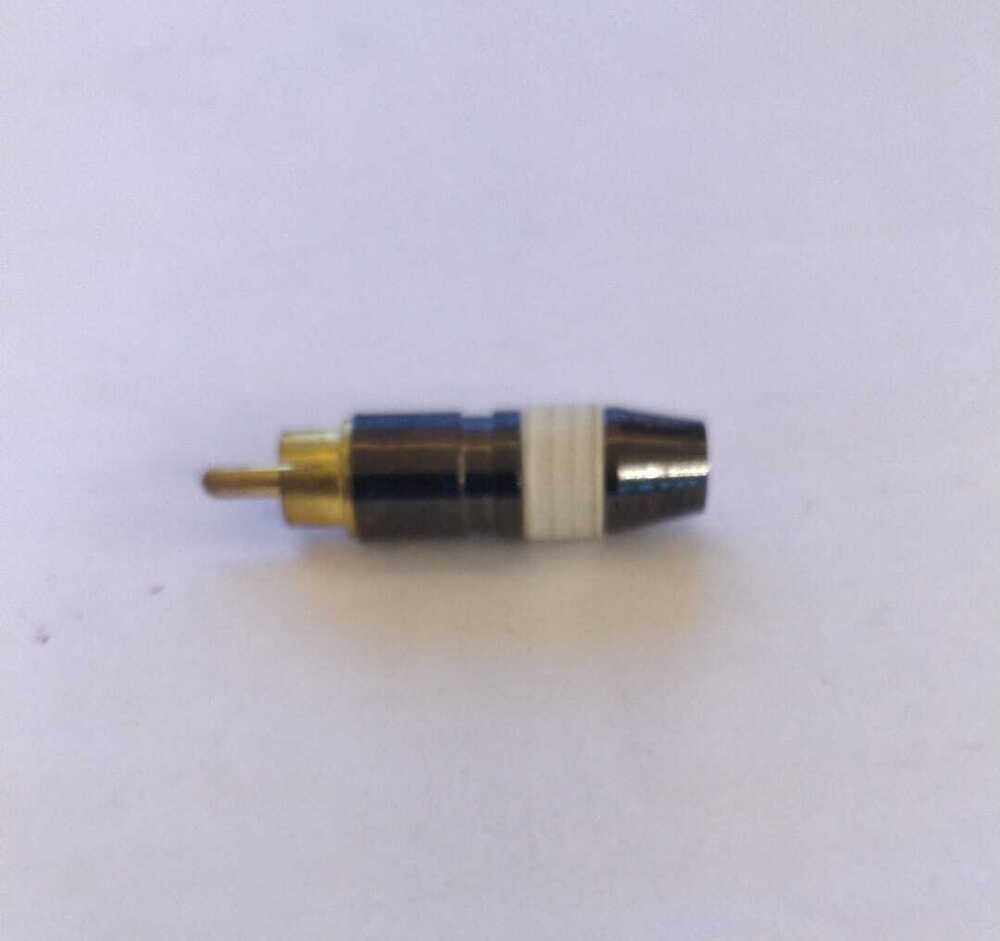

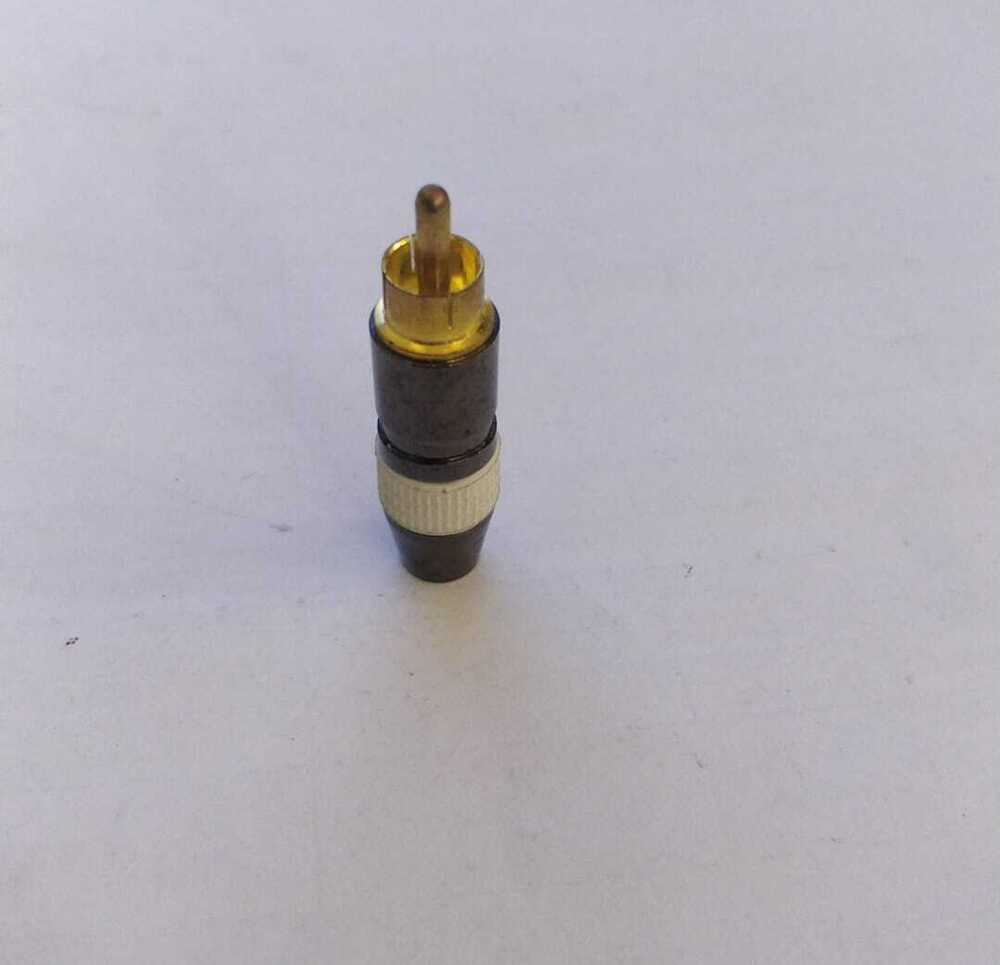

RCA PIN COLOUR BOOT (6 COLOUR) METAL, Standard, Male

Price 37 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

RCA PIN COLOUR BOOT (6 COLOUR) METAL, Standard, Male Specification

Product Type
RCA Pin Connector (Male), Colour Boot

Material
Metal Body with PVC Colour Boot

Withstand Voltage
AC 500V/1 minute

Application
Audio/Video Signal Transmission, Electronic Devices, Home Theater, Amplifiers

Insulation Resistance
1000 M min at 500V DC

Height
Standard

Weight
Approx. 5g each

Color
6 Colour Boot (Red, White, Yellow, Blue, Black, Green)

Operating Temperature
-25C to +85C

Compatibility
RCA Female Sockets

Boot Type
Color Coded PVC Boot

Connector Gender
Male

Shielding
Metal Housing for Signal Protection

Body Finish
Nickel Plated

Pin Diameter
Standard (Approx. 3mm)

RoHS Compliance
Yes

Contact Plating
Gold or Nickel (Depending on Variant)

Mounting Type
Cable Mount, Solder Type

Number of Pieces in Set
6 Colours per Set

RCA PIN COLOUR BOOT (6 COLOUR) METAL, Standard, Male Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About RCA PIN COLOUR BOOT (6 COLOUR) METAL, Standard, Male

Brand	NO
Connector Gender	MALE
Contact Material	METAL
Contact Plating	STANDARD
Current Rating	STANDARD
Minimum Order Quantity	100 Piece

- Prevent ground loops in audio systems.
- Isolate and protect components from voltage spikes.
- Interface different audio equipment with varying impedances.
Advantages:
- Electrical isolation between input and output.
- Noise reduction and signal integrity improvement.
- Compatibility with various audio standards.

Identifying Your Connection

With six distinctive PVC colour boots (red, white, yellow, blue, black, green), these RCA connectors make it effortless to organise and distinguish between different cables during installation or troubleshooting. This colour-coding system enables more efficient setup for audio and video systems, reducing connection errors.

Superb Signal Protection and Reliability

A metal housing provides robust shielding, minimising signal loss and electromagnetic interference. Enhanced with either gold or nickel contact plating (depending on the variant), these connectors uphold high signal integrity and deliver clear audio/video transmission consistently.

User-Friendly, Versatile Mounting

Designed for cable mount applications, these connectors use a standard solder type connection. Their lightweight yet sturdy construction, combined with a secure PVC colour boot, ensures quick assembly and reliable attachment in various electronic and home theater environments.

FAQs of RCA PIN COLOUR BOOT (6 COLOUR) METAL, Standard, Male:

Q: How should I use the RCA PIN COLOUR BOOT connectors in my home theater system?

A: Simply match each color-coded boot (red, white, yellow, blue, black, green) to the corresponding ports on your home theaters devices and cables. Solder the connector to your cables, then insert the male pins into female RCA sockets for clear audio and video transmission.

Q: What are the primary benefits of the metal housing and gold/nickel plating?

A: The robust metal housing offers excellent shielding against electromagnetic interference, preserving signal clarity. Gold or nickel plating on the contacts enhances conductivity, minimises oxidation, and extends connector lifespan for reliable performance.

Q: When is soldering required during installation?

A: Soldering is necessary when attaching the RCA PIN COLOUR BOOT connectors to your cables. This process ensures a secure, stable connection for optimal audio or video transmission in electronic applications.

Q: Where can I use these connectors beyond home theater systems?

A: These RCA connectors are ideally suited for any electronic devices utilizing RCA ports, including amplifiers, audio equipment, video systems, and various signal transmission interfaces in both professional and home settings.

Q: What insulation and durability standards do these connectors meet?

A: Each connector provides minimum 1000 M insulation resistance at 500V DC and can withstand 500V AC for one minute, ensuring reliable and safe operation within a temperature range of -25C to +85C.

Q: How does using color-coded boots streamline installation and maintenance?

A: Color-coded PVC boots make identification and troubleshooting straightforward, reducing setup time and minimizing the risk of misconnection during installation or upgrades.
