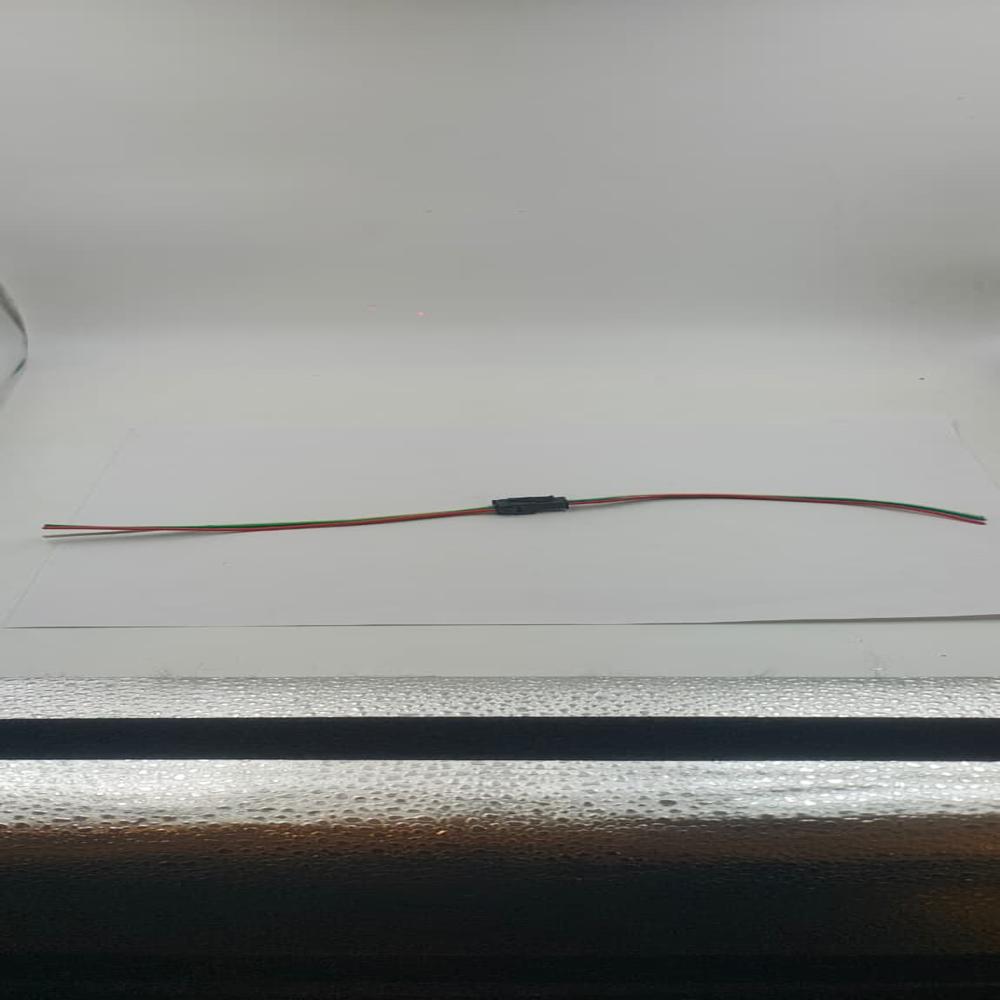

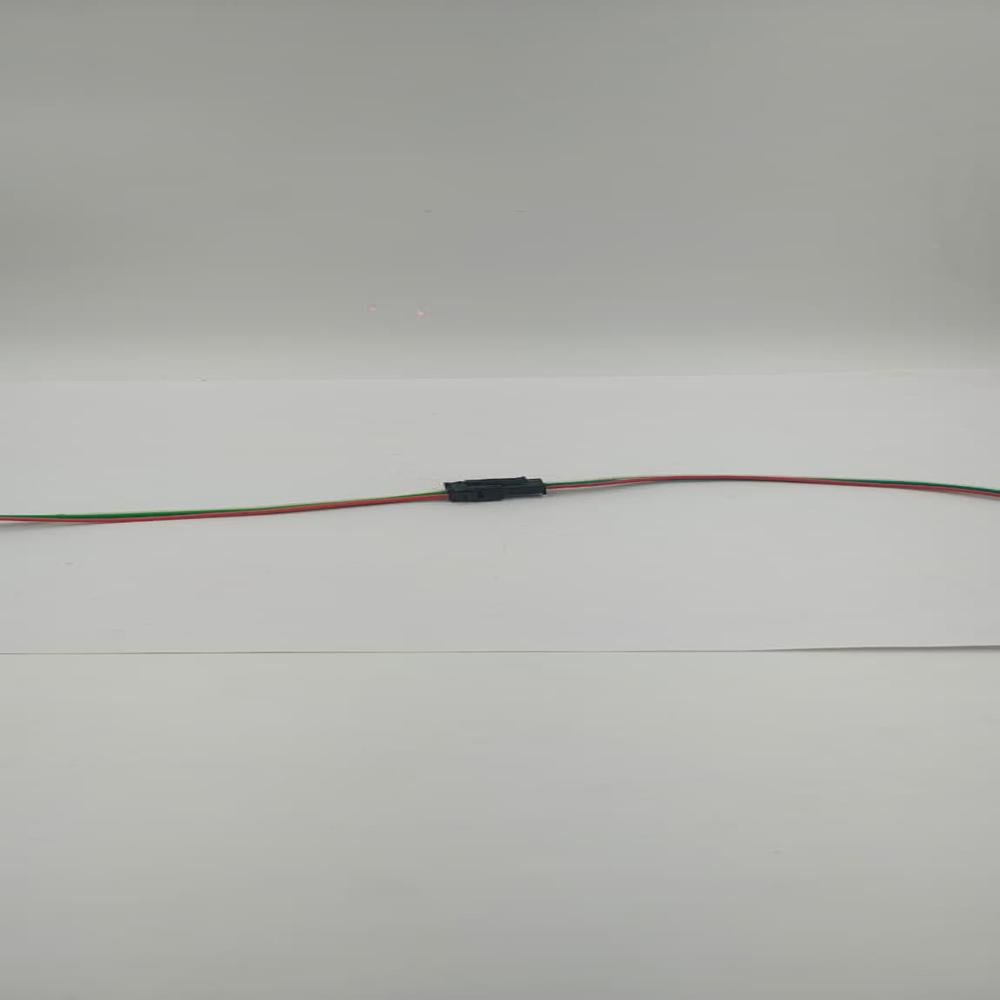

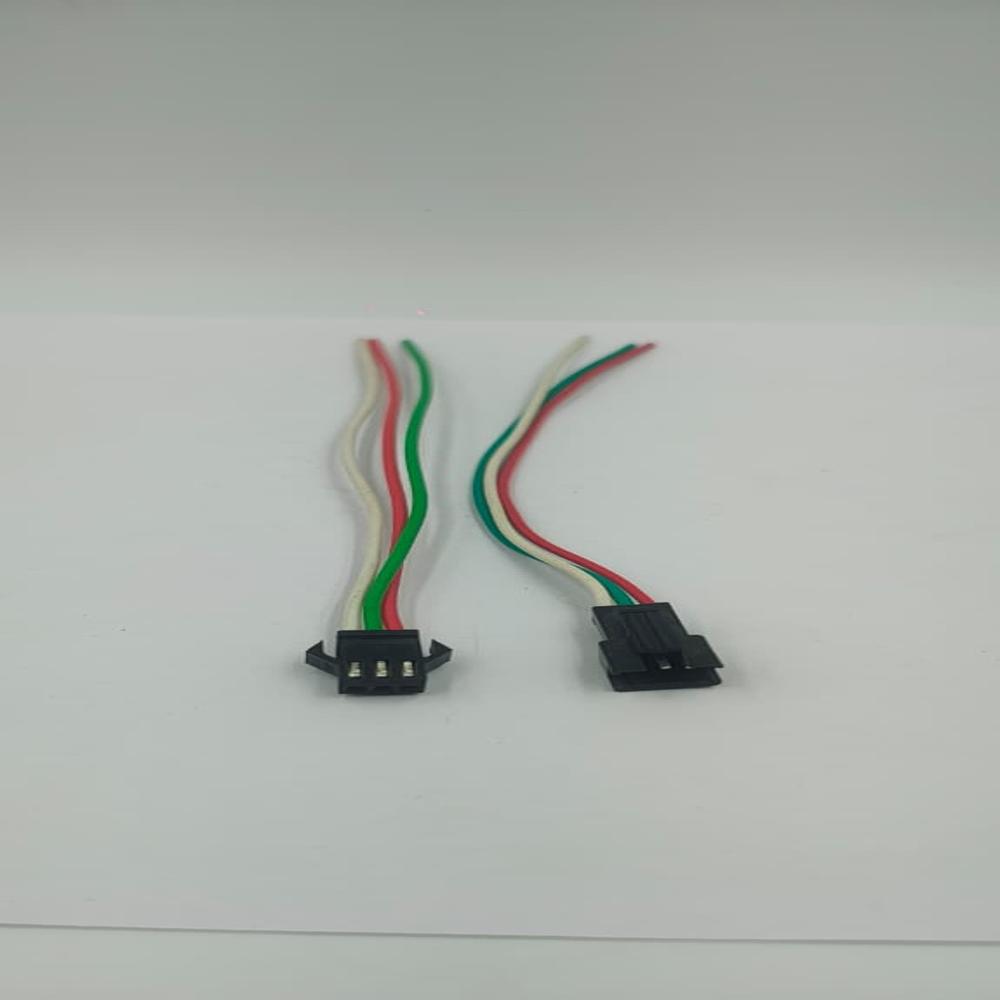

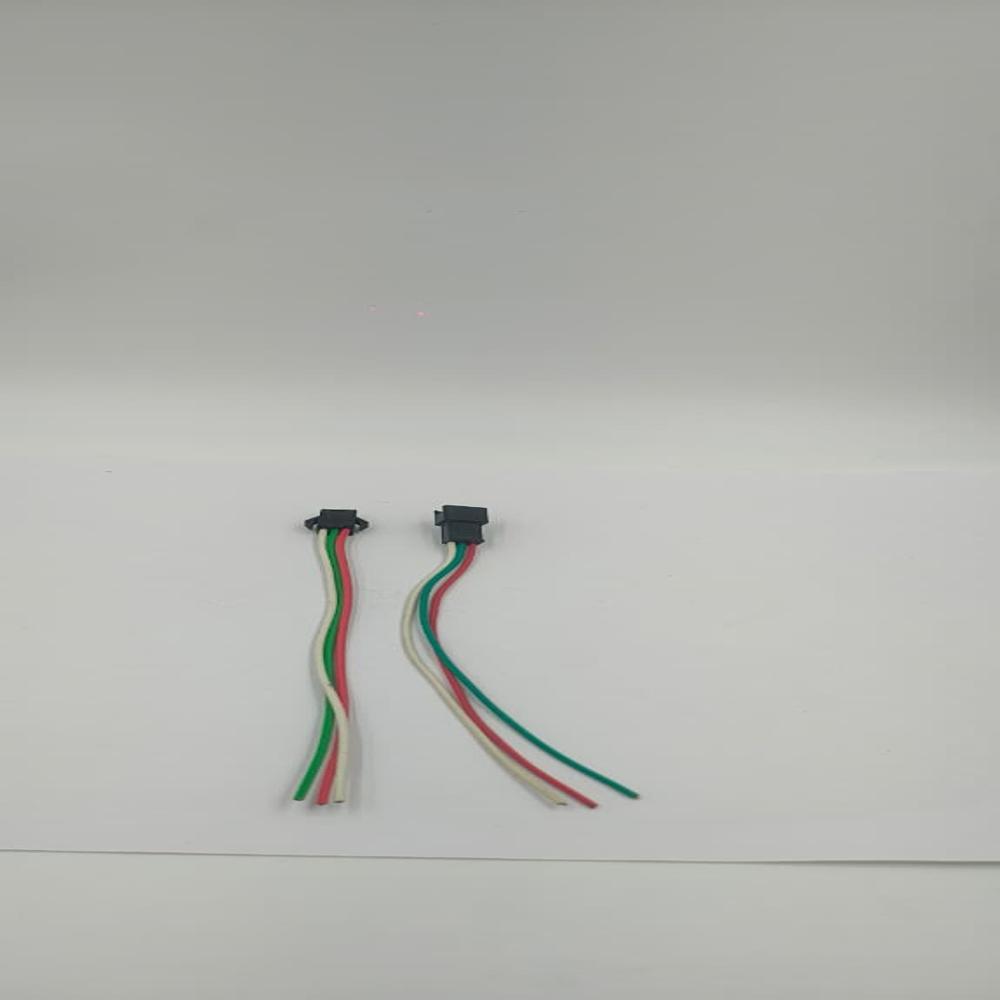

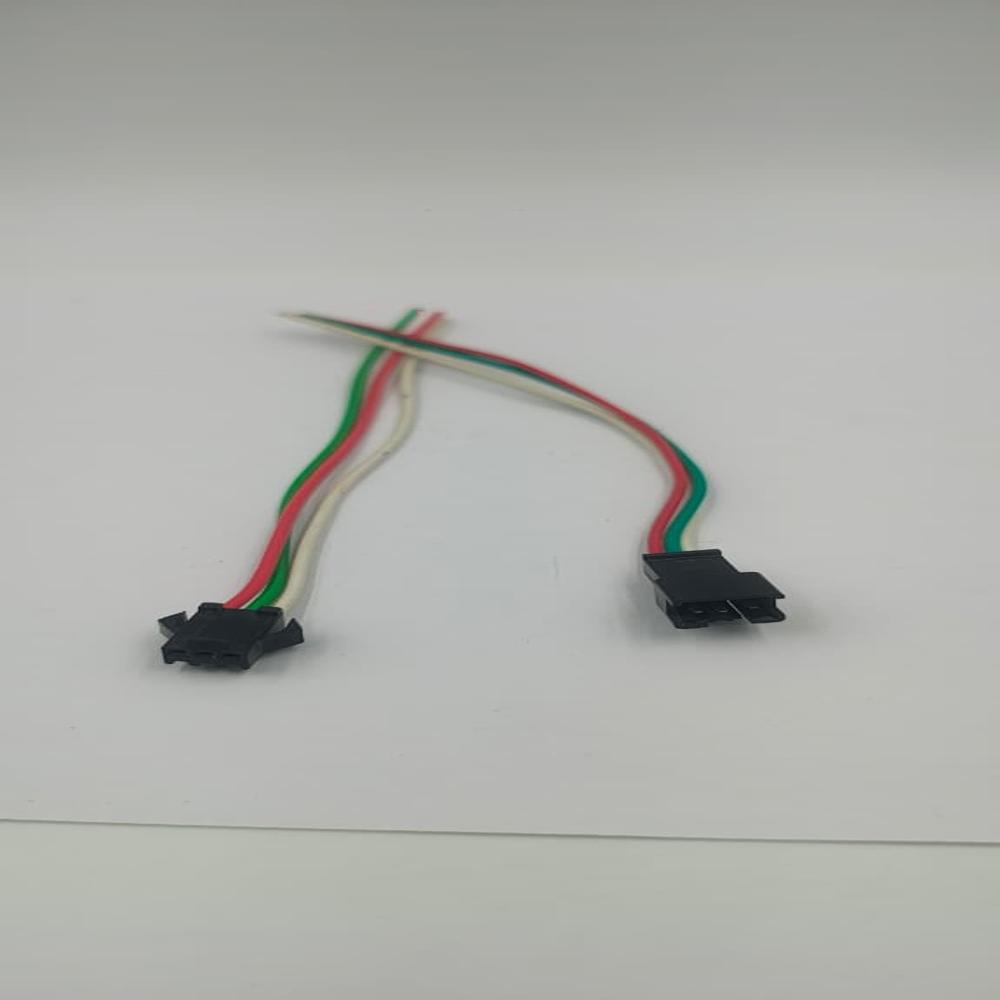

3 PIN MALE FEMALE JST CONNECTOR

Name: 3 PIN MALE FEMALE JST CONNECTOR
Brand: Madan Link Industries
Price: 2.50 INR
Availability: InStock

Price 2.50 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

3 PIN MALE FEMALE JST CONNECTOR Specification

Pairs
Single Pair

Application
RC Models, Arduino Projects, LED Strip Connections, Battery Connections

Connector Type
JST SM 3-Pin

Female End Type
JST Female Housing with Crimp Pins

Temperature
-20°C to 80°C

Material
Other

Capacity
Up to 2A current handling

Connector
JST 3-Pin Male & Female

Male End Type
JST Male Housing with Crimp Pins

Voltage Rating
Up to 250V DC

Cable Type
3 Core Flexible Cable

Jacket Material
PVC

Wire Gauge
28 AWG

Length
300 mm (custom lengths available)

Insulation
PVC

Outer Diameter
1.25 mm each conductor

Sheild
Unshielded

Flame Resistance Level
UL94V-0

Number of Conductor
3

Color
Red, Black, Yellow

Cable Length
300 mm (standard)

Locking Type
Snap-in latch

Contact Plating
Tin Plated

Operating Frequency
DC to 1 MHz

Environmental Compliance
Lead-Free, Halogen-Free

Packaging
Individually packed set

Cable Core Strand
7/0.12 mm (each core)

Contact Resistance
20 m

Current Rating
2A max

RoHS Compliance
Yes

Mating Cycles
>20

Insulation Resistance
>1000 M

Withstand Voltage
1000V AC/min

3 PIN MALE FEMALE JST CONNECTOR Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About 3 PIN MALE FEMALE JST CONNECTOR

Pitch	1 mm
Telecom/Data/Network	ALL
Brand	IMPORTED
Connector Gender	MALE / FEMALE
Contact Material	PLASTIC
Maximum Operating Temperature	AS PER USE
Current Rating	STNADARD
Mounting Type	PCB
Minimum Order Quantity	200 Piece

3 Wire JST Connectors
Wire length: 100 mm on both male and Female connector
Package contents: 10 sets of male (10pcs) & Female JST Connector (10pcs)
Best for Led Lights & DIY Projects

Dependable Performance for Electronics Projects

Engineered for robust applications, the JST SM 3-pin connectors deliver consistent connections with low contact resistance (20 m) and high insulation resistance (>1000 M). With a withstand voltage of 1000V AC/min and an operating frequency up to 1 MHz, these connectors meet your projects demanding requirements.

User-Friendly Design & Flexible Installation

The snap-in latch locking feature ensures secure mating, while individually packed sets promote organized handling. Standard 300 mm cable length suits most installations, and custom sizes are available for tailored needs. The PVC material provides flame resistance, and color-coded wires simplify setup.

Environmentally Responsible and Safe

RoHS compliance guarantees that all materials are free from hazardous substances like lead and halogens. The flame-retardant PVC jacket and insulation enhance overall safety, making these connectors a sustainable choice for electronics development.

FAQs of 3 PIN MALE FEMALE JST CONNECTOR:

Q: How do I install the 3 PIN MALE FEMALE JST CONNECTOR?

A: Simply align the male and female housing, and push together until the snap-in latch secures engagement. The color-coded wires (red, black, yellow) assist in correct polarity and signal allocation during installation.

Q: What applications can this connector be used for?

A: It is ideal for RC models, Arduino projects, LED strip connections, and battery setups. The reliable connection and 2A current capacity make it suitable across robotics and electronics prototyping.

Q: When should I consider custom cable lengths?

A: If your project requires a different distance from the standard 300 mm cable (for larger setups or tight spaces), custom lengths can be requested prior to purchase from the manufacturer or distributor.

Q: Where is the product manufactured and available?

A: The connector is manufactured, traded, exported, and imported in India. Distributors offer these individually packed sets for convenient sourcing locally and internationally.

Q: What is the benefit of the snap-in latch locking type?

A: The snap-in latch ensures firm and reliable mating, preventing accidental disconnection, which is crucial for applications subjected to vibration or frequent movement.

Q: What environmental standards does this connector meet?

A: The connectors comply with RoHS, are lead-free and halogen-free, and feature flame-resistant PVC insulation rated UL94V-0 for optimum safety in modern electronics.
