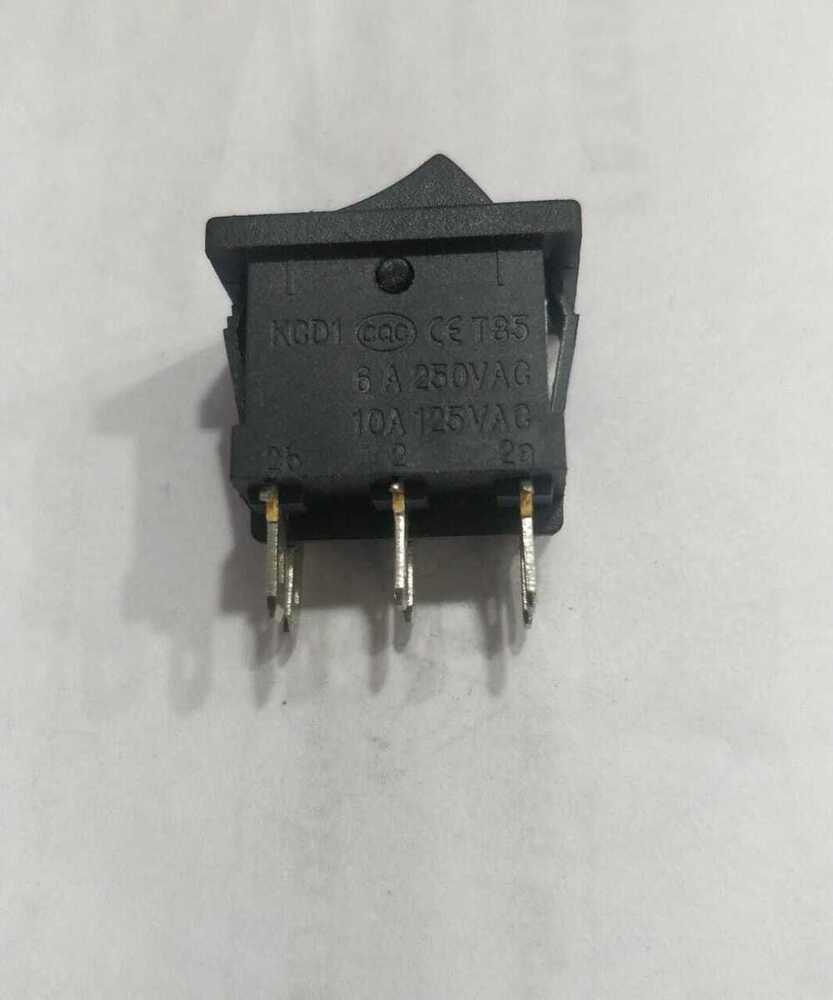

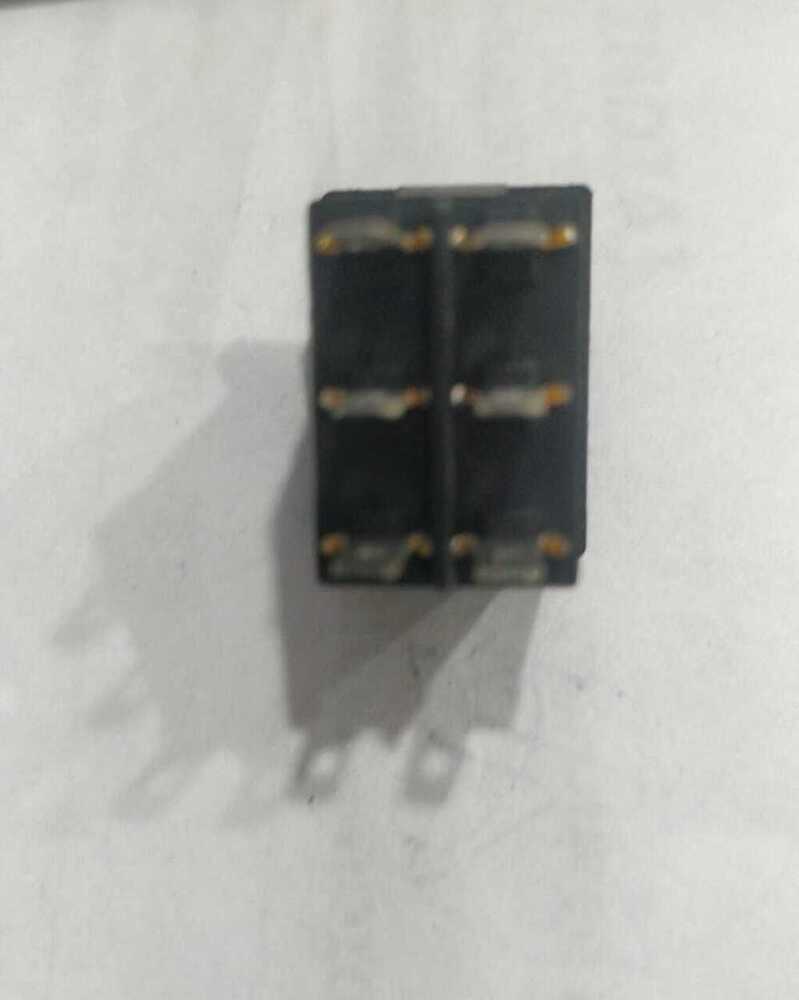

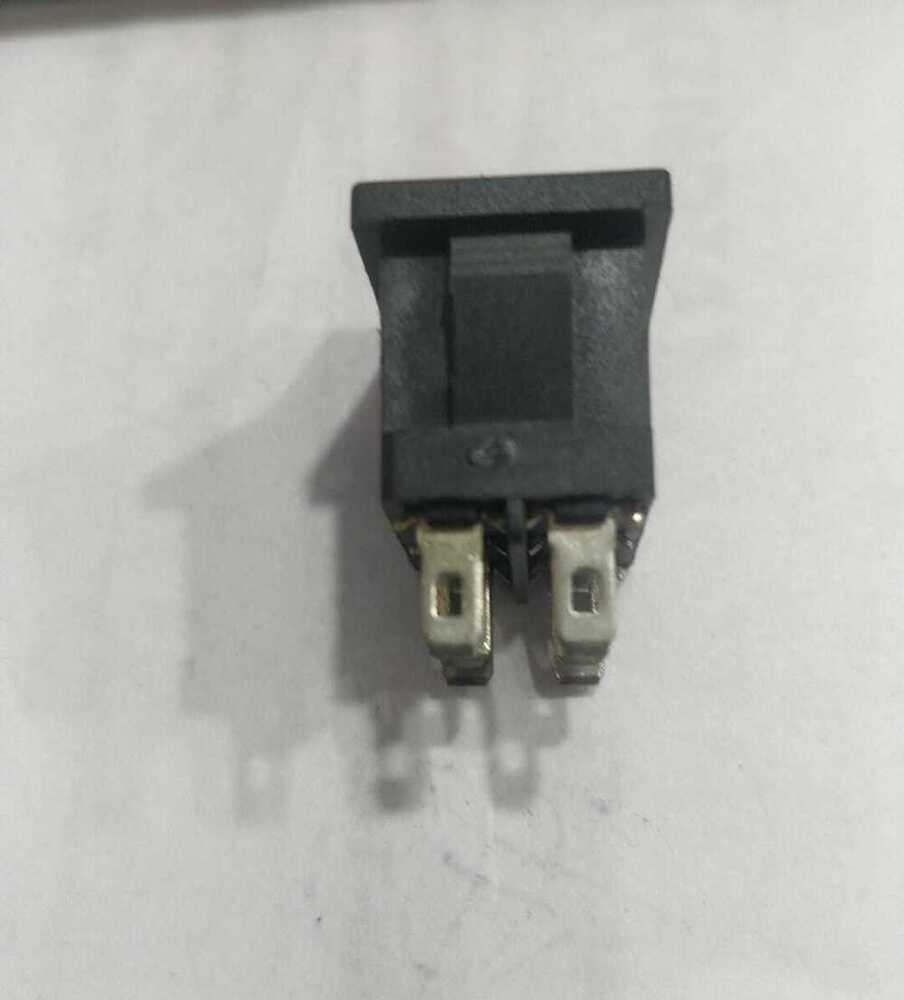

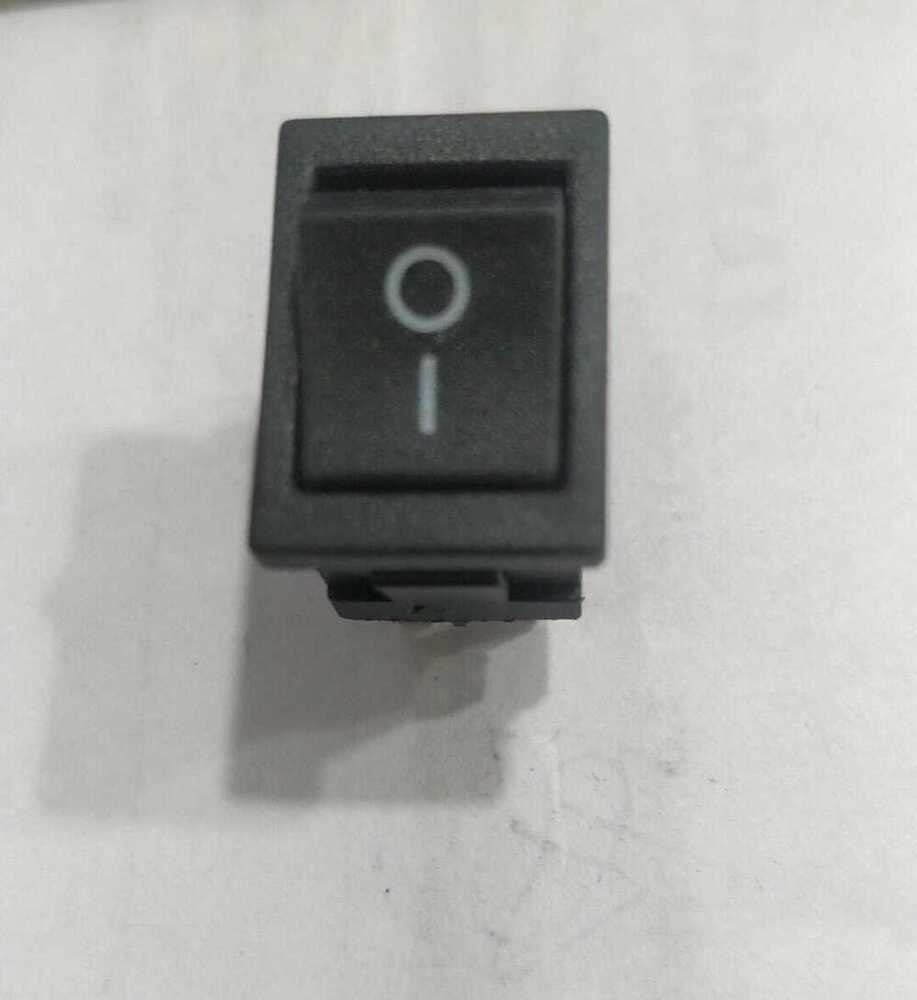

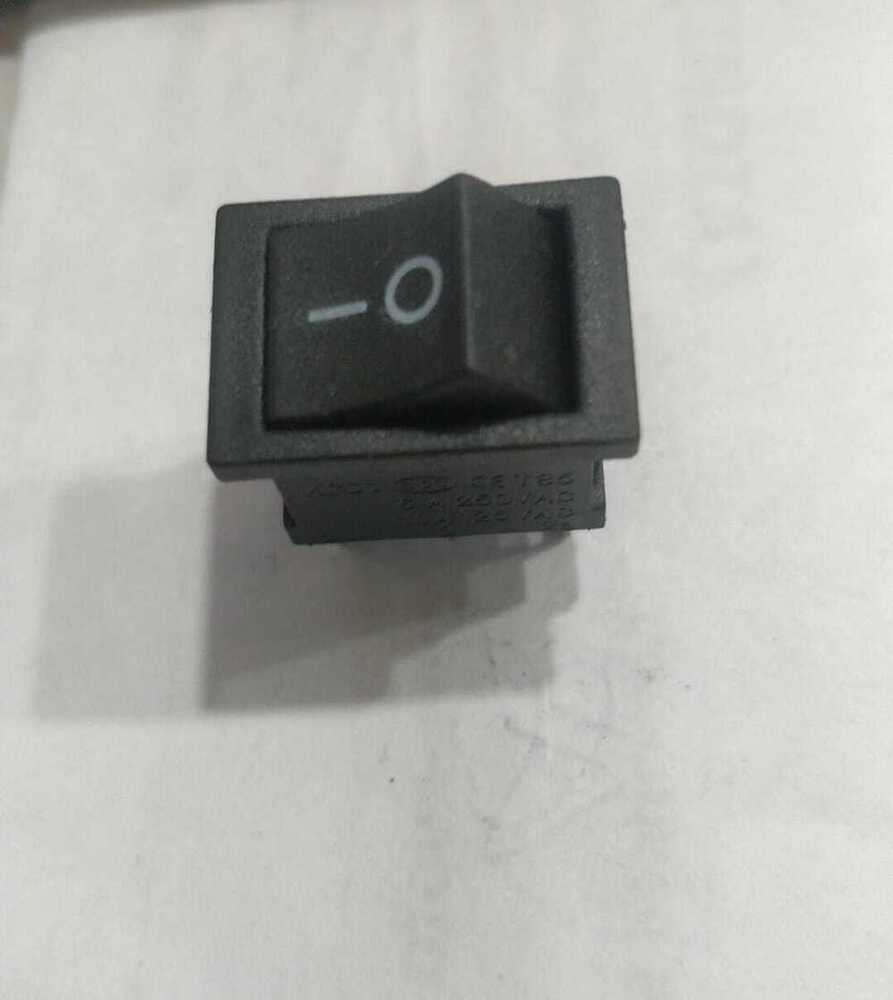

Rocker Switch Black 6 Pin

Name: ROCKER SWITCH BLACK 6 PIN
Brand: Madan Link Industries
Price: 8.0 INR
Availability: InStock

Price 8.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Rocker Switch Black 6 Pin Specification

Automation Grade
Typical: 100,000 cycles (some variants up to 200,000 cycles)

Finish Type
Actuator and body material: Nylon 66 (PA66)

Response Time
instant Seconds

Temperature Range
25 C to +85 C is typical. Celsius (oC)

Protection Level
No water resistance Finger-safe front actuator Not sealed from dust or moisture

Max. Current
16AMP Ampere (amp)

Circuit Type
(Double Pole, Double Throw 3-position)

Number of Module
single-module rocker switch

Mechanical Life
100,000 operations. Months

Rated Voltage
12 Volt (V)

Product Type
DPDT

Power Rating
25 C to +85 C is typical.

Insulation Resistance
100 M

Contact Resistance
Often specified as 35 m (or sometimes 50 m ) for standard (AC) rocker-switches Ohm ()

Max. Voltage
12 Volt (V)

Warranty
no warranty

Stoke
10000

Usage & Applications
The RS-14 6-pin rocker switch is mainly used where two circuits must be switched together or where reversible polarity is required (e.g., motors).

Size
Overall Body Size Length: 30 mm 32 mm Width: 22 mm 25 mm Height: 27 mm 30 mm (from base to top of rocker)

Operating Temperature
25 C to +85 C is typical. Celsius (oC)

Cable Type
Size: 0.75 mm 1.5 mm

Color
BLACK

Phase
single-phase circuits, whether AC or DC. It does not support three-phase switching.

Display Type
The switch uses printed ON/OFF symbols: | for ON O for OFF

Conductor
Copper (Cu) most common, either bare or tinned Stranded copper is preferred for flexibility and vibration resistance Tin-plated copper is used to prevent corrosion at the terminals

Features
DPDT (6-pin) switching High current rating Non-illuminated rocker Nylon 66 body Tin-plated copper terminals Silver-plated internal contacts (typical) Snap-in panel mount Durable and heat resistant Long mechanical life

Material
Nylon 66 (PA66)

Mounting Type
DPDT ON-OFF

Current Rating
6 A at 250 V AC, or 10 A at 125 V AC

No Of Poles
6 pins correspond to 2 poles 3 terminals each:

Rocker Switch Black 6 Pin Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
500000 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
MADAN LINK INDUSTRIES

Main Domestic Market
All India

About Rocker Switch Black 6 Pin

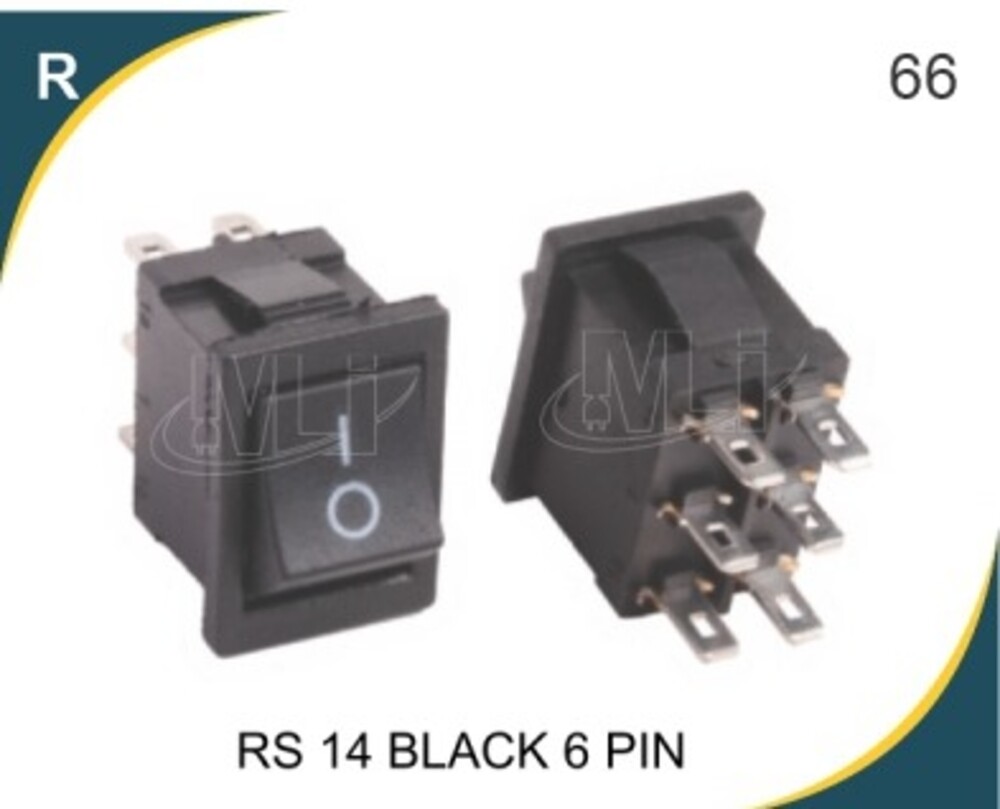

Introducing RS 14 BLACK 6 PIN, a high-quality switch designed for various applications. Made of copper/iron material, this switch has a maximum voltage of 12V and a maximum current of 16AMP. Its switch function is ON/OFF, and it has a DPDT switch throw type. The body is made of plastic, and it is non-illuminated. The switch is also ROHS compliant, ensuring that it is safe and eco-friendly. With a stoke of 100000, this switch is durable and long-lasting. Its micro rocker switch type makes it easy to use. The switch comes in a sleek black color that will complement any design.

Switch Function	ON/OFF
ROHS Compliant	No
Switch Type	Micro Rocker
Power/Voltage	12v
Material/Body	Plastic
Illuminated	Non Illuminated
Switch Throw Type	DPDT
Color	BLACK
Power Supply	16AMP
