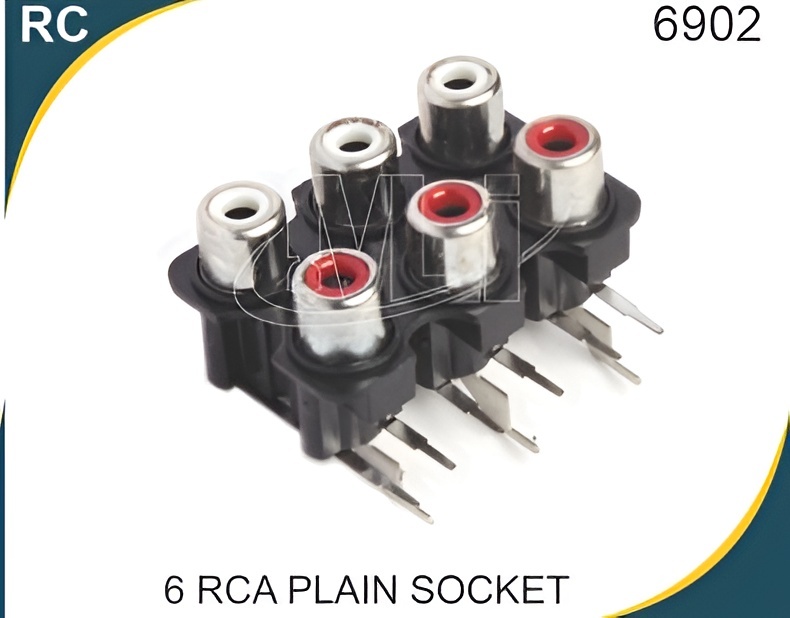

6 RCA PLAIN SOCKET

Price 5.5 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

6 RCA PLAIN SOCKET Specification

Thickness
1.5 mm

Cable Diameter
Suitable for up to 7 mm RCA Cable

Surface Treatment
Nickel-plated

Sealed
Non-Sealed

Product Type
RCA Female Panel Socket

Material
Nickel-Plated Brass & ABS Insulator

Application
Home Theater, Amplifier, DVD Player, TV, Projector

Contact Resistance
<30 m

Insulation Resistance
>1000 M at 500V DC

Diameter
12 mm mounting hole

Terminal Socket
RCA Female

Style
Plain Socket

Fittings
Screw Mount or Panel Mount

Rated Voltage
250V AC

Weight
Approx. 10 grams

Color
Multi-color (Red, Yellow, White, Green, Blue, Black)

Insulator Material
ABS Plastic

Dimensions
40 mm length x 12 mm diameter

Flammability Rating
UL94V-0

Operating Temperature
-20C to +60C

Current Rating
2A Max

Number Of Pins
1 per socket

RoHS Compliance
Yes

Mounting Type
Panel Mount

Pack Quantity
Set of 6 Sockets

Contact Material
Brass

Connector Type
RCA Female Socket

Usage
DIY Electronics, Audio-Video Projects

6 RCA PLAIN SOCKET Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About 6 RCA PLAIN SOCKET

Feature highlights:This 2 4 6-way RCA stereo audio female jack connector supports versatile AV input and amplifier interface usage. ROHS compliant, ensuring environmental safety and market access.

Premium Build and Reliable Performance

Constructed from nickel-plated brass and durable ABS insulator, these RCA sockets assure long-term performance and improved corrosion resistance. Capable of enduring temperatures from -20C to +60C and operating safely up to 2A at 250V AC, each unit provides stable signal transmission for high-fidelity audio and video applications. Their low contact resistance and high insulation resistance ensure minimal signal loss.

Flexible Mounting Options for Versatility

Designed for panel or screw mounting, these sockets easily install into 12 mm mounting holes on a variety of enclosures and equipment panels. The pack contains six sockets in assorted colors, enabling clear and efficient channel management in complex audio-video setups. Their plain RCA female style matches most standard cables, supporting easy upgrades and replacements.

Ideal for Wide Range of Applications

Perfect for home theaters, amplifiers, DVD players, TVs, projectors, and custom audio-video electronics. Hobbyists, electronics manufacturers, and professional installers can conveniently deploy these sockets in DIY projects or commercial assemblies. The provision for up to 7 mm cable diameter supports robust connectivity with mainstream AV RCA cables.

FAQs of 6 RCA PLAIN SOCKET:

Q: How do I mount these RCA sockets to a panel or enclosure?

A: Each socket is designed for simple installation into a standard 12 mm diameter mounting hole using either panel or screw mounting. The fittings ensure secure placement on a range of enclosures for electronics projects.

Q: What type of devices can use these RCA female sockets?

A: These sockets are ideal for connecting audio and video equipment such as home theater systems, amplifiers, DVD players, TVs, and projectors. They are also suitable for custom-built or DIY electronics projects.

Q: When should I consider using these RCA sockets over other connector types?

A: Choose these RCA female sockets when you require reliable analog audio or video connections with color-coded identification, robust insulation, and a simple panel-mounted installation, especially in projects where space is restricted or standardized RCA terminals are needed.

Q: Where can I purchase these RCA Plain Sockets?

A: These sockets are available through distributors, exporters, importers, manufacturers, and traders in India. You can source them from electronics component suppliers or online stores catering to DIY and professional applications.

Q: What is the maximum current and voltage rating for each socket?

A: Each RCA socket supports a maximum current of 2A and a voltage rating of 250V AC, which is suitable for most standard audio-video signal applications in home and professional setups.

Q: How do the multi-color options benefit my system design?

A: The inclusion of six different colors (Red, Yellow, White, Green, Blue, Black) helps clearly distinguish signal channels, simplifying setup and maintenance in multi-channel audio-video systems.

Q: What standards of safety and compliance do these sockets meet?

A: These sockets are RoHS compliant and feature an insulator made from UL94V-0 rated ABS plastic, ensuring high safety, low flammability, and environmental responsibility.
