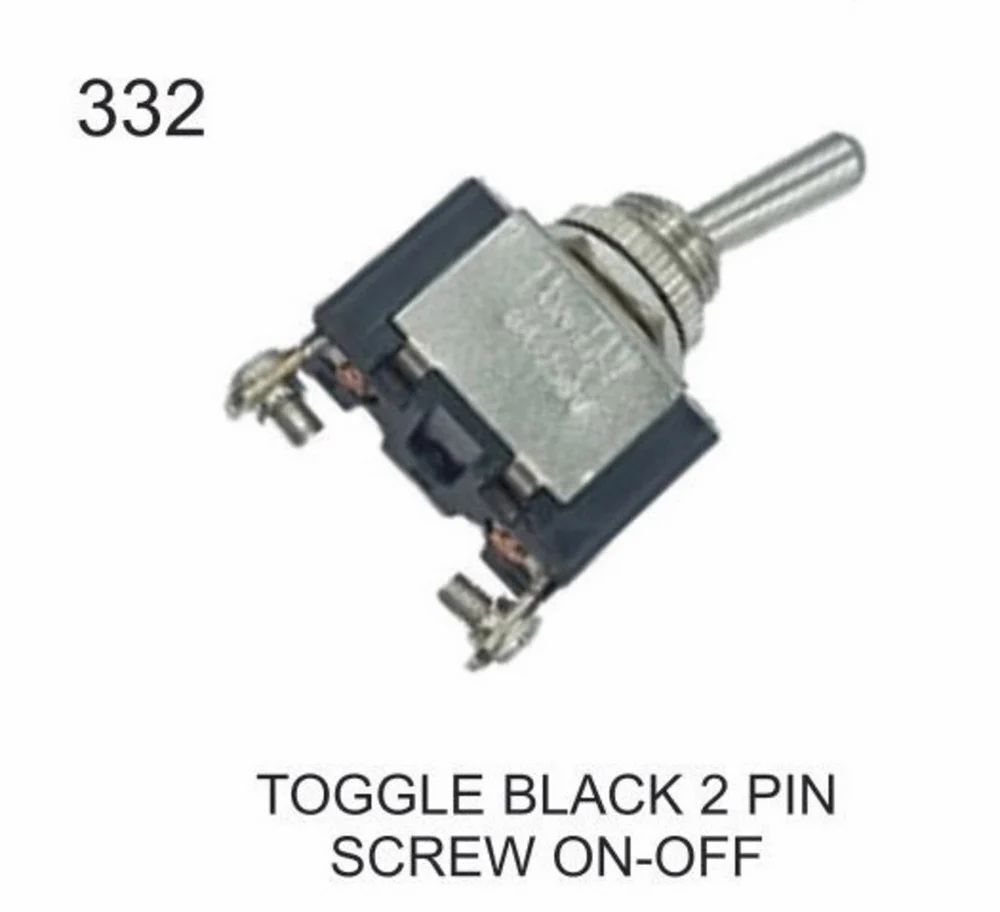

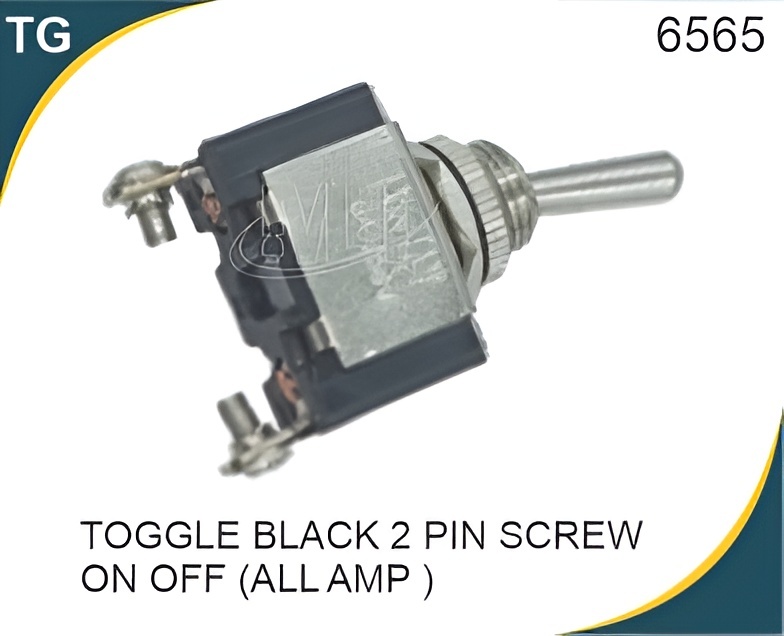

Toggle Black 2 Pin screw On Off

Price 81 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Toggle Black 2 Pin screw On Off Specification

Mechanical Life
10,000 cycles

Protection Level
IP20

Circuit Type
SPST (Single Pole Single Throw)

Number of Module
1 Module

Automation Grade
Manual

Temperature Range
-20C to +60C

Rated Voltage
250V AC

Response Time
Instantaneous

Finish Type
Matte Black

Max. Current
6A

Product Type
Toggle Switch

Material
Bakelite/Plastic Body with Metal Lever

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-20C to +60C

Stoke
Maintained (Latch Type)

Size
Standard (approx. 28mm length, 12mm width)

Color
Black

Weight
Approx. 12 grams

Mounting Type
Panel Mount, Screw Type

Current Rating
6A

No Of Poles
Single Pole

Switch Function
ON-OFF

Terminal Type
Screw Type Terminal

Power Consumption
Negligible (Mechanical)

Contact Material
Silver Alloy

Application
Electrical circuit control, Household & Industrial use

Storage Temperature
-25°C to +85°C

RoHS Compliance
Yes

Body Dimensions
Approx. 28mm x 12mm x 18mm

Switching Capacity
6A at 250V AC

Handle Type
Metal Lever Toggle

Dielectric Strength
AC 1500V for 1 minute

Toggle Black 2 Pin screw On Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Toggle Black 2 Pin screw On Off

Operation


Country of Origin	India
Colour	Multi
Number of Memory Sticks	1
Item Weight	30 g
Product Dimensions	3 x 1.3 x 5.5 cm; 30 g
Item Height	5.5 Centimeters
Item Width	1.3 Centimeter

Material	Stainless Steel
Terminal	Screw
AC Adapter Current	20 Amps
Mode	ON-OFF

Durable Construction for Reliable Switching

This switch combines a robust Bakelite/plastic housing with a metal lever toggle, offering resistance to wear and mechanical stress. It is engineered for high dielectric strength (AC 1500V for 1 minute) and can function in varied temperature ranges (-20C to +60C), making it suitable for diverse environments. The matte black finish and compact dimensions ensure a seamless integration into your setup.

Efficient and Safe Operation

With instantaneous response and negligible power consumption, this switch offers dependable control with minimal energy use. The SPST design simplifies circuit management, while silver alloy contacts deliver low contact resistance and enhanced conductivity. Its RoHS compliance and insulation resistance (100 M at 500V DC) contribute to operational safety, even in demanding conditions.

Versatile Applications in Home and Industry

Ideal for electrical circuit control across household and industrial domains, this switch excels in panel mount installations. It is suited for both distributors and manufacturers needing standardized, reliable components. The maintained latch (stoke) design ensures secure ON-OFF switching, while IP20 protection allows safe operation in clean, controlled environments.

FAQs of Toggle Black 2 Pin screw On Off:

Q: How do I install the Toggle Black 2 Pin screw On Off switch?

A: Installation is straightforward using the panel mount and screw terminals. First, cut power to the circuit, then position the switch in the panel opening, secure it with screws, and connect your wires to the screw-type terminals, following correct polarity for single pole operation.

Q: What applications is this switch suitable for?

A: This switch is ideal for controlling electrical circuits in homes, industries, and workshops. Its standard size, durable build, and reliable ON-OFF operation make it a preferred choice for both household appliances and industrial equipment where manual switching is required.

Q: Where can the Toggle Black 2 Pin switch be used effectively?

A: It is best installed in environments requiring panel-mounted switchessuch as distribution panels, equipment control boards, and various deviceswhere reliable manual switching and robust electrical performance are necessary.

Q: What benefits does the silver alloy contact provide?

A: Silver alloy contacts offer excellent conductivity and lower contact resistance (50 m), ensuring efficient current flow and enhancing switch lifespan. This makes the switch suitable for situations demanding long-term, stable performance and minimal electrical losses.

Q: When should the switch be replaced?

A: Replace the switch if mechanical wear is evident or after reaching the minimum mechanical life of 10,000 cycles. Also, if you notice persistent faults such as failed ON-OFF operation or increased contact resistance, consider installing a new unit.

Q: What is the operating temperature range and why is it important?

A: The switch operates reliably between -20C to +60C, allowing it to function in common household temperatures as well as warmer industrial settings. This ensures stable performance and safety across various installation environments.

Q: How does RoHS compliance benefit users of this switch?

A: RoHS compliance confirms that the switch is manufactured without hazardous substances, making it environmentally safer for use in modern electrical systems and meeting global regulatory standards for electronics.
