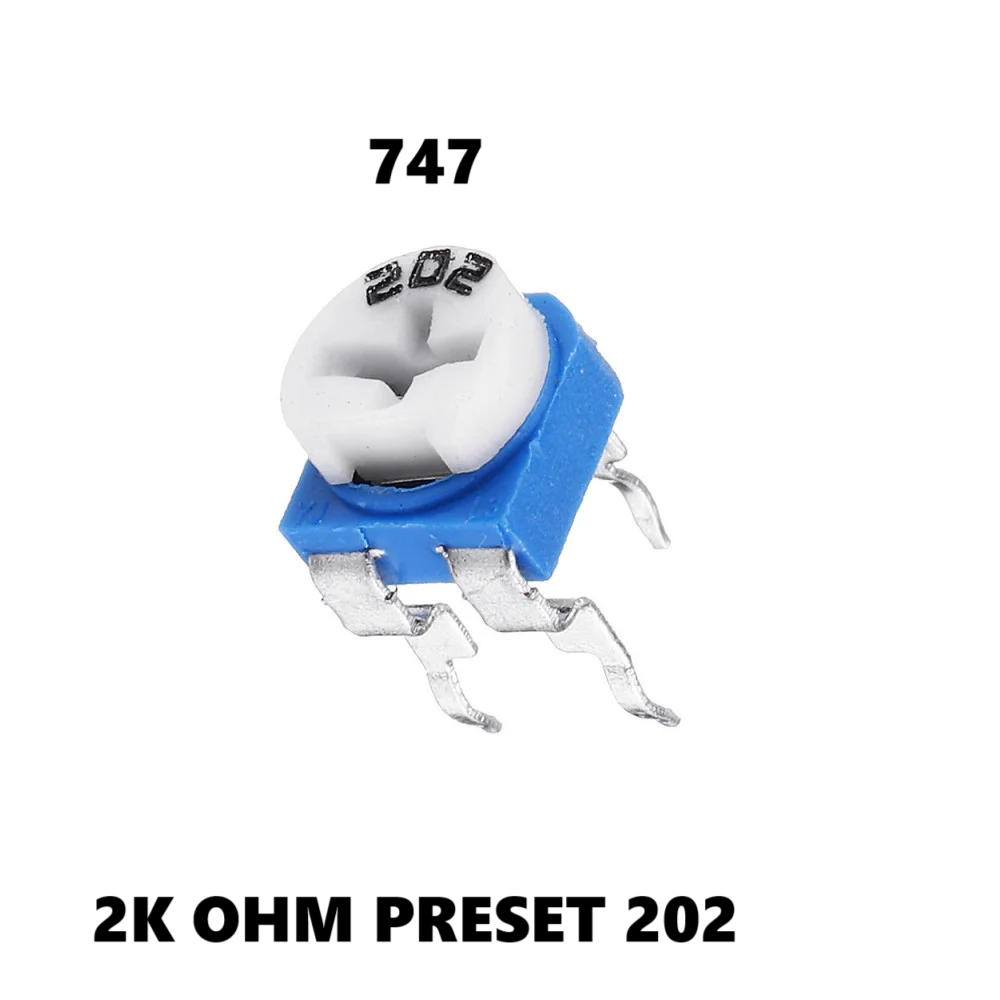

2 K OHM PRESET 202

Name: 2 K OHM PRESET 202
Brand: Madan Link Industries
Price: 1.92 INR
Availability: InStock

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

2 K OHM PRESET 202 Specification

Product Type
OHM PRESET

Withstand Voltage
AC 500V for 1 min

Application
Variable Resistance Adjustment in Electronic Circuits

Insulation Resistance
1000 M min at 500V DC

Height
Approx. 6 mm

Warranty
1 year

Weight
Approx. 2 grams

Color
White

Material
PVC

Features
Good Quality

Adjustment Type
Top Slot

Nominal Resistance
2 K

Operating Temperature Range
-55C to +125C

Temperature Coefficient
250 ppm/C

Mounting Type
PCB Mount

Power Rating
0.1W at 70C

Maximum Operating Voltage
200V DC

Resistance Tolerance
20%

Model Number
202 Preset

2 K OHM PRESET 202 Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
No

Main Domestic Market
[, ]

About 2 K OHM PRESET 202

Resistance Values	2 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	2K
Material	PLASTIC
Color	WHITE / BLUE
Part Number	PT03
Minimum Order Quantity	100

Applications: Used in electronic circuits for calibration, tuning, and adjustment
Usage: Ideal for setting reference voltages, adjusting signal levels, and other precision applications
Durability: Long lifespan with reliable performance over time
Compatibility: Suitable for use in a variety of electronic devices and projects
Packaging: Available in single units or bulk packaging for larger projects

Precise and Reliable Variable Resistance

Designed for stability and accuracy, the 2 K OHM PRESET 202 allows engineers to fine-tune resistance in circuits effortlessly. Its compact size and top slot adjustment facilitate easy installation and calibration directly onto PCBs, enhancing convenience for electronic assembly and maintenance.

Durability Across Challenging Environments

Built to withstand temperatures from -55C to +125C, this component retains performance under varied environmental conditions. The presets PVC material and strong electrical insulation ensure safety and longevity, even during rigorous operational cycles and voltage stresses.

All-in-One Solution for Diverse Applications

Whether youre a distributor, importer, or manufacturer in India, the 2 K OHM PRESET 202 fits a spectrum of applications, from prototyping to large-scale production. Its proven reliability, supported by a one-year warranty, makes it an excellent choice for maintaining circuit efficiency and adaptability.

FAQs of 2 K OHM PRESET 202:

Q: How can the 2 K OHM PRESET 202 be adjusted for precise resistance control?

A: This preset utilizes a top slot adjustment mechanism, allowing users to finely tune resistance values using a screwdriver. The design ensures accuracy and convenience when setting variable resistance directly on PCB-mounted circuits.

Q: What are the primary benefits of using this preset in electronic circuits?

A: The 2 K OHM PRESET 202 offers stable resistance, high insulation (1000 M min at 500V DC), and durability across a wide temperature range. These features ensure consistent performance and reliability in both testing and final products.

Q: When should I choose the 2 K OHM PRESET 202 over other variable resistors?

A: Select this preset when your application demands compact size, reliable adjustment, high insulation resistance, and operation in variable temperature or voltage environments. Its design and rating suit most standard circuit prototyping and tuning needs.

Q: Where is the ideal mounting location for this preset in electronic assemblies?

A: The 2 K OHM PRESET 202 is best suited for direct installation onto printed circuit boards (PCB mount), enabling easy integration into a wide range of electronic devices and systems.

Q: What process is involved in installing this preset on a PCB?

A: Installation involves fitting the presets terminals through designated PCB holes and soldering them securely. After mounting, resistance can be adjusted using the top slot, ensuring the desired circuit parameters are achieved.

Q: How does the preset maintain performance in harsh operating conditions?

A: Engineered with a temperature coefficient of 250 ppm/C and high-quality PVC housing, the 202 Preset maintains stable electrical characteristics from -55C to +125C and can withstand up to AC 500V for one minute without breakdown.
