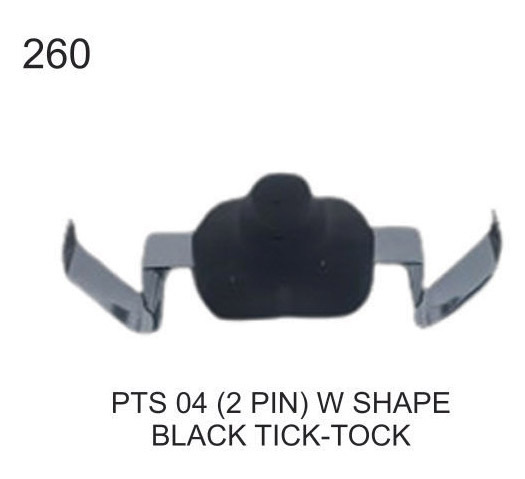

Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK
Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK

Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK

Price 4 INR/ Piece

MOQ : 1000 Pieces

Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK Specification

  • Temperature Range
  • -20°C to +70°C
  • Max. Current
  • 50mA
  • Finish Type
  • Matte Black
  • Circuit Type
  • SPST-NO (Single Pole Single Throw - Normally Open)
  • Response Time
  • 1 ms max.
  • Rated Voltage
  • 12V DC
  • Protection Level
  • IP40
  • Automation Grade
  • Manual
  • Mechanical Life
  • 100,000 cycles min.
  • Number of Module
  • 1
  • Product Type
  • Push Button Tactile Switch
  • Material
  • High-Grade Plastic, Metal Contacts
  • Insulation Resistance
  • 100 MΩ min. at 500V DC
  • Contact Resistance
  • 100 mΩ max.
  • Max. Voltage
  • 30V DC
  • Operating Temperature
  • -20°C to +70°C
  • Stoke
  • 0.25 mm
  • Size
  • 6mm x 6mm (W Shape)
  • Color
  • Black
  • Weight
  • Approx 1g
  • Mounting Type
  • Through Hole
  • Current Rating
  • 50mA @ 12V DC
  • No Of Poles
  • Single Pole
  • Solderability
  • Compliant with lead-free soldering
  • Switch Function
  • Momentary
  • Mounting Pitch
  • 5.0 mm
  • Pin Quantity
  • 2 Pin
  • Dielectric Strength
  • 250V AC for 1 min.
  • Actuator Type
  • Tick Tock Button (W Shape)
  • Applicable Standards
  • RoHS Compliant, IEC Standard
  • Contact Material
  • Silver-plated alloy


Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK Trade Information

  • Minimum Order Quantity
  • 1000 Pieces
  • Sample Available
  • Yes
  • Main Domestic Market
  • All India


About Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK



Discover the exclusive Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK, where elite engineering meets unmatchable functionality. Buy now and experience top-tier, decorated design featuring a W-shaped tick tock actuator for momentary switching action. With silver-plated alloy contacts and RoHS, IEC standard compliance, this switch is tailored for reliability and superior performance. Enjoy effortless installation with 5.0 mm mounting pitch, high dielectric strength, and matte black finish. Unbeatable in sale value, it's perfect for professionals seeking robust, high-grade components from one of India's premier distributors, exporters, importers, manufacturers, and traders.

Advantages & Application Surface: Elite Quality and Versatility

The Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK offers unmatchable precision with a high-grade plastic body and silver-plated contacts, ensuring prolonged durability. It boasts a sleek matte black finish, ideal for modern electronic panels and decorated surfaces. The compact 6mm x 6mm W shape fits effortlessly in tight spaces, while IP40 protection guarantees safety in controlled environments. Benefit from a reliable momentary action, rapid 1 ms response time, and mechanical life rated at over 100,000 cycles.


Sample Policy & Certification: Secure Supply Across India

Samples of the Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK are available upon request, supported by RoHS and IEC certifications for maximum reliability. With a robust supply chain, we ensure secure shipping and efficient logistics throughout the main domestic market in India. Each switch is supplied using trusted practices for quality and safety, guaranteeing every product reaches you in optimal condition. Choose us for assured product availability and prompt nationwide delivery.


FAQ's of Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK:


Q: How do I properly mount the Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK switch?

A: This switch is designed for through-hole mounting using a 5.0 mm mounting pitch. Simply insert the pins into the corresponding PCB holes and solder them with lead-free solder for strong, RoHS-compliant connections.

Q: What materials are used in the construction of this switch?

A: The Digital PTS 04 (2PIN) switch features a high-grade plastic body for excellent insulation and silver-plated alloy contacts, providing enhanced conductivity and wear resistance.

Q: When is the optimal application for this momentary tick tock button?

A: This switch is ideal for circuits requiring short-term activation, such as reset buttons, selection panels, or input devices demanding a compact, reliable mechanism.

Q: Where can I request samples of the Digital PTS 04 (2PIN) W SHAPE BLACK TICK TOCK?

A: Samples can be requested directly through our supply channels. Contact us via distributor or manufacturer support to initiate a secure shipping process to your preferred Indian location.

Q: What are the main advantages of using this switch?

A: Key benefits include rapid actuation (1 ms max. response), long mechanical life (over 100,000 cycles), elite build quality, and compliance with pivotal industry standards for safety and performance.

Q: How does this switch perform under various environmental conditions?

A: With an operating temperature range of -20C to +70C and IP40 protection, the switch operates reliably in typical indoor or controlled environments.
