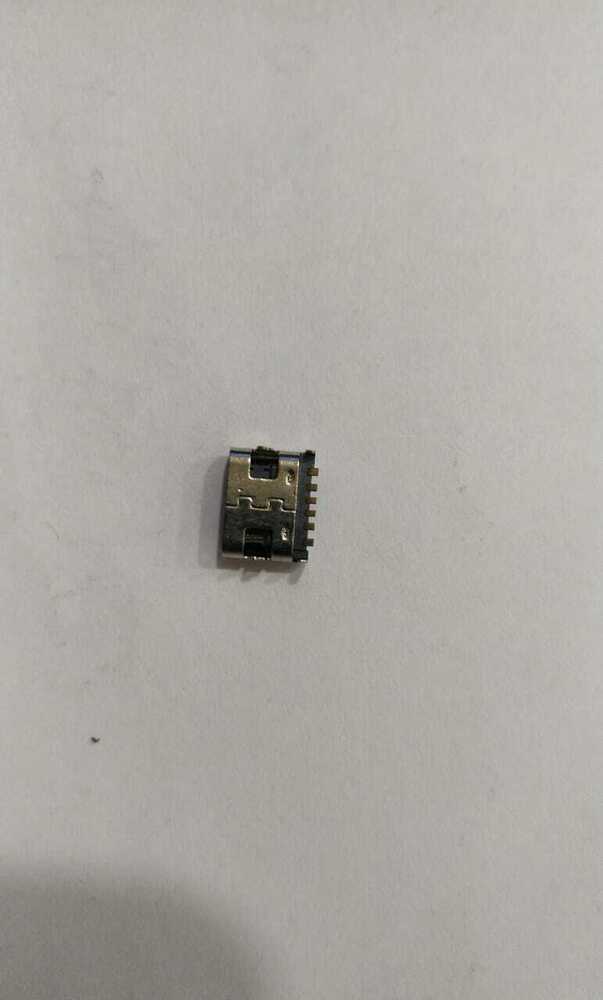

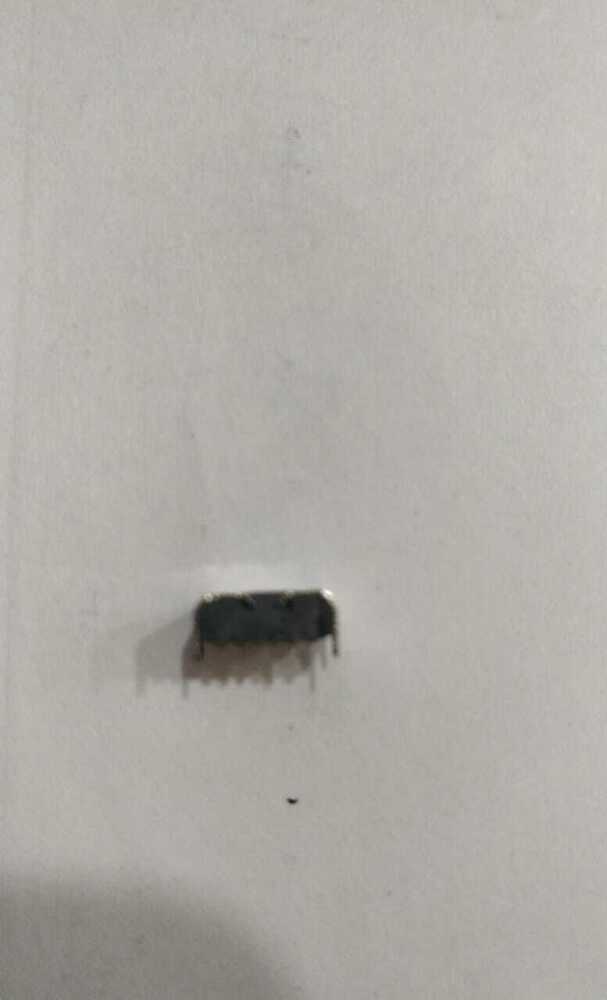

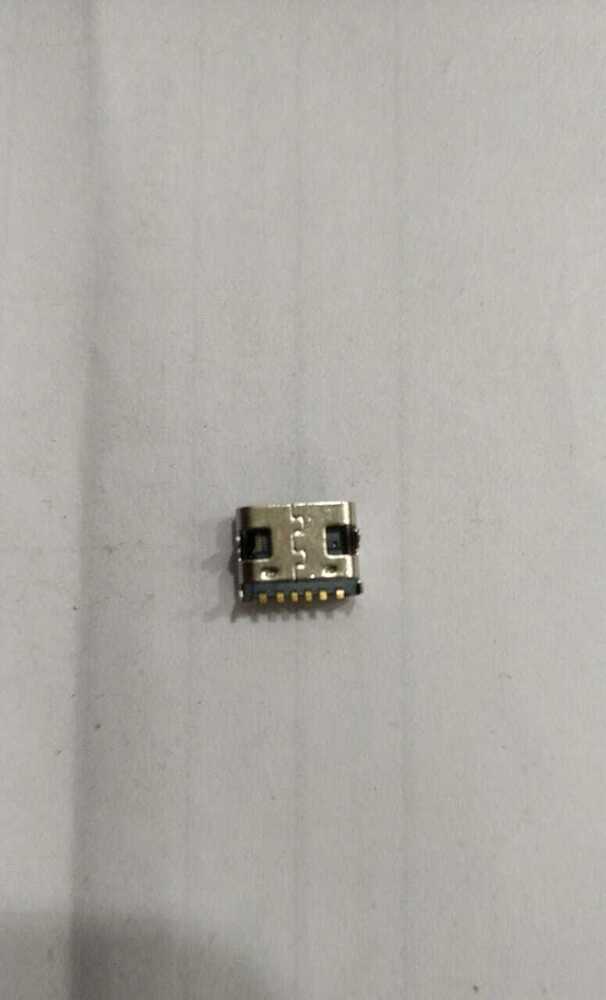

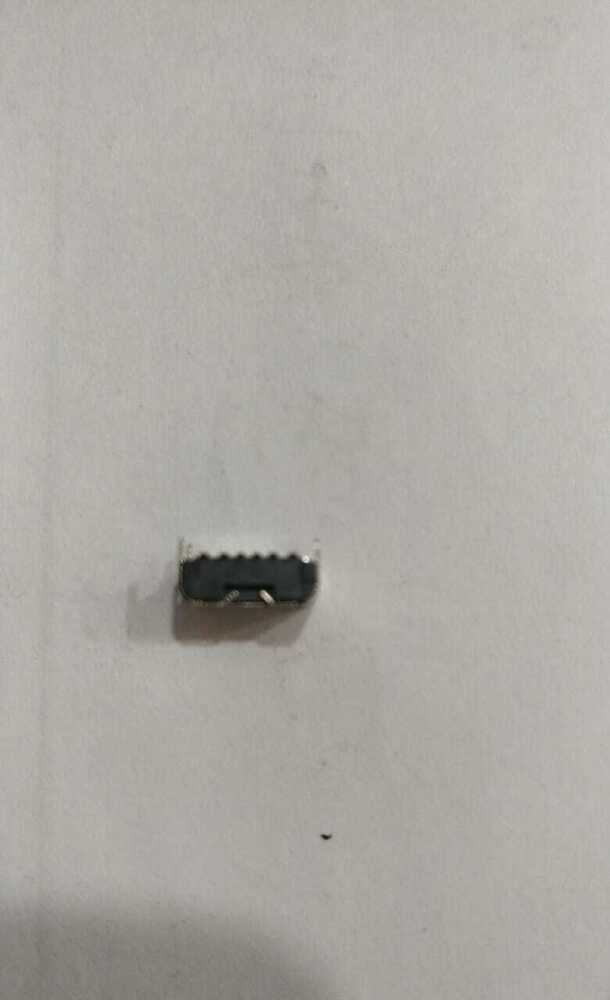

TYPE C6 PIN USB SOCKET

Price 1.20 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TYPE C6 PIN USB SOCKET Specification

Application
Mobile Devices, Laptops, Chargers, Data Transfer

Temperature
-25°C to +85°C

Material
Copper Alloy Contacts, Thermoplastic Housing

Connector
Type C 6 Pin

Female End Type
Type C Socket (Female)

Voltage Rating
30V DC

Pairs
Single

Male End Type
Type C Plug (Male)

Connector Type
USB Type-C 6 Pin Receptacle

Capacity
Supports High Speed Data Transfer

Length
Custom/As Required

Outer Diameter
Approx. 9.2mm

Wire Gauge
24 AWG Data, 28 AWG Power

Flame Resistance Level
UL94V-0

Number of Conductor
6 Pins

Insulation
PVC

Jacket Material
PVC

Sheild
Yes, Metal Shielded

Cable Type
USB Data Cable

Color
Silver/White

Cable Length
Customizable

RoHS Compliant
Yes

Mounting Type
SMT (Surface Mount Technology)

Durability
10,000 Mating Cycles

Contact Plating
Gold Plated

Current Rating
3A max

Contact Resistance
40 m

Insulation Resistance
>100 M at 100V DC

Dimension
9.2mm x 7.25mm (Approx.)

Operating Humidity
20% to 90% RH, non-condensing

Shielding
EMI/RFI Protection

TYPE C6 PIN USB SOCKET Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TYPE C6 PIN USB SOCKET

Number of Ports	2
Connector Type	Female
USB Type	TYPE-C
Current Rating	AA PER ODER
Brand	IMPORTED
Mounting Type	METAL
Piece per box	1000
USB	TYPE C
Rubber	NO
Minimum Order Quantity	1000 Piece

The 6 Pin USB Type C Connector is a USB Type C compliant, and they are a standard interface for various devices, such as PCs, smartphones, audio-visual equipment, gaming devices, and other hand-held devices. This product is a receptacle with 1 row SMT ideal for saving space to allow for the miniaturization of devices.

USB Type-C features a tiny connector that is reversible, no longer forcing you to check that you are plugging the connector in the right way. USB Type-C can also support a wide variety of protocols, this means that you can send different signals down the cable.

Engineered for Reliability and Durability

This USB Type-C 6-pin socket is designed to meet demanding usage standards, providing 10,000 mating cycles and operated within temperatures from -25C to +85C. Its gold-plated contacts and metal shielding ensure excellent performance in challenging environments, making it ideal for mobile and computing devices.

Superior Electrical and Safety Performance

With insulation resistance above 100 M at 100V DC and contact resistance below 40 m, this socket promises stable electrical characteristics. The UL94V-0 flame-resistant thermoplastic housing and RoHS compliance ensure safety and environmental responsibility.

Flexible Design, Wide Application

The socket supports custom cable lengths, making it adaptable to varied installation requirements. Its EMI/RFI shielding safeguards data integrity, and its tailored for both data transfer and charging in mobile, laptop, and charger applications.

FAQs of TYPE C6 PIN USB SOCKET:

Q: How is the Type C6 Pin USB Socket installed on a circuit board?

A: The socket uses Surface Mount Technology (SMT) for installation, allowing secure and efficient mounting directly onto the surface of a PCB. This approach is ideal for automated production lines and ensures a compact, robust connection.

Q: What benefits do gold-plated contacts provide in this socket?

A: Gold plating on the contacts enhances conductivity, minimizes contact resistance, and provides excellent corrosion resistance, ensuring reliable signal and power transmission over thousands of usage cycles.

Q: When should I choose this USB Type-C 6 Pin Socket for my application?

A: Select this socket when you require high durability, strong EMI/RFI shielding, support for high-speed data transfer, and customizable cable lengthsespecially in mobile devices, laptops, chargers, and related electronic equipment.

Q: Where can the Type C6 Pin USB Socket be effectively utilized?

A: This socket is suitable for use in consumer electronics such as smartphones, laptops, chargers, and other devices that require robust, high-speed connectivity with reliable shielding and durability.

Q: What is the recommended process for maintaining optimal socket performance?

A: To maintain performance, use within the specified temperature (-25C to +85C) and humidity (20% to 90% RH, non-condensing) ranges. Avoid exposing the socket to harsh chemicals or mechanical stress, and ensure proper mating and un-mating alignment to preserve contact integrity.

Q: How does EMI/RFI shielding benefit data transfer operations?

A: The integrated metal shield provides robust protection against electromagnetic and radio frequency interference, which helps maintain clean, reliable data and power transmission by minimizing external noise.

Q: What are the advantages of the sockets insulation and flame resistance levels?

A: Featuring a PVC jacket and UL94V-0 rated thermoplastic housing, the socket offers both robust insulation and high flame resistance, ensuring user safety and product reliability in diverse environments.
