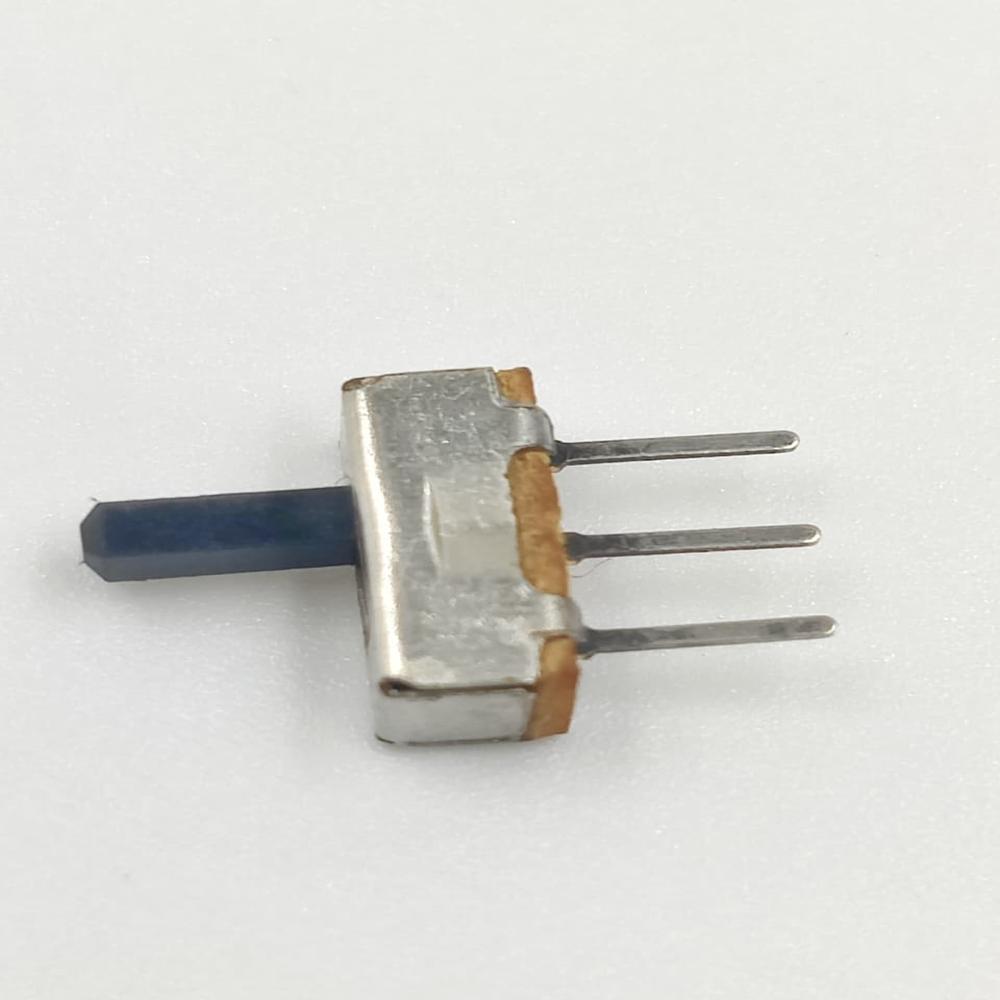

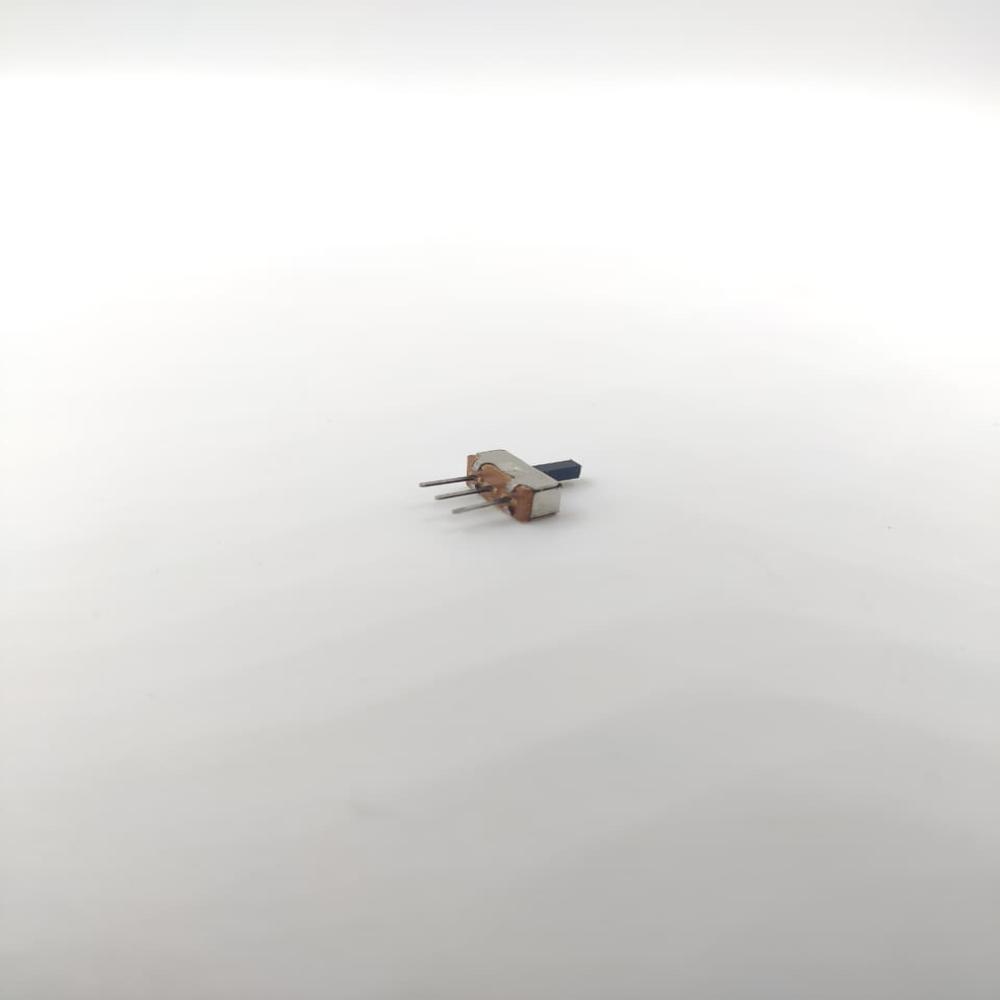

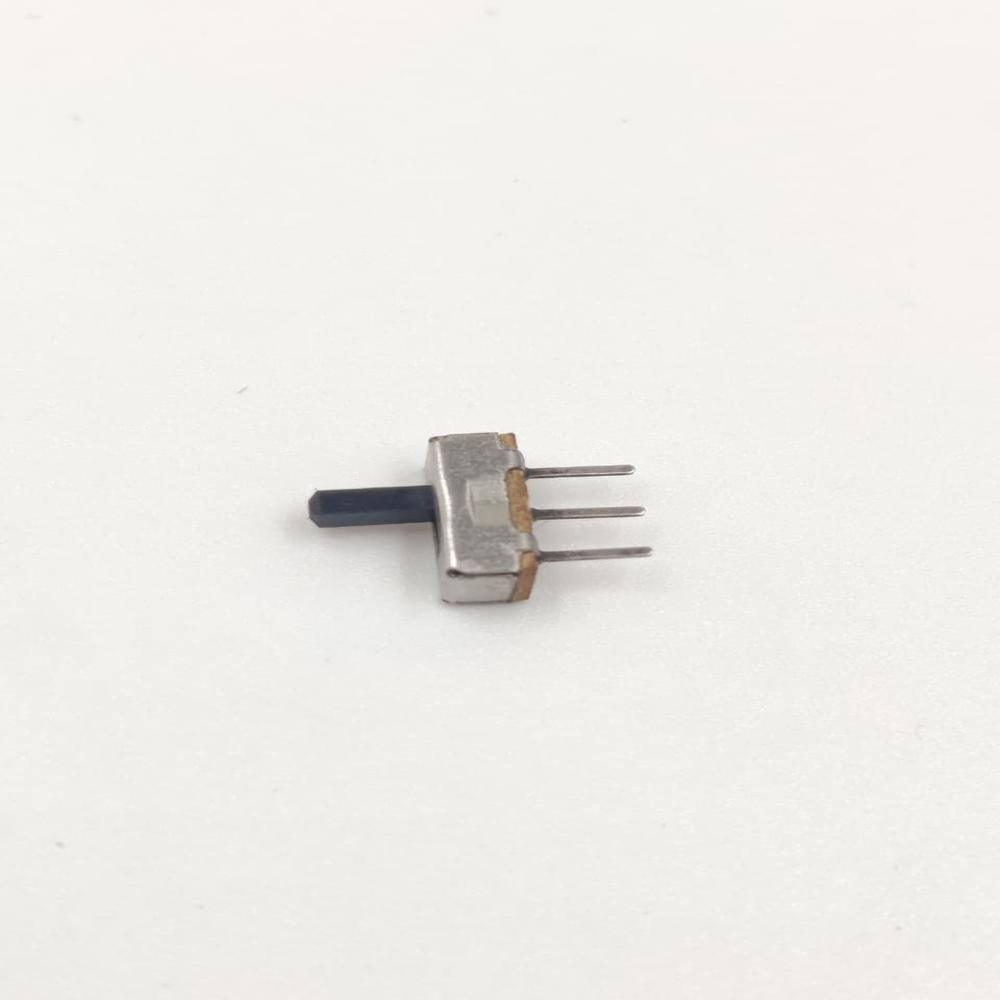

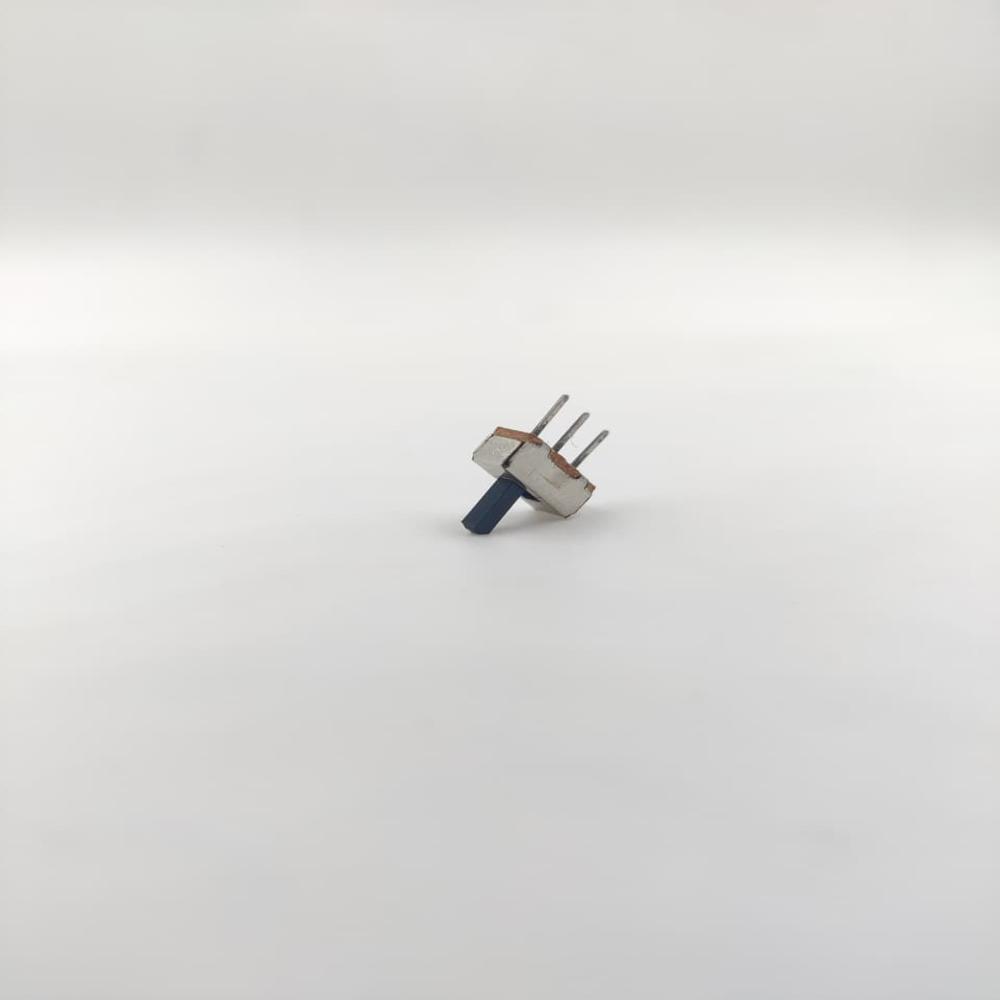

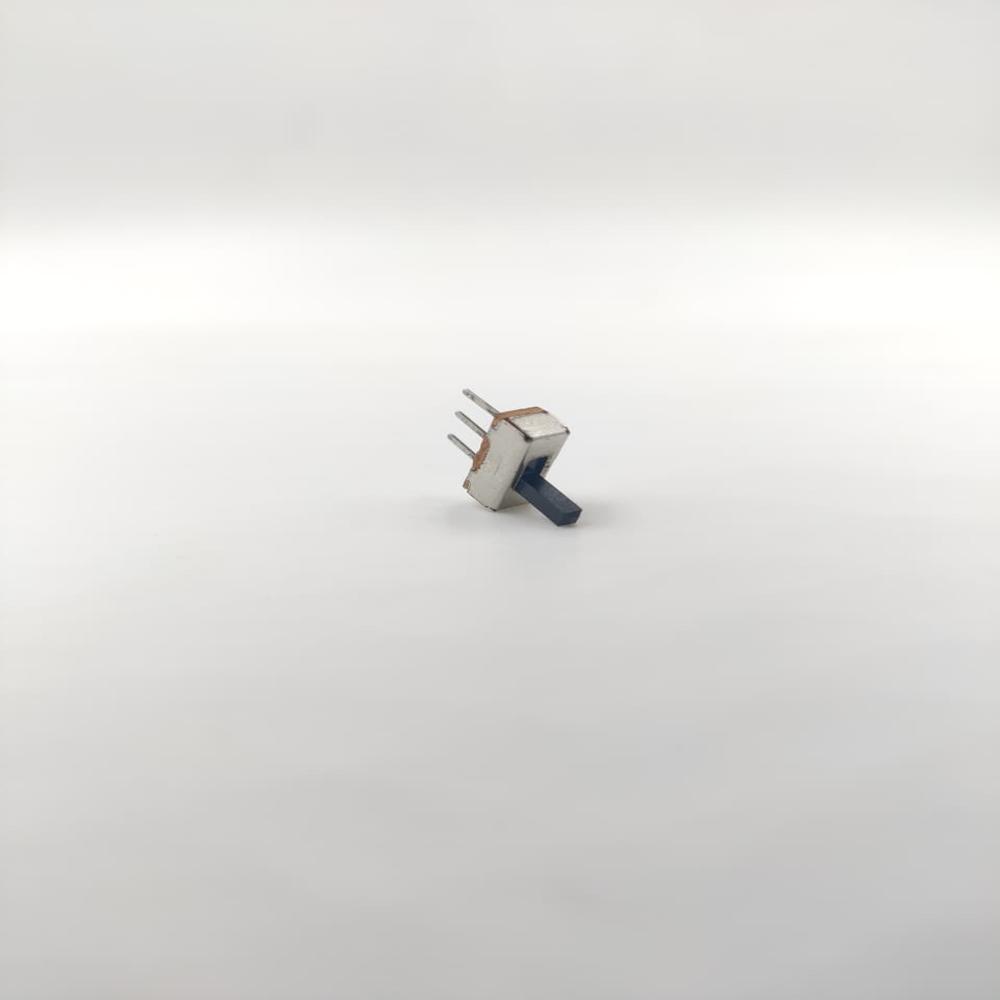

Mini Slide Switch 3 Pin On Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Mini Slide Switch 3 Pin On Off Specification

Mechanical Life
10,000 cycles Days

Rated Voltage
50V DC Volt (V)

Response Time
Instant Seconds

Circuit Type
SPDT (Single Pole Double Throw)

Temperature Range
-25 C to +70 C Celsius (oC)

Protection Level
IP20

Finish Type
Matt

Max. Current
0.5A Ampere (amp)

Automation Grade
Manual

Number of Module
1

Product Type
Mini Slide Switch

Power Rating
50V DC

Insulation Resistance
100M min. at 500V DC

Contact Resistance
30m Ohm ()

Max. Voltage
50V DC Volt (V)

Stoke
2.5mm

Warranty
No Warranty

Size
Approx. 12mm x 5mm x 3mm

Cable Type
Mini Monitor Switch

Color
Black

Operating Temperature
-25 C to +70 C Celsius (oC)

Weight
Approx. 0.5g Grams (g)

Display Type
No display type

Material
matel case

Mounting Type
PCB Mount

Current Rating
0.5A

No Of Poles
Three Pole

RoHS Compliance
Yes

Terminal Type
Through Hole

Switching Mechanism
Sliding

Panel Cutout
Not Required (PCB mount)

Contact Material
Silver Plated

Lead Pitch
4.6mm

Application
Low Voltage Electronic Circuits

Actuator Type
Slide

Switch Position
ON-OFF

Mini Slide Switch 3 Pin On Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Mini Slide Switch 3 Pin On Off

Experience unmatched value with the 3 PIN MINI SLIDE SWITCH ON-OFF, offered at an unbeatable and lowest price. Crafted for cost-effective solutions in low voltage electronic circuits, this superb switch features an elite sliding actuator and superlative silver-plated contacts for optimal conductivity. Its compact size, plastic housing, and metal contacts ensure reliable performance and durability. RoHS compliance, excellent insulation resistance (100M min. at 500V DC), and a mechanical life of 10,000 cycles make it a perfect choice for professional, industrial, and hobby applications needing precise ON-OFF control.

Elite Features and Versatile Applications

The 3 PIN MINI SLIDE SWITCH ON-OFF stands out with its extra features, including instant response time, low contact resistance (30m), and easy PCB mounting. Its superb design makes it ideal for use in automation panels, low-voltage projects, and DIY electronics. The black matt finish, manual operation, and reliable SPDT circuit type ensure smooth and secure switching for diverse usage in industrial, commercial, and consumer devices.

Export Markets & Packaging Excellence

Our superlative switch is dispatched with professional packaging, ensuring safe delivery and minimum charge for the buyer. Exported to major markets across Asia, Europe, and Africa, it is quickly delivered nationwide through our robust distributor network in India. Each switch is securely packed to avoid damage in transit, making it ideal for both bulk exporters and domestic traders who demand prompt delivery and superior support.

FAQs of 3 PIN MINI SLIDE SWITCH ON-OFF:

Q: How do I mount the 3 PIN MINI SLIDE SWITCH ON-OFF on my circuit board?

A: The switch features a through-hole terminal type, making it easy to mount directly onto a PCB without the need for a panel cutout. Simply solder the pins in place according to your circuit design.

Q: What are the benefits of silver-plated contacts in this slide switch?

A: Silver-plated contacts offer higher conductivity, lower contact resistance, and superior durability, resulting in reliable performance and longer mechanical life for your projects.

Q: When should the 3 PIN MINI SLIDE SWITCH ON-OFF be used?

A: This switch is best used in low voltage electronic circuits requiring ON-OFF control, such as automation, DIY electronics, small appliances, and industrial projects demanding instant switching.

Q: Where is this product mainly exported and delivered?

A: The 3 PIN MINI SLIDE SWITCH ON-OFF is exported globally, primarily to markets in Asia, Europe, and Africa, while being delivered throughout India via an extensive distributor, importer, and trader network.

Q: What is the process for bulk order and packaging?

A: Bulk orders are professionally dispatched with secure packaging to prevent damage during transit. Charges are calculated based on quantity and destination, ensuring products are delivered safely and promptly.

Q: How does the sliding mechanism enhance switch operation?

A: The sliding actuator provides smooth and effortless switching, offering instant circuit ON-OFF control with tactile feedback, suitable for both manual and automated electronic applications.
