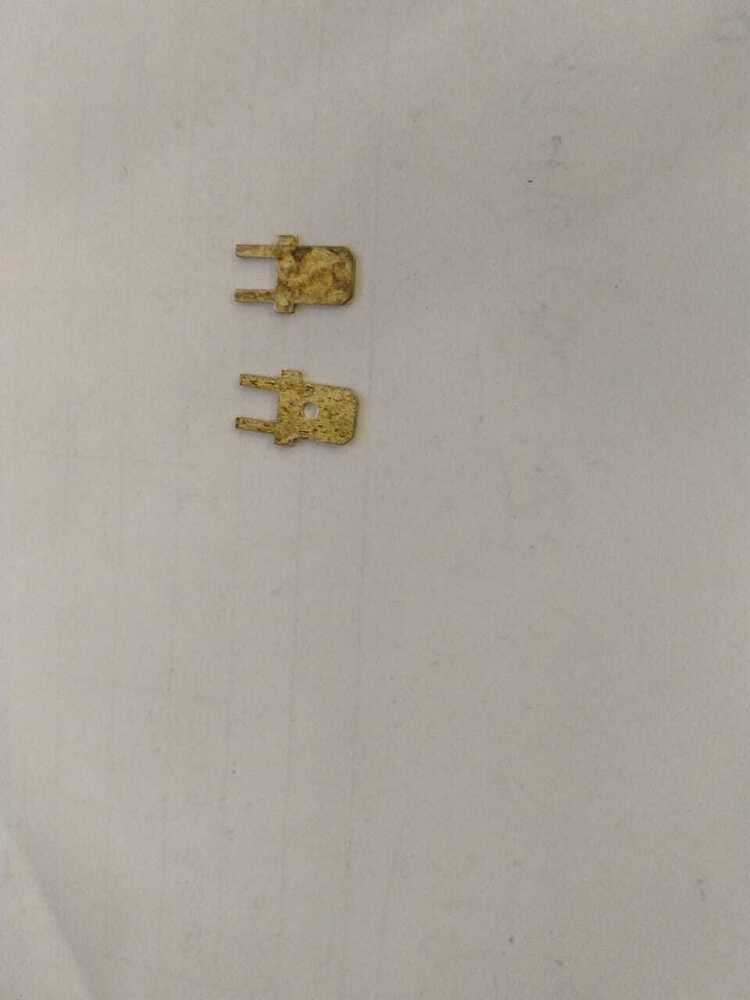

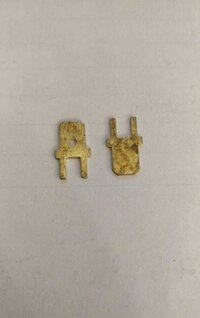

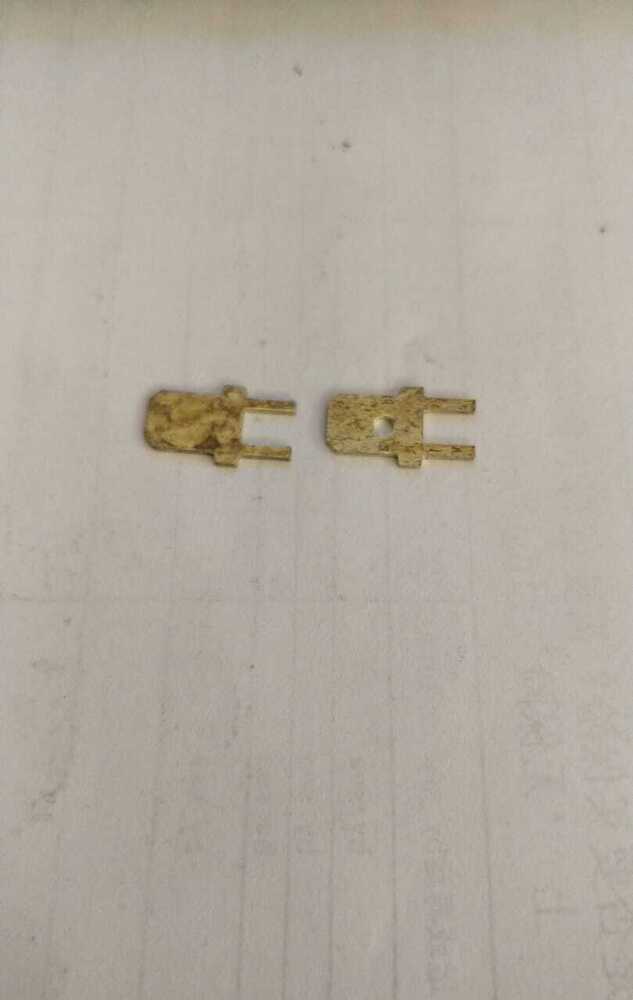

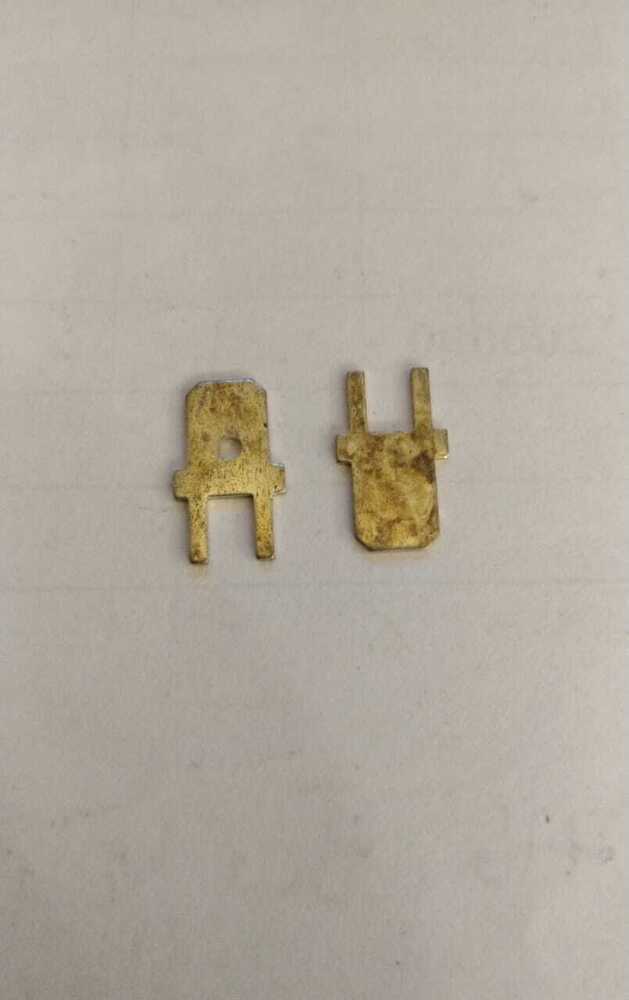

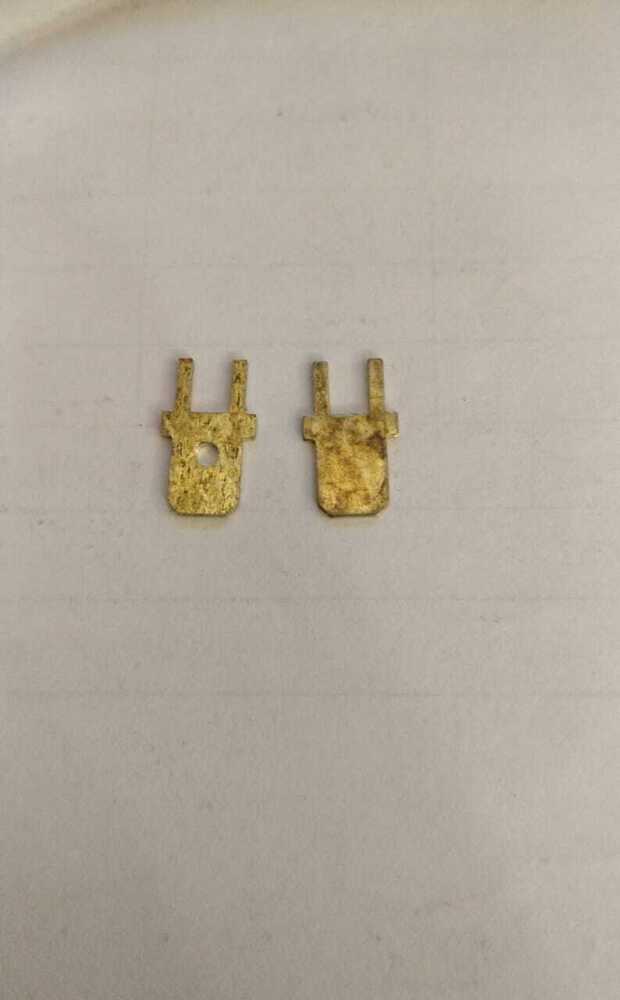

FUSE THIMBLE MALE

Price 0.80 INR/ Piece

Get a Price/Quote

MOQ : 5000 Pieces

FUSE THIMBLE MALE Specification

Surface Treatment
Nickel Plated

Thickness
1.2 mm

Sealed
NO

Cable Diameter
6 mm

Product Type
Fuse Thimble Male

Material
Bakelite and Brass

Application
Electrical Wiring

Contact Resistance
5 m

Insulation Resistance
1000 M

Diameter
25 mm

Terminal Socket
Brass

Style
Male Thimble

Fittings
Panel Mount

Rated Voltage
250 V AC/DC

Weight
30 g

Color
Black

Mounting Type
Panel Mounting

Cap Material
ABS Plastic

Contact Material
Phosphor Bronze

Operating Temperature Range
-20C to +85C

Packaging Type
Box Packing

Mechanical Life
500 Operations

Flammability
UL94 V-0

RoHS Compliant
Yes

Voltage Withstand
1500 V AC for 1 Min

Compatible Fuse Size
6x32 mm

Shape
Cylindrical

FUSE THIMBLE MALE Trade Information

Minimum Order Quantity
5000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About FUSE THIMBLE MALE

Fuse Type	Cartridge Fuse
Model Name/Number	TEGS04
Usage/Application	Home Distribution Board
Material	SS
Color	Silver
Minimum Order Quantity	1000

We are the leading organization in the industry to provide our clients the best quality SS 06 Male Fuse Thimmble.

Panel Mount Convenience

With a panel mounting design, installation of the FUSE THIMBLE MALE is straightforward, allowing quick and reliable attachment in equipment. The mounting style ensures stability, reduces vibration risks, and simplifies future fuse replacement or maintenance, optimizing uptime in demanding environments.

Enhanced Safety and Reliability

Constructed from high-grade ABS plastic, brass, and bakelite, and offering top-tier insulation ( 1000 M), this thimble prioritizes operational safety. The UL94 V-0 flammability standard and RoHS compliance ensure it meets international safety and environmental standards, making it suitable for global applications.

Versatile Electrical Applications

Compatible with standard 6x32 mm fuses and rated for up to 250 V AC/DC, this thimble is perfectly suited for electrical wiring in various industries. Its 30 g weight and robust structure ensure long-term durability while accommodating cables up to 6 mm in diameter, broadening its practical use cases.

FAQs of FUSE THIMBLE MALE:

Q: How is the FUSE THIMBLE MALE installed with panel mounting?

A: The FUSE THIMBLE MALE is designed for straightforward panel mounting by securing it to a control panel or enclosure. Simply fit the cylindrical body into a compatible hole (diameter 25 mm), tighten it using the provided fittings, and connect the wiring to the brass-terminal socket.

Q: What types of fuses are compatible with this fuse thimble?

A: This product is compatible with 6x32 mm fuse sizes, which are widely used in electrical protection applications across multiple industries.

Q: When should I replace the fuse inside the thimble?

A: You should replace the fuse inside the thimble whenever it has blown due to overcurrent, or during scheduled maintenance checks to ensure ongoing circuit protection and prevent electrical faults.

Q: Where can the FUSE THIMBLE MALE be applied?

A: This fuse thimble is suitable for electrical wiring in industrial control panels, machinery, consumer electronics, and other applications where circuit protection is essential, making it ideal for export, import, distribution, or manufacturing sectors across India and globally.

Q: What is the process for changing the fuse in this thimble?

A: To replace the fuse, unscrew or open the ABS plastic cap, remove the old 6x32 mm fuse, insert a new one of the same size and rating, and securely refasten the cap, ensuring the connection remains tight for safe operation.

Q: How does the product ensure electrical safety and durability?

A: The FUSE THIMBLE MALE features a high insulation resistance ( 1000 M), a low contact resistance ( 5 m), and is made from flame-retardant materials, offering excellent reliability and reducing the risks of shorts, overheating, and fire hazards.

Q: What are the benefits of choosing this fuse thimble for electrical wiring?

A: The main benefits include compliance with international safety standards, long mechanical life, ease of installation, robust construction, and reliable protection for circuits, making it a preferred choice for electrical professionals and system integrators.
