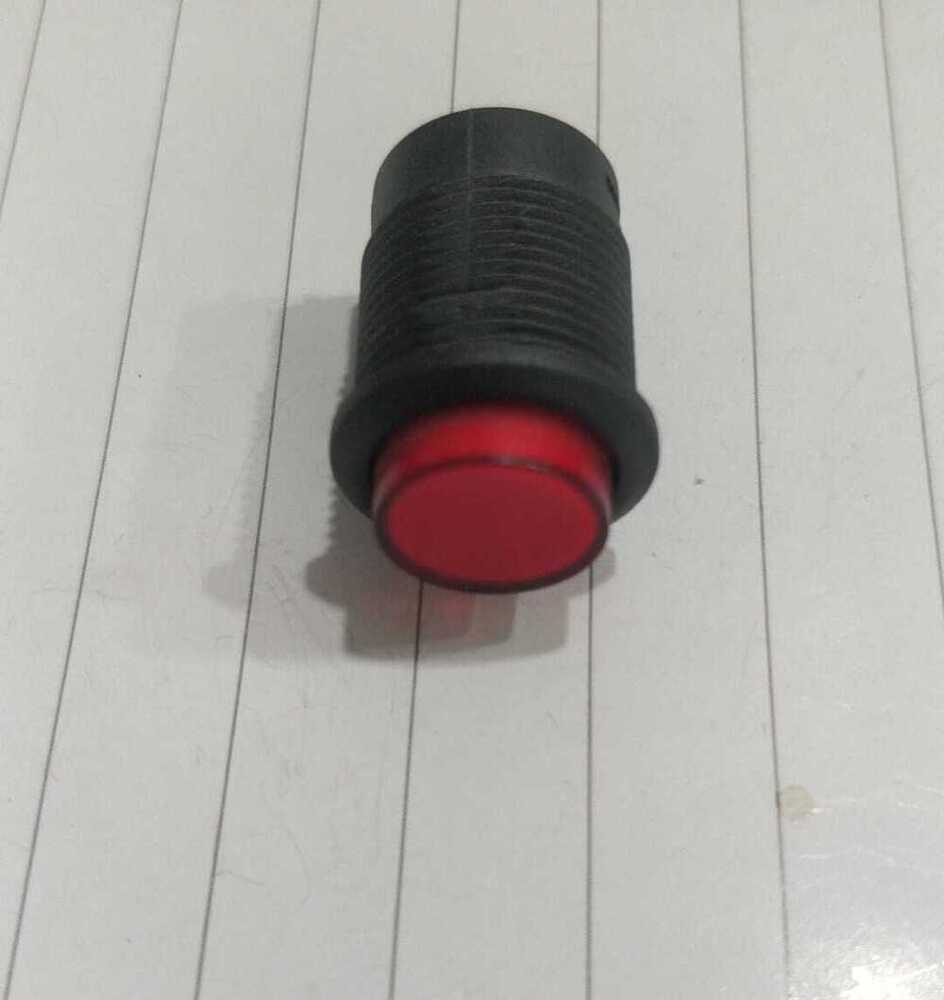

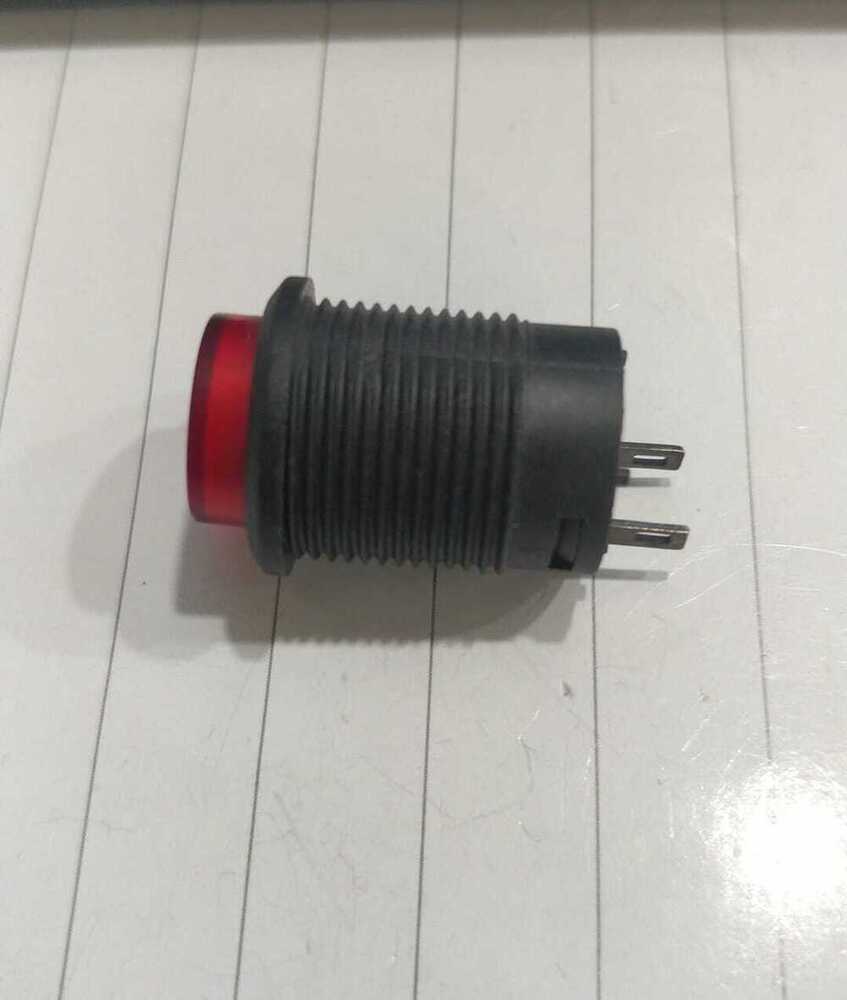

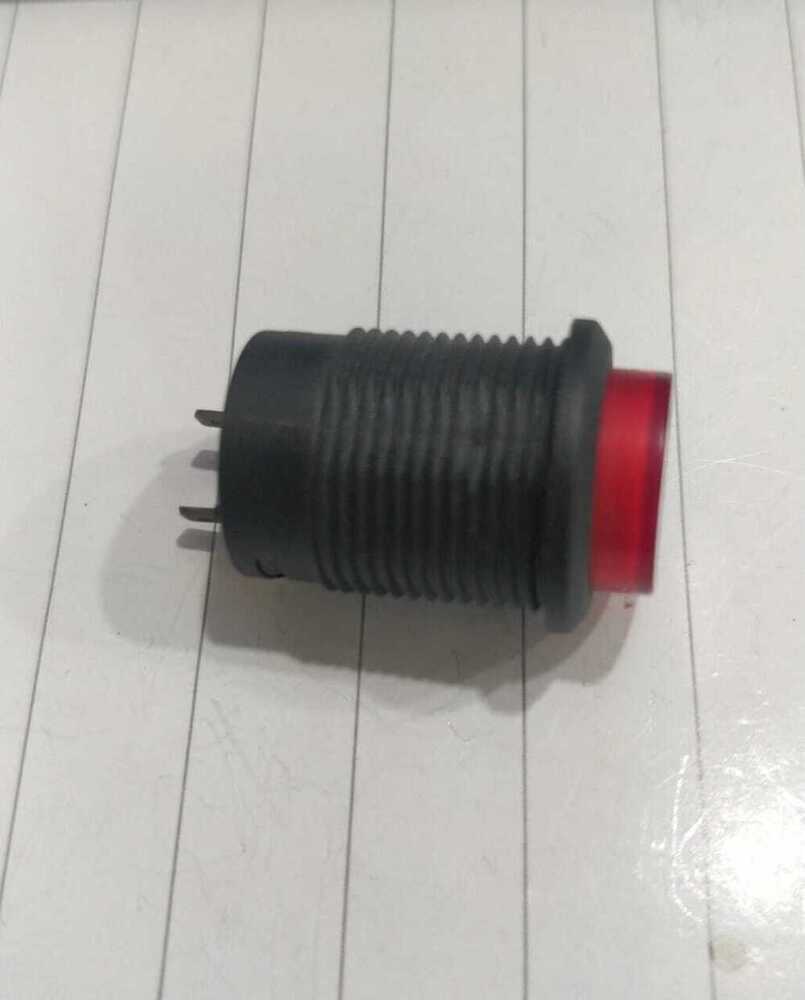

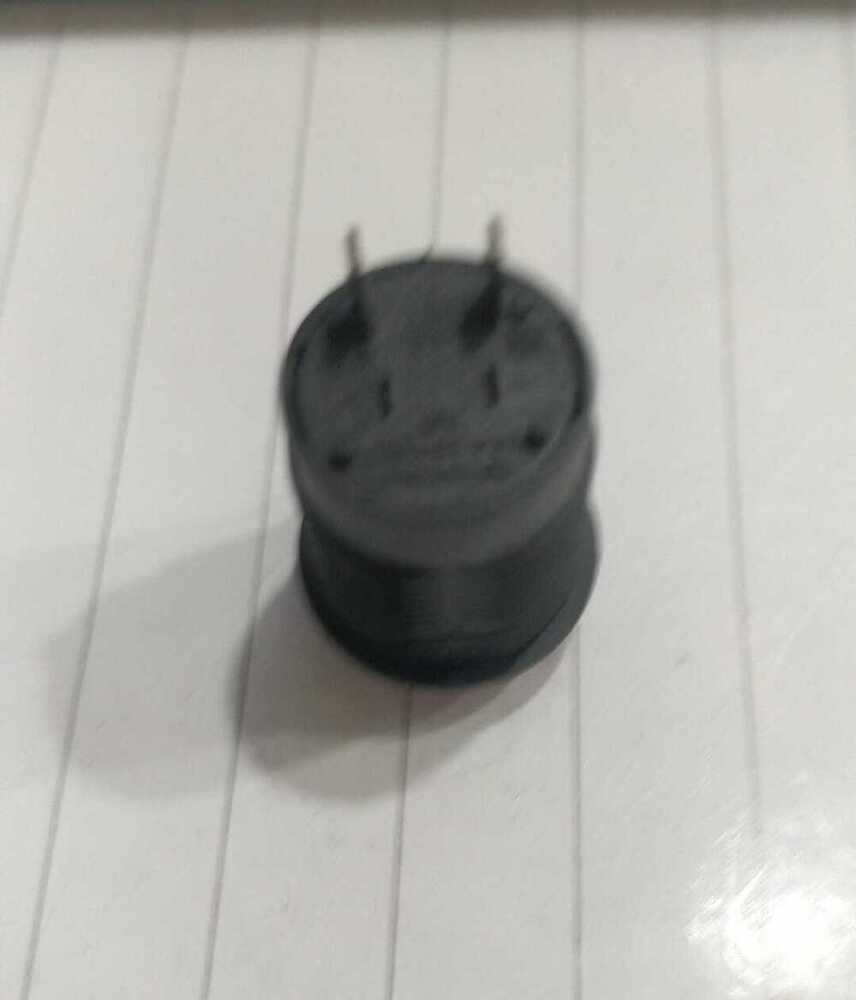

Push Button PBS-500 2 PIN LOCK

Price 8 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Push Button PBS-500 2 PIN LOCK Specification

Temperature Range
Usually between -25C and +85C.

Response Time
Instantaneous (mechanical actuation)

Automation Grade
Manual

Protection Level
IP40 (front panel)

Number of Module
1

Max. Current
3A

Mechanical Life
50,000 cycles

Circuit Type
SPST (Single Pole Single Throw), lock mechanism

Rated Voltage
Frequently rated for 1A at 250VAC or 3A at 120VAC.

Finish Type
Glossy plastic surface

Product Type
Push Button Switch, PBS-500 2 PIN LOCK

Material
Plastic casing.

Insulation Resistance
1000M at 500V DC

Contact Resistance
50m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
Approx. 3.0mm

Size
Fit for 12mm panel cutout

Color
Red (button head)

Weight
Approx. 4g

Mounting Type
Typically panel mountable with a 12mm diameter opening.

Current Rating
1A at 250V AC, 3A at 120V AC

No Of Poles
Single Pole

Terminal Type
2 Pin Solder Lugs

ROHS Compliance
Yes

Button Shape
Round Cap

Contact Configuration
NO (Normally Open)

Panel Thickness
1mm to 6mm

Application
Signal indication, control circuits, DIY electronics

Manufacturer's Reference No.
PBS-500-2P-LK

Actuator Type
Lock type, push to lock, push again to release

Contact Material
Silver plated contacts

Dielectric Strength
AC 1500V for 1 minute

Push Button PBS-500 2 PIN LOCK Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Push Button PBS-500 2 PIN LOCK

Type:Momentary push button switch(self-resetting).
Pin Configuration:2-pin (two terminals).
Mounting:Typically panel mountable with a 12mm diameter opening.
Material:Plastic casing.
Functionality:The switch activates (completes the circuit) only when the button is pressed and deactivates (opens the circuit) when released.
Applications:Widely used in DIY electronics, control panels, automation systems, and other devices where momentary on/off functionality
is needed.
Model: PBS-500
- Pin Count: 2
- Switch Type: Lock Push Switch
- Actuator Type: Push-Button
- Locking Mechanism: Yes
- Contact Material: Copper Alloy or other conductive materials
- Contact Resistance: 50 m
- Insulation Resistance: 100 M
- Dielectric Strength: 500V AC for 1 minute
- Operating Temperature: -20C to +70C

Durable Panel-Mount Design

Designed for easy installation, the PBS-500 push button securely mounts through a 12mm diameter opening and accommodates panel thickness from 1mm to 6mm. Its glossy plastic casing and red round button head deliver reliable performance in both professional control systems and home electronics projects.

Reliable Locking Mechanism

Featuring a lock-type actuator, this push button stays engaged with a single press and releases upon a second push, ensuring secure operation in control circuits. The tactile mechanism and instantaneous response make it highly suitable for applications requiring simple manual activation and deactivation.

Electrical Safety and Compliance

The PBS-500 is engineered with silver-plated contacts, high insulation resistance, and a dielectric strength of AC 1500V, providing safe operation in circuits up to 250V AC and 3A. Its ROHS-compliant, making it eco-friendly and safe for global supply chains.

FAQs of Push Button PBS-500 2 PIN LOCK:

Q: How do I install the PBS-500 2 Pin Lock push button on my panel?

A: To install, prepare a 12mm diameter hole in your panel with a thickness between 1mm and 6mm. Insert the push button from the front, ensuring a secure fit. Solder your control wires to the 2-pin solder lugs for quick, reliable connections.

Q: What is the operating process of the locking mechanism?

A: The actuator uses a push-to-lock and push-to-release mechanism. Pushing the button once locks it into placeideal for maintaining circuit activation. Pressing it a second time releases it, returning the circuit to its default state.

Q: Where is the PBS-500 commonly used?

A: This switch is suitable for signal indication, control circuits, industrial panels, and DIY electronic projects. Its compact, robust design is ideal for a wide range of automation and manual switching applications, both professionally and at home.

Q: What are the key benefits of using the PBS-500 push button?

A: Benefits include reliable manual control, high electrical safety (with AC 1500V dielectric strength), robust locking action, and a lifecycle of over 50,000 operations. Its ROHS certification and durable construction make it suitable for long-term use.

Q: What electrical and environmental ratings does the PBS-500 support?

A: The PBS-500 operates reliably between -25C and +85C, with a maximum voltage of 250V AC and currents up to 3A. It ensures 1000M insulation resistance, 50m contact resistance, and offers IP40 front panel protection.

Q: How does the PBS-500 contribute to automation solutions?

A: As a manual SPST push button with instant actuation and lock mechanism, the PBS-500 is often integrated into control panels for machinery and equipment, providing immediate response and secure switching where automated toggling isnt required.
