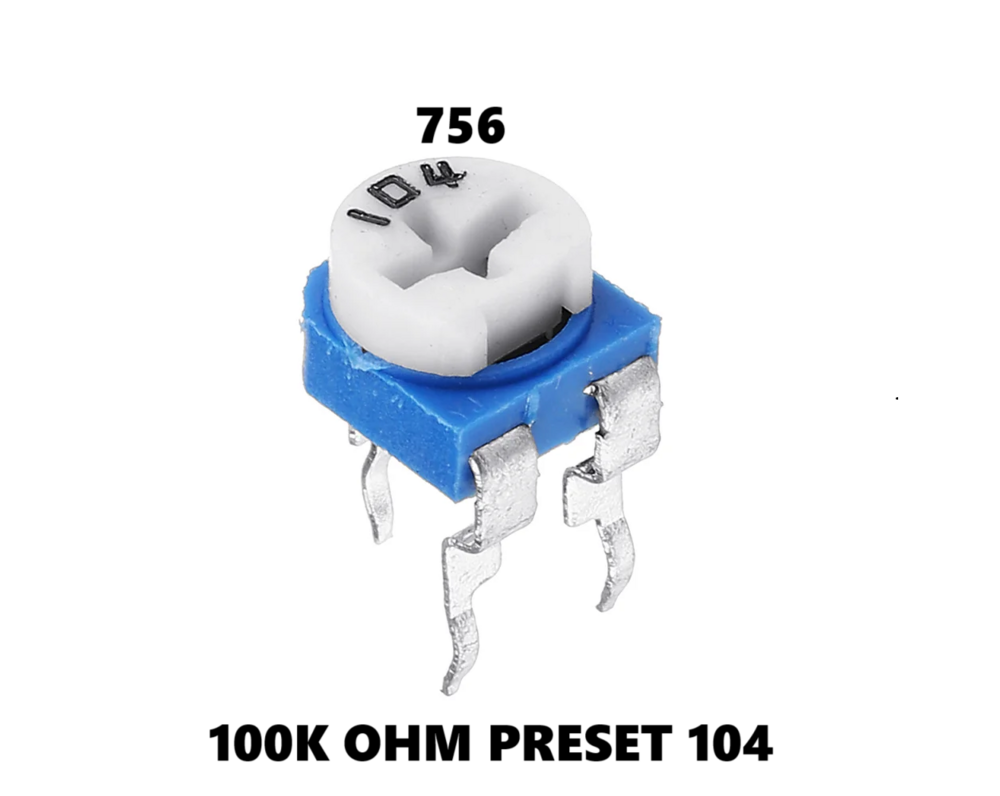

100 K OHM PRESET 104

Get a Price/Quote

MOQ : 1000 Pieces

100 K OHM PRESET 104 Specification

Product Type
Single-turn carbon preset potentiometer

Material
Carbon Track, Plastic Body, Metal Leads

Withstand Voltage
600V AC for 1 minute

Application
Used for variable resistance and adjustment in electronic circuits

Insulation Resistance
1000 M min at 500V DC

Height
5 mm (approx)

Weight
0.3 g (approx)

Color
Blue

Adjustment Type
Top adjustment slot

Mounting Type
PCB Through Hole

Tolerance
20%

Number of Turns
Single turn

RoHS Status
RoHS Compliant

Resistance Value
100 K (104)

Lead Pitch
5 mm (approx)

Operating Voltage
Up to 50V

Max Power Rating
0.1 W (at 70C)

Temperature Range
-10C to +70C

100 K OHM PRESET 104 Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
No

Main Domestic Market
i, [, ', A, l, l, , I, n, d, a, ', ]

About 100 K OHM PRESET 104

Resistance Values	100 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	100K
Material	PLASTIC
Color	WHITE/BLUE
Part Number	PT12
Minimum Order Quantity	100

Optimized for high performance with large datasets.
Supports seamless horizontal alignment of data.
Configurable parameters for flexibility and customization.
Enhanced data visualization capabilities.

Reliable Variable Resistance for Circuit Adjustment

The 100 K OHM PRESET 104 offers precise control within electronic circuits, making it essential for tuning and calibration. Its single-turn adjustment ensures ease of use in setting the perfect resistance value. Built from quality carbon and plastic materials, it guarantees both stability and reliability, suitable for demanding electronic environments.

Durable Design with Wide Compatibility

With a robust temperature range, high insulation resistance, and ability to withstand 600V AC for one minute, this preset delivers superior safety and performance. The 5 mm lead pitch and through-hole mounting make it compatible with a broad range of PCB designs, ensuring seamless integration for manufacturers and designers alike.

FAQ's of 100 K OHM PRESET 104:

Q: How do I adjust the resistance of the 100 K OHM PRESET 104?

A: You can adjust the resistance using the top adjustment slot. Simply turn the slot with a flat-head screwdriver to set the desired resistance value within the unit's 100 K range.

Q: What is the recommended process for mounting this preset on a PCB?

A: To mount the preset, insert its metal leads into the corresponding holes on your PCB, ensuring a proper fit with the approximate 5 mm lead pitch. Secure it by soldering the leads to the board carefully to maintain electrical stability.

Q: When should I use the 100 K OHM PRESET 104 in my circuit design?

A: This preset is ideal when you require a variable resistance for calibration, tuning, or fine adjustment in signal processing, oscillators, or other analog circuits. Use it when precise and frequent resistance adjustments are necessary.

Q: Where can I source the 100 K OHM PRESET 104?

A: This component is available through distributors, exporters, importers, manufacturers, and traders specializing in electronic parts across India. Check with local authorized suppliers for availability.

Q: What applications benefit most from using this preset resistor?

A: It's widely used in applications that demand variable resistance, such as voltage dividers, electronic tuning, sensor calibration, and test or measurement equipment.

Q: What are the main benefits of using the 100 K OHM PRESET 104?

A: Main benefits include its reliability, RoHS compliance, high insulation resistance, ease of adjustment, and compatibility with standard PCB designs. The preset's rugged build ensures consistent performance in various environments.
