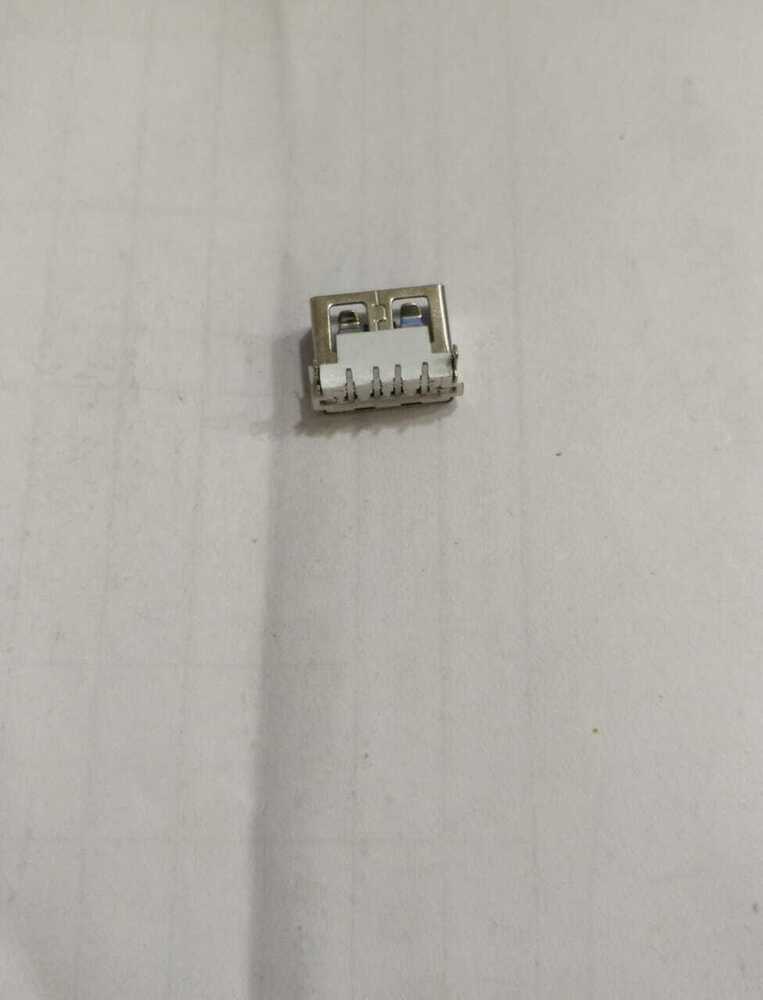

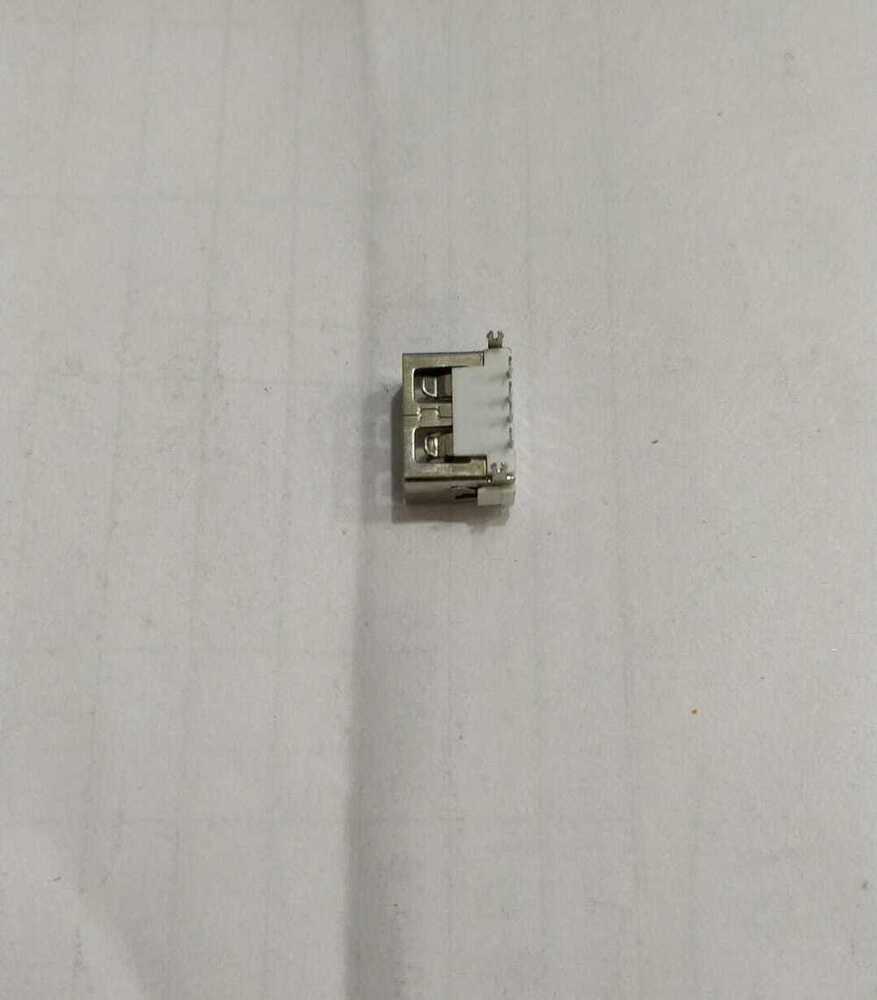

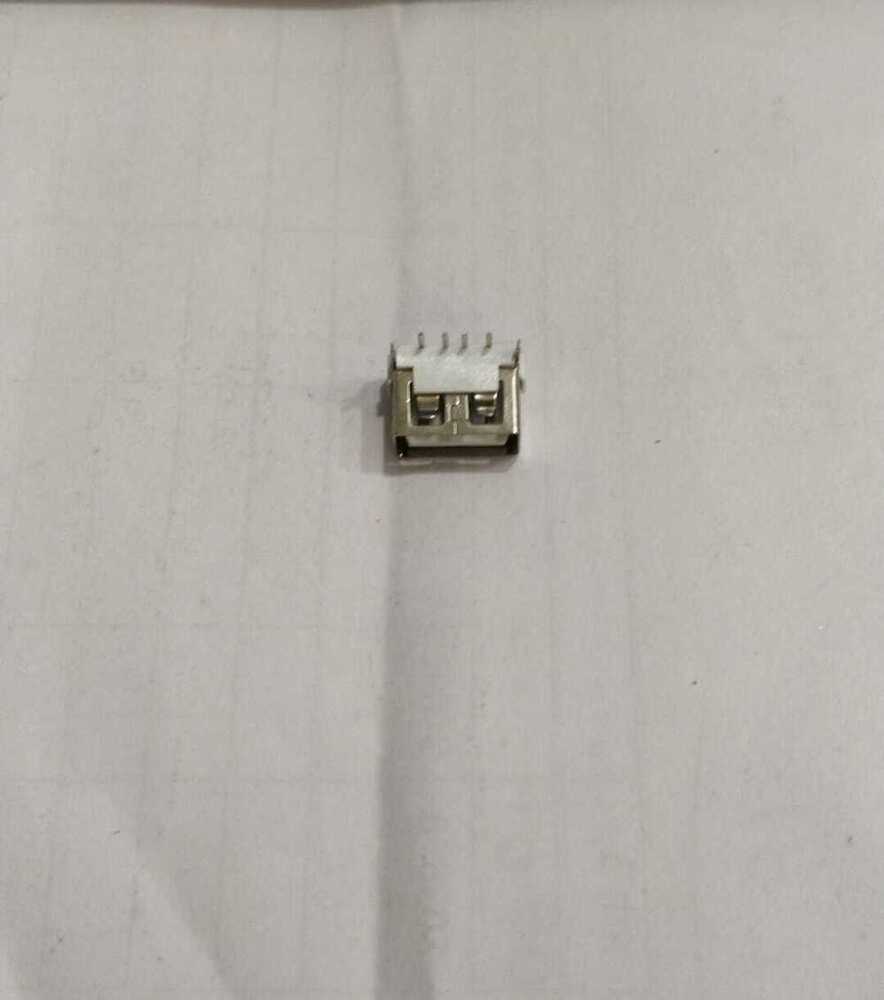

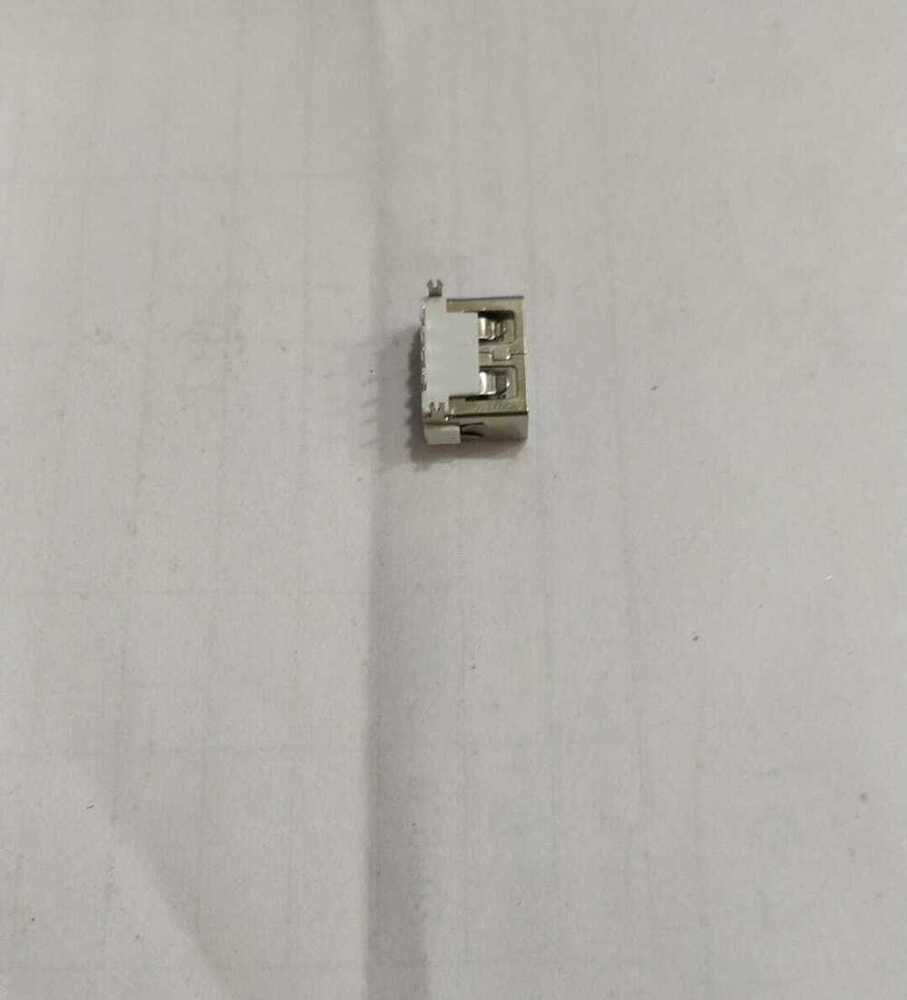

TYPE A 4 PIN RIGHT ANGLE 13 MM FEMALE USB

Price 1.50 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TYPE A 4 PIN RIGHT ANGLE 13 MM FEMALE USB Specification

Voltage Rating
30V AC (Max)

Female End Type
USB Type A 4 Pin Right Angle Female

Connector
USB Type A Female, 4 Pin

Connector Type
Type A 4 Pin Female, Right Angle

Application
PCB Mount, USB Devices, Embedded Systems

Pairs
Single USB Pair

Material
Metal & High Quality Plastic

Temperature
-40°C to +85°C

Capacity
Standard USB Data & Power Transmission

Sheild
Yes, Metal Shielded

Insulation
PVC Insulation on contact pins

Outer Diameter
13 mm

Color
Silver/Black

Flame Resistance Level
UL94V-0

Number of Conductor
4

Wire Gauge
28 AWG (for signal), 24 AWG (for power)

Length
N/A (Connector only)

RoHS Compliant
Yes

Mounting Type
Through Hole, Right Angle

Insulation Resistance
1000M @ 500V DC

Current Rating
1.5A Max

Contact Resistance
30m

Contact Plating
Gold Plated Contacts

Durability
1,500 Mating Cycles Min.

Insertion/Withdrawal Force
35N/10N

Port Configuration
Single Port

TYPE A 4 PIN RIGHT ANGLE 13 MM FEMALE USB Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TYPE A 4 PIN RIGHT ANGLE 13 MM FEMALE USB

Brand	NO
Connector Type	Female
USB Type	USB
Current Rating	0.5A
Mounting Type	STANDARD
Piece per box	1000
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).

Superior Connection Reliability

The connectors gold-plated contacts and low contact resistance (30m) ensure consistent signal and power transmission. Metal shield protection minimizes electromagnetic interference, which is crucial for precise electronic applications.

Robust Mounting and Durability

Designed for through-hole PCB mounting and right-angle orientation, this connector is simple to install. With a minimum of 1,500 mating cycles and UL94V-0 flame resistance, it withstands demanding environments, making it ideal for industrial and commercial setups.

Versatile Applications

Suitable for PCB assembly, embedded systems, and a broad range of USB-powered devices, the Type A 4 Pin Right Angle Female USB connector meets the needs of manufacturers, exporters, and importers. Its RoHS compliance and insulation features ensure reliability and safety.

FAQs of TYPE A 4 PIN RIGHT ANGLE 13 MM FEMALE USB:

Q: How is the Type A 4 Pin Right Angle 13 mm Female USB connector mounted onto a PCB?

A: This connector utilizes through-hole mounting, which involves inserting its pins through designated holes in the PCB and soldering them to ensure a secure electrical and mechanical connection.

Q: What is the maximum current and voltage rating for this USB connector?

A: The connector supports a maximum current of 1.5A and can safely operate up to 30V AC, making it suitable for standard data and power transmission requirements.

Q: Where can this USB connector be used?

A: It is ideal for PCB assemblies, embedded electronics, industrial applications, and any device requiring a USB Type A 4 Pin Female connection, including consumer USB devices.

Q: What process ensures optimal conductivity and reliability in this connector?

A: Gold-plated contacts are used to maintain excellent conductivity and reduce contact resistance (30m), ensuring reliable data and power transfer throughout the connectors lifespan.

Q: How does this connector provide flame and EMI protection?

A: The connectors body is constructed using UL94V-0 flame-resistant material, and it features a metal shield to significantly reduce electromagnetic interference during operation.

Q: What benefits does RoHS compliance offer?

A: RoHS compliance ensures that the connector does not contain hazardous substances, making it safe for use in electronic devices and better for the environment.
