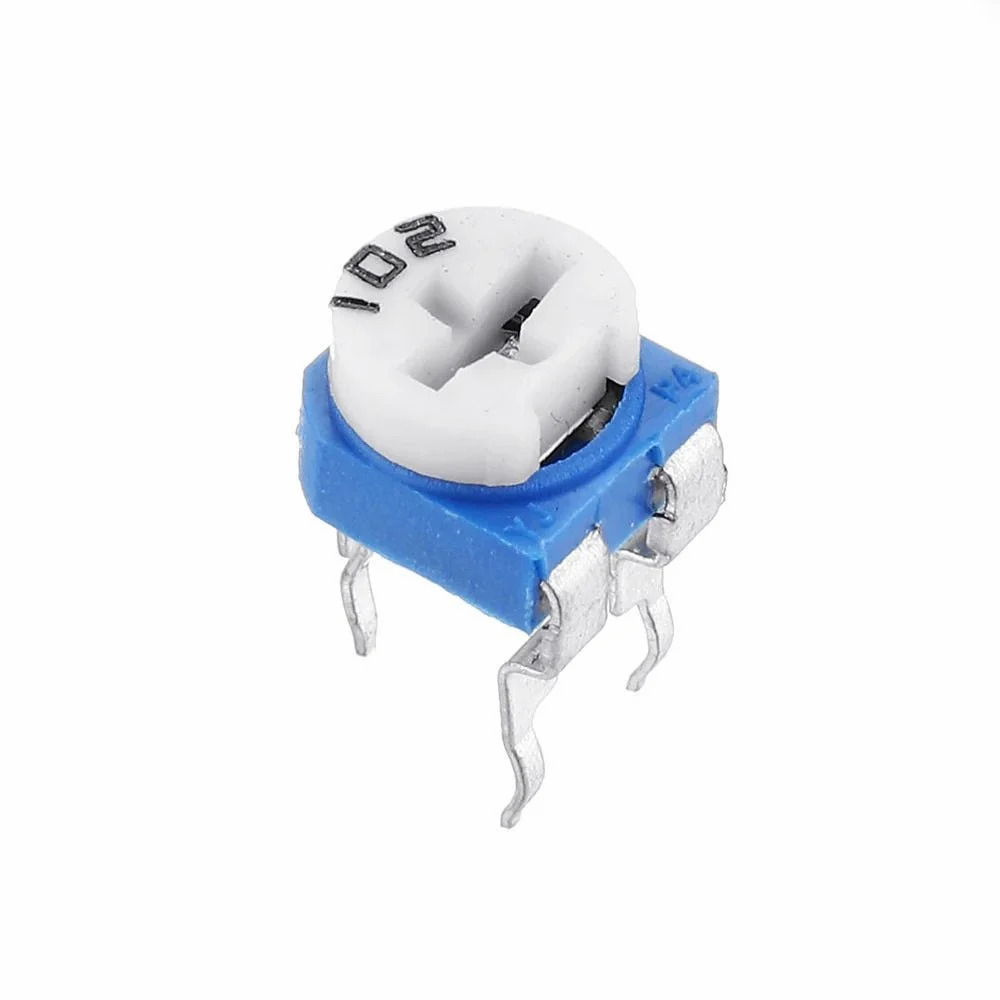

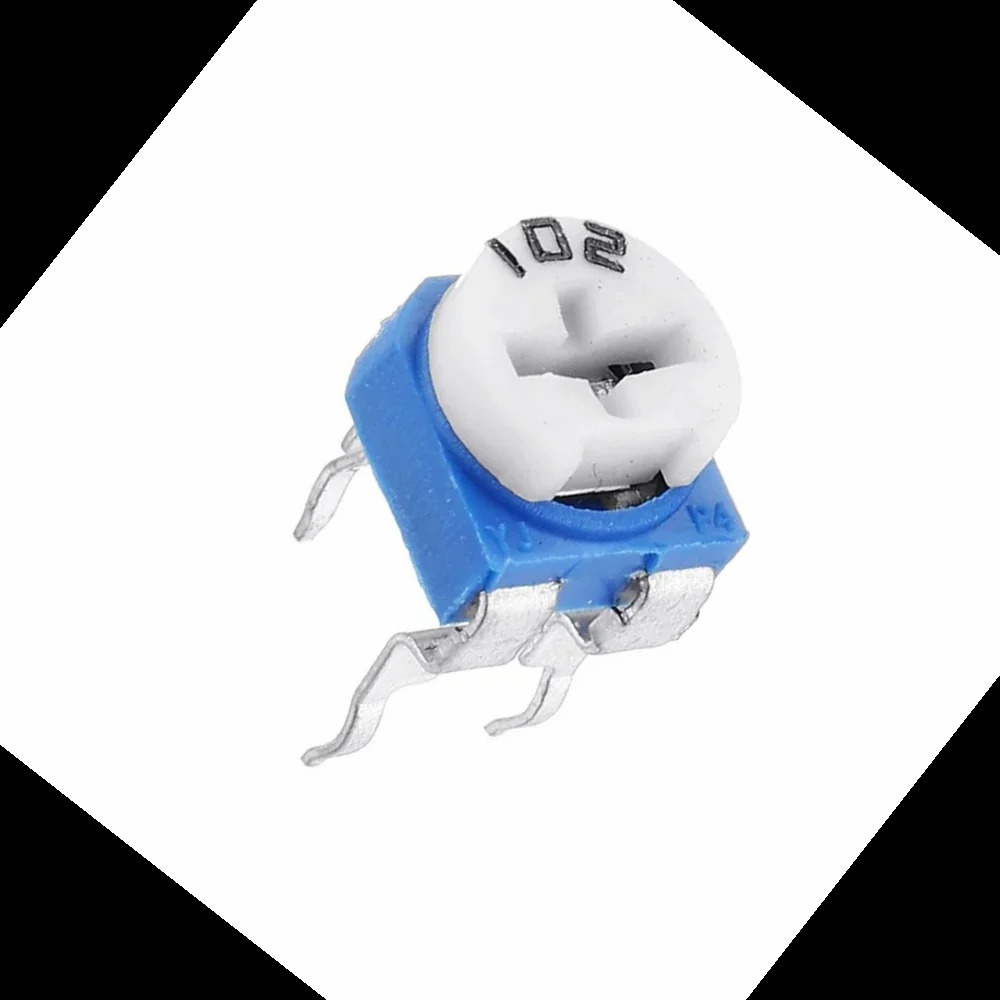

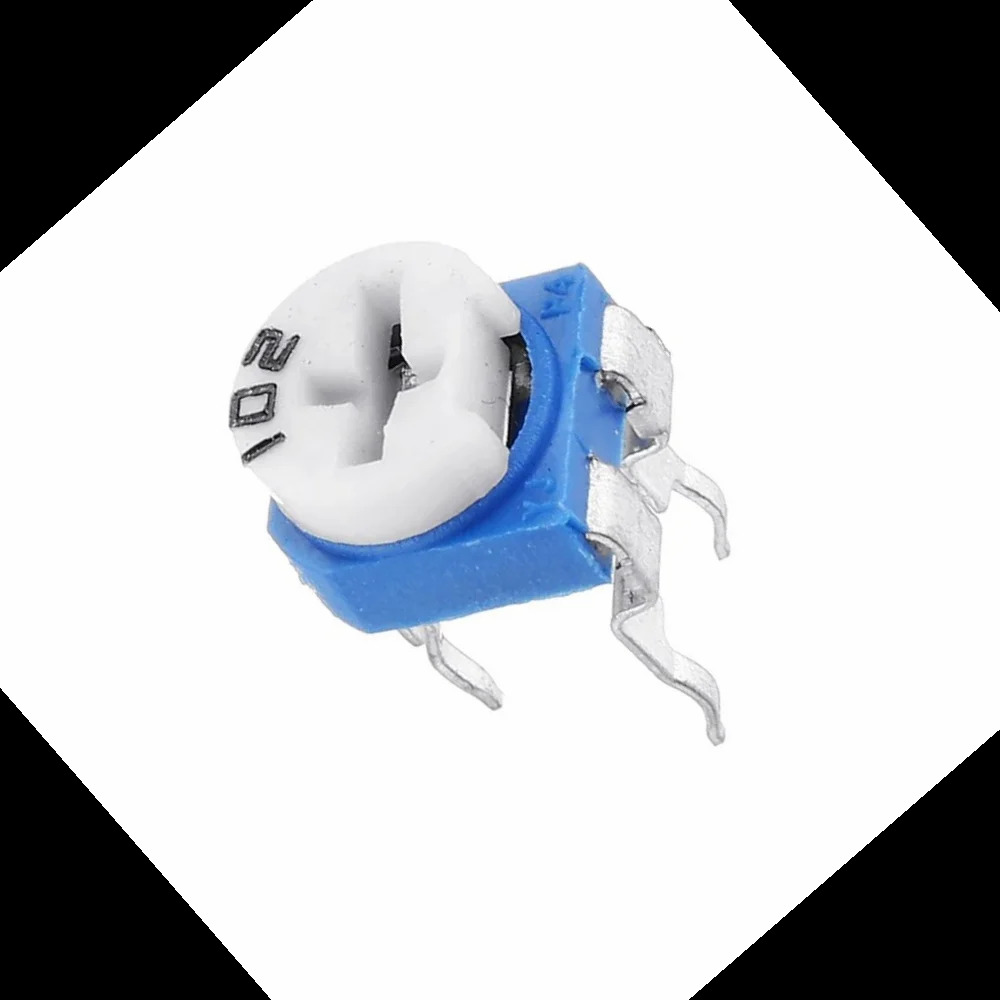

1 K OHM PRESET

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

1 K OHM PRESET Specification

Feature
Pre-settable, compact, reliable adjustment, PCB mountable

Humidity %
<95% RH (non-condensing)

Mounting Type
PCB Mount

Surface Finish
Matte / Standard

Shape
Rectangular

Connector Type
Pin (3 Pin)

Insulation Material
Plastic (body)

Overheating Protection
NO

IP Rating
Not Rated (suitable for indoor, PCB usage)

Operating Temperature
-25C to +70C

Product Type
Variable Resistor / Preset Potentiometer

Application
Electronic circuits, PCB mounting, calibration and adjustment of resistance

Protection Level
Standard

Frequency (MHz)
DC to few MHz (depends on usage)

Rated Voltage
50 VDC Max

Output Type
Adjustable Resistance

Color
Blue / Black (varies by manufacturer)

Dimension (L*W*H)
Approx. 7 x 8 x 6 mm

Weight
2 g

Size
1 K Ohm (preset size varies)

Phase
Single Phase

Input Voltage
Up to 50 VDC

Connection Type
Through Hole

No Of Poles
3

Material
High quality plastic & metal alloy

Life Cycle
10,000 cycles minimum

Resistance Tolerance
20%

RoHS Compliance
Yes

Terminal Material
Tin Plated Brass

Adjustment Method
Slot or cross-slot for screwdriver adjustment

Turn Type
Single Turn

Storage Temperature
-30C to +85C

Standard Packing
Bulk / Bag / Tape as supplied

1 K OHM PRESET Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 1 K OHM PRESET

Resistance Values	1 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	1K
Voltage	STANDARD
Material	PLASTIC
Color	WHITE / BLUE
Part Number	PT01
Minimum Order Quantity	1000

used in electronic circuits for calibration, tuning, and adjustment
Usage: Ideal for setting reference voltages, adjusting signal levels, and other precision applications
Durability: Long lifespan with reliable performance over time
Compatibility: Suitable for use in a variety of electronic devices and projects

Reliable Precision for Circuit Calibration

This 1 K OHM PRESET is engineered to deliver consistent and accurate resistance adjustments, crucial for calibration and fine-tuning in electronic devices. The single-turn mechanism provides straightforward and precise control, while its robust build ensures it stands up to rigorous use over a minimum of 10,000 cycles. Ideal for PCB mounting applications, this component is a favorite among electronics manufacturers and repair professionals.

Durable Construction and Versatile Use

Built from high-quality plastic and metal alloy, the preset combines durability with performance. It features tin-plated brass terminals for effective conductivity and comes in a compact rectangular shape that saves PCB space. Available in bulk, bag, or tape packaging, it offers flexibility for manufacturing and assembly lines. Its versatility makes it suitable for calibration, adjustment, and general resistance control in a wide range of electronic setups.

FAQs of 1 K OHM PRESET:

Q: How do I adjust the resistance value of the 1 K OHM PRESET?

A: The resistance is adjusted using a screwdriver. Simply insert the screwdriver into the slot or cross-slot provided on the preset and turn it to achieve your desired resistance value within the 1 k range.

Q: What are the main applications for this 1 K OHM PRESET?

A: This component is primarily used for calibration and adjustment of resistance in electronic circuits. It is ideal for PCB mounting in devices needing precise tuning and control, such as amplifiers, measurement equipment, and control panels.

Q: When should I consider replacing the preset?

A: Consider replacement if the preset exhibits erratic resistance values, physical damage, or after it has exceeded 10,000 adjustment cycles, to ensure continued circuit reliability and performance.

Q: Where is the 1 K OHM PRESET best installed within a device?

A: The preset is designed for through-hole mounting directly onto printed circuit boards, making it most effective in electronic assemblies where space is limited and reliable in-circuit adjustment is needed.

Q: What is the process for installing this preset on a PCB?

A: To install, align the three pins with the corresponding holes on the PCB, insert the pins fully, and solder them in place using standard PCB assembly techniques. Ensure the adjustment slot remains accessible for calibration.

Q: What benefits does this preset offer to electronic manufacturers and service technicians?

A: This preset provides compact, reliable, and repeatable resistance adjustment, making it ideal for precise calibration needs. Its durable design supports long service life and high-frequency use in electronic production and repair contexts.
