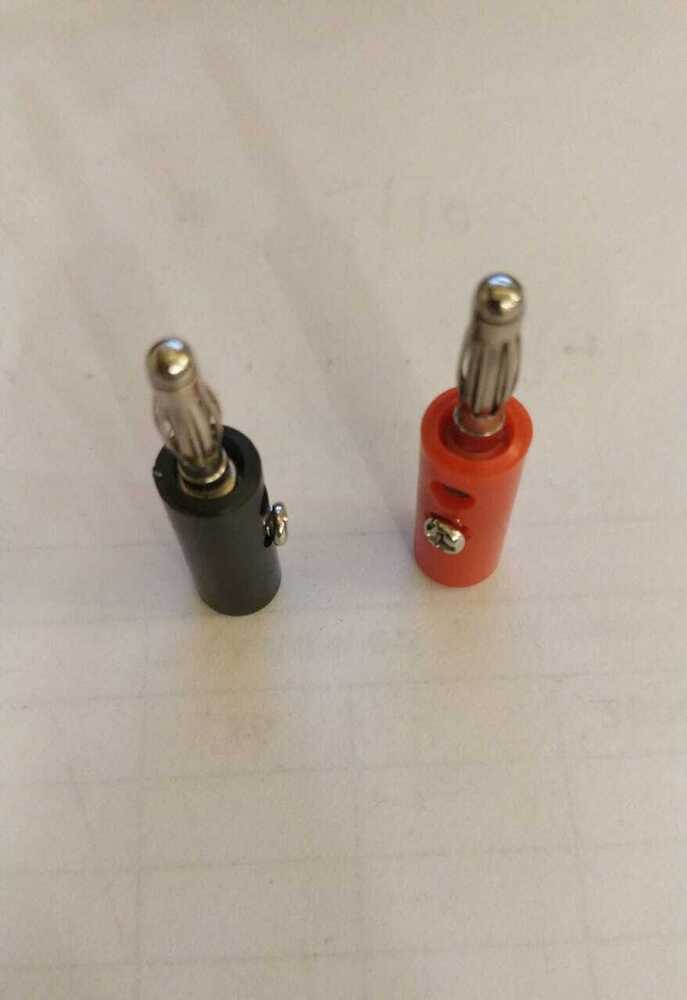

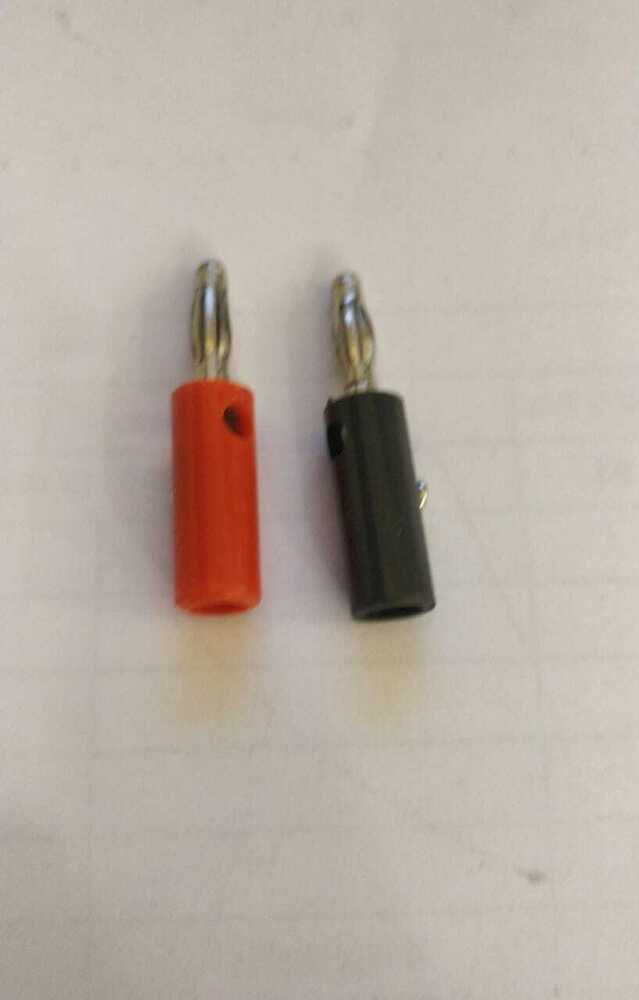

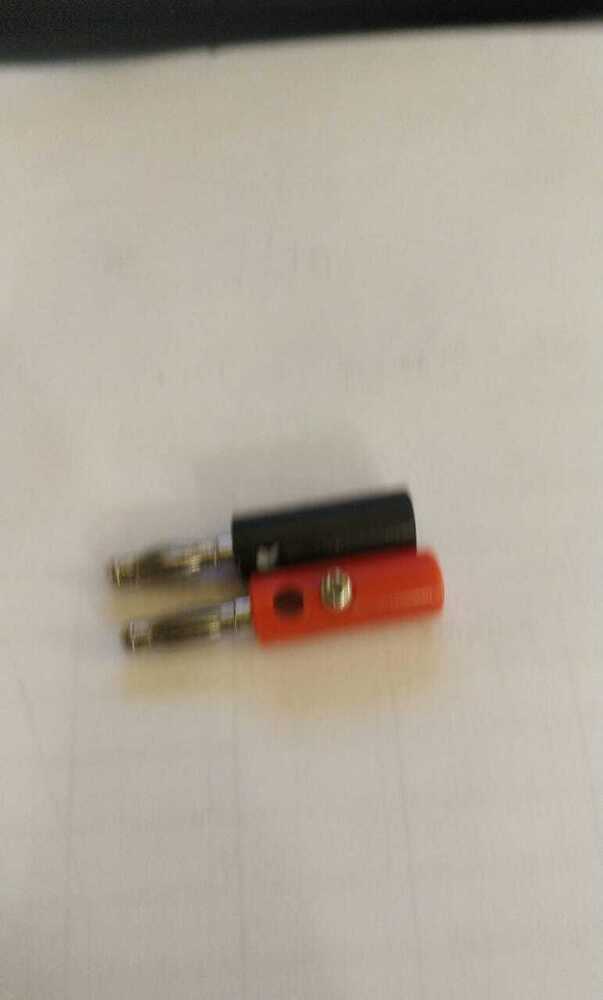

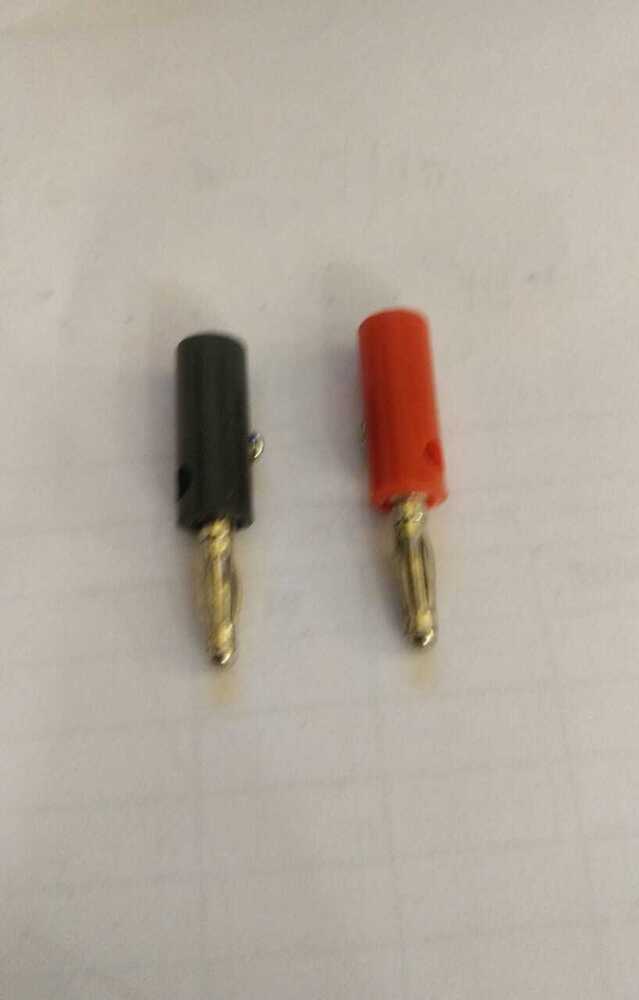

BANANA PIN

Price 3 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

BANANA PIN Specification

Surface Treatment
Nickel/Gold plating

Thickness
About 1 to 2 mm

Cable Diameter
Fits 2 mm to 4 mm cable

Sealed
Unsealed

Product Type
Banana Pin Connector

Material
Brass

Application
Used for test & measurement connections

Contact Resistance
<0.01

Insulation Resistance
>1000 M at 500V DC

Diameter
4 mm (standard)

Terminal Socket
Compatible with standard banana sockets

Style
Standard cylindrical

Fittings
Screw or Press fit

Rated Voltage
220-250 V

Weight
Approx 5-10 grams per piece

Color
Gold Plated

BANANA PIN Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About BANANA PIN

Pitch Size	4mm
Type	BANANA MALE PLUG
Plug Size	4MM
Material	BRASS
Usage/Application	banana plugs are frequently used to terminate patch cords for electronic test equipment.
Color	RED& BLACK

Minimum Order Quantity	1000 Piece

4 mm banana plug connector is a single-wire electrical connector used for joining wires to electronic equipment. MX banana plugs are frequently used to terminate patch cords for electronic test equipment. MX banana plugs are also used as the plugs on the cables connecting the amplifier to the loudspeakers in a hi-fi sound system

High Durability and Quality

Constructed with premium brass and finished with nickel/gold plating, the Banana Pin guarantees high mechanical strength and long-lasting reliability. Its polished surface resists corrosion, ensuring consistent performance in rigorous testing environments.

Versatile Applications

Designed for compatibility with standard banana sockets, this connector fits cables between 2 mm and 4 mm. It is ideal for test and measurement tasks, making it suitable for laboratories, manufacturing, and educational settings that demand secure and accurate electrical connections.

Easy Installation and Secure Fit

Featuring options for soldering or crimping, as well as screw or press fit fittings, the Banana Pin offers flexible installation to match various setup requirements. Its standard cylindrical style and gold plating add to its user-friendly design, facilitating quick and safe assembly.

FAQs of BANANA PIN:

Q: How do I install the Banana Pin for my test and measurement setup?

A: You can install the Banana Pin by either soldering or crimping the cable, depending on your preference. The pin fits securely using either screw or press fit fittings, making connection both straightforward and dependable.

Q: What is the benefit of the gold plating on the Banana Pin?

A: Gold plating enhances conductivity and minimizes contact resistance, leading to reliable signal transmission. It also guards against corrosion, improving the pins lifespan and overall durability, especially in demanding environments.

Q: When should I use a Banana Pin with a 10 A current rating?

A: Use this Banana Pin for electrical applications where currents up to 10 A are required, such as laboratory equipment testing or industrial measurements. Its robust design accommodates high current safely within the specified voltage range.

Q: Where can I use this Banana Pin for electrical connections?

A: The Banana Pin is suitable for use in laboratories, manufacturing plants, testing stations, educational institutes, and anywhere secure test and measurement connections are needed. Its compatibility with standard banana sockets ensures versatile integration.

Q: What cable sizes can the Banana Pin accommodate?

A: The connector is specifically designed to fit cables with diameters ranging from 2 mm to 4 mm, allowing flexibility in choosing cable thickness for different testing requirements.

Q: What process ensures the high insulation resistance of this Banana Pin?

A: The use of high-grade brass material combined with advanced nickel/gold plating provides outstanding insulation resistance, exceeding 1000 M at 500V DC. This supports superior safety and reliability during operation.

Q: What advantages does the standard cylindrical style provide in usage?

A: The standard cylindrical style ensures easy compatibility with conventional banana sockets and helps achieve sturdy, consistent connections. It simplifies assembly and reduces downtime during installation and maintenance.
