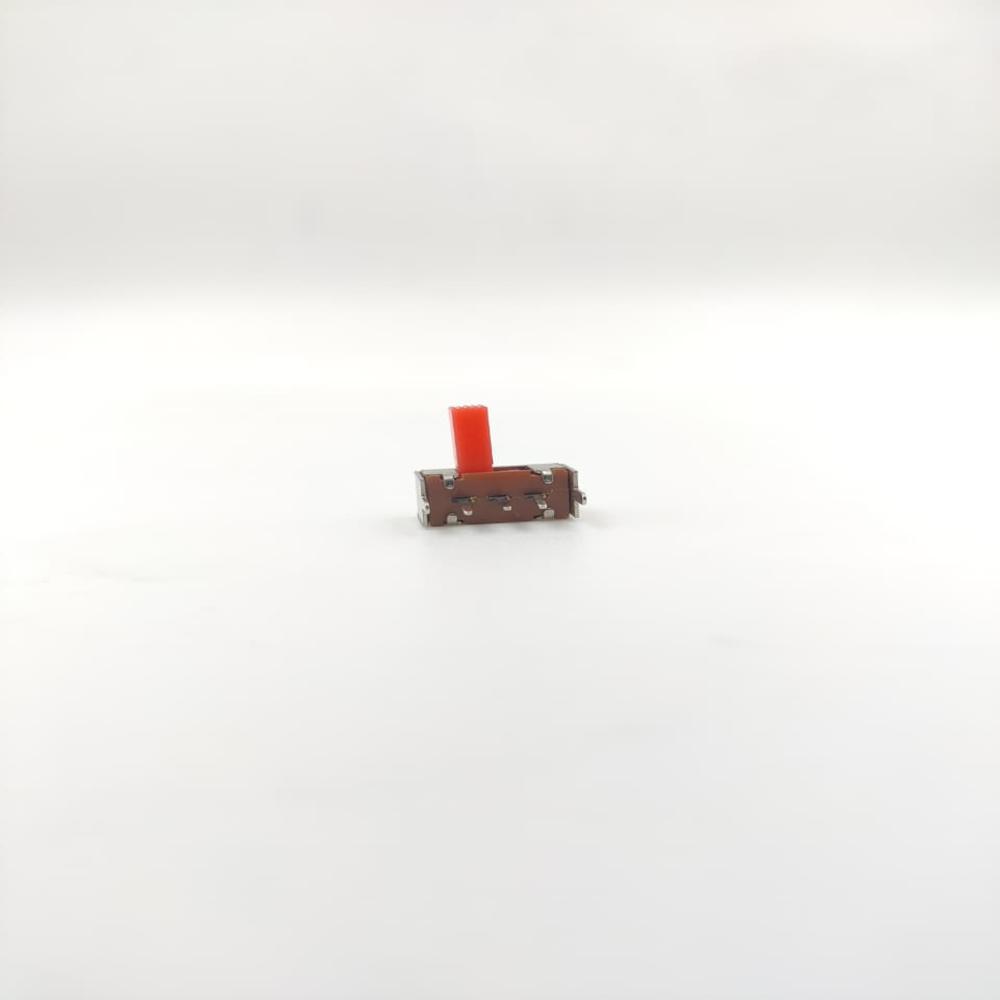

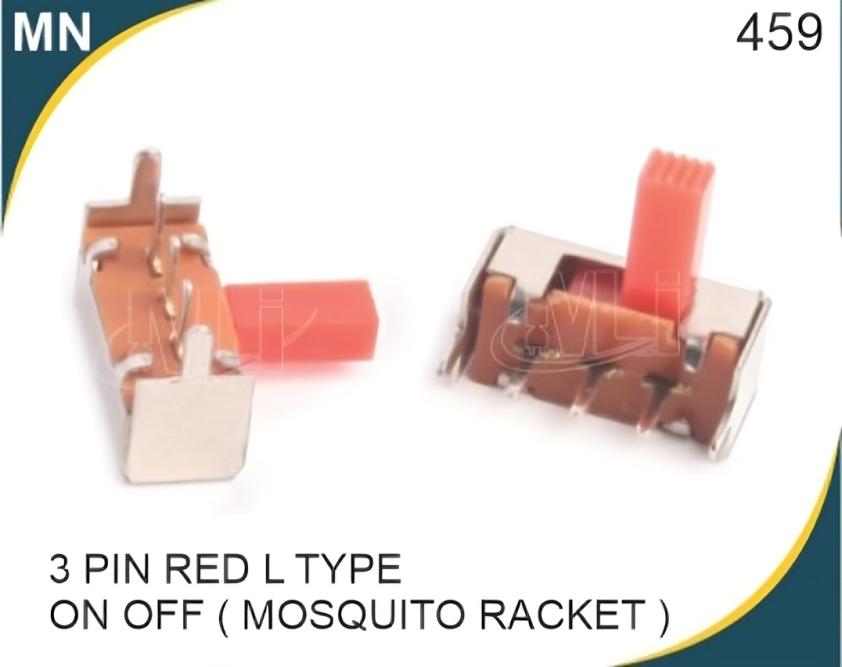

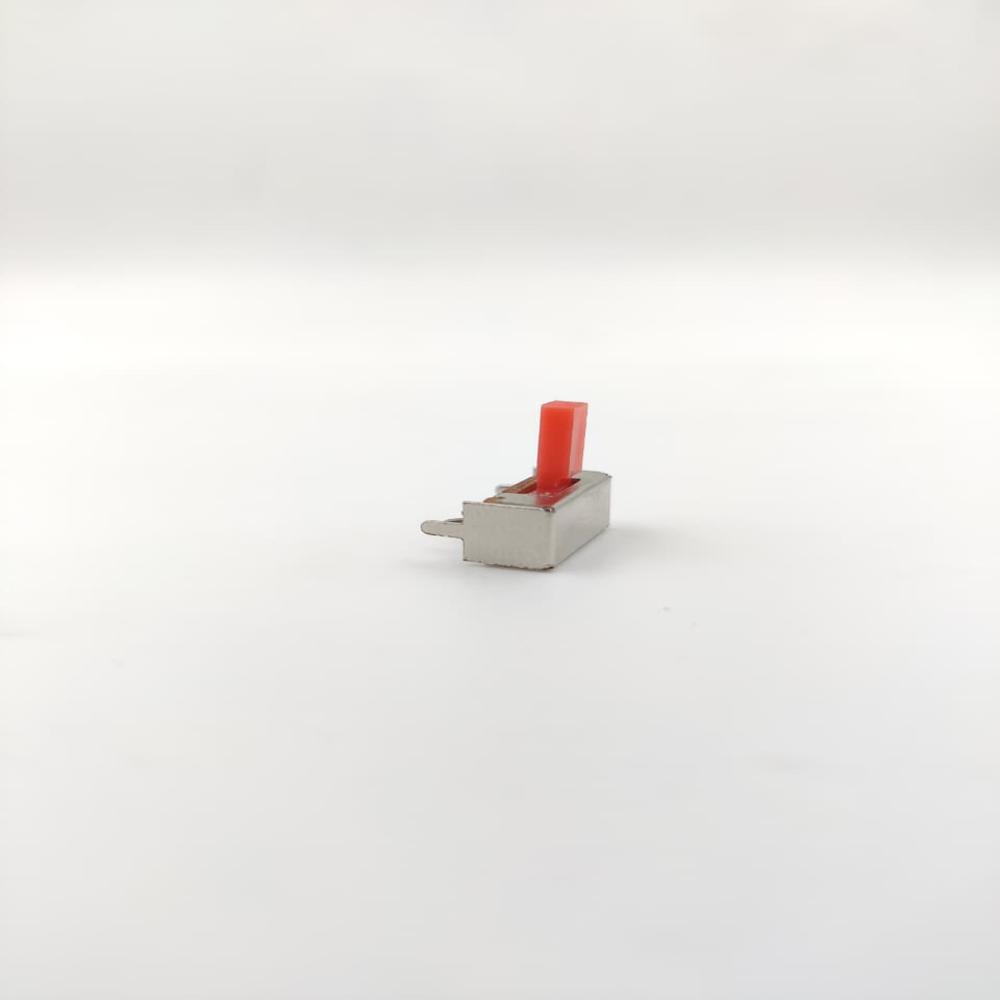

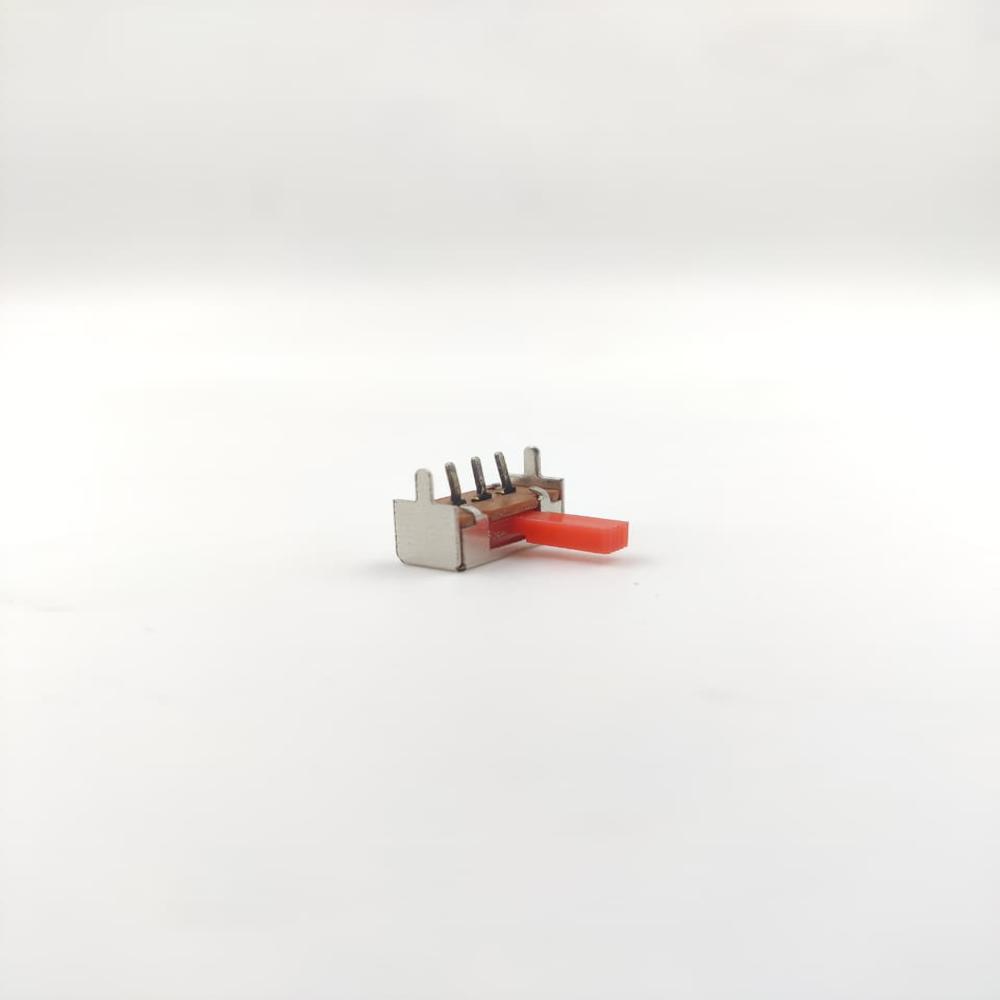

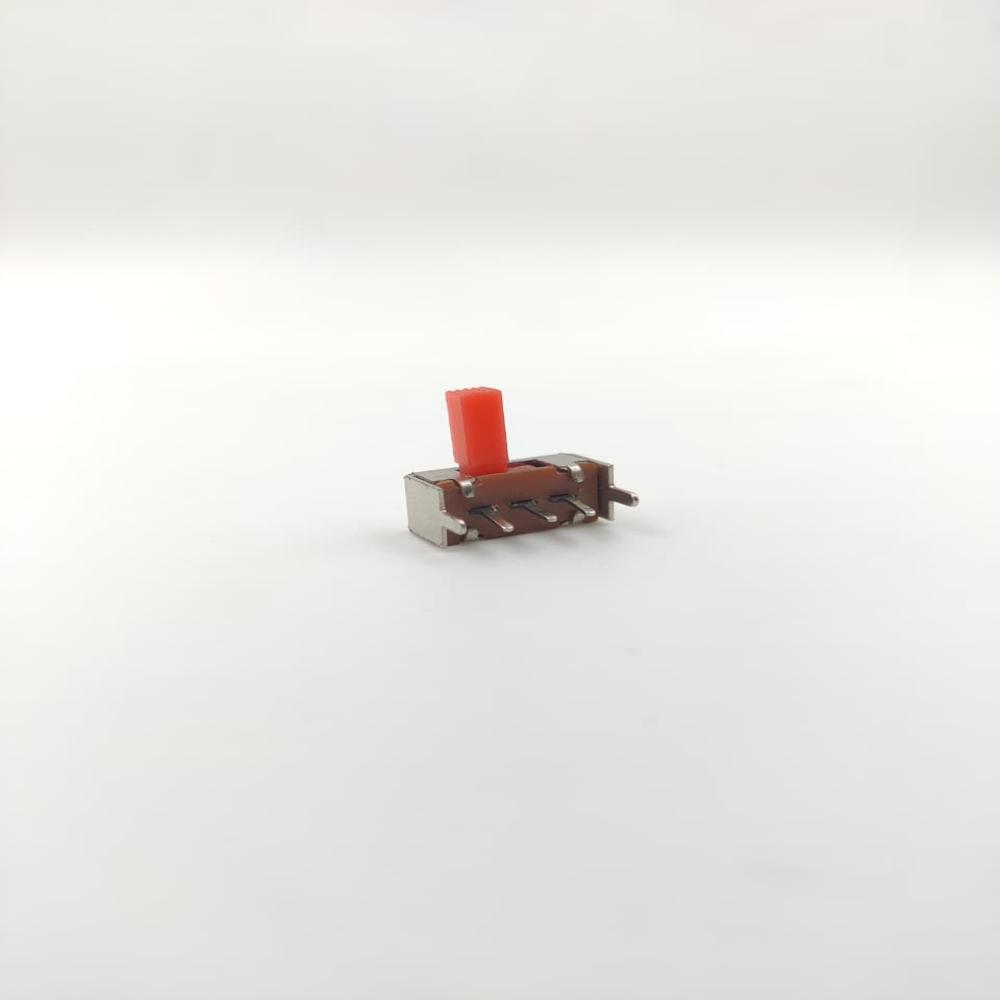

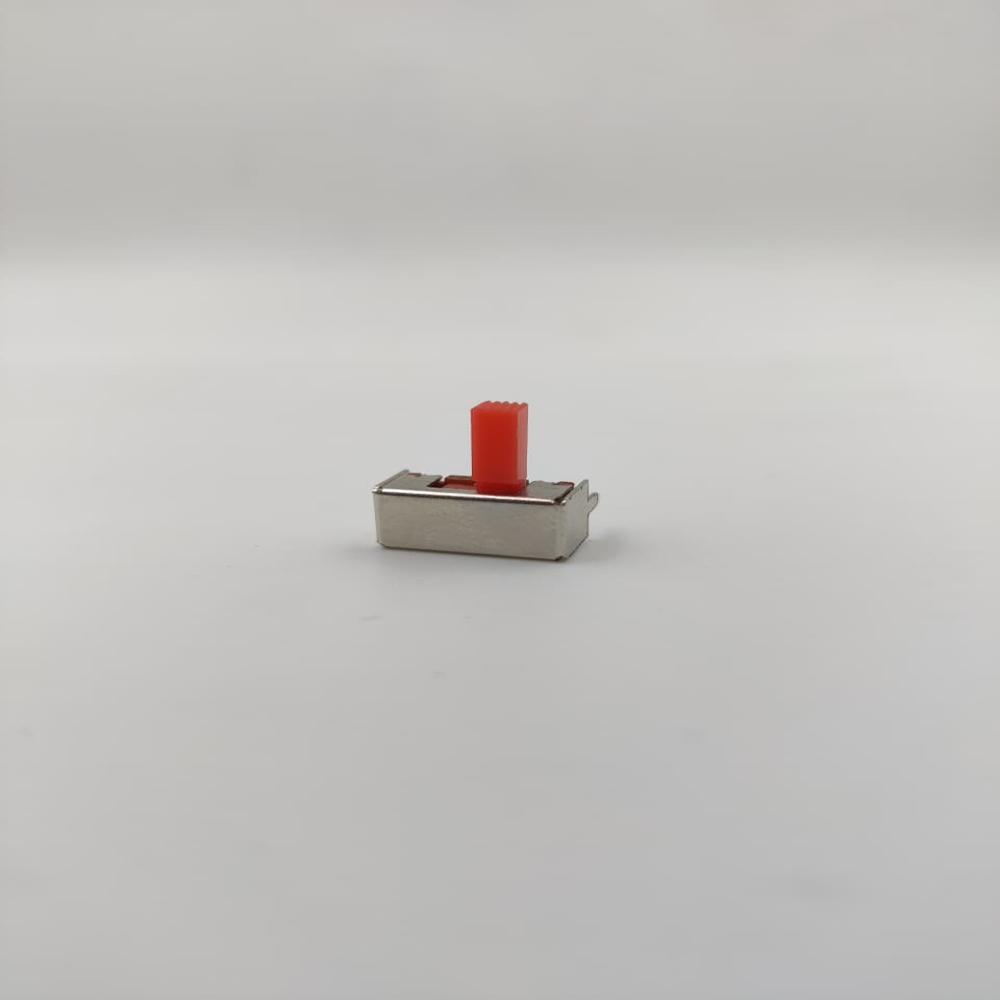

Slide Switch Red 3 Pin L Type On Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide Switch Red 3 Pin L Type On Off Specification

Circuit Type
Single Circuit ON-OFF

Temperature Range
-20 C to +70 C Celsius (oC)

Rated Voltage
250V AC, 50/60Hz Volt (V)

Automation Grade
Manual

Finish Type
Matte

Response Time
Instantaneous Seconds

Mechanical Life
10,000 cycles min. Months

Number of Module
1

Max. Current
1A Ampere (amp)

Protection Level
IP20

Product Type
3 Pin Red L Type Slide Switch

Power Rating
250V AC

Insulation Resistance
100M at 500V DC

Contact Resistance
20m Ohm ()

Max. Voltage
250V AC Volt (V)

Warranty
No Warranty

Stoke
L Type Slide (ON-OFF)

Usage & Applications
Toy and electrical components

Size
Approx. 15mm x 6mm x 12mm

Operating Temperature
-20 C to +70 C Celsius (oC)

Color
Red (Actuator), Black (Base)

Weight
Approx. 2g Grams (g)

Display Type
No display type

Material
Metal case

Mounting Type
PCB Mount

Current Rating
1A

No Of Poles
Single Pole

Panel Cutout
Not required; PCB direct mount

Voltage Proof
1000V AC for 1 minute

Contact Material
Silver-plated brass

Terminal Type
Through hole, solder type

Actuator Type
Slide, L-shaped lever

RoHS Compliance
Yes

Ambient Humidity
45%-85% RH

Switching Function
SPST (Single Pole Single Throw)

Application
Electronic circuits, DIY projects, testing boards

Slide Switch Red 3 Pin L Type On Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Slide Switch Red 3 Pin L Type On Off

Add to Cart the customizable 3 PIN RED L TYPE SLIDE SWITCH ON-OFF, designed for unassailable reliability and unparalleled performance in electronic circuits and DIY projects. Featuring a gorgeous red L-shaped actuator for effortless operation, this SPST switch boasts silver-plated brass contacts, through-hole solder terminals, and a high-grade matte finish. Select with confidence: it offers instant response, direct PCB mount, RoHS compliance, IP20 protection, and 250V AC/1A rating. Its insulation resistance is 100M at 500V DC, operative up to 10,000 cyclesmaking it ideal for testing boards and automation needs.

Exceptional Features & Competitive Advantages

The 3 PIN RED L TYPE SLIDE SWITCH ON-OFF delivers not only a SPST function but also unmatched durability and swift actuation. Its primary competitive advantage is the robust silver-plated brass contacts and high mechanical life. Other featureslike the IP20 protection, no panel cutout requirement, and instantaneous responsemake it a superior choice for professionals and hobbyists. Mount directly on PCB for simplified installation and seamless integration into any electronic assembly.

Supply, Payment & Delivery Terms

Payment terms for this switch are adaptable, accommodating various transaction methods. Samples are available for evaluation, ensuring you select the ideal solution for your needs. Supply is streamlined for rapid fulfillment, and delivery time is expedited for efficient drop-off, keeping your project timelines on track. The switch can be delivered across India, supporting distributors, manufacturers, and importers. Count on prompt, reliable supply and service every step of the way.

FAQs of 3 PIN RED L TYPE SLIDE SWITCH ON-OFF:

Q: How does the 3 PIN RED L TYPE SLIDE SWITCH ON-OFF operate in electronic circuits?

A: This switch uses a single pole, single throw (SPST) mechanism. The L-shaped actuator slides to make or break a circuit instantly, facilitating simple ON-OFF control on your PCB without additional panel cutouts.

Q: What are the benefits of choosing silver-plated brass contacts in this switch?

A: Silver-plated brass contacts provide superior conductivity, low contact resistance, and enhanced reliability, ensuring stable performance even at higher voltages and frequent cycling.

Q: When can I expect my order to be delivered after placing a supply request?

A: Orders are typically processed and delivered swiftly, with drop-off times depending on your location in India. Immediate supply is prioritized to support urgent requirements.

Q: Where can samples of this slide switch be requested for testing purposes?

A: Samples are available directly through our distributor, exporter, or trader network across India. Contact our sales team to arrange a sample drop-off at your site.

Q: What is the process for mounting this switch on a PCB?

A: Simply solder the through-hole terminals directly onto your PCB. The design eliminates the need for a panel cutout, streamlining both prototyping and mass production.

Q: How does this switch ensure operational safety and compliance?

A: It meets RoHS standards, offers IP20 protection, and passes 1000V AC voltage proof testing, delivering dependable and safe operation in various environments.
