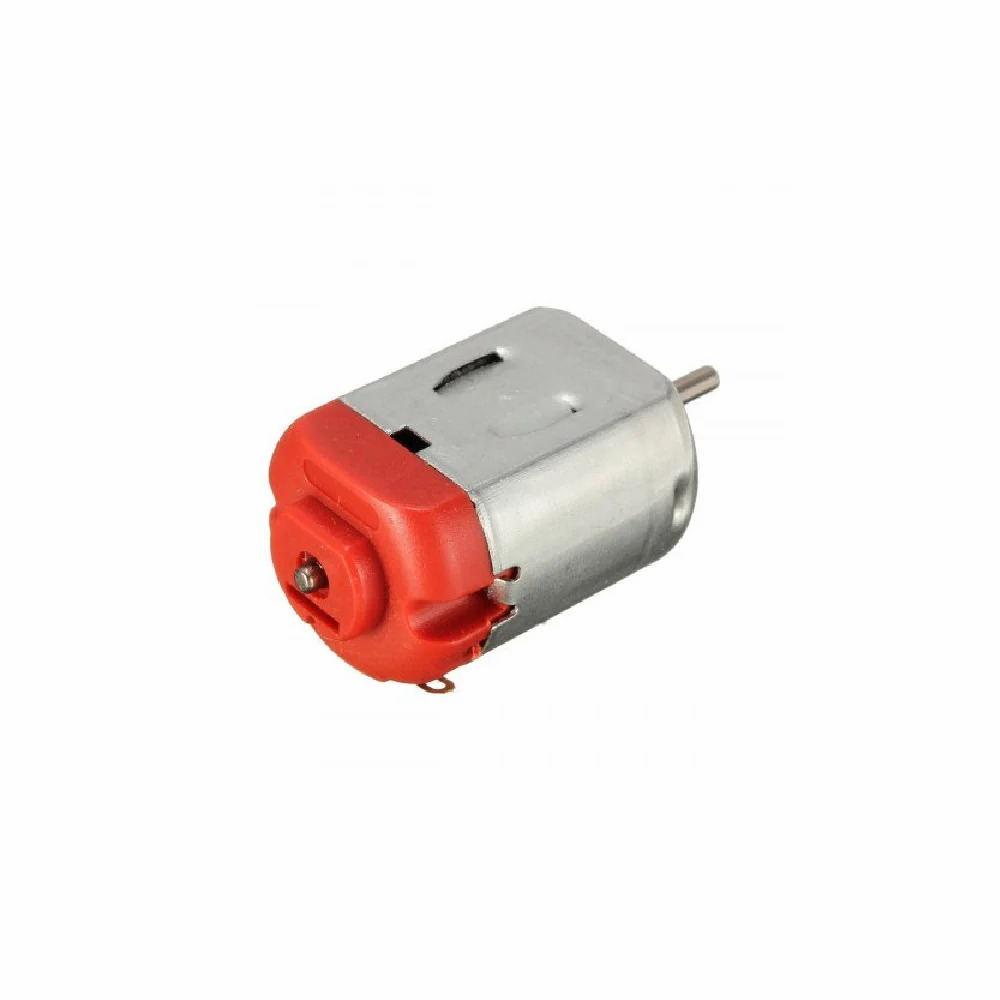

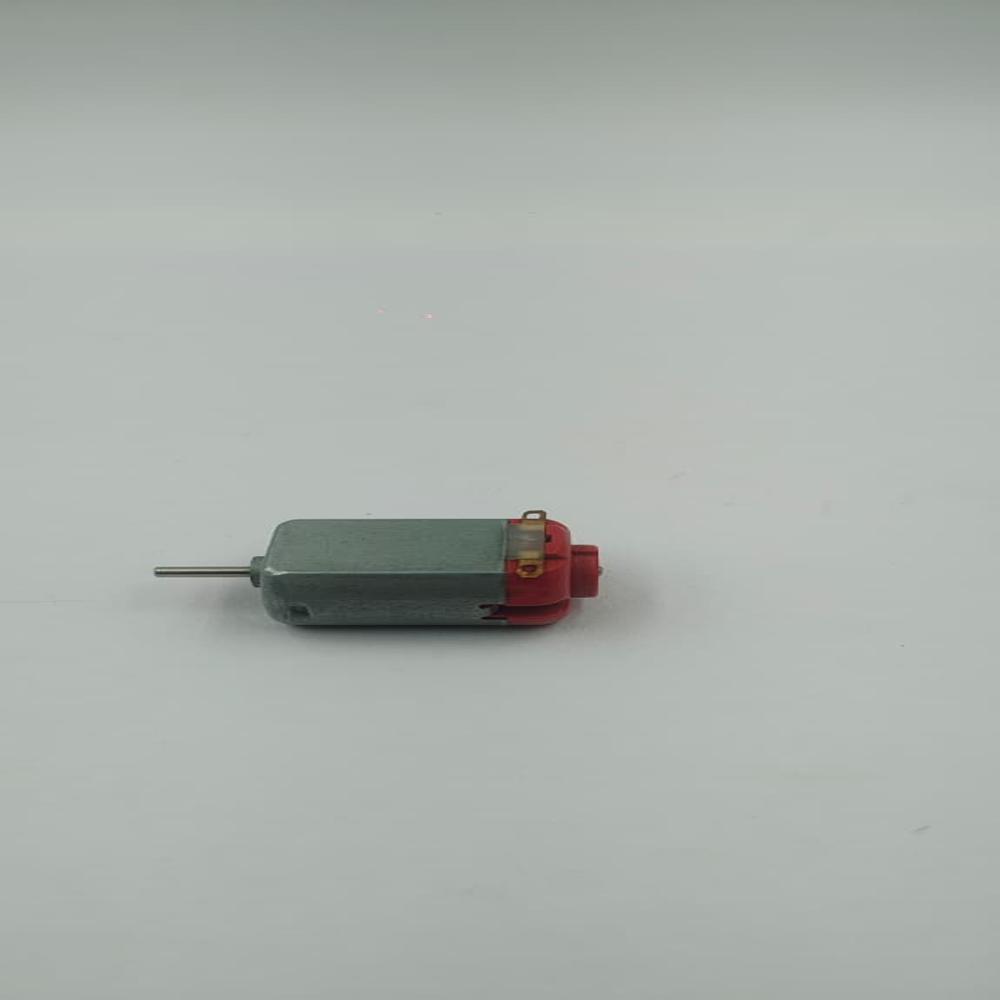

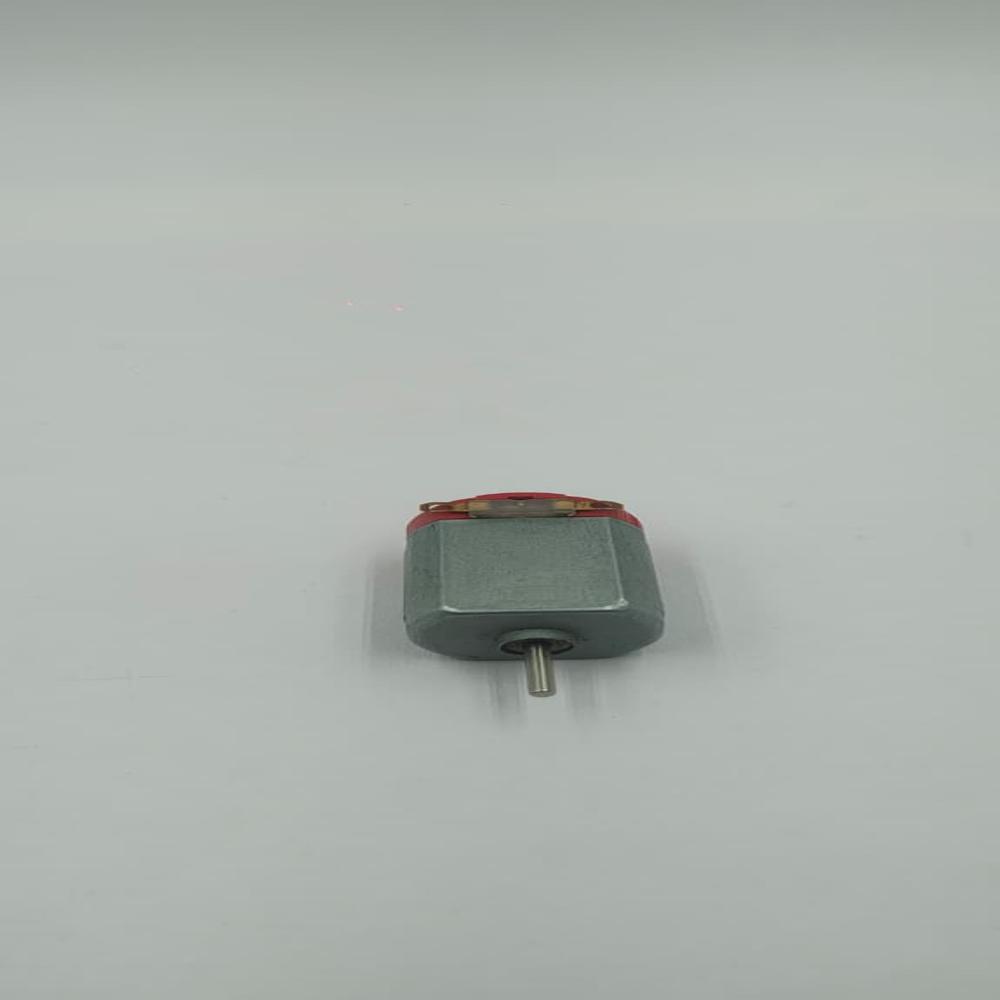

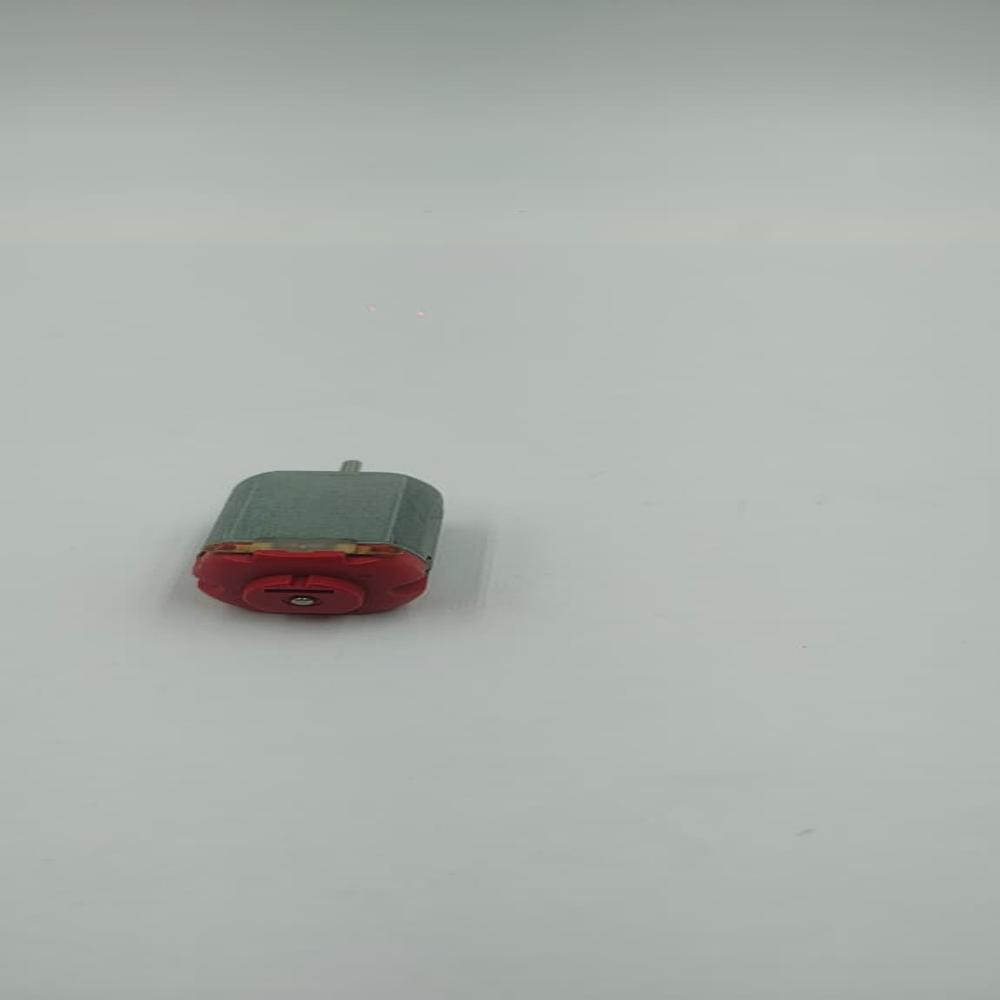

DC TOY MOTOR RED BASE

About DC TOY MOTOR RED BASE

• Operating Voltage Range: 3 12VDC
• No-load Current: 70 mA max,500ma
• Loaded Current: 200 mA max1000
• Operating Temperature: 50C
• Rated Speed: 1000 RPM
• 3V to 12V DC Flat Small Size Toy Motor


Versatile Applications for Creative Projects

The DC Toy Motor is perfect for battery-operated toys, educational kits, miniature mechanisms, small DIY fans, and robotics. Its standard, single-phase design and compact size enable seamless integration into various hobby and learning experiments. It also facilitates hands-on exploration in STEM fields for students and makers alike.


Efficient and Reliable Motor Design

Constructed with a durable metal body and plastic base, this motor ensures longevity and stability. Its sleeve bearing and open sealed type reduce noise levels and support a smooth, quiet operation. Benefit from reliable commutation via brush technology, with direct start and easy air cooling for consistent performance.



FAQs of DC TOY MOTOR RED BASE:




Q: How do I connect the DC Toy Motor to a power supply?

A: You can connect the DC Toy Motor using its solder lug/terminal connectors. Securely solder wires from your DC power source (1.5V-6V) to the terminals to achieve a stable electrical connection.



Q: What benefits does this motor provide for hobby projects and educational kits?

A: This motors compact size, lightweight construction, and economical price make it suitable for a wide range of DIY, educational, and hobby applications. Its ease of connectivity and standard features empower learners and creators to build and experiment confidently.



Q: When should I use bidirectional rotation, and how is it achieved?

A: Bidirectional rotation is useful when your project requires the motor to spin in both directionsfor example, reversing a toy car. You can achieve this rotation by swapping the polarity of the DC supply connected to the motor terminals.



Q: Where can the DC Toy Motor be mounted safely in a project?

A: The motor can be mounted using through-hole or bracket mount options. Ensure the base is securely affixed to prevent movement during operation and allow adequate airflow for cooling.



Q: What is the process for determining the appropriate operating voltage and current for this motor?

A: Consult your projects power requirements and match them within the motors rated voltage range (1.5V-6V DC). At a typical load and 3V, the motor draws 80-120 mA; monitor this to prevent overheating or excessive wear.



Q: How does the metal body with plastic base benefit the overall motor function?

A: The metal body provides structural durability, while the plastic base helps minimize weight and supports efficient mounting. This combination results in a motor that is both sturdy and easily incorporated into compact designs.
