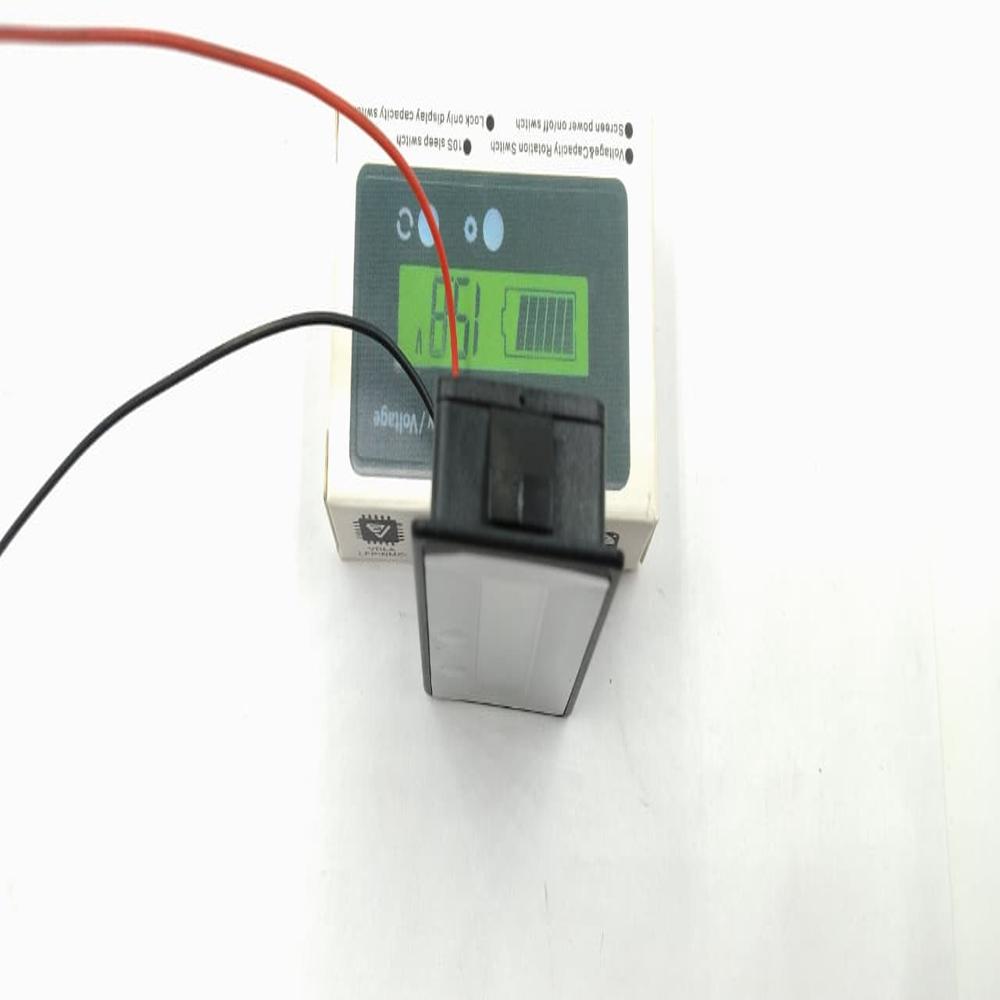

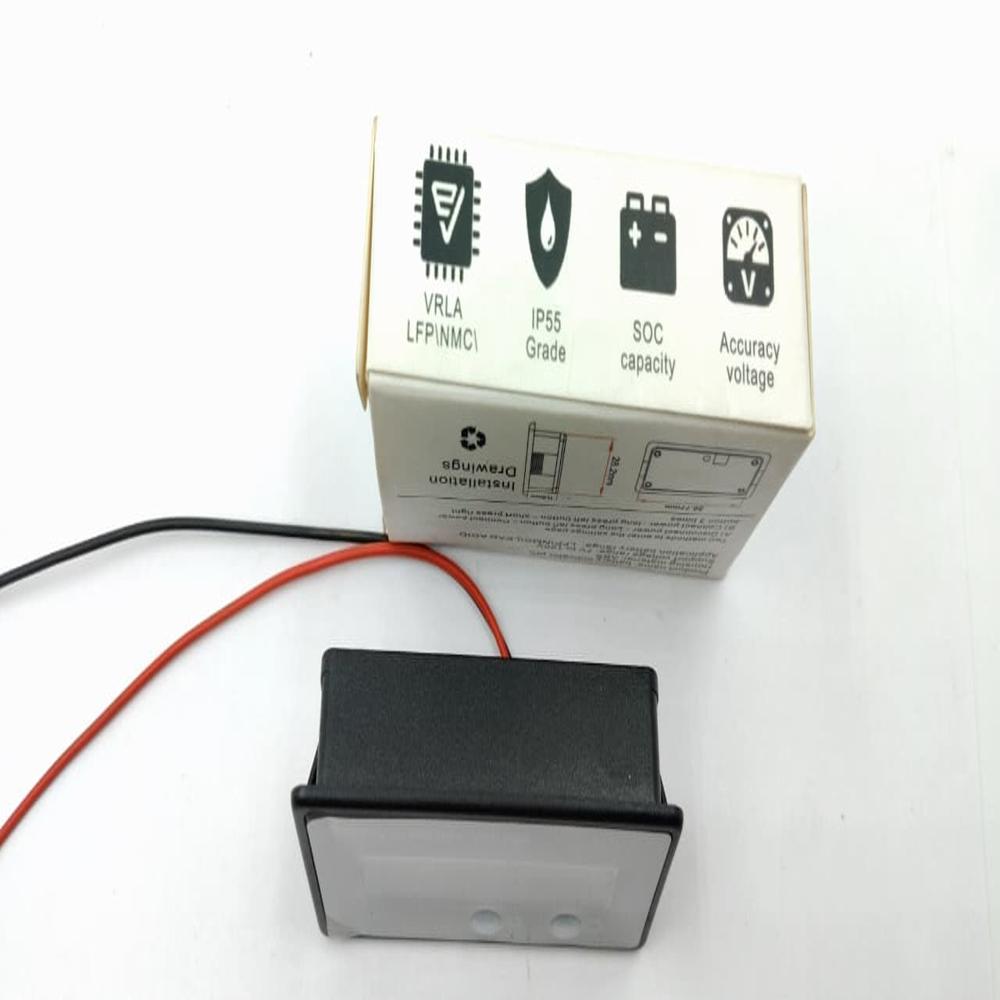

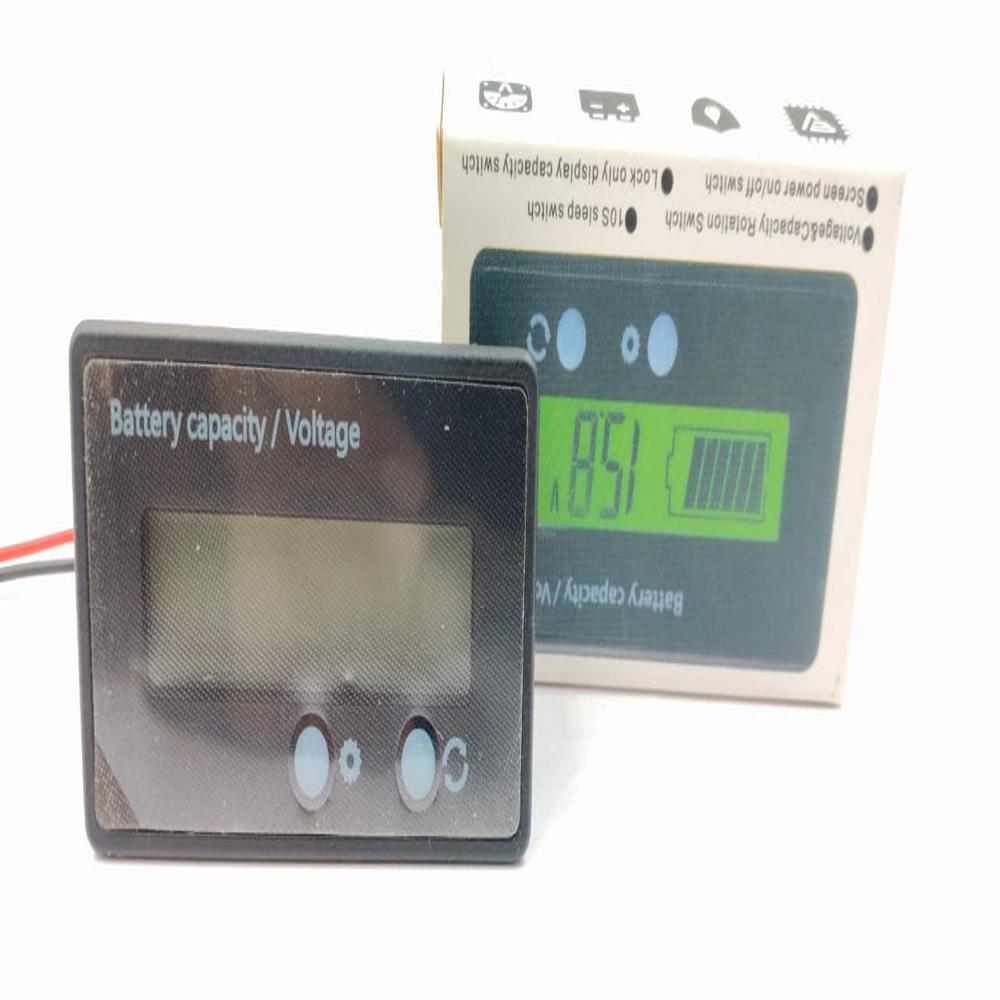

Jhatka Zhatka Voltmeter MT2559c

Name: Jhatka Zhatka Voltmeter MT2559c
Brand: Madan Link Industries
Price: 600.0 INR
Availability: InStock

Price 600.0 INR/ Piece

Get a Price/Quote

MOQ : 500 Pieces

Jhatka Zhatka Voltmeter MT2559c Specification

Operating Temperature
-10C to 50C (typical)

Connector Type
Wire leads

Humidity %
80%

Efficiency
High for measurement purpose

Insulation Material
Plastic/Acrylic

Shape
Rectangular

Mounting Type
Panel mount

Surface Finish
Matte

Feature
Displays battery level & voltage, Backlit LCD, Compact design

Product Type
Digital Voltmeter

Application
Battery Capacity and Voltage Monitoring

Protection Level
Basic protection

Rated Voltage
0-100V DC

Energy Consumption
Low power consumption

Output Type
Digital Display

Color
Black with LCD Screen

Dimension (L*W*H)
Approx. 61x29x13mm

Weight
Approx. 60g

Phase
Single Phase compatible

Input Voltage
DC 8V-63V (can be 0-100V)

Size
Standard mini panel mount

Material
ABS Plastic

Connection Type
2 wire connection

Storage Temperature
-20C to 60C

Low Voltage Alarm
No

Auto Shutdown
No

Wire Length
Approx. 100mm

Display Accuracy
1% (typical)

Test Function
Voltage & Battery Level

Display Type
LCD with backlight

Display Range
0.0V - 100.0V

Battery Compatibility
Lead-acid, Lithium-ion, and other DC batteries

Mounting Cutout Size
Approx. 58x26mm

Jhatka Zhatka Voltmeter MT2559c Trade Information

Minimum Order Quantity
500 Pieces

Delivery Time
5-7 Days

About Jhatka Zhatka Voltmeter MT2559c

Display Type	Digital
Measurement Type	AC/DC Voltage
Mounting Type	Panel Mount
Voltage Range	7v to 120v
Application	Industrial Panel

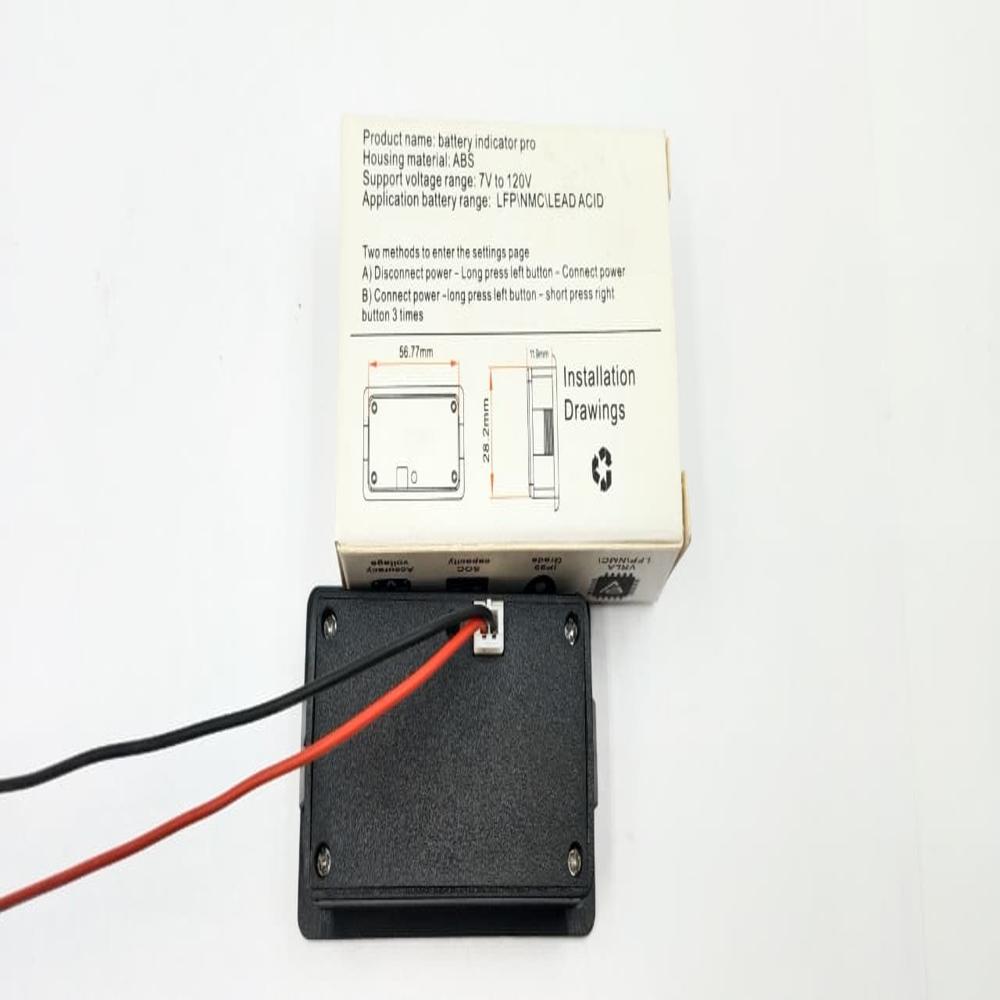

Product Name : battery indiactor pro Housing Material : ABS Support voltage range : 7V to 120VApplication battery range : LFP/NMC/LEAD ACID
Two methods to enter the settings page A) Disconnect power - long press left button - connect powerB) connect power - long press left button - short press right button 3 times

Clear and Accurate Readings

The MT2559c features a bright backlit LCD that displays real-time voltage and battery level, enabling users to monitor their battery health effectively. It supports a wide measurement range from 0.0V to 100.0V and boasts a remarkable 1% accuracy under normal conditions. Whether you are in a workshop or in the field, the display remains crisp, legible, and reliable.

Versatile Battery Compatibility

Designed to work seamlessly with lead-acid, lithium-ion, and various other DC batteries, this voltmeter is highly adaptable. Its robust design makes it suitable in automotive, solar, and backup power scenarios, granting technicians and users flexibility to integrate it into diverse energy systems without compatibility concerns.

Easy Panel Mount Installation

With a standard mini panel mount size and an approximate cutout requirement of 58x26mm, installation is straightforward in panels, dashboards, or battery enclosures. The lightweight, durable ABS plastic casing resists impacts and ensures longevity, while the concise two-wire connection facilitates a quick setup process for both experienced and novice users.

FAQ's of Jhatka Zhatka Voltmeter MT2559c:

Q: How do I install the Jhatka Zhatka Voltmeter MT2559c in my battery system?

A: To install the MT2559c, cut a rectangular hole approximately 58x26mm in your panel. Insert the meter, connect its two wire leads to the desired DC battery terminals, and ensure correct polarity. Its compact design and standard panel mount streamline the installation process.

Q: What types of batteries can this voltmeter monitor?

A: This voltmeter is compatible with lead-acid, lithium-ion, and other DC batteries. It is designed for a broad variety of applications requiring voltage and battery capacity monitoring, making it ideal for automotive, solar, or backup power systems.

Q: What is the usable voltage range and measurement accuracy of the MT2559c?

A: The device accurately measures voltages from 0.0V up to 100.0V DC, with a typical accuracy of 1%. It is especially suited for applications where precise voltage readings are necessary for battery health monitoring.

Q: Where can the MT2559c be used effectively?

A: You can use the MT2559c in multiple settings such as battery banks, UPS systems, solar power installations, and electric vehicles-anywhere you need to monitor battery voltage and capacity on a single phase DC system.

Q: What benefits does the backlit LCD display provide?

A: The backlit LCD ensures clear, legible readings in various lighting conditions, including low-light environments. It enables users to monitor voltage and battery levels at a glance, enhancing usability at any time of day.

Q: Does the MT2559c have automatic shutdown or low voltage alarm features?

A: No, this model does not feature auto shutdown or a low voltage alarm. It is designed for continual display and monitoring, with basic protection and low power consumption to ensure battery efficiency.
