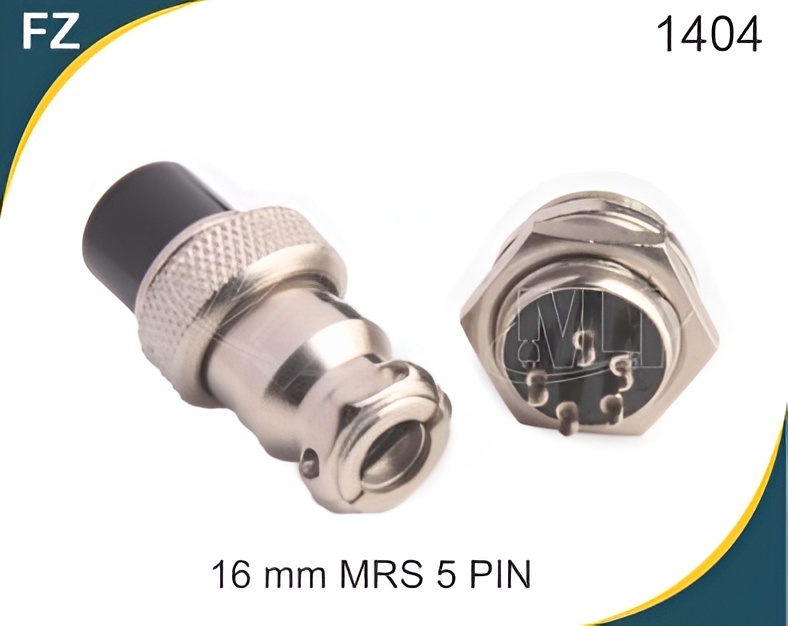

16 MM MRS Connector

Price 24 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

16 MM MRS Connector Specification

Application
Industrial Automation, Machinery Interfacing

Male End Type
Plug Type

Female End Type
Screw Terminal

Connector
MRS Type Connector

Temperature
-20C to +80C

Voltage Rating
250 V AC

Connector Type
Circular Connector

Material
Copper, Polyvinyl Chloride

Pairs
5 Pairs

Capacity
16 Amps

Number of Conductor
5

Wire Gauge
16 AWG

Jacket Material
PVC

Flame Resistance Level
UL 94 V-0

Color
Black

Cable Type
Multi-core Round Cable

Outer Diameter
16 mm

Insulation
PVC

Sheild
Single Shielded

Length
1 Meter

Cable Length
1 Meter

Dielectric Strength
1500 V AC (1 min)

Mounting Type
Panel Mount

Cable Construction
Flexible, Oil Resistant

Maximum Current per Contact
16A

Resistance
Max 20 m

Ingress Protection
IP67

Packaging Type
Single Piece/Bag

RoHS Compliance
Yes

Frequency Range
DC to 1 MHz

Contact Plating
Gold Plated Contacts

Minimum Bending Radius
30 mm

16 MM MRS Connector Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About 16 MM MRS Connector

Usage/Application	POWER
Current	5 A
Material	METAL
Contact Terminal	COPPER
Gender	MALE,FEMALE
I Deal In	New Only
PINS	6
Minimum Order Quantity	1000 Piece

It is a GX-16 6-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-6 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.
The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them

Reliable Connection for Industrial Automation

Engineered for industrial environments, the 16 MM MRS Connector brings robust protection against moisture, dust, and mechanical stress thanks to its IP67 rating. Its gold-plated contacts and shielded, multi-core cable ensure stable connectivity, even in challenging conditions. This connector is suitable for machinery interfacing, making it an excellent choice for production plants and automated systems seeking durability and electrical performance.

Versatile and Secure Panel Mount Design

This circular connector features a panel-mount configuration, allowing for straightforward integration into equipment panels and control cabinets. The screw terminal female and plug-type male ends provide secure and reliable connectivity to machinery and devices. Its flame-retardant PVC insulation and oil-resistant construction offer both protection and versatility in diverse industrial situations.

FAQs of 16 MM MRS Connector:

Q: How do I install the 16 MM MRS Connector in a panel mount application?

A: The 16 MM MRS Connector is designed for easy panel mounting. Secure the connector into the designated panel opening, and use the screw terminal (female) to attach the internal wiring. The male end (plug type) then connects externally, forming a secure and stable connection.

Q: What benefits does the IP67 ingress protection rating provide?

A: IP67 ingress protection ensures the connector is dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it ideal for harsh industrial environments where exposure to moisture and dust is common.

Q: When should I use this connector for machinery interfacing?

A: This connector is recommended when reliable, high-current connections with robust insulation are needed, such as in industrial automation systems, machinery controls, and environments requiring minimal downtime and maintenance.

Q: Where is the 16 MM MRS Connector most commonly used?

A: The connector is widely used in industrial automation applications, machinery interfacing, control panels, and equipment that require secure, high-performance electrical connections in demanding conditions.

Q: What makes gold-plated contacts advantageous in this connector?

A: Gold-plated contacts provide superior conductivity and resistance to corrosion and oxidation, ensuring reliable electrical connections and extending the connectors lifespan, even with frequent use or adverse environments.

Q: How does the cable construction enhance usage and safety?

A: The flexible, oil-resistant multi-core cable with a single shield minimizes signal interference, offers high durability, and the UL 94 V-0 flame resistance rating delivers additional protection in case of fire hazards, improving operational safety.
