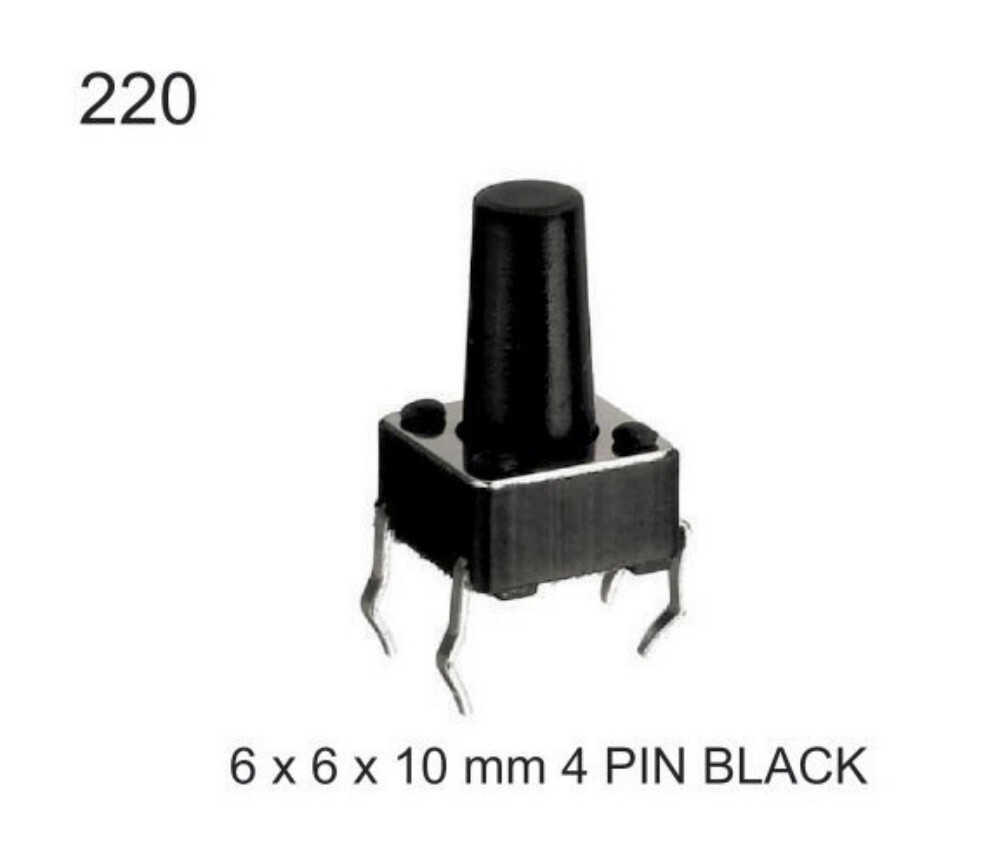

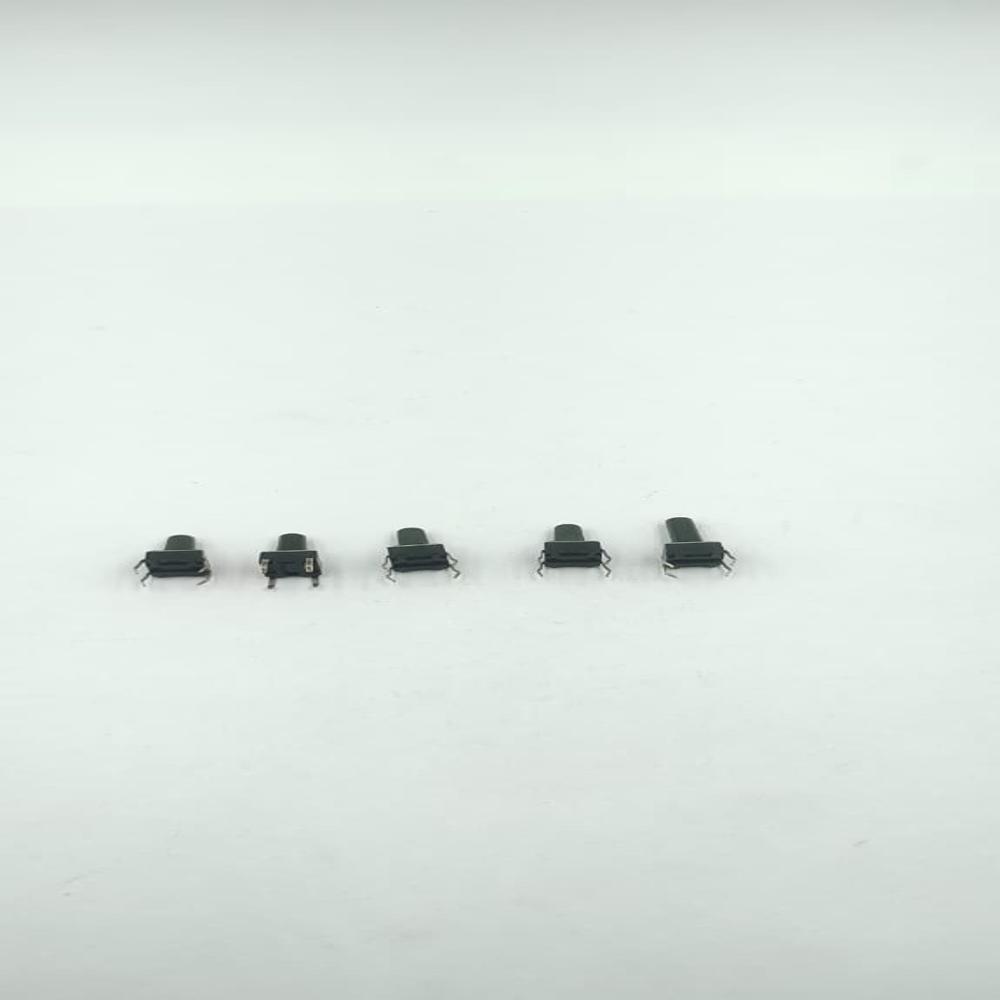

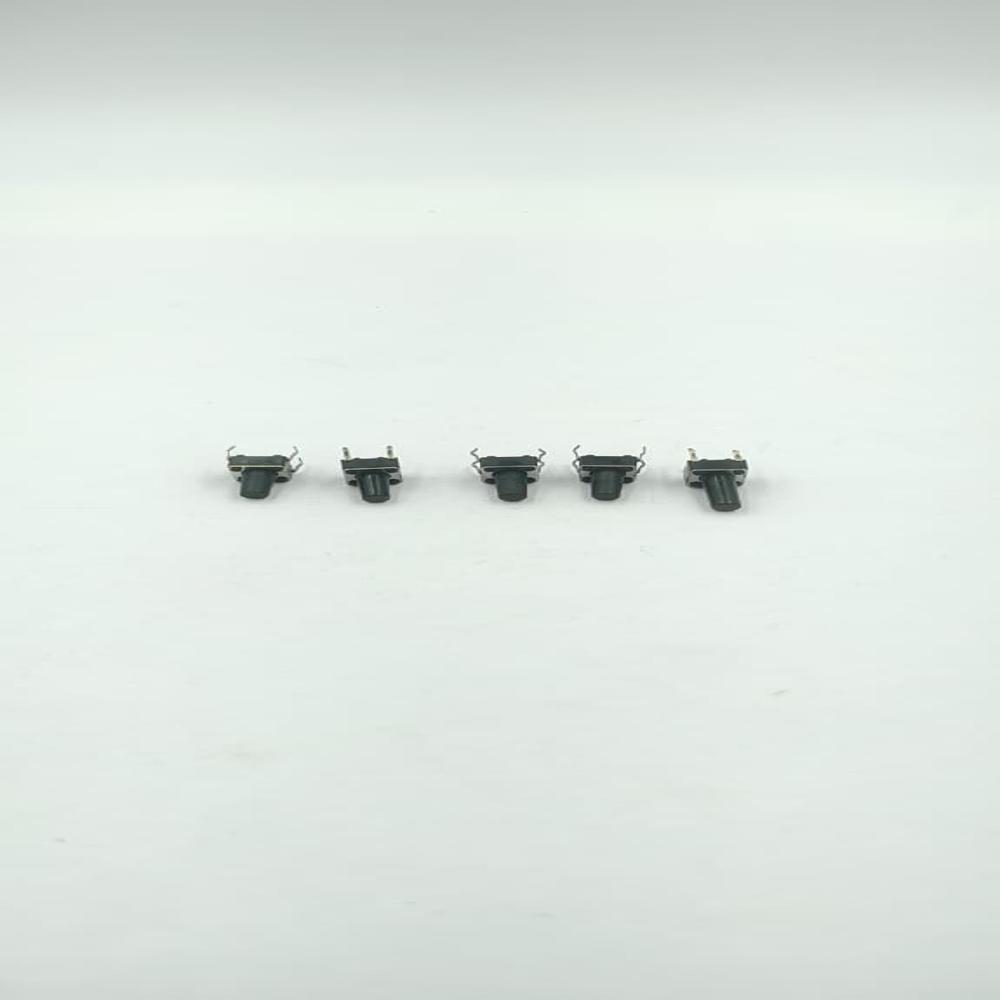

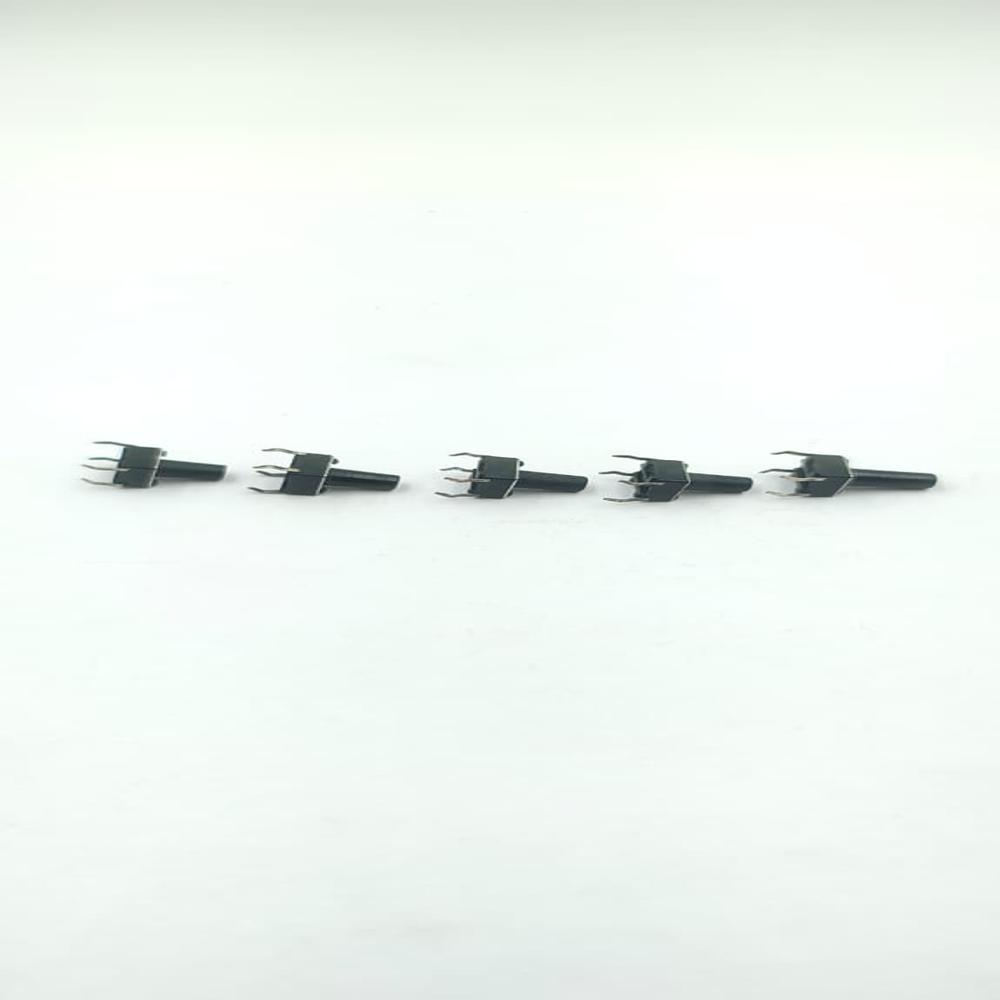

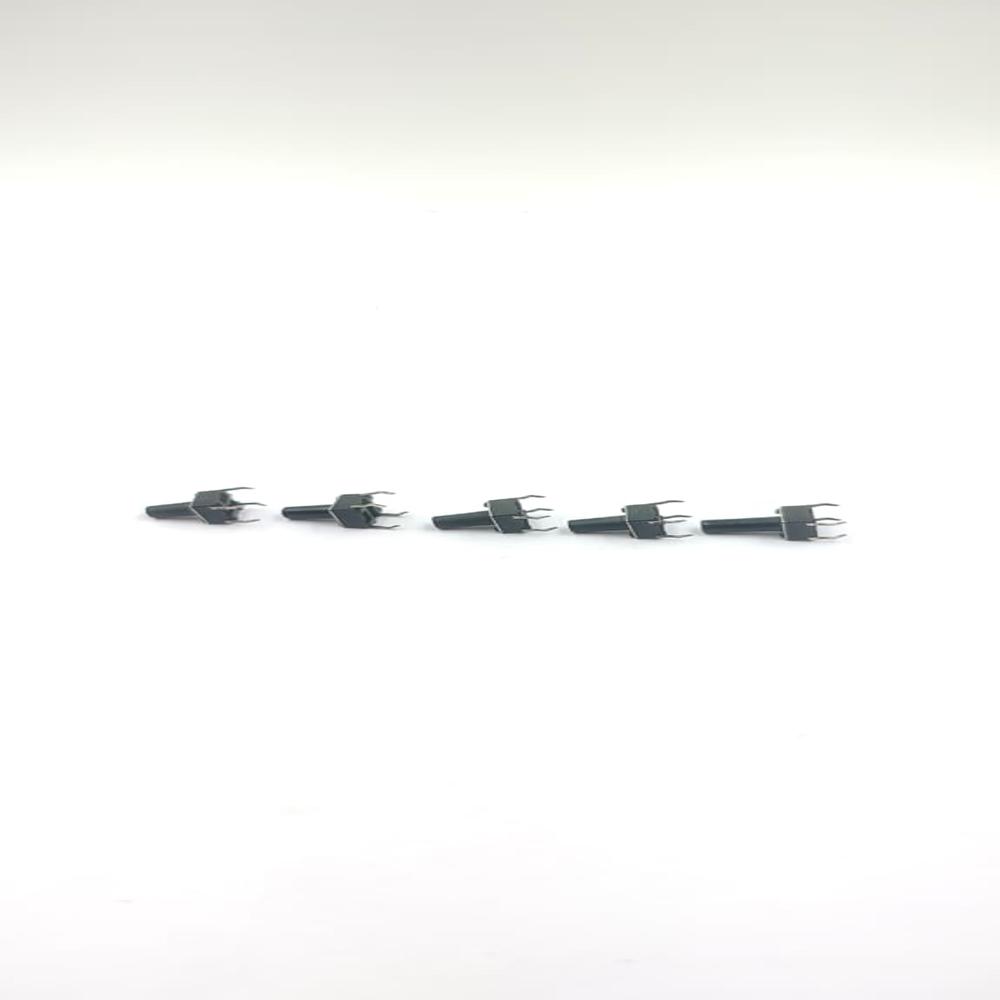

6X6X10MM 4 PIN BLACK TACTILE SWITCH

Get a Price/Quote

MOQ : 1000 Pieces

6X6X10MM 4 PIN BLACK TACTILE SWITCH Specification

Automation Grade
Manual

Max. Current
50 mA Milliampere (mA)

Response Time
1 ms Seconds

Rated Voltage
2A Ampere (A)

Finish Type
Matt

Temperature Range
-20C to +70C Celsius (oC)

Mechanical Life
100,000 Cycles Days

Circuit Type
Single Circuit

Protection Level
IP40

Number of Module
Single

Product Type
Tactile Switch

Material
Plastic Housing, Copper Alloy

Insulation Resistance
100 M at 500V DC

Contact Resistance
100 m Milliohm (m)

Max. Voltage
3V Volt (V)

Operating Temperature
-20C to +70C Celsius (oC)

Stoke
1.8 mm

Size
6x6x10 mm

Color
BLACK

Weight
TACT SWITCH GSM (gm/2)

Mounting Type
Through Hole

Current Rating
50 mA

No Of Poles
Single Pole

6X6X10MM 4 PIN BLACK TACTILE SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
999999 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 6X6X10MM 4 PIN BLACK TACTILE SWITCH

Current Rating	3V
Voltage Rating	2A
ROHS Compliance	No
Material	PLASTIC
Switch Type	Tact
Minimum Order Quantity	1000 Piece

Applications: Commonly used in consumer electronics, keyboards, remote controls, automotive controls, and medical devices.
Durability: Designed for high-reliability with many models rated for thousands to millions of actuation cycles.
Mounting Options: Available in surface-mount (SMT) or through-hole (THT) configurations for PCB integration.

Versatile Design for Multiple Applications

This tactile switch is engineered for flexibility, fitting into a wide range of electronic circuits. Its compact 6x6x10mm size and through-hole mounting ensure straightforward integration onto PCBs, while the round button profile enhances user ergonomics. Suited for both consumer gadgets and industrial controls, it offers designers ample convenience.

High-Reliability Performance

Built with silver-plated contacts and a robust mechanical life of up to 100,000 cycles, this switch guarantees consistent operation in demanding environments. The swift response time of 1 ms and low contact resistance ensure precise and reliable switching, making it ideal where quick, accurate feedback is required.

Safe and Compliant Operations

With dielectric strength of 250V AC, insulation resistance of at least 100 M at 500V DC, and RoHS compliance, the switch is engineered to meet strict safety and environmental standards. Its ability to withstand a soldering temperature of 260C (max for 5s) supports efficient assembly, while its IP40 rating provides protection against solid particles.

FAQs of 6X6X10MM 4 PIN BLACK TACTILE SWITCH:

Q: How do I mount the 6x6x10mm 4 Pin Black Tactile Switch on a circuit board?

A: This tactile switch is designed for through-hole mounting. Insert the four pins into the designated holes on your PCB and solder them in place, ensuring the temperature does not exceed 260C for more than 5 seconds to prevent any damage.

Q: What benefits does the silver-plated contact material provide for this tactile switch?

A: Silver-plated contacts reduce contact resistance, enhance electrical conductivity, and improve long-term durability, leading to better switch performance and a reliable signal transmission over the devices lifespan.

Q: Where can I use this tactile switch?

A: The 6x6x10mm switch is suitable for a variety of applications, including control panels, consumer electronic devices, instrumentation, and industrial equipment where momentary actuation and compact size are required.

Q: When is this switch ideal for use in a project?

A: This switch is ideal when you need a reliable, momentary actuator with a swift response time (1 ms) and moderate actuation force, especially in projects requiring up to 100,000 mechanical operations and compliance with RoHS standards.

Q: What process ensures safe soldering of this switch?

A: To solder this switch safely, maintain a soldering temperature of no more than 260C for up to 5 seconds. This protects the plastic housing and ensures the integrity of the internal components.

Q: What are the operating and storage temperature ranges for this tactile switch?

A: The switch operates reliably from -20C to +70C and can be stored safely between -30C and +80C, making it suitable for standard electronics environments.
