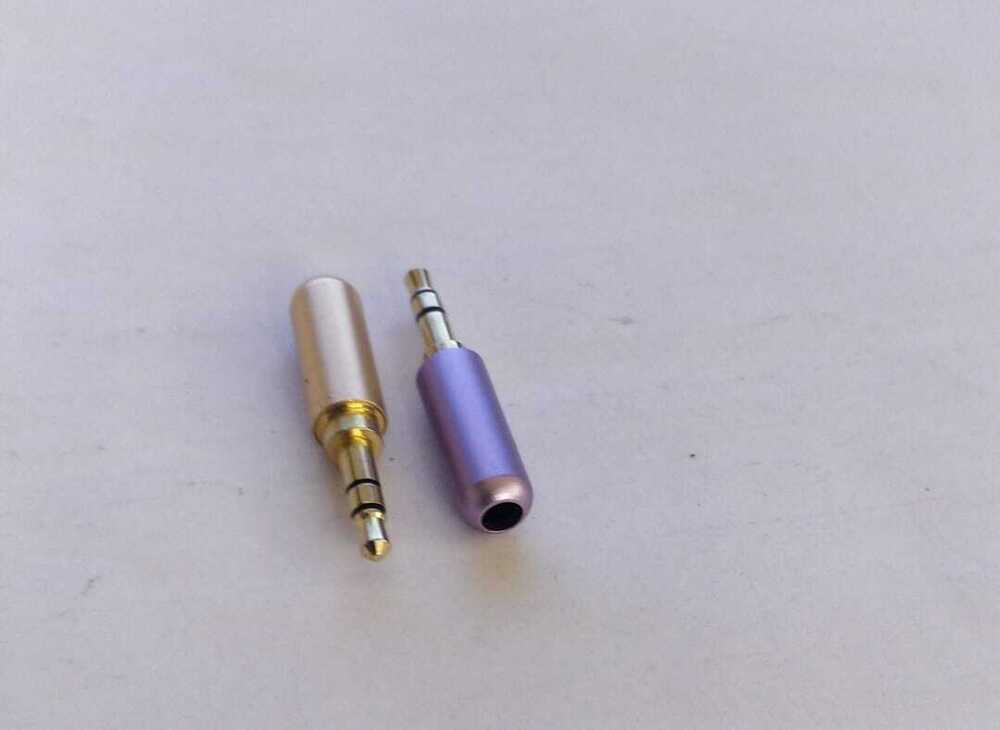

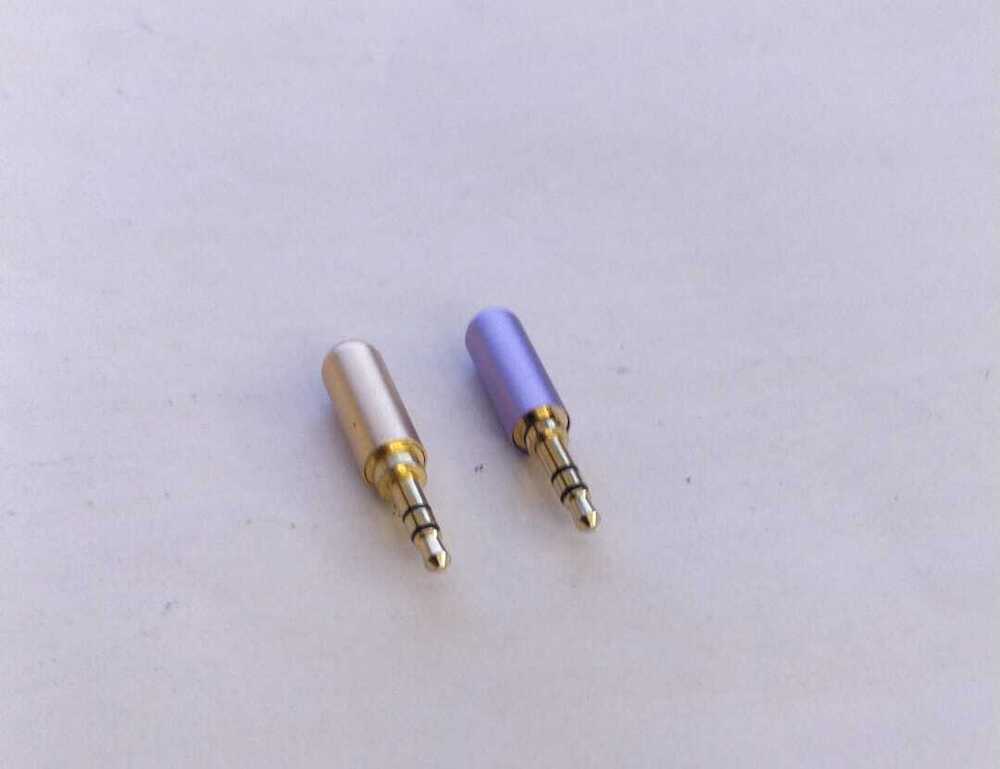

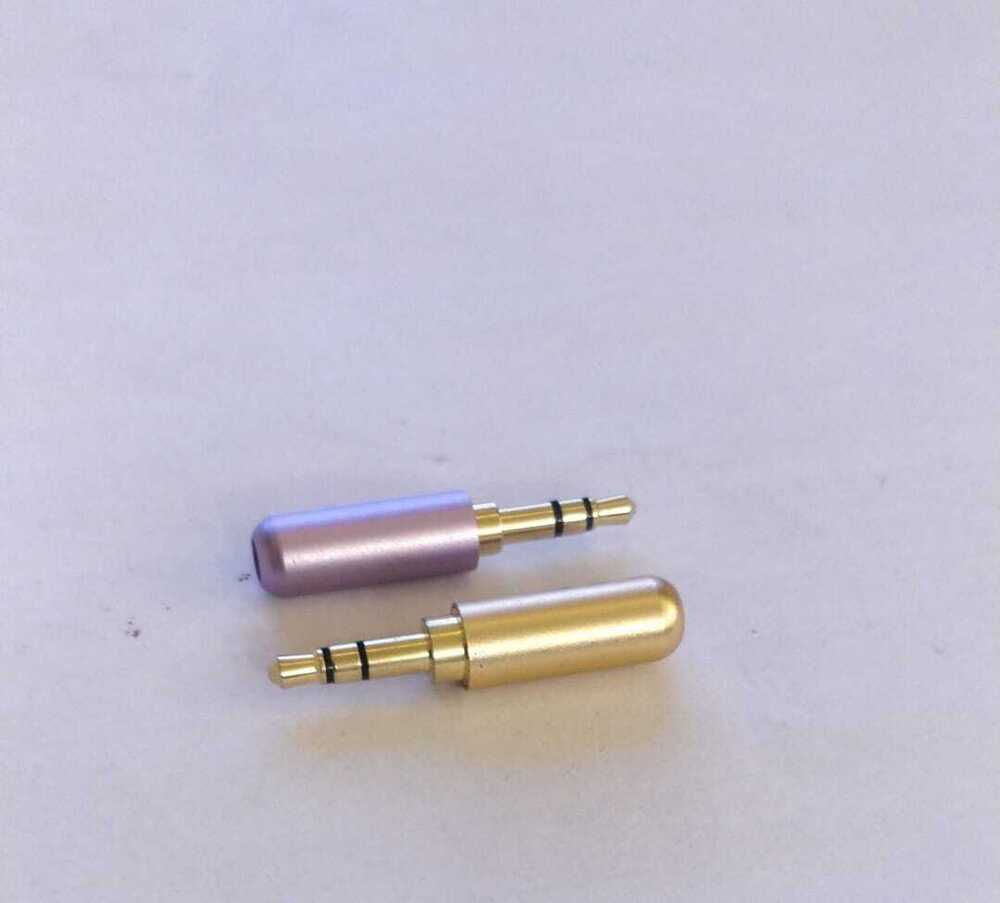

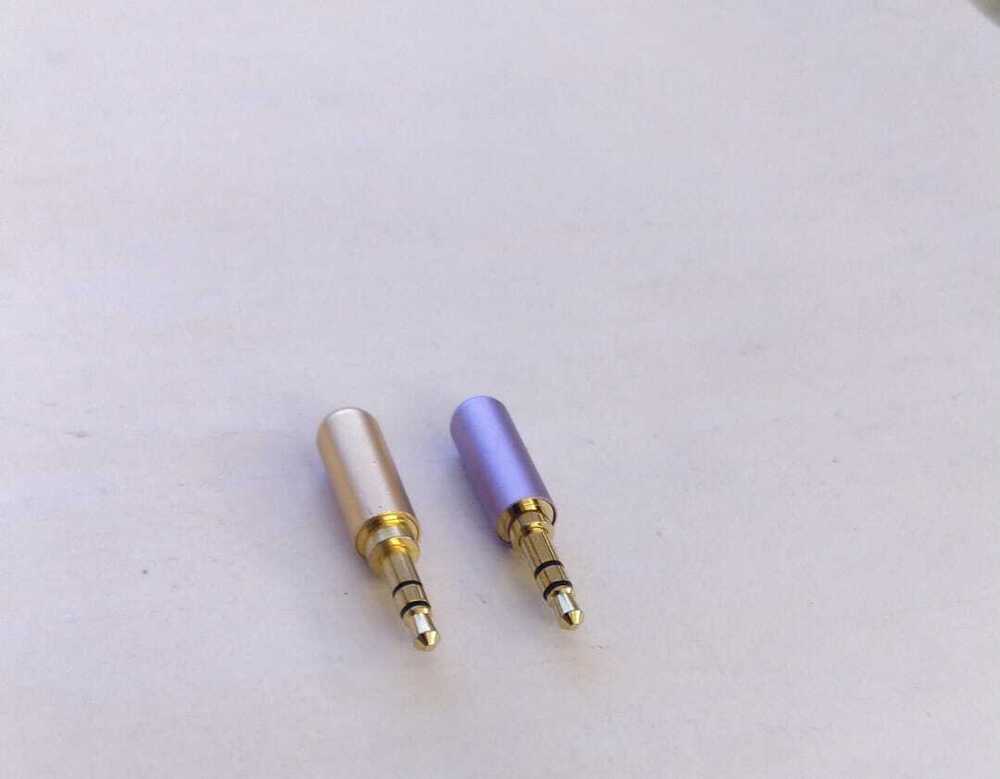

3.5 MM PIN METAL COLOUR BOOT

Price 6 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

3.5 MM PIN METAL COLOUR BOOT Specification

Product Type
3.5 MM Metal Pin with Colour Boot

Material
Nickel-plated brass housing with PVC boot

Handles
No separate handles

Withstand Voltage
AC 1000V for 1 minute

Application
Audio connectors, multimedia devices, communication equipment, and electronic instruments

Insulation Resistance
100 M at 500V DC

Height
Approx. 41 mm

Weight
5 grams

Color
Red, Black, Blue, Green, Yellow

Current Rating
Up to 1A

Plating
Nickel-plated contacts for improved connectivity

RoHS Compliance
Yes

Operating Temperature Range
-20C to +70C

Contact Type
Stereo / TRS (Tip-Ring-Sleeve)

Connector Gender
Male

Mounting Type
Cable mount / solder type

Durability
>5000 mating cycles

Boot Type
Flexible PVC colour-coded boot

Pin Diameter
3.5 mm

Maximum Cable Diameter
Up to 5.5 mm

3.5 MM PIN METAL COLOUR BOOT Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 3.5 MM PIN METAL COLOUR BOOT

Brand	NO
Connector Gender	MALE
Contact Material	PLASTIC
Contact Plating	AS PER ODER
Current Rating	AS PER DEMAND
Minimum Order Quantity	100 Piece

- Prevent ground loops in audio systems.
- Isolate and protect components from voltage spikes.
- Interface different audio equipment with varying impedances.
Advantages:
- Electrical isolation between input and output.
- Noise reduction and signal integrity improvement.
- Compatibility with various audio standards.

Durable Performance in Audio Connections

Engineered with nickel-plated brass housing and a flexible PVC boot, the 3.5 MM PIN METAL COLOUR BOOT ensures consistent performance across more than 5,000 connection cycles. Its robust construction and temperature resistance make it suitable for demanding environments, providing reliable signal transmission in audio, multimedia, and electronic instruments.

Flexible and Color-Coded Design

Identify connections effortlessly thanks to vibrant, color-coded PVC boots available in red, black, blue, green, and yellow. This feature enhances organization and speeds up installation, especially in systems with multiple connections. The connectors flexible design accommodates cables up to 5.5 mm, supporting versatile application needs.

FAQs of 3.5 MM PIN METAL COLOUR BOOT:

Q: How do I mount the 3.5 MM PIN METAL COLOUR BOOT connector to a cable?

A: The connector is designed for cable mounting via solder-type attachment. You simply solder your cable wires to the relevant TRS (Tip-Ring-Sleeve) contacts within the nickel-plated brass housing, then secure the PVC boot around your cable.

Q: What applications are suitable for this connector?

A: This connector is ideal for use in audio connectors, multimedia devices, communication equipment, and electronic instrumentsessentially anywhere stereo signal transmission and robust connectivity are required.

Q: When should I use a color-coded boot for audio connectors?

A: Color-coded boots are beneficial when you need to quickly identify and manage multiple connections within complex systems or equipment racks, reducing errors in both installation and maintenance.

Q: Where is the 3.5 MM PIN METAL COLOUR BOOT commonly utilized?

A: It is widely used in professional and consumer audio setups, broadcast studios, communication hubs, and test instruments, providing stable connectivity for signal transmission.

Q: What benefits does the nickel-plated contact surface provide?

A: Nickel plating enhances corrosion resistance and provides superior electrical connectivity, ensuring minimal signal loss over the connectors lifespan.

Q: Is the connector compliant with safety and environmental standards?

A: Yes, this product is RoHS compliant, confirming it meets strict environmental and safety standards for hazardous material content.

Q: How long can I expect the connector to last under frequent use?

A: With a durability rating of over 5,000 mating cycles, this connector is engineered for longevity and dependable performance, even in high-usage scenarios.
