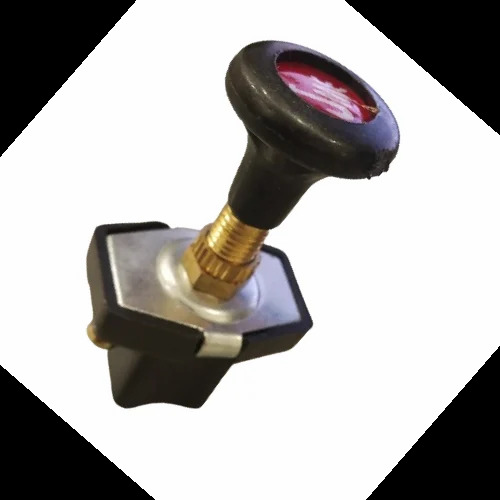

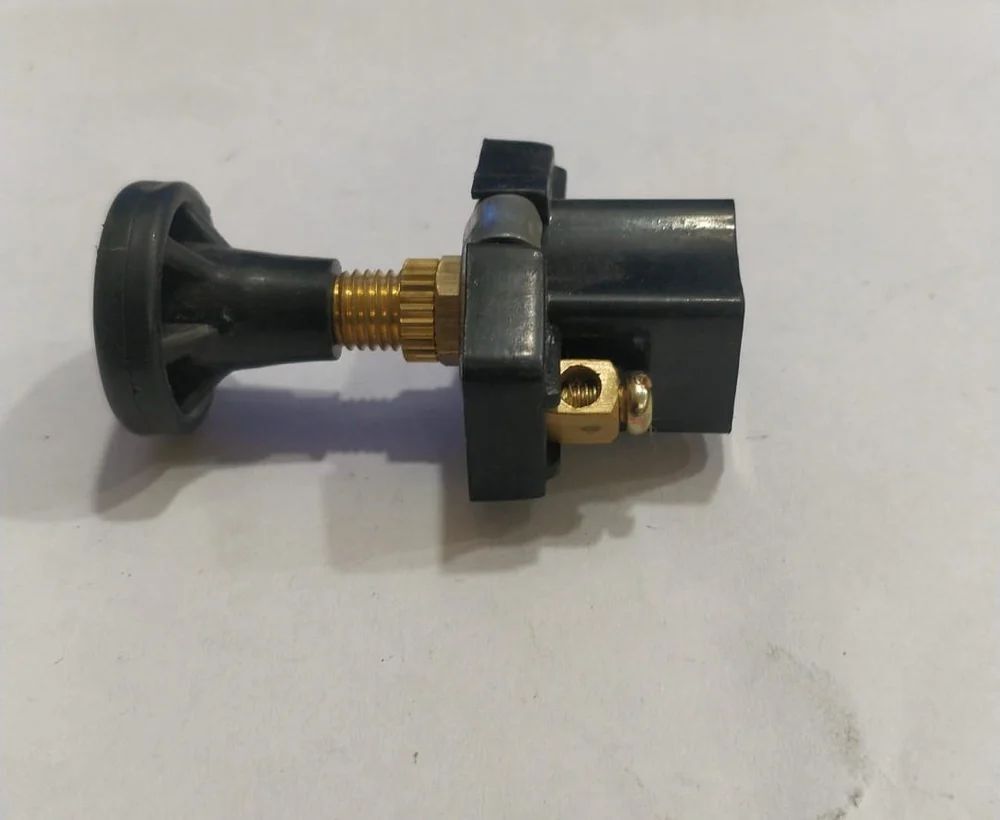

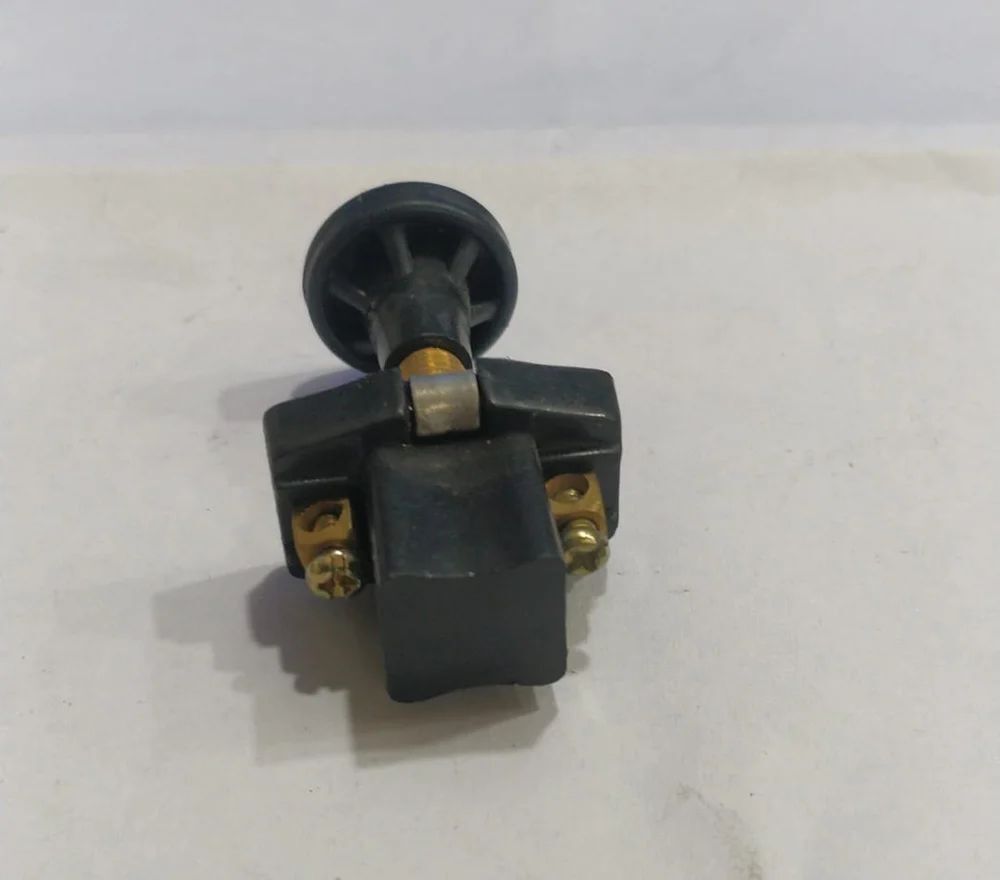

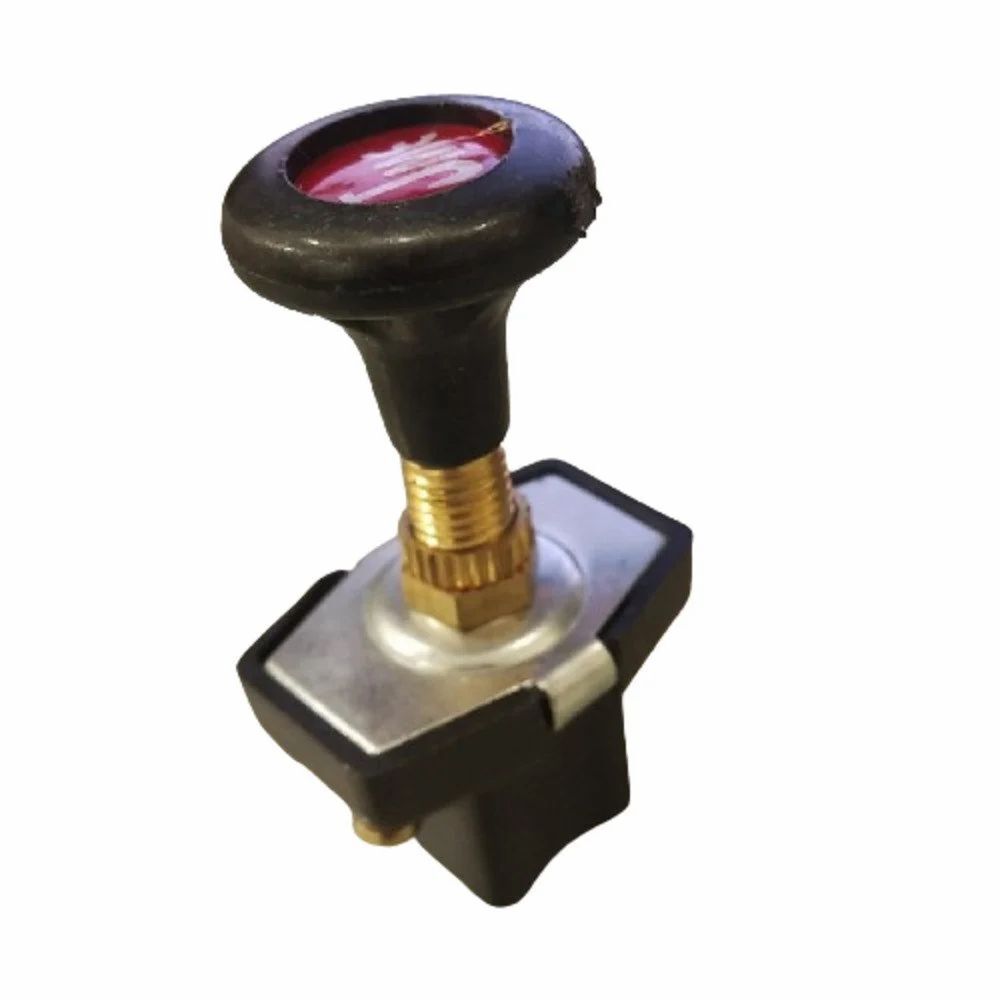

TOGGLE SWITCH PUSH PULL SMALL

Price 25 INR/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

TOGGLE SWITCH PUSH PULL SMALL Specification

Number of Module
1

Rated Voltage
250V AC

Automation Grade
Manual

Finish Type
Glossy/Metallic

Max. Current
3A

Mechanical Life
> 10,000 cycles

Temperature Range
-20C to +60C

Protection Level
IP40

Response Time
Instantaneous mechanical response

Circuit Type
SPST (Single Pole Single Throw)

Product Type
Toggle Switch Push Pull Small

Material
Polycarbonate body, Brass contacts

Insulation Resistance
100 M min at 500 VDC

Contact Resistance
50 m max

Max. Voltage
250V AC/DC

Operating Temperature
-20C to +60C

Stoke
Push-Pull Action

Size
Small (approx. 22 mm x 12 mm x 17 mm)

Color
Silver/Black

Weight
Approx. 15 g

Mounting Type
Panel Mount

Current Rating
3A

No Of Poles
Single Pole

Dielectric Strength
1000V AC for 1 minute

Application
Electrical panels, Control circuits

Contact Material
Nickel-plated Brass

RoHS Compliant
Yes

Actuator Type
Toggle Lever

Panel Cutout Size
12 mm diameter

Terminal Type
Solder Lug

Switch Type
Push-Pull Toggle

TOGGLE SWITCH PUSH PULL SMALL Trade Information

Minimum Order Quantity
10000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TOGGLE SWITCH PUSH PULL SMALL

Find dependable performance and procure instant savings with the TOGGLE SWITCH PUSH PULL SMALLa paragon of compact control components. This uncommon toggle switch features a solder lug terminal, push-pull action, and silver/black polycarbonate body, making it ideal for electrical panels and control circuits. Its nickel-plated brass contacts and IP40 protection ensure towering durability. With a 250V AC/DC rating, 3A current capacity, and insulation resistance of 100 M min, it meets RoHS compliance. The switch is engineered for manufacturers, traders, and distributors seeking robust and reliable panel-mounted solutions across India.

Purposeful Application and Effortless Operation

The TOGGLE SWITCH PUSH PULL SMALL excels in electrical panels and control circuits, offering straightforward integration via panel mounting. To use, install the switch in a 12 mm diameter cutout and connect wires with solder lugs. Its glossy, metallic finish lends a refined touch to panel surfaces where durable manual operation is required. The push-pull toggle lever delivers instantaneous response and long mechanical life, making it perfectly suited for frequent switching tasks in industrial and commercial control applications.

Shipment Logistics and Packaging Details

Each TOGGLE SWITCH PUSH PULL SMALL is dispatched from major FOB ports in India, packed securely in durable cartons to prevent shipment damage. The switches are shipped nationwide, prioritizing Indias main domestic markets for fast delivery. Shipment tracking and reliable logistics ensure prompt arrival, supporting distributor and exporter operations. Bulk orders benefit from systematic packaging and rapid fulfillment, maintaining the products pristine condition from manufacturer to end-user. Traders and importers will find the supply process both structured and efficient.

FAQs of TOGGLE SWITCH PUSH PULL SMALL:

Q: How do I install the TOGGLE SWITCH PUSH PULL SMALL in an electrical panel?

A: To install, prepare a 12 mm diameter cutout in the panel, mount the switch securely, and solder your wires to the provided lug terminals. Ensure all connections are correctly insulated before use.

Q: What uncommon advantages does this push-pull toggle switch offer over standard switches?

A: The push-pull mechanism enables instantaneous mechanical response and robust operation, while its nickel-plated brass contacts and polycarbonate body ensure towering durability and longevity in demanding environments.

Q: Where can I request bulk procurement and shipping of this toggle switch in India?

A: Bulk procurement requests can be made through local distributors, exporters, importers, or directly from the manufacturer. Swift dispatch from Indias main domestic markets ensures prompt delivery nationwide.

Q: What is the switchs rated voltage and current, and how does it benefit control circuits?

A: With a rated voltage of 250V AC/DC and a current rating of 3A, the switch is perfect for low to medium power applications in control circuits, offering reliable operation and enhanced component life.

Q: When is this switch most appropriate for use in industrial or commercial applications?

A: This switch excels when reliable, manual control is critical for frequent on-off operations in panel-mounted electrical or control systems, thanks to its >10,000 mechanical life cycles and immediate toggle action.
