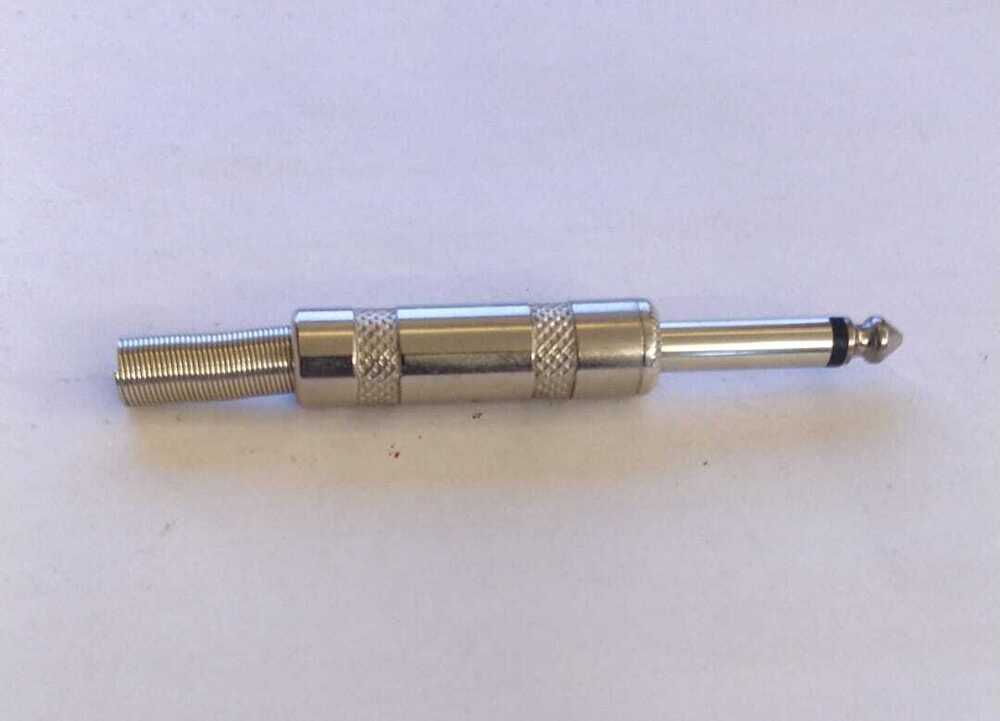

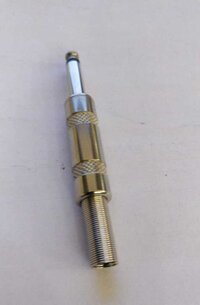

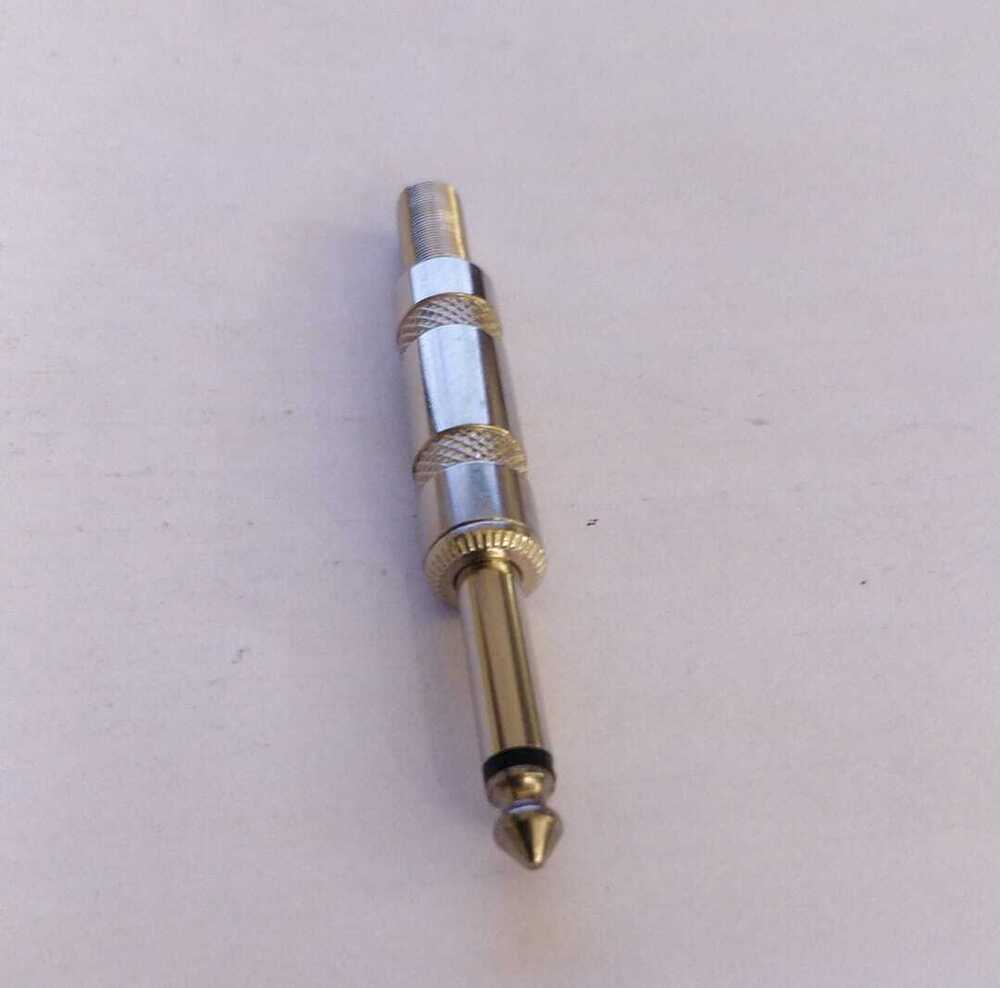

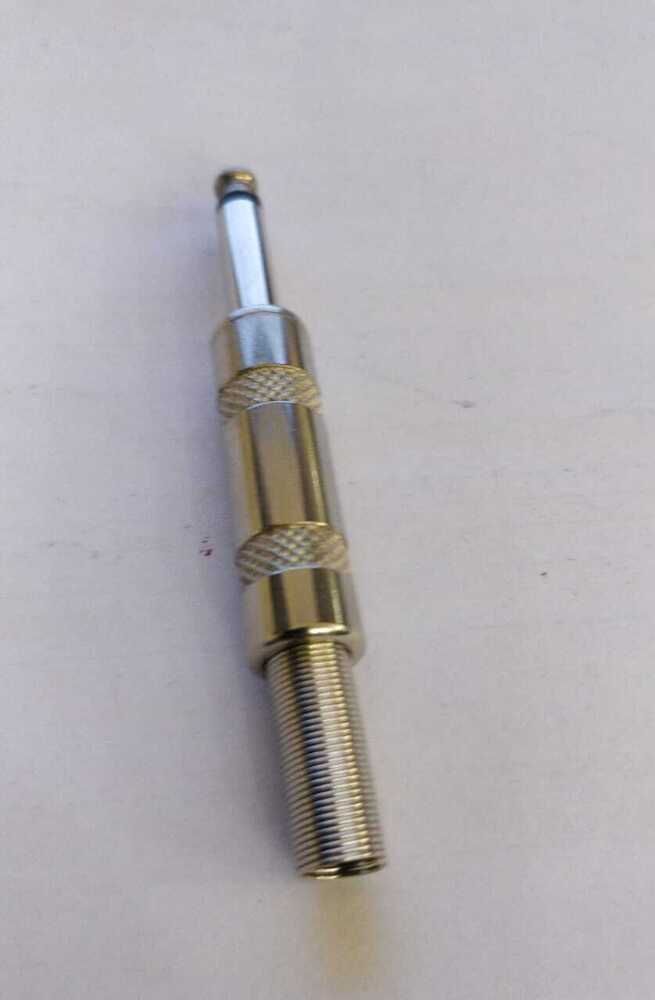

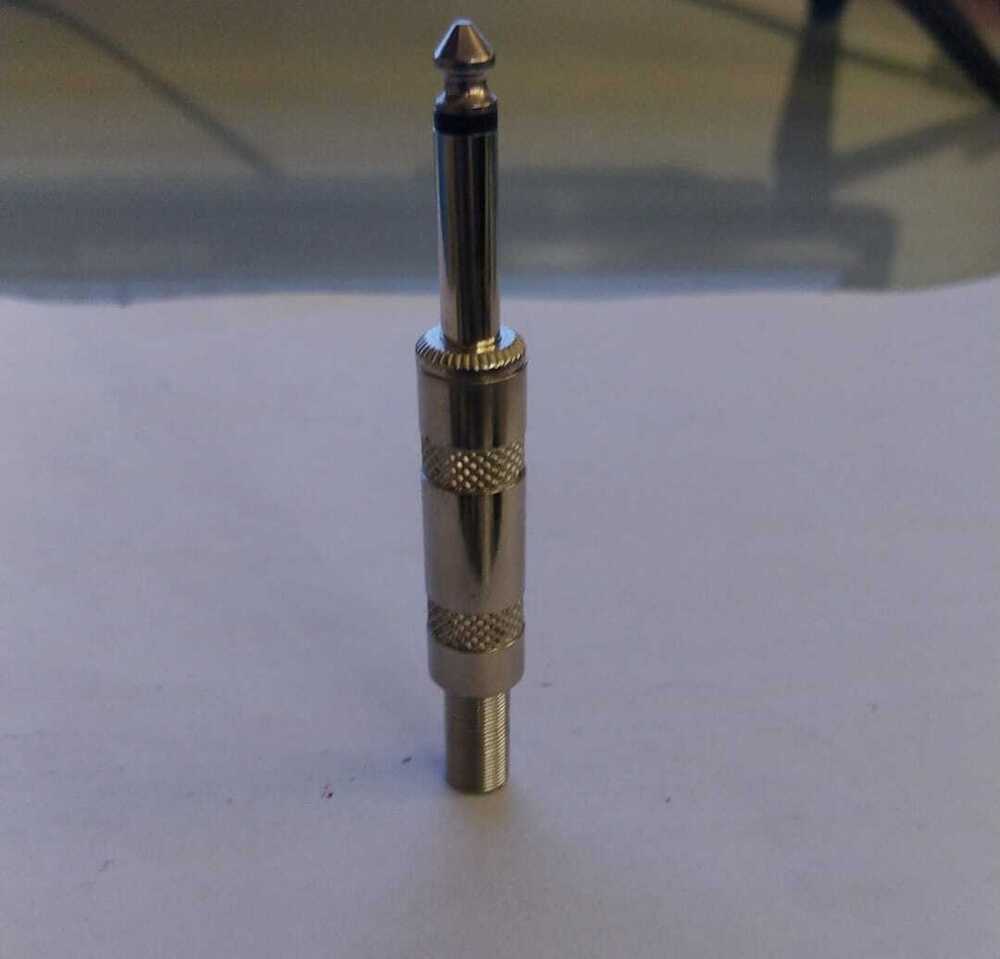

6.35MM METAL PIN SPRING TYPE

Price 28 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

6.35MM METAL PIN SPRING TYPE Specification

Product Type
Metal Pin Spring Type

Material
Nickel Plated Brass / Phosphor Bronze

Handles
No Handles

Withstand Voltage
1000V AC/1 Min

Application
Electronic, Electrical Connector, PCB Mount

Insulation Resistance
>1000 M at 500V DC

Height
6.35 mm (Pin Length)

Weight
Approx. 2 grams

Color
Silver

Standard
IEC Compliant

Usage
Signal and Power Transmission

Packing Type
Polybag/Box

Pin Diameter
6.35 mm

Mounting Type
Through Hole

RoHS Compliance
Yes

Spring Type
Spring-Loaded Pin

Current Rating
5A Max

Contact Resistance
10 m

Finish
Nickel Plated

Operating Temperature
-40C to +105C

6.35MM METAL PIN SPRING TYPE Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 6.35MM METAL PIN SPRING TYPE

Material	METAL
Brand	NO
Application	MIC AND STEREO JACK
Color	AS PER DEMAND
Connector Type	STANDARD
Item Weight	LITE
Jack Size	3.5
Minimum Order Quantity	100 Piece

- Prevent ground loops in audio systems.
- Isolate and protect components from voltage spikes.
- Interface different audio equipment with varying impedances.
Advantages:
- Electrical isolation between input and output.
- Noise reduction and signal integrity improvement.
- Compatibility with various audio standards.

Versatile Connection for Power and Signal

The 6.35MM Metal Pin Spring Type connector is purpose-built for signal and power transmission demands in a variety of electronic and electrical systems. Its robust spring-loaded mechanism ensures secure, consistent contact even under demanding conditions, making it suitable for both industrial and consumer electronics applications.

Superior Reliability and Durability

Manufactured using nickel-plated brass or phosphor bronze, this connector resists corrosion and delivers low contact resistance for efficient current transfer. It is IEC-compliant, RoHS-certified, and can withstand rigorous environments, offering a long operational life for PCB-mounted assemblies.

FAQs of 6.35MM METAL PIN SPRING TYPE:

Q: How do I mount the 6.35MM Metal Pin Spring Type connector onto a PCB?

A: This connector is designed for through-hole mounting. You simply insert the pin into the appropriate PCB hole and then solder it into place to ensure a stable electrical connection.

Q: What benefits does the spring-loaded mechanism provide?

A: The spring-loaded feature maintains firm contact pressure, reducing the risk of intermittent connections and ensuring reliable signal or power transfer, even with slight vibrations or movements.

Q: Where is this connector typically used?

A: It is commonly utilized in electronic devices, electrical connectors, and PCB-mounted assemblies, spanning applications such as circuit boards, test equipment, and power distribution units.

Q: What is the maximum current rating for this pin connector?

A: The connector supports up to 5A maximum current, making it highly suitable for both signal and moderate power applications.

Q: When should I choose the nickel-plated, spring-loaded pin versus other connectors?

A: Opt for this connector when you require reliable engagement, resistance to corrosion, and stable performance under varying environmental conditions, especially in applications following IEC standards.
