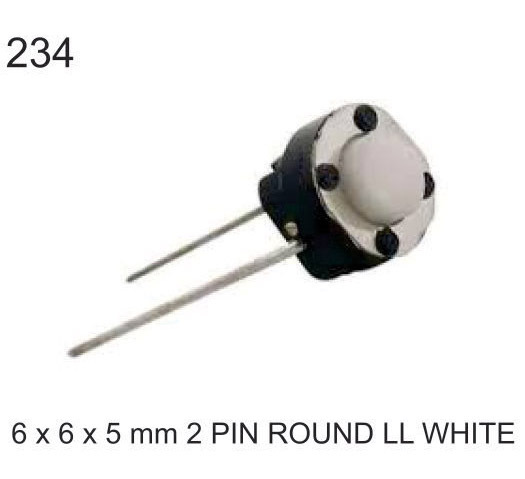

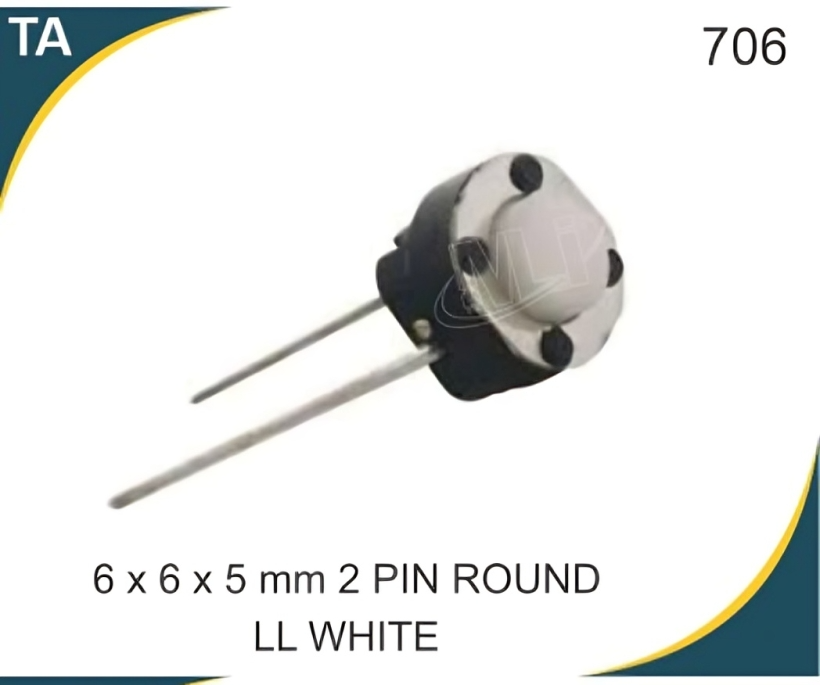

6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH

Send Inquiry

Request To Call Back

6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH

Get a Price/Quote

MOQ : 1000 Pieces

6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH Specification

Protection Level
IP40

Temperature Range
-25C to +70C Celsius (oC)

Finish Type
Matte

Number of Module
1

Automation Grade
Manual

Circuit Type
Single Circuit

Rated Voltage
12V DC Volt (V)

Max. Current
50 mA Megaampere ( MA)

Product Type
Tactile Switch

Material
Polyamide (PA66) / Epoxy resin / Metal contacts

Insulation Resistance
100 M min (at 500V DC)

Contact Resistance
100 m max Milliohm (m)

Max. Voltage
12V DC Volt (V)

Operating Temperature
-25C to +70C Celsius (oC)

Stoke
0.25 mm

Size
6x6x5 mm

Color
White

Weight
~0.2 g Grams (g)

Mounting Type
Through Hole

Current Rating
50 mA

No Of Poles
Single pole (SPST)

Contact Material
Silver-plated copper alloy

Terminal Type
2 Pin

Operation Force
160-260 gf

Soldering Temperature
260C max for 5 sec

Environmental Compliance
RoHS Compliant

Dielectric Strength
250V AC for 1 min

Storage Temperature
-25C to +85C

Switch Shape
Round Button

6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Main Domestic Market
All India

About 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH

Dont miss this hot deal on the 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH! Utilise this offer at an unbeatable price and upgrade your project with a superior, ace-level component. Its masterpiece design features a round button shape, robust polyamide (PA66) housing, and high-performance silver-plated copper alloy contacts. With a high dielectric strength of 250V AC for 1 minute and RoHS compliance, this switch ensures safety and reliability. Rated at 12V DC and 50 mA, it further boasts a long mechanical life of 100,000 cycles. Perfect for professional applications in India and global markets.

Versatile Surface Applications

The 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH is engineered for diverse surface applications, making it ideal for mounting on printed circuit boards used in consumer electronics, industrial controls, and office automation devices. Its through-hole design allows secure installation onto various sites of application, ensuring steady and reliable performance. With a matte finish and compact construction, this tactile switch blends seamlessly into the application surface, providing both functional superiority and aesthetic enhancement to your products.

Express Shipping and Export Markets

We offer express shipping from major Indian FOB ports, enabling fast and hassle-free global transportation. The 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH serves a wide outlay of main export markets, including Asia, Europe, Africa, and North America. Each switch is packaged securely to preserve quality during transit, ensuring dependable delivery wherever your business is located. Take advantage of our mastery in distribution and streamlined logistics for all your tactile switch requirements.

FAQs of 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH:

Q: How can the 6X6X5 MM 2 PIN ROUND LL WHITE TACTILE SWITCH be used in electronic projects?

A: This tactile switch is suitable for use in a variety of electronic devices including industrial controllers, office equipment, and consumer electronics, providing a reliable on/off function.

Q: What are the main benefits of choosing this tactile switch?

A: The switch offers a superior and durable build, reliable contacts with silver plating, RoHS environmental compliance, and a long mechanical life of over 100,000 cycles, making it an ace solution for demanding applications.

Q: Where is this tactile switch primarily distributed and exported?

A: It is available for distribution, export, import, manufacturing, and trading in India, with main export markets spanning Asia, Europe, Africa, and North America.

Q: What is the recommended process for installing the tactile switch?

A: The switch is designed for manual, through-hole mounting. Solder it to the PCB at no more than 260C for five seconds to ensure optimal performance.

Q: When is express shipping available for this product?

A: Express shipping is available for all orders, ensuring timely delivery to both domestic and global customers via major Indian FOB ports.

Q: What kind of packaging is used for shipping the tactile switch?

A: Each switch is packed securely to prevent damage during transportation, with packaging tailored for both small and bulk orders to maintain product integrity on arrival.
