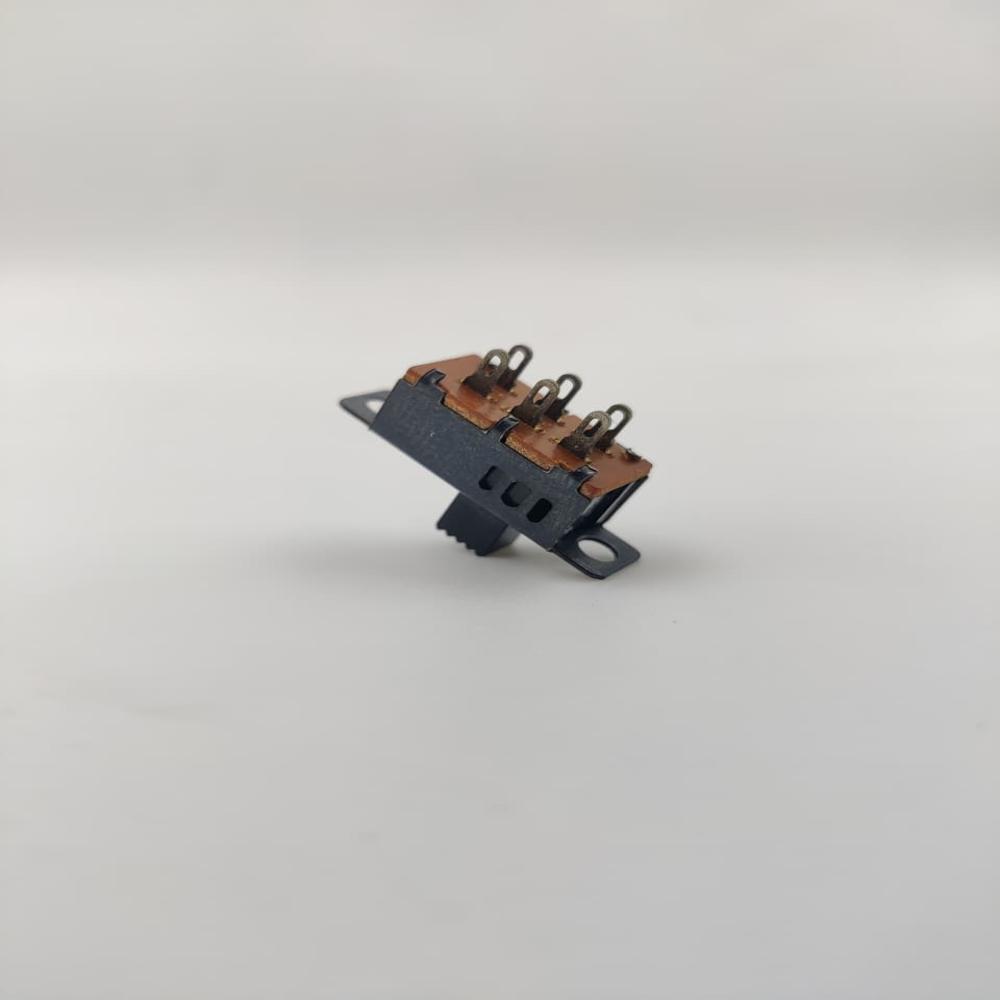

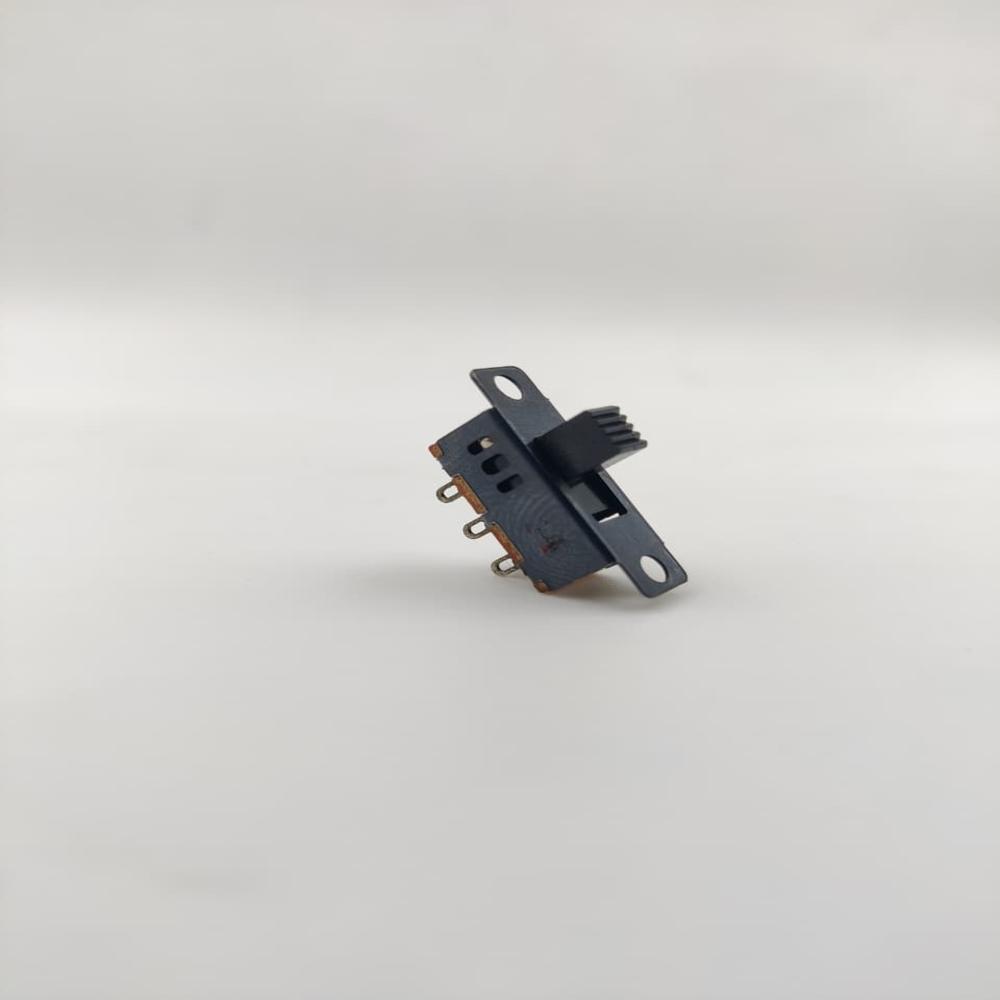

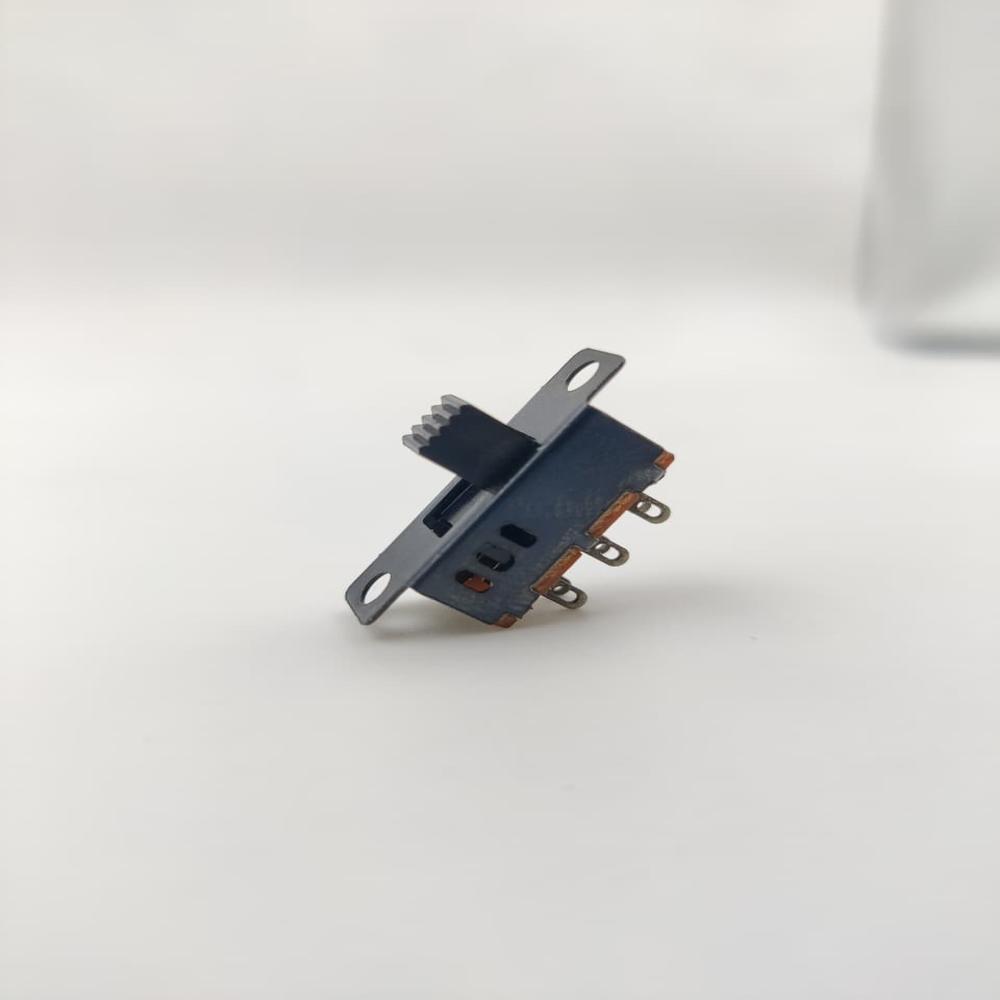

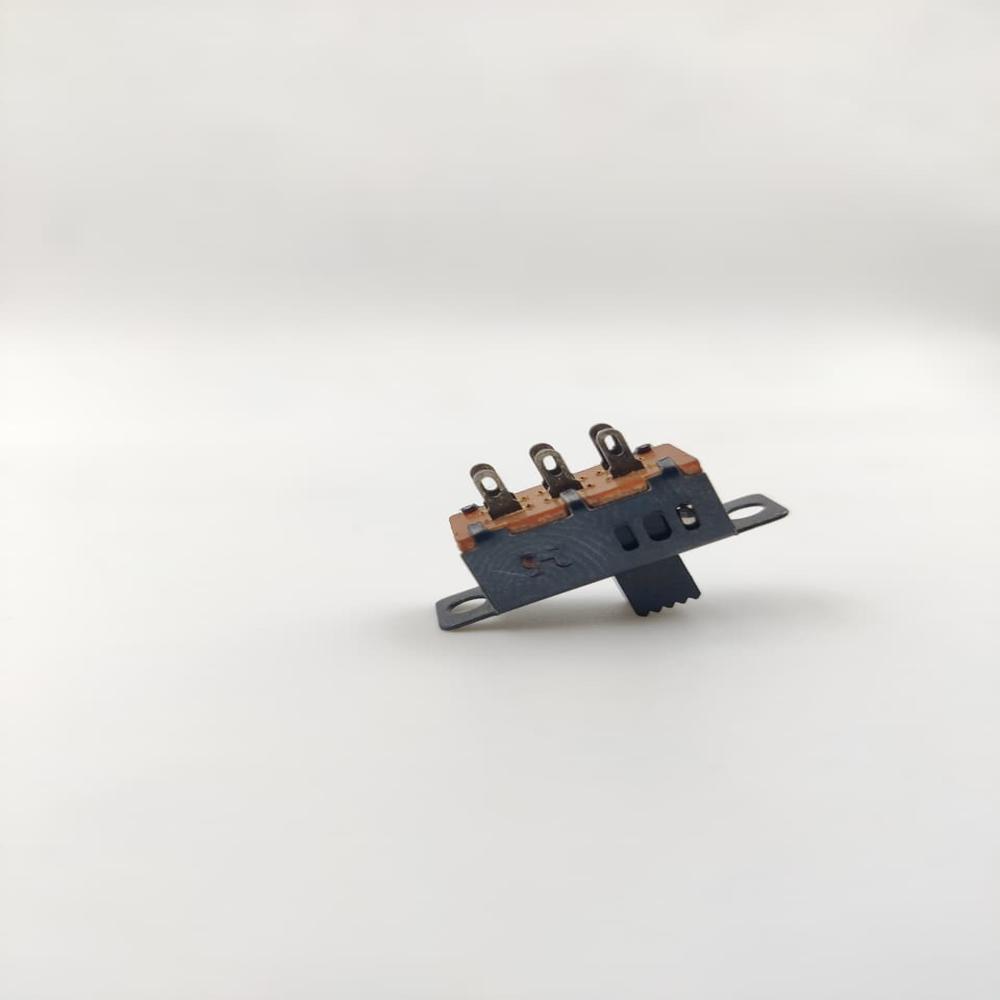

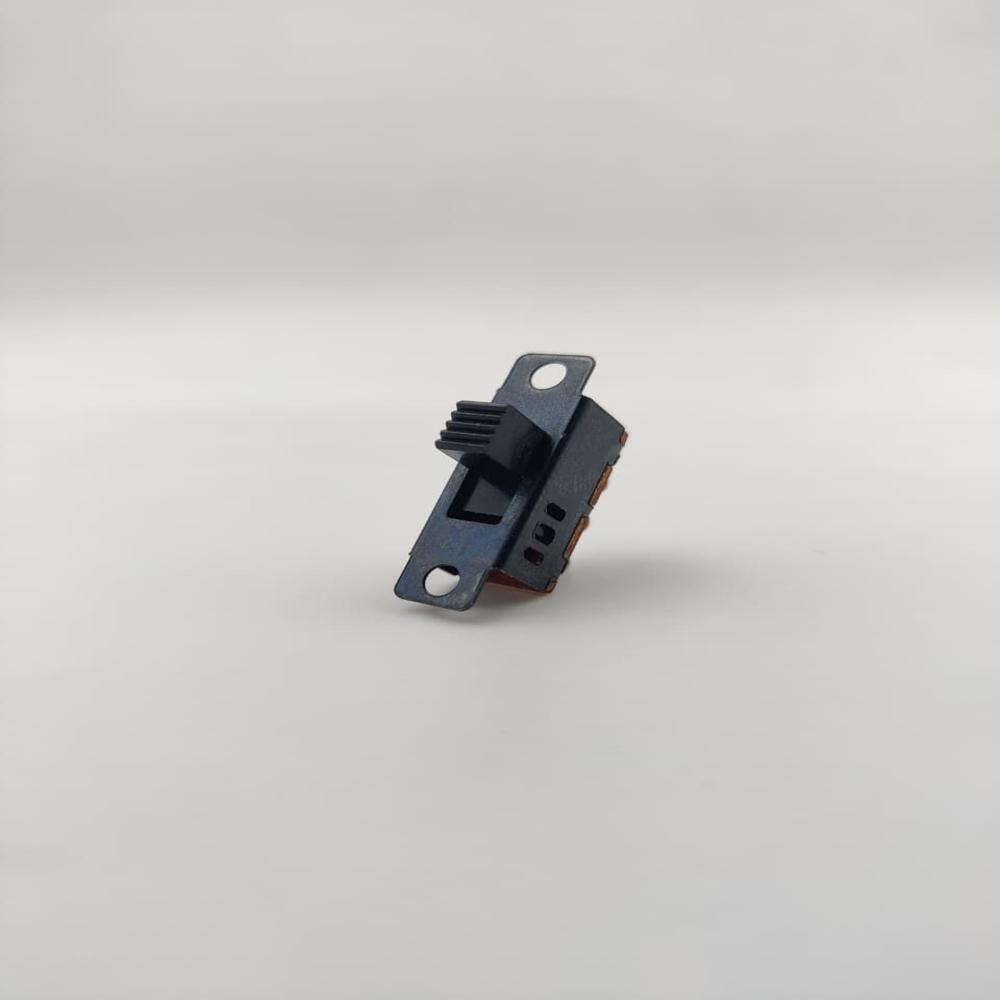

Slide Switch With Screw 6 Pin On Off On

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 2000 Pieces

Slide Switch With Screw 6 Pin On Off On Specification

Protection Level
IP40

Response Time
Instantaneous (mechanical) Seconds

Max. Current
3A Ampere (amp)

Temperature Range
-25 C to +85 C Celsius (oC)

Automation Grade
Manual

Number of Module
Single module

Rated Voltage
250V AC Volt (V)

Mechanical Life
10,000 cycles min. Months

Finish Type
Matte / Polished metal and black plastic

Circuit Type
Double Pole, Double Throw (DPDT)

Power Rating
250V DC

Product Type
6 Pin ON-OFF-ON Slide Switch with Screw

Insulation Resistance
100M at 500V DC

Contact Resistance
20m Ohm ()

Max. Voltage
250V AC Volt (V)

Warranty
No Warranty

Stoke
Approx. 2.5mm

Usage & Applications
Toy Switch and Electrical components

Size
Miniature, approx. 15mm x 6mm x 10mm (body)

Cable Type
Slide Switch with screw

Color
Black/Silver

Operating Temperature
-25 C to +85 C Celsius (oC)

Weight
Approx. 5g Grams (g)

Display Type
no display type

Material
metal case

Mounting Type
Panel mount with screw

Current Rating
3A at 250V AC

No Of Poles
2 (DPDT)

Storage Temperature
-30C to +85C

Terminal Type
Solder Lug

Mounting Hardware
Supplied with screws

Dielectric Strength
1000V AC for 1 minute

Torque for Screw
Max. 0.5 Nm

Vibration Resistance
10-55Hz, amplitude 1.5mm

Insulation Material
Heat-resistant thermoplastic

Handle Type
Flat lever

RoHS Compliance
Yes

Ambient Humidity
85% RH

Switch Operation
ON-OFF-ON (2 position plus center off)

Contact Material
Silver plated brass

Switching Angle
Approx. 20 each side from center

UL Approval
No

Slide Switch With Screw 6 Pin On Off On Trade Information

Minimum Order Quantity
2000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Slide Switch With Screw 6 Pin On Off On

Explore the ephemeral elegance of the 6 PIN ON-OFF-ON Slide Switch with Screwengineered for those with gorgeous tastes, noble intentions, and kingly standards in electronics. This miniature switch boasts a robust, panel-mount design, featuring a heat-resistant thermoplastic body and a flat lever handle, all in a striking matte black and polished silver finish. Try now and experience its instantaneous mechanical response, silver-plated brass contacts, and superior vibration resistance. Ideal for those who demand dependable performance across diverse environments, this RoHS-compliant marvel is ready to elevate your circuitry.

Application and Surface Use

The 6 PIN ON-OFF-ON Slide Switch with Screw is expertly crafted for precise control on panel-mounted surfaces, making it indispensable for electrical circuits and automation projects. Widely used in plant machinery, control panels, and instrumentation, this kingly switch is suitable for surface mounting in industrial environments where reliability and compact dimensions are critical. It embodies both nobility and practicality, serving demanding applications in plants and manufacturing units across India.

Sample, Packaging, and Transport

Samples of the 6 PIN ON-OFF-ON Slide Switch with Screw are available for immediate evaluation. Each switch is packaged securely to ensure safe arrival, supporting various goods transport and export services. With shipment arranged via reliable FOB ports in India, distributors, traders, manufacturers, importers, and exporters benefit from streamlined transport offerings. The packaging ensures quality and integrity upon arrival, supporting all your export and domestic transport requirements efficiently.

FAQs of 6 PIN ON-OFF-ON SLIDE SWITCH WITH SCREW:

Q: How is the 6 PIN ON-OFF-ON Slide Switch mounted for optimal performance?

A: This slide switch is designed for panel mounting using screws, which are supplied. Its flat lever and compact body enable precise and reliable installation on electronic surfaces and control panels.

Q: What environments is this switch ideally used for?

A: It is suitable for industrial plants, electrical circuit boards, control systems, and environments where vibration resistance and steady performance are essential, thanks to its IP40 protection and robust materials.

Q: When should this switch be chosen over other types?

A: Choose this ON-OFF-ON switch when you need double-pole, double-throw configurations with a center-off position, especially for manual automation circuits requiring versatile operation and long mechanical life.

Q: Where are samples and transport services available for this switch?

A: Samples can be requested from distributors, exporters, importers, and manufacturers based in India. Transport services facilitate both domestic and international shipments through secure packaging and reliable FOB ports.

Q: What is the process for installing and handling this switch?

A: Install the switch using the panel-mounting screws provided, ensuring the torque does not exceed 0.5 Nm. Handle with care, and make connections using the solder lug terminals as per your projects requirements.

Q: What are the key benefits of using this slide switch in automation systems?

A: The key benefits include instantaneous mechanical response, high dielectric strength, low contact resistance, and noble designall contributing to safe operation and reliability in demanding automation setups.
