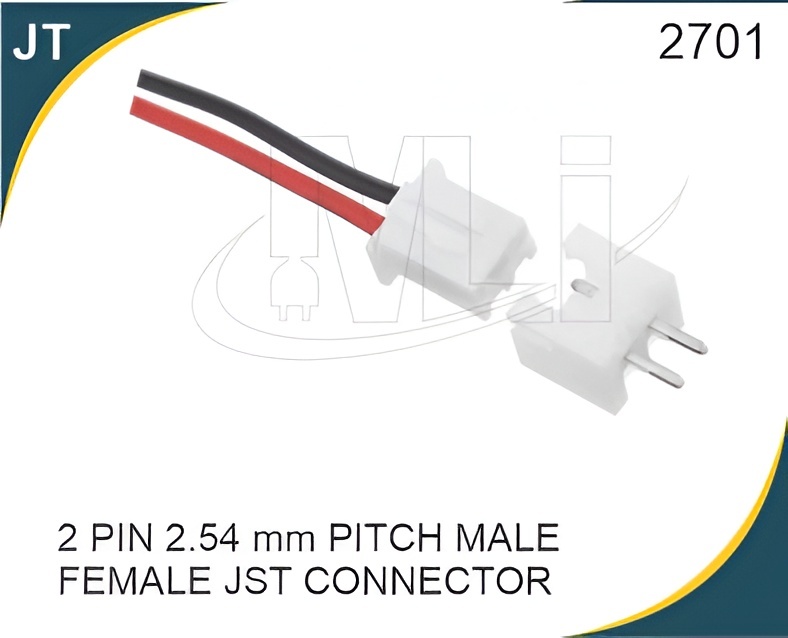

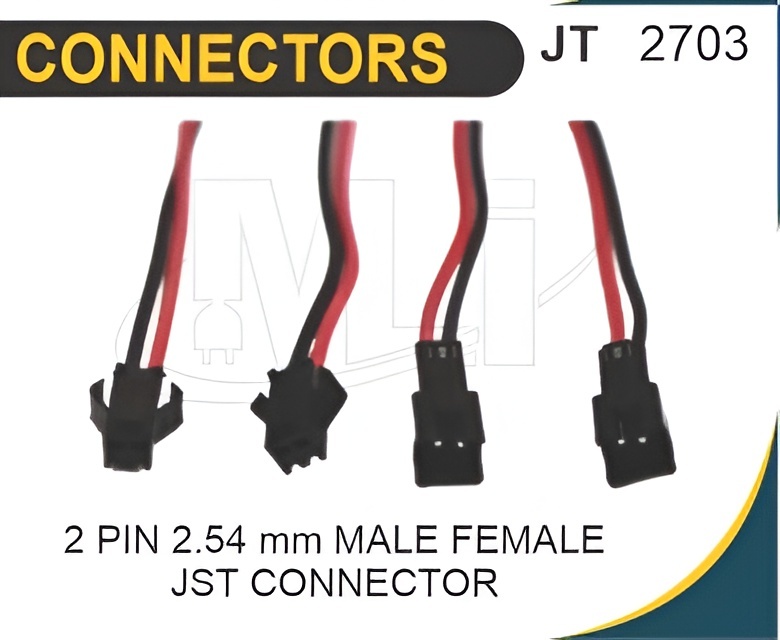

2 pin 2.54 mm male female jst connector

Price 4 INR/ Liter

Get a Price/Quote

MOQ : 1000 Pieces

2 pin 2.54 mm male female jst connector Specification

Pairs
1

Capacity
Low Voltage Circuitry

Voltage Rating
250 V AC/DC

Female End Type
JST 2.54 mm Female Housing

Application
Battery, LED strip, Arduino, RC models

Temperature
-20°C to +80°C

Connector
2 Pin JST Male to Female

Connector Type
Wire-to-Wire

Male End Type
JST 2.54 mm Male Housing

Material
Copper (wire), Nylon (housing)

Length
150 mm

Number of Conductor
2

Outer Diameter
2.5 mm

Jacket Material
PVC

Flame Resistance Level
Standard

Sheild
Unshielded

Wire Gauge
24 AWG

Color
Red and Black

Insulation
PVC

Cable Type
Jumper Wire

Cable Length
150 mm

2 pin 2.54 mm male female jst connector Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 2 pin 2.54 mm male female jst connector

Telecom/Data/Network	HOUSING /AND CONCATS TERMINAI
Brand	IMPORTED
Connector Gender	MALE FEMALE
Contact Material	PLASTIC
Maximum Operating Temperature	AS PER USE
Mounting Type	PCB
Minimum Order Quantity	200 Piece

The Molex KF2510 series connector range is suitable for a range of wire-to-board connecting applications. The series consists of PCB headers, receptacle housings and contacts terminal.

Superior Electrical Performance

Designed to minimize electrical losses, this connector offers low contact resistance (20m) and supports currents up to 2A. Its insulation resistance is rated at 1000 M @ 500V DC, ensuring reliable transmission and protection against short circuits in demanding environments.

Durable and Flame-Resistant Build

The JST connectors phosphor bronze contacts with tin plating resist corrosion, while the Nylon 66 UL94V-0 housing and PVC jacket deliver robust protection. The assembly withstands over 30 mating cycles and meets flame resistance standards for secure operation between -20C and +80C.

Ideal for DIY and Prototyping

With its free-hanging (in-line) mounting type and user-friendly design, this 2-pin JST connector is perfect for DIY electronics, battery connections, LED strips, Arduino experiments, and RC models. Its handy 150 mm length and clear color coding streamline the setup process.

FAQs of 2 pin 2.54 mm male female jst connector:

Q: How do I use the 2 pin 2.54 mm JST male-female connector for battery or LED strip projects?

A: Connect the male end to the battery or LED strips positive and negative terminals, and match the female end to your device or circuit. The plug-and-play design with 24 AWG wires allows quick and secure connections for low voltage applications, ensuring proper polarity alignment.

Q: What materials are used in the construction of this JST connector?

A: The contacts are made of phosphor bronze with tin plating, the housing is crafted from flame-resistant Nylon 66 UL94V-0, and the wires utilize copper conductors insulated in PVC. These materials optimize conductivity, durability, and safety.

Q: When should I choose this connector for my DIY or prototyping needs?

A: This connector is ideal for low voltage circuitry up to 250 V AC/DC, especially where secure, repeatable, and easy wire-to-wire connections are needed. Its reliability over 30 mating cycles makes it suitable for frequent assembly or testing in electronics, RC models, and small appliances.

Q: Where can this JST connector be mounted or installed?

A: It is designed for free hanging (in-line) installations, making it suitable for wires that dont need PCB mounting. You can position it anywhere in your wiring system, provided the environment stays within -20C to +80C and below 85% relative humidity.

Q: What is the process for connecting and disconnecting this cable?

A: Simply align the male and female housings, insert the plug fully, and ensure a secure lock. To disconnect, gently pull apart the connectors by their housing, avoiding excessive force on the wires. The design supports over 30 mating cycles without performance degradation.

Q: Can this connector be used outdoors or in high humidity environments?

A: The connector operates reliably in ambient humidity up to 85% RH and temperatures ranging from -20C to +80C. However, it is unshielded and not waterproof, so outdoor use may require additional protection against moisture for long-term durability.

Q: What are the key benefits of using this JST connector for prototyping and electronics?

A: It streamlines installation with color-coded wires (red and black), offers excellent safety via RoHS compliance and flame-resistant materials, and accommodates repeated connections. Its standard 2.54 mm pitch ensures compatibility with common electronics components.
