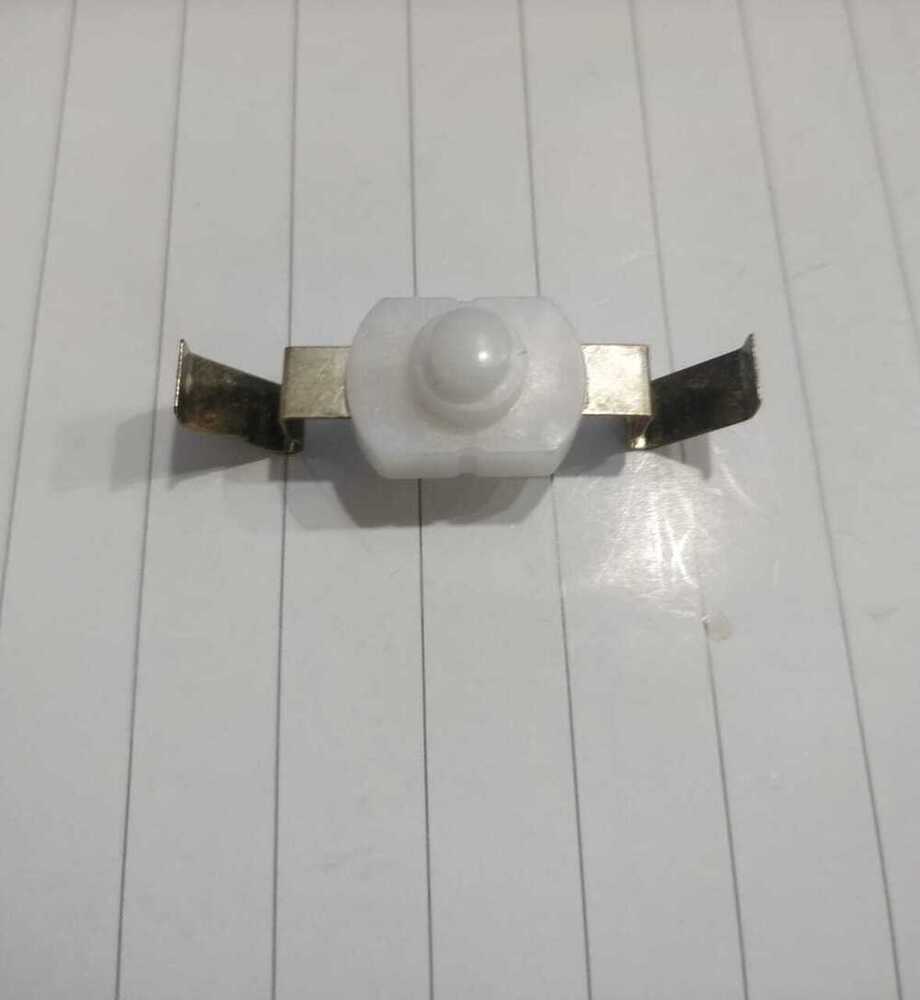

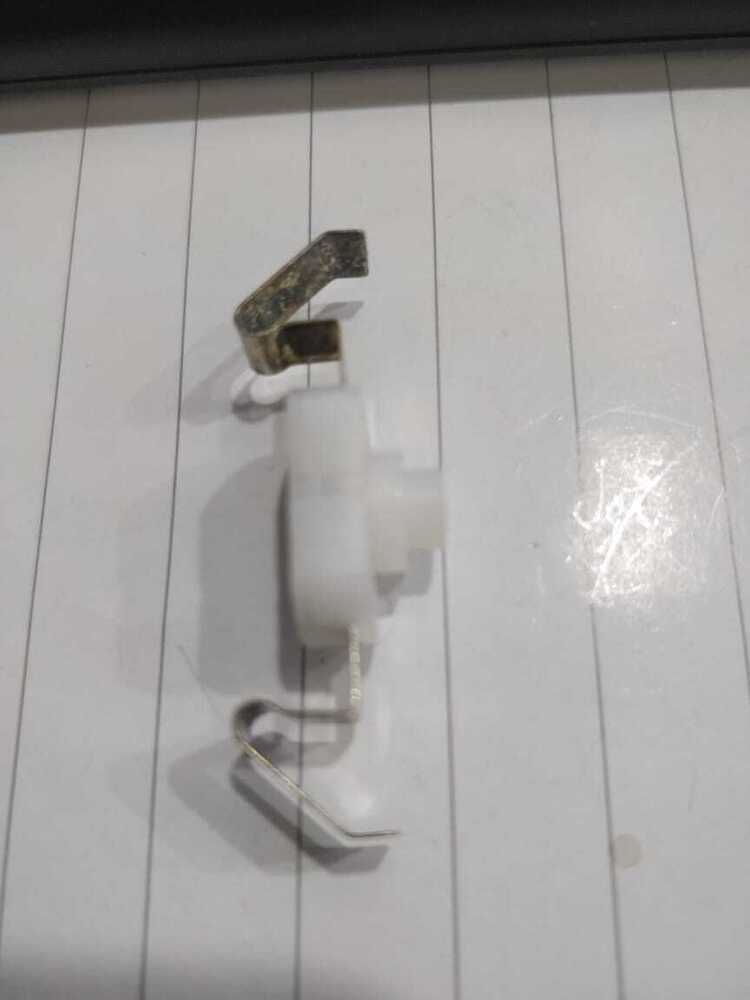

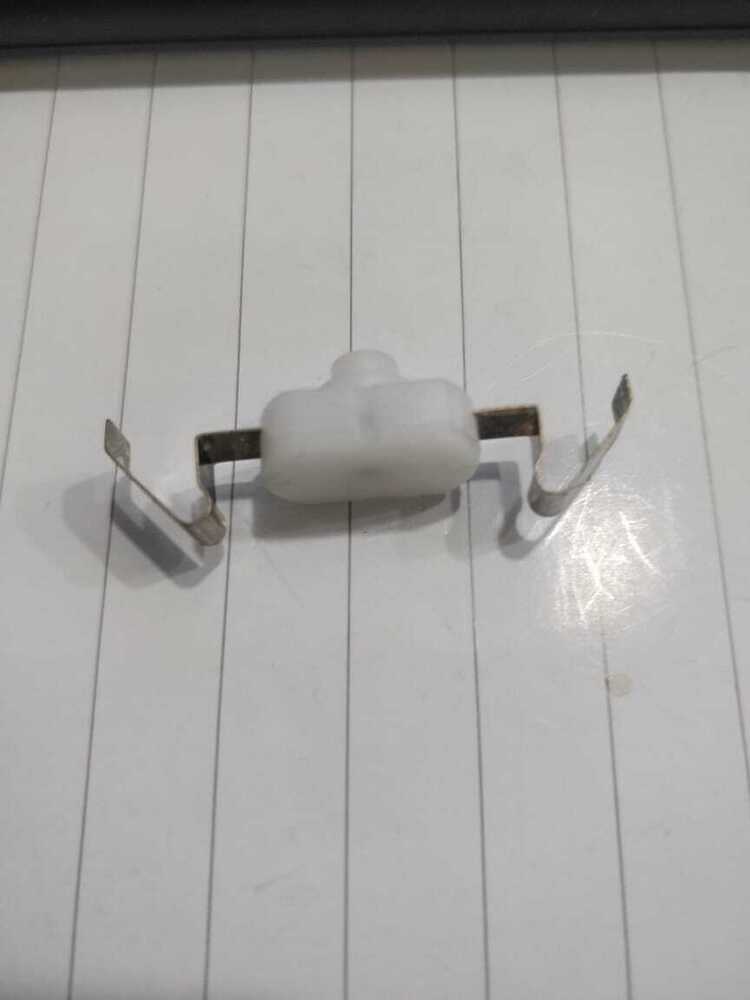

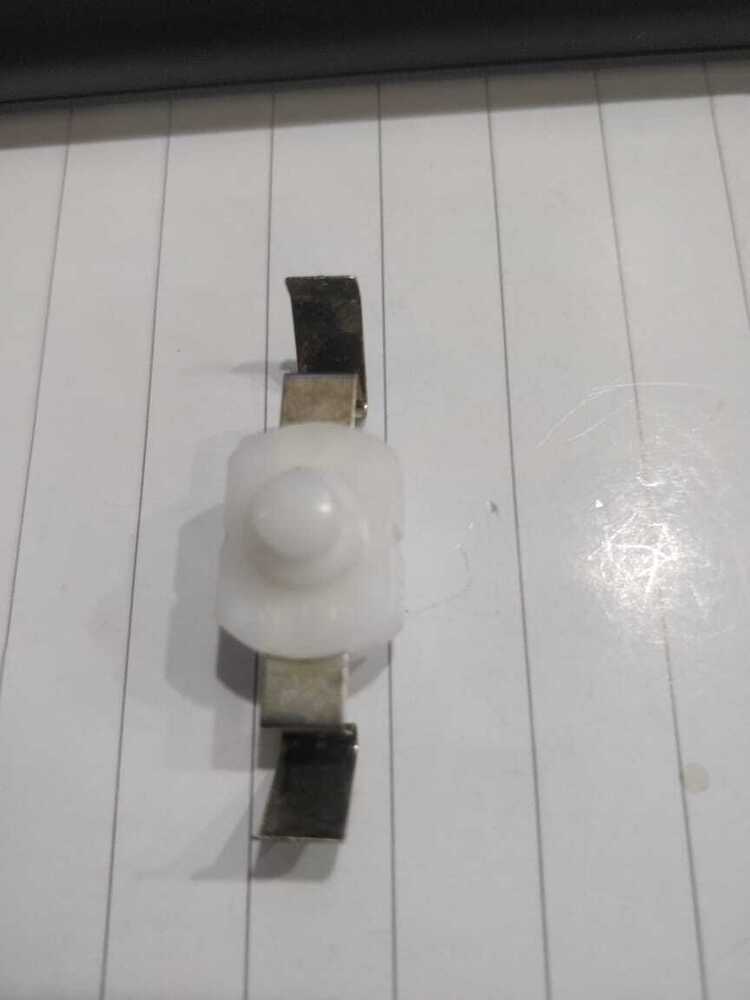

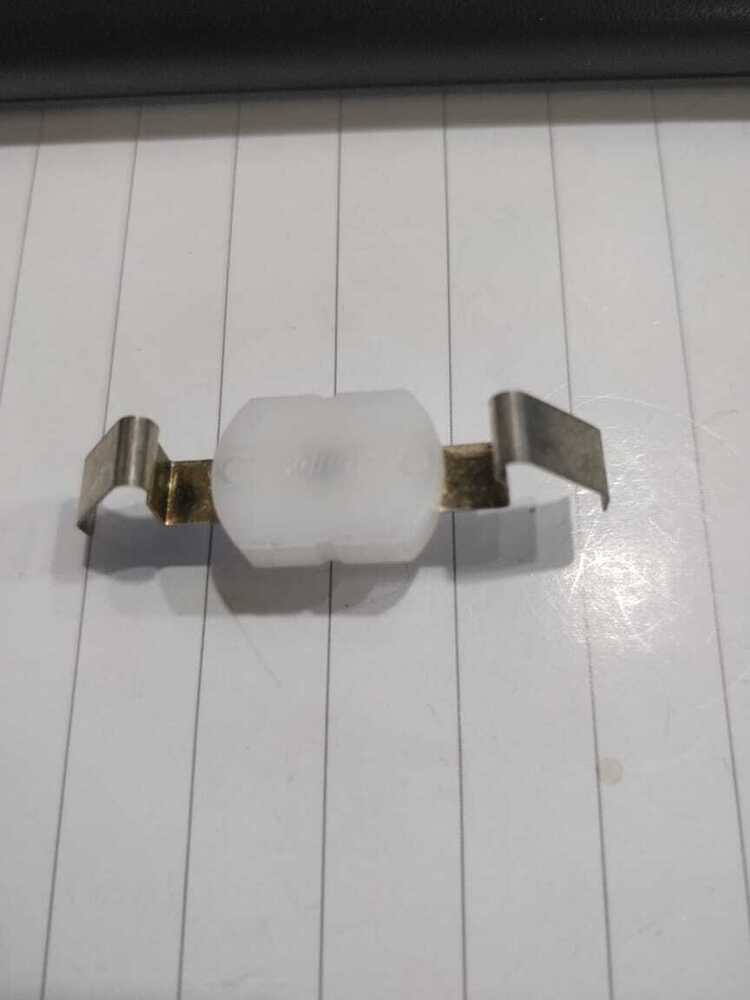

PTS 03 WHITE 2 PIN W SHAPE LOCK

Price 5.0 INR/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

PTS 03 WHITE 2 PIN W SHAPE LOCK Specification

Temperature Range
-20C to +70C

Response Time
<5 ms

Circuit Type
SPST

Protection Level
IP20

Automation Grade
Manual

Rated Voltage
125V/250V AC

Mechanical Life
>100,000 cycles

Finish Type
Glossy

Number of Module
Single

Max. Current
2A

Product Type
W Shape Lock Switch

Material
High Grade Polycarbonate Body with Copper Alloy Contacts

Insulation Resistance
100 M Min. at 500V DC

Contact Resistance
<30 m

Max. Voltage
250V AC/DC

Operating Temperature
-20C to +70C

Stoke
3 mm

Size
18mm x 9mm x 7mm

Color
White

Weight
Approximately 2g

Mounting Type
PCB Mount

Current Rating
2A Max.

No Of Poles
2

Contact Material
Silver plated

Flammability Rating
UL94V-0

Dielectric Strength
AC 1000V for 1 min

Actuator Type
W Shape Button

Switch Function
Lock (Latching) Switch

Compliance
RoHS Compliant

Terminal Type
Solder / PCB legs

PTS 03 WHITE 2 PIN W SHAPE LOCK Trade Information

Minimum Order Quantity
10000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About PTS 03 WHITE 2 PIN W SHAPE LOCK

Explore the superb qualities of the PTS 03 WHITE 2 PIN W SHAPE LOCK, an exceptional switch offering grand performance for a multitude of applications. With a special W shape actuator and redoubtable dielectric strength of AC 1000V for 1 minute, this lock switch ensures enduring reliability. The high-grade polycarbonate body and copper alloy contacts, complete with silver plating, guarantee remarkable conductivity and insulation resistance exceeding 100 M. Ideal for demanding conditions, it features a maximum current of 2A and operating temperatures ranging from -20C to +70C. Its glossy finish and compact size combine durability with style, making it a choice supplier for distributor, exporter, importer, manufacturer, and trader needs in India.

Key Applications, Method & Features

The PTS 03 WHITE 2 PIN W SHAPE LOCK stands out for use in electronic equipment, appliances, and control panels. Application is straightforward: solder or mount on PCB using its durable, glossy module. Noteworthy features include a grand IP20 protection level, robust flammability rating of UL94V-0, and superior mechanical life exceeding 100,000 cycles. The W shape lock function ensures secure switching, while the SPST circuit type suits diverse automation requirements, promising consistent performance.

Outstanding Market Value & Delivery Commitment

Handed over with premium care, the PTS 03 WHITE 2 PIN W SHAPE LOCK is available with flexible supply abilities to meet large and small market demands. The delivery time is optimized for swift dispatches, ensuring your project stays on schedule. Samples can be provided to assess market value and suitability in various applications, reflecting our commitment to quality and efficient logistics. Trust a proficient distributor network dedicated to timely and professional delivery.

FAQs of PTS 03 WHITE 2 PIN W SHAPE LOCK:

Q: How is the PTS 03 WHITE 2 PIN W SHAPE LOCK typically used?

A: It is commonly used in electronic devices, industrial control panels, and home appliances, providing a latching switch function with reliable and secure circuit locking.

Q: What sets this switch apart in terms of material and durability?

A: This switch is crafted from high-grade polycarbonate and copper alloy contacts with silver plating, offering both robustness and excellent electrical performance along with a long mechanical life exceeding 100,000 cycles.

Q: When should I choose the W Shape Lock for my application?

A: You should select this lock when seeking a compact, reliable, and secure latching switch for PCB mounting, particularly where high dielectric strength, low contact resistance, and RoHS compliance are crucial.

Q: Where can I obtain samples before making a bulk purchase?

A: Samples of the PTS 03 WHITE 2 PIN W SHAPE LOCK are available through our distributor network. Contact us directly or through your nearest distributor to request a sample.

Q: What is the process for mounting this switch on a PCB?

A: The switch is designed with solder/PCB legs, allowing for easy and efficient mounting directly onto printed circuit boards using either soldering or press-fit techniques.

Q: What are the key benefits of using this specific lock switch?

A: Key benefits include superb mechanical life, high insulation and dielectric strength, a glossy finish, and compliance with strict safety and environmental standards, ensuring both reliability and peace of mind.
