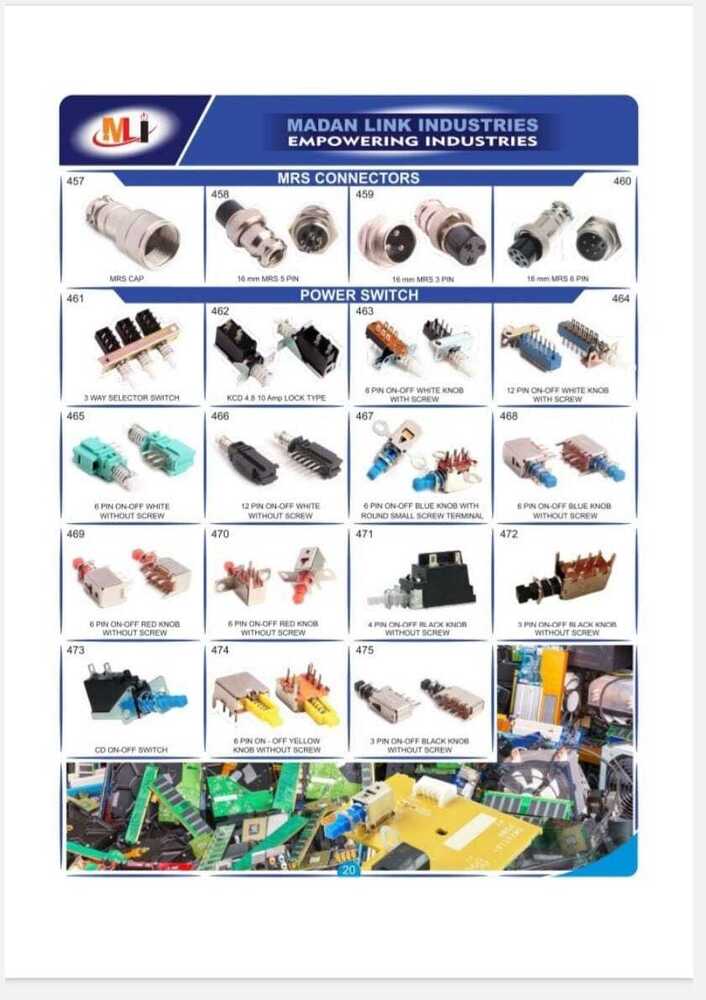

KCD 4.8 10 AMP LOCK TYPE

Price 4 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

KCD 4.8 10 AMP LOCK TYPE Specification

Protection Level
IP20

Finish Type
Matte

Automation Grade
Manual

Circuit Type
Single Throw

Number of Module
Single

Response Time
Instantaneous

Max. Current
10A

Temperature Range
-25C to +85C

Rated Voltage
AC 250V/125V

Mechanical Life
10,000 cycles

Product Type
Rocker Switch (Lock Type)

Material
Plastic (Housing), Copper Alloy (Terminals)

Insulation Resistance
100M at 500V DC

Contact Resistance
50m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
ON/OFF Lock Mechanism

Size
21mm x 15mm (Mounting Cutout)

Color
Black

Weight
Approx. 7g

Mounting Type
Panel Mount (Snap-in)

Current Rating
10A

No Of Poles
Single Pole

KCD 4.8 10 AMP LOCK TYPE Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About KCD 4.8 10 AMP LOCK TYPE

Specifications:Material: Plastic, MetalFunctioning of the switch: EnclavingContact configuration: SPSTType of terminal: Orifice passing straightNumber of pines: 2Number of positions: 1Total size: 43 x 22 x 10 mm (large x wide x high).Contents of the package:5 button switches.Description:Engage contact, 2 pins, DIP mounting through the hole.Used in the fields of electronic products, household appliances and much more.The high precision mechanism design offers precise operation and a long service time.

Reliable Switching for Multiple Applications

The KCD 4.8 10 AMP Lock Type Switch excels in powering electrical devices such as appliances, power strips, and extension cords. Its robust design, instant ON/OFF lock mechanism, and high electrical ratings make it a dependable choice for both residential and commercial applications, ensuring safe and efficient control of electric circuits.

Built for Safety and Durability

Engineered with a UL94V-2 flammability-rated plastic housing and silver alloy contacts, this switch offers superior dielectric strength and insulation resistance. The panel mount (snap-in) style allows for secure installation, while its mechanical life rating of 10,000 cycles guarantees longevity and peace of mind during operation.

FAQs of KCD 4.8 10 AMP LOCK TYPE:

Q: How is the KCD 4.8 10 AMP Lock Type switch installed in an electrical panel?

A: This switch features a snap-in panel mount design suitable for panel thicknesses from 0.7mm to 2mm. Insert it into a 21mm x 15mm cutout and secure it using the locking mechanism. Quick connect or solder the terminals to complete the installation.

Q: What makes the silver alloy contacts advantageous in this rocker switch?

A: Silver alloy contacts provide excellent electrical conductivity and resistance to wear, which enhances the switchs performance, longevity, and reliability, especially under higher current loads up to 10A.

Q: When should I use this switch in my project?

A: Choose the KCD 4.8 10 AMP Lock Type for controlling power in applications like electrical appliances, power strips, or extension cords where robust locking ON-OFF action and high current handling are required.

Q: Where is this rocker switch commonly used?

A: It is widely used in household and industrial electrical appliances, power distribution units, extension cords, and panel-based equipment where secure and efficient ON/OFF control is necessary.

Q: What is the process for connecting wires to this switch?

A: You can connect wires using the quick connect terminals for fast installation, or choose the soldering option for a more permanent and secure connection, ensuring compatibility with your assembly method.

Q: What benefits does the ON/OFF lock mechanism provide?

A: The lock mechanism prevents accidental switching, ensuring reliable operation and safety in environments where unintentional power interruptions could be hazardous or disruptive.

Q: How does the switchs flammability and protection rating contribute to safety?

A: With a UL94V-2 rated flame-retardant plastic housing and an IP20 protection level, the switch minimizes fire risks and restricts ingress of solid objects, enhancing operational safety for users.
