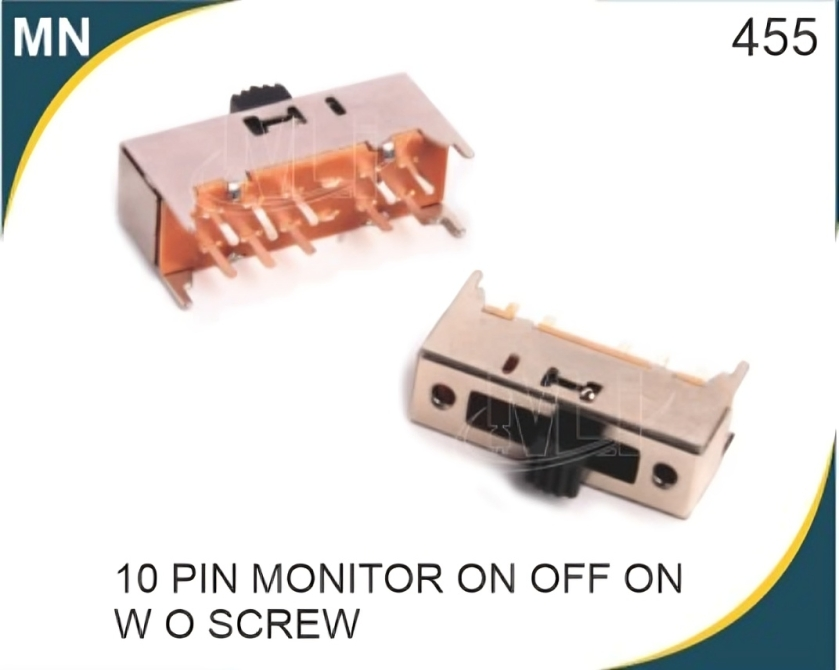

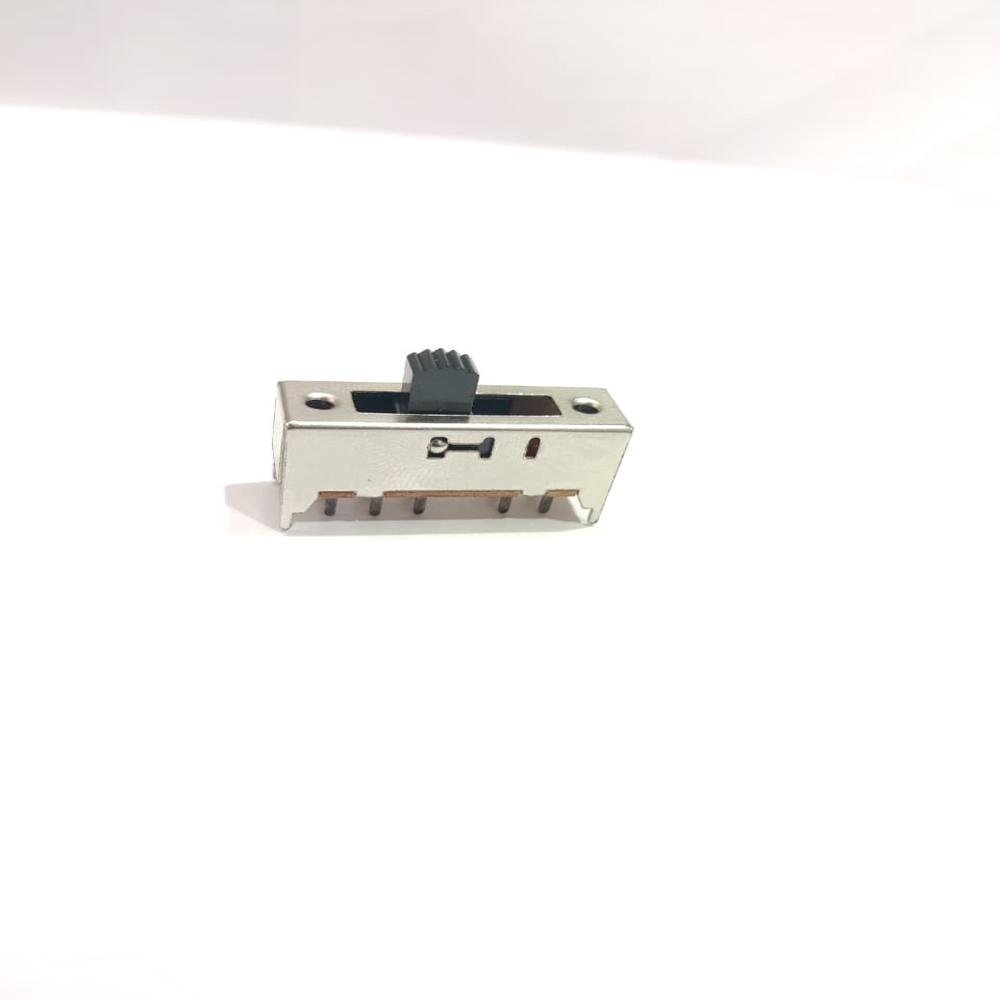

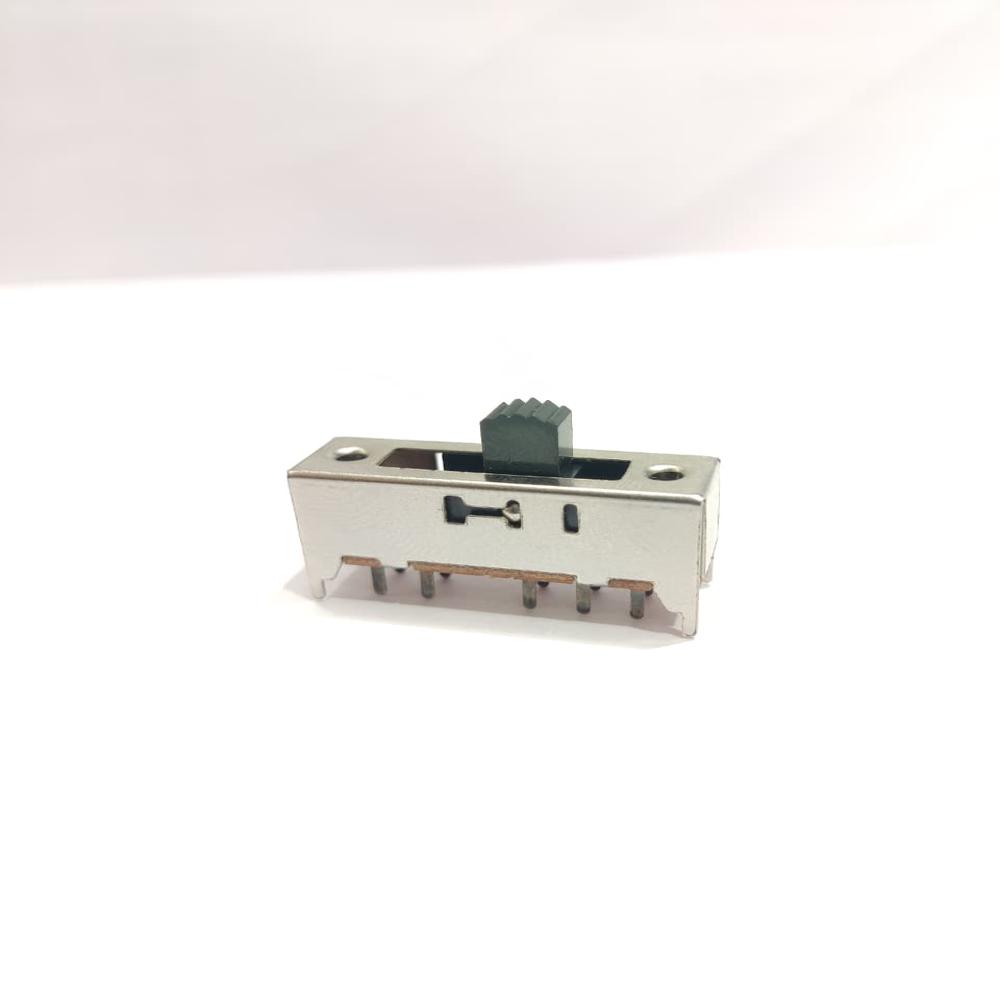

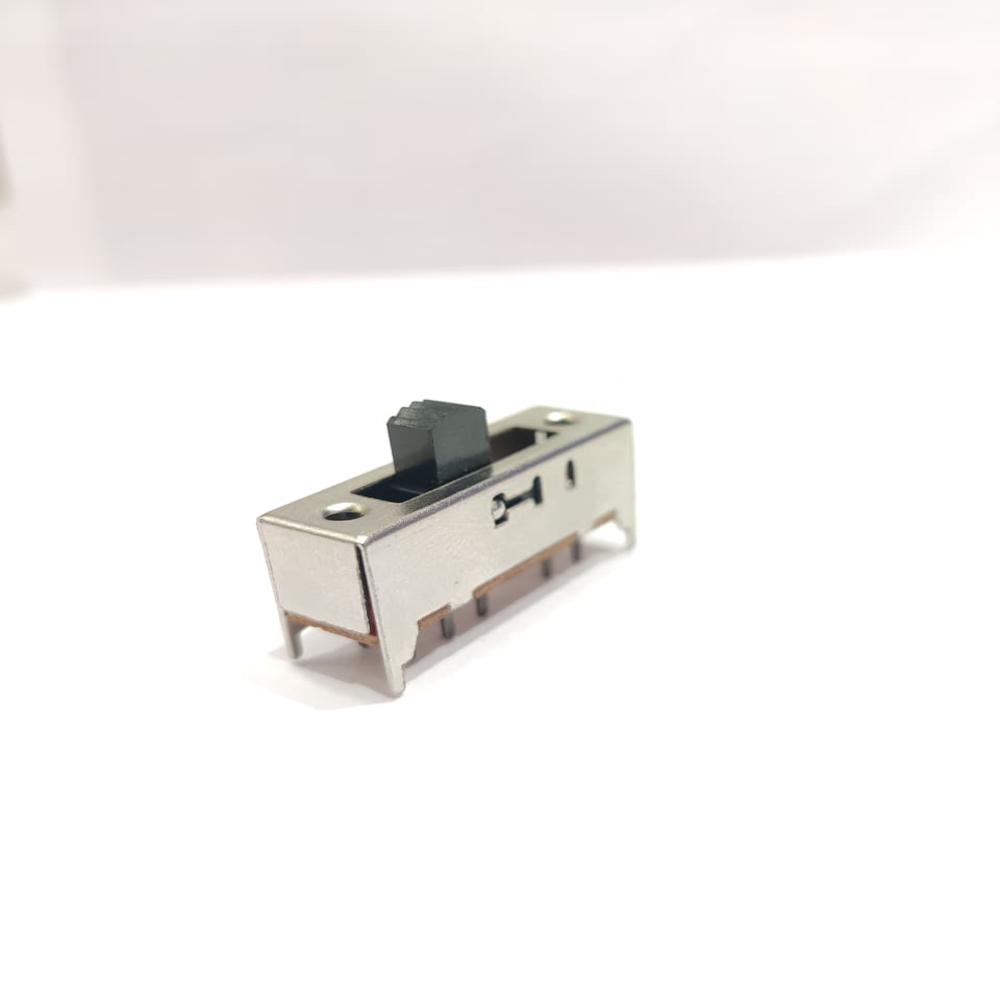

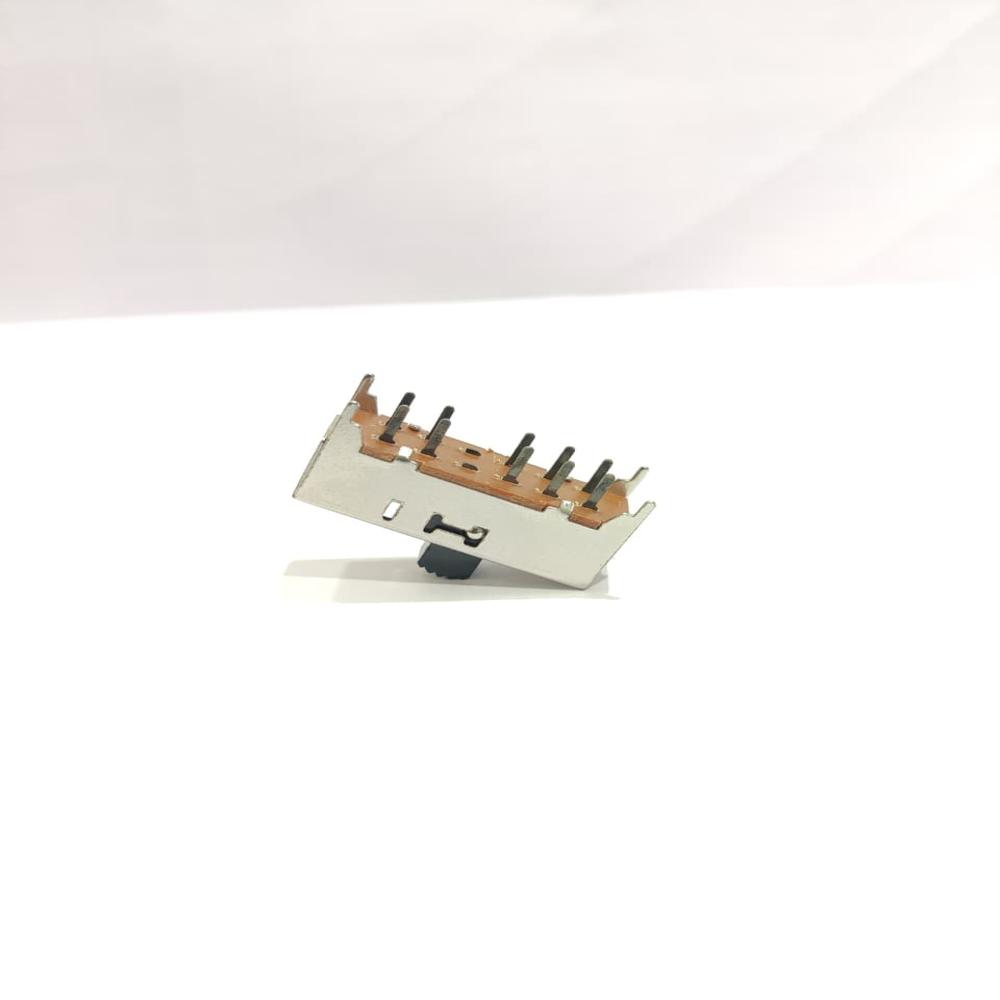

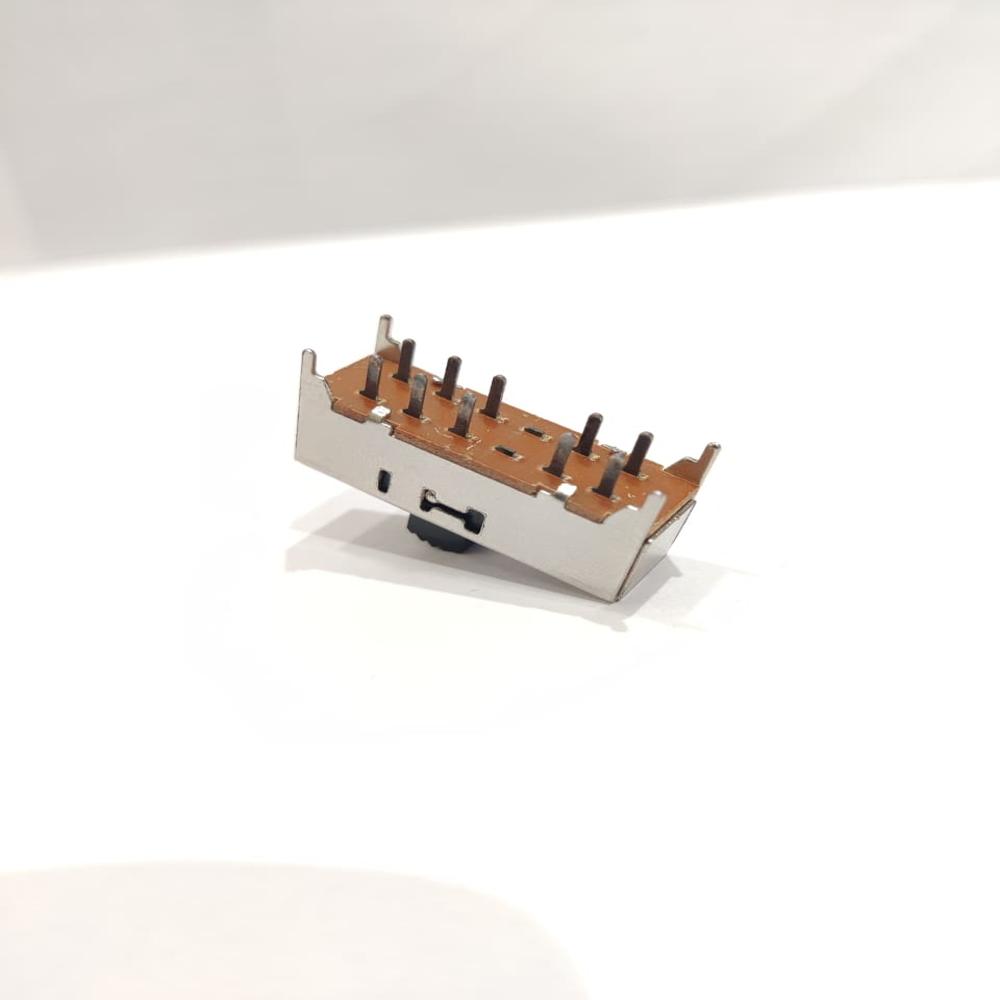

Slide Switch With Screw 10 Pin On Off On

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide Switch With Screw 10 Pin On Off On Specification

Finish Type
metal casing with plastic actuator

Circuit Type
SPDT or DPDT slide switch

Mechanical Life
10000+ Months

Response Time
in Seconds

Protection Level
Metal casing with plastic actuator

Temperature Range
-40 TO +85 Celsius (oC)

Rated Voltage
12V 24V Volt (V)

Max. Current
0.3A TO 1A Ampere (amp)

Product Type
Slide switch

Insulation Resistance
100 M

Contact Resistance
100 m Ohm ()

Max. Voltage
30V DC TO 50V DC Volt (V)

Operating Temperature
-12 TO +85 Celsius (oC)

Warranty
No

Stoke
100000

Size
L: 15-20MM , W: 5-7MM, H: 5-10MM

Usage & Applications
toy and electrical components

Color
Black Pin

Weight
5 Grams (g)

Conductor
Pins

Material
Plastic and metal

Mounting Type
Through hole PCB mount

Current Rating
0.3A to 1A

No Of Poles
10 pins

Slide Switch With Screw 10 Pin On Off On Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
10000 Pieces Per Week

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Slide Switch With Screw 10 Pin On Off On

This connector is typically used forpower and control signal transmissionin monitors, particularly in industrial or custom applications where a screwless retention mechanism is preferred.

Key Features & Specifications

Connector Type:
- 10-pin connector, often used for interfacing with monitor control boards (e.g., power, backlight, touch signals)
Design & Mounting:
- Screwless retentionfor quick assembly/disassembly.
Electrical Properties:
- Max Voltage: Typically 12VÃ30V
  Current Rating: 1AÃ5A per pin
Materials:
- Housing: Plastic
- Contacts: copper for conductivity.
Usage & Applications:
- Found inindustrial monitors, arcade machines, and custom display setups
