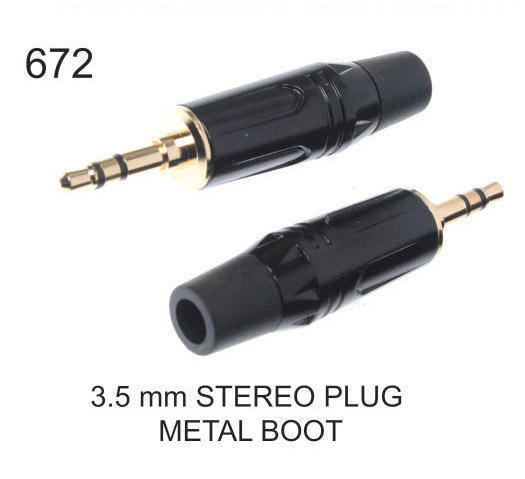

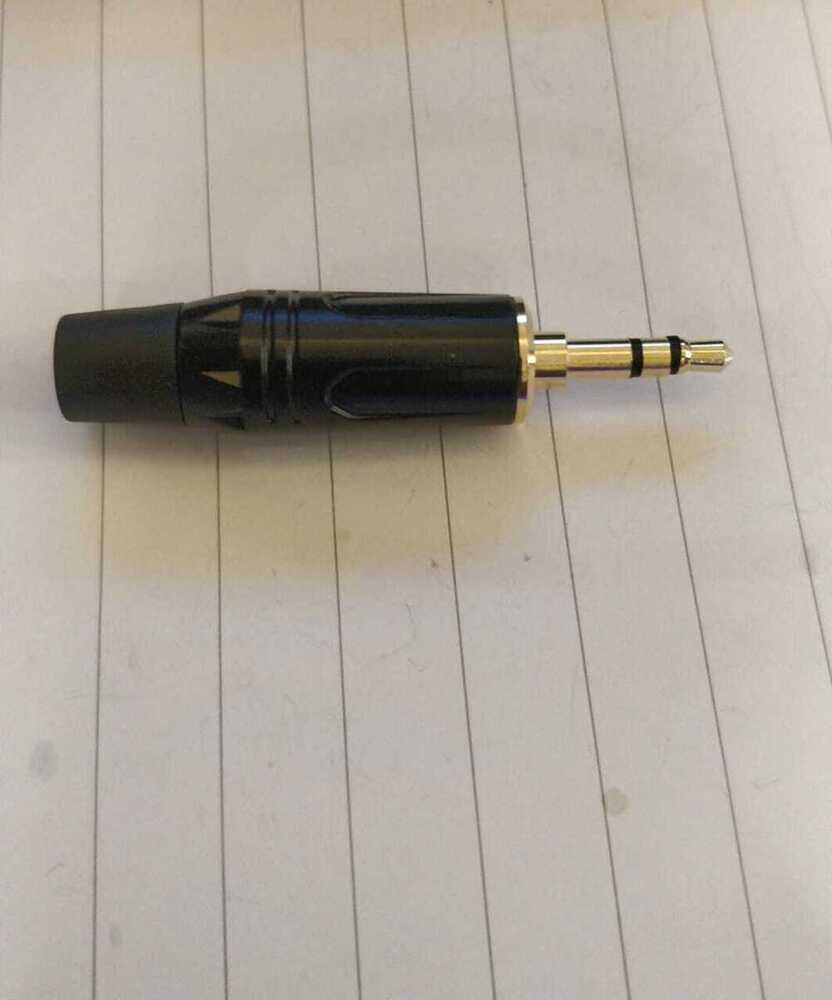

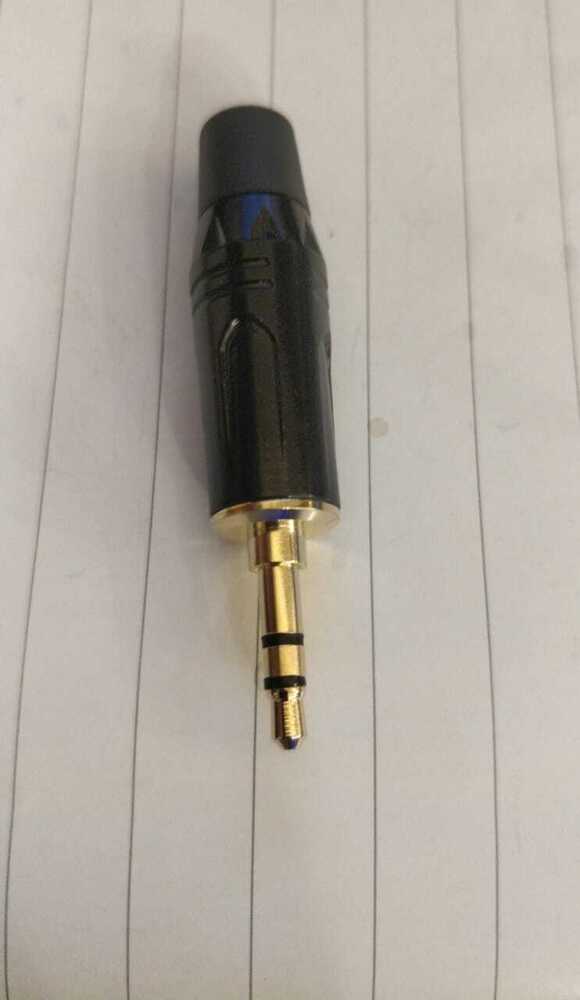

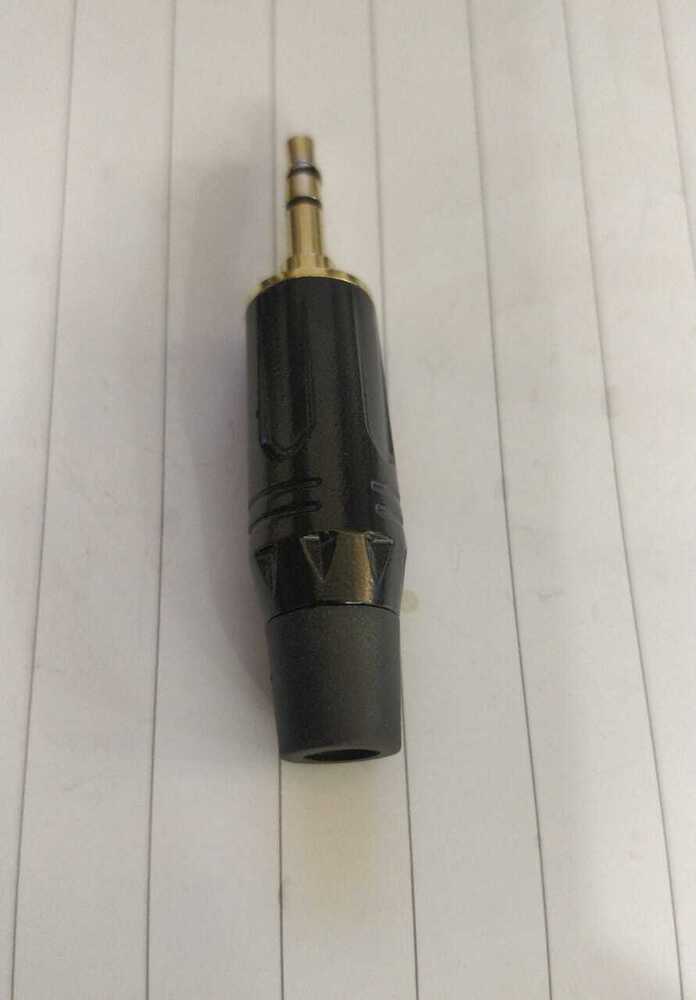

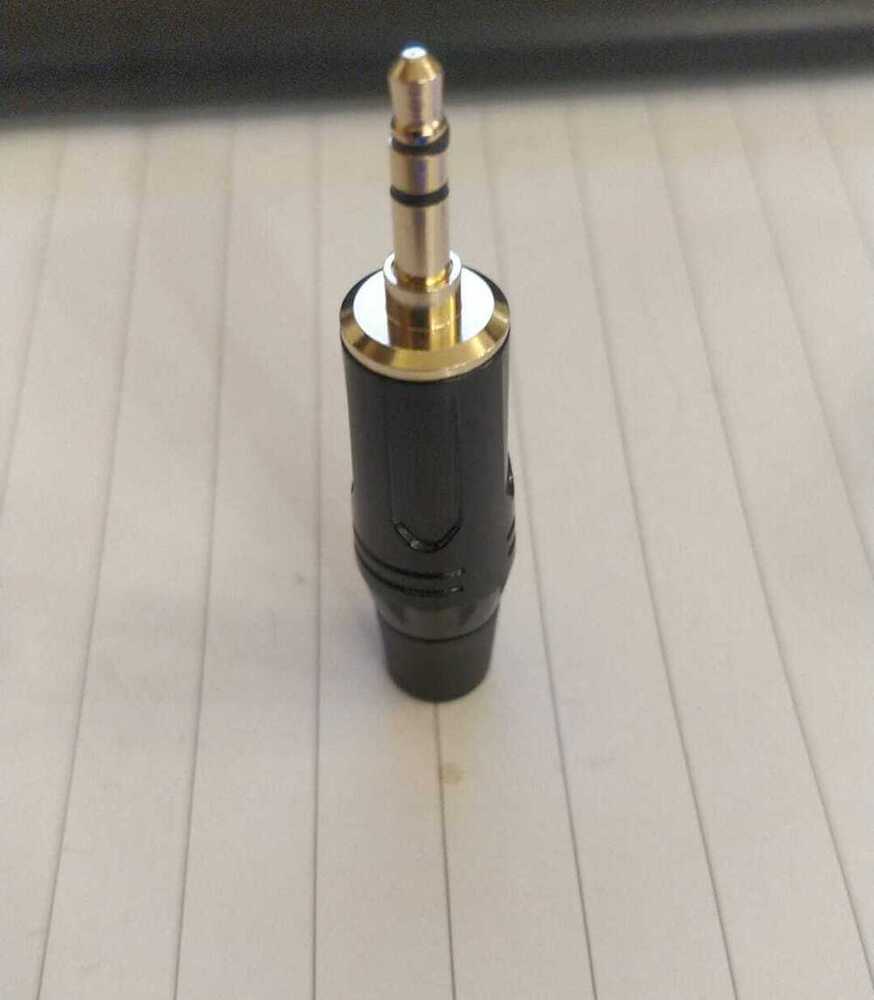

3.5 MM STEREO PLUG METAL BOOT

Price 40 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

3.5 MM STEREO PLUG METAL BOOT Specification

Product Type
3.5 mm Stereo Plug

Material
Nickel-plated brass (Plug), Metal (Boot)

Withstand Voltage
AC 500V for 1 minute

Application
Audio device connectivity, headphone and speaker terminals

Insulation Resistance
100M at DC 500V

Height
Approx. 47 mm

Weight
Approx. 8 g

Color
Silver

Pin Material
Brass, Nickel-plated

Brand Compatibility
Universal fit for standard 3.5 mm jacks

Cable Entry Size
Up to 4.0 mm

Durability
5,000 cycles (Insertion/Extraction)

Mounting Type
Cable Mount

Termination Style
Solder Type

Contact Type
Stereo, 3 Conductor (Tip/Ring/Sleeve)

Packaging
Individual Poly Pack

Shielding
Metal body for EMI protection

Operating Temperature
-25C to +85C

Boot Type
Metal Boot for added durability

3.5 MM STEREO PLUG METAL BOOT Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 3.5 MM STEREO PLUG METAL BOOT

Color	AS PER ODER
Brand	NO
Cable Type	NO
Diameter	AS PER DISPLAY
Insulation Resistance	NO
Length	STANDARD
Material	METAL
Packaging Type	BOX
Minimum Order Quantity	100 Piece

- Prevent ground loops in audio systems.
- Isolate and protect components from voltage spikes.
- Interface different audio equipment with varying impedances.
Advantages:
- Electrical isolation between input and output.
- Noise reduction and signal integrity improvement.
- Compatibility with various audio standards.

Superior Build for Longevity

Crafted with nickel-plated brass and a durable metal boot, this stereo plug is built to withstand frequent usage, supporting up to 5,000 connection cycles. Its sturdy construction not only ensures mechanical robustness but also provides effective protection against EMI.

Effortless Installation and Universal Compatibility

Designed with a cable mount and a solder-type termination, installation is straightforward and secure. This plug is compatible with a wide range of standard 3.5 mm jacks, making it a versatile choice for headphones, audio gear, and speaker connections.

Reliable Performance in Diverse Conditions

Engineered to operate across -25C to +85C, this plug delivers consistent performance in various environments. Excellent insulation resistance (100M at DC 500V) and high withstand voltage (AC 500V for 1 minute) offer dependable and safe connectivity.

FAQs of 3.5 MM STEREO PLUG METAL BOOT:

Q: How is the 3.5 MM Stereo Plug with Metal Boot installed?

A: Installation is performed by soldering the wires to the internal terminals, as it features a solder-type termination. Once the cable is securely attached, the plugs metal boot provides extra durability and strain relief.

Q: What makes the metal boot advantageous for this plug?

A: The metal boot enhances durability and helps resist mechanical wear, ensuring the plug remains protected during frequent insertions and extractions. Additionally, it improves EMI shielding, maintaining signal clarity.

Q: When should I choose this plug for my applications?

A: Select this plug when you need a reliable, rugged solution for connecting audio devices such as headphones, speakers, or other equipment using a 3.5 mm stereo jack, especially where EMI protection and long-term durability are required.

Q: Where can the 3.5 MM Stereo Plug be used?

A: This plug is ideal for various audio applications including home theaters, headphones, speaker terminals, and any device supporting a standard 3.5 mm stereo connection.

Q: What is the usage process for ensuring optimal performance?

A: To ensure optimal performance, carefully solder the audio cable to the plugs terminals, securely assemble the metal boot, and verify insulation between conductors for high resistance and minimal signal loss.

Q: What benefits does the nickel plating and brass pin material offer?

A: Nickel plating on brass pins provides corrosion resistance, improved signal conductivity, and enhances the plugs longevity, making it suitable for repeated use in various environments.

Q: Is this plug universally compatible with all 3.5 mm audio devices?

A: Yes, it is designed for universal fit with standard 3.5 mm jacks, ensuring broad compatibility with most headphones, portable speakers, and audio equipment.
