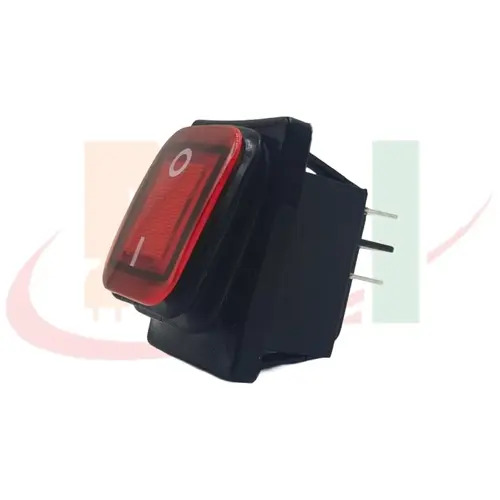

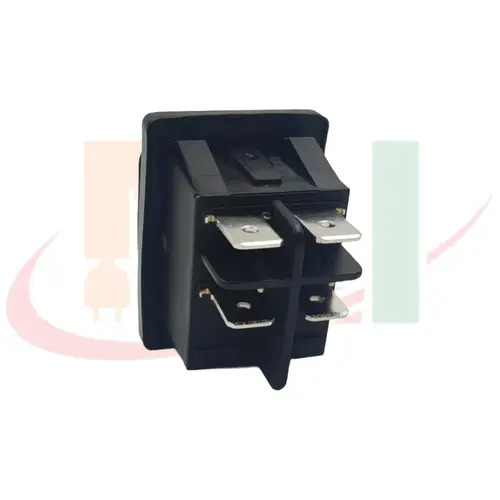

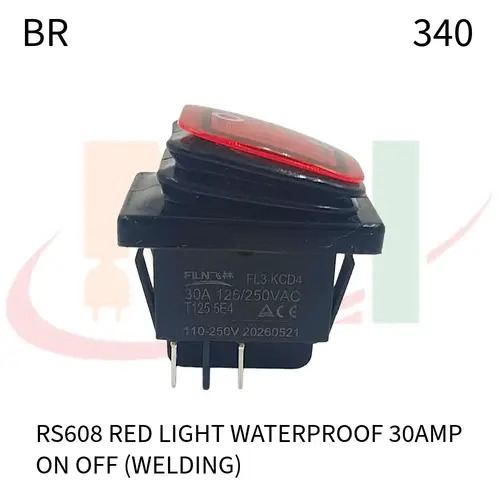

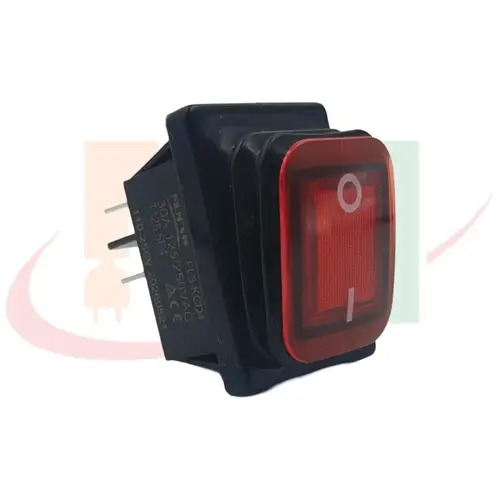

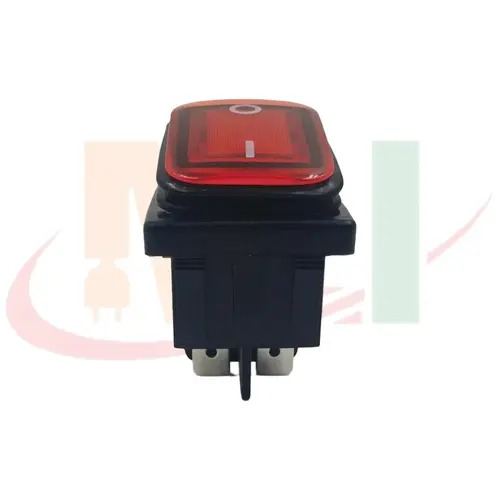

30 AMP Rocker Switch Red Light Waterproof On Off 4 Pin (Welding)

Name: 30 AMP Rocker Switch Red Light Waterproof On Off 4 Pin (Welding)
Brand: Madan Link Industries
Price: 70.0 INR
Availability: InStock

Price 70.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

30 AMP Rocker Switch Red Light Waterproof On Off 4 Pin (Welding) Specification

Max. Current
30A

Rated Voltage
125/250V AC

Temperature Range
-25C to +85C

Finish Type
Matte Plastic

Mechanical Life
10,000 cycles

Circuit Type
On-Off (2 Position)

Response Time
Instant (Mechanical Switch Response)

Protection Level
IP65 Waterproof

Number of Module
1

Automation Grade
Manual

Product Type
Rocker Switch

Material
Plastic Housing, Metal Pins

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
~3 mm (typical)

Size
Standard Panel Mount, approx. 30 x 22 mm (faceplate)

Color
Red Light Indicator, Black Body

Weight
Approx. 15 grams

Mounting Type
Panel Mount, Snap-in

Current Rating
30A

No Of Poles
Single Pole (SPST)

Illumination Type
Red LED indicator

Suitable For
Universal, Automotive, Industrial, Marine Equipment

Switch Action
Rocker

Flame Retardance
Yes, Flame-resistant Plastic

Model Number
FL3-KCD4

Terminal Type
4 Pin (Welding Type)

Compliance Standards
CE, RoHS

About 30 AMP Rocker Switch Red Light Waterproof On Off 4 Pin (Welding)

Pole Configuration	DPST
Number of Pins	4
Switch Operation	On-Off
Illumination	illuminated
Current Rating	30 A
Switch Function	On-Off
Rated Voltage	250 V AC
Mounting Style	Snap In
Rocker Shape	Square
Voltage	250 v
Color	Red
View in Hindi	30 4 ()

The KCD2-201NW-B Illuminated Waterproof Rocker Switch is a high-quality switch designed for use in a variety of applications. It is rated for 30A at 250VAC, and features a DPST, 4P configuration with an ON-OFF function. The switch is housed in a durable housing that is waterproof, making it suitable for use in harsh environments.

This switch is easy to install with snap-in installation, and has a beautiful surface and firm installation. The double arrow pattern makes it easy to use, while the illuminated rocker switch provides visual feedback on circuit operation. The switch is made of plastic, metal, and electrical components for safety and reliable operation, with high impact resistance and better durability.

The KCD2-201NW-B switch is designed to replace old broken switches or to refit cars for a variety of car glass lifts, power door lifts, or motorboat home appliances. It is widely used in industrial control, van modification, marine panel, automotive, motor control, truck, and bus.

Features:

DPST, 4P configuration
ON-OFF function
Rated for 30A at 250VAC
Snap-in installation
Waterproof
Illuminated rocker switch for visual feedback
Made of plastic, metal, and electrical components for safety and reliable operation
High impact resistance and better durability
Suitable for use in a variety of applications, including automotive, marine, and industrial control.

Durable and Safe Construction

Built with flame-resistant plastic housing and metal pins, the switch is designed for longevity and safety. Its flame-retardant material helps prevent fire hazards, while compliance with CE and RoHS standards ensures environmental and user safety during application in various settings.

Easy Installation and Universal Fit

The 30 AMP Rocker Switch features a snap-in, panel mount design for quick and secure installation on standard panels (approx. 30 x 22 mm faceplate). Its universal compatibility makes it ideal for automotive, industrial, and marine equipment, allowing for simple integration without special tools.

Clear Red LED Illumination

Equipped with a bright red LED indicator, the switch provides clear on/off status visibility, even in low-light conditions. The illumination enhances operational safety and helps users easily identify the switch's position at a glance.

FAQ's of 30 AMP Rocker Switch Red Light Waterproof On Off 4 Pin (Welding):

Q: How should I install the 30 AMP Rocker Switch on my equipment?

A: To install, simply snap the switch into a standard panel cutout (about 30 x 22 mm), then connect the four welding-type terminals according to your circuit's requirements. Ensure the switch is securely mounted to maintain its IP65 waterproof protection.

Q: What are the primary benefits of using this rocker switch in automotive or marine applications?

A: This switch offers high current handling (30A), waterproof IP65 protection, flame-retardant construction, and CE/RoHS compliance, making it exceptionally reliable in harsh environments. The red LED indicator provides immediate status confirmation, enhancing safety during operation.

Q: When should I consider replacing the switch?

A: The rocker switch is rated for 10,000 mechanical cycles. Consider replacing the switch if you notice response delays, inconsistent illumination, or physical wear after extensive usage to maintain optimal performance.

Q: Where can I use this rocker switch apart from automotive electronics?

A: Beyond automotive uses, the switch is suitable for industrial machines, marine equipment, appliances, and other universal applications needing a robust on/off device with high current ratings and waterproof resistance.

Q: What compliance and safety standards does this switch meet?

A: The switch is manufactured to meet CE and RoHS standards, ensuring it is safe, environmentally compliant, and constructed with flame-retardant plastic for additional fire safety protection.

Q: How does the red LED illumination function?

A: The built-in red LED light activates when the switch is in the 'on' position, providing instant visual confirmation of the circuit's status, which is especially useful in low-light or complex control panels.
