6 Pin MRS CONNECTOR

Price 24 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

6 Pin MRS CONNECTOR Specification

Voltage Rating
250V AC/DC

Female End Type
Socket

Pairs
Single

Application
Automotive wiring, Industrial equipment, Machinery connections

Material
Polyamide (Nylon 66)

Connector
MRS 6-pin

Male End Type
Pin

Capacity
Low/Medium voltage signal

Connector Type
Rectangular housing

Temperature
-25C to +85C

Color
Black

Cable Type
Multi-core twisted

Insulation
PVC

Wire Gauge
22 AWG

Length
Customizable (Standard: 1 meter)

Outer Diameter
Approx. 4.5mm

Sheild
Unshielded

Jacket Material
PVC

Flame Resistance Level
UL94V-2

Number of Conductor
6

Cable Length
Customizable

About 6 Pin MRS CONNECTOR

Usage/Application	POWER
Current	5 A
Material	METAL
Contact Terminal	COPPER
Gender	MALE,FEMALE
I Deal In	New Only
PINS	6
Minimum Order Quantity	1000 Piece

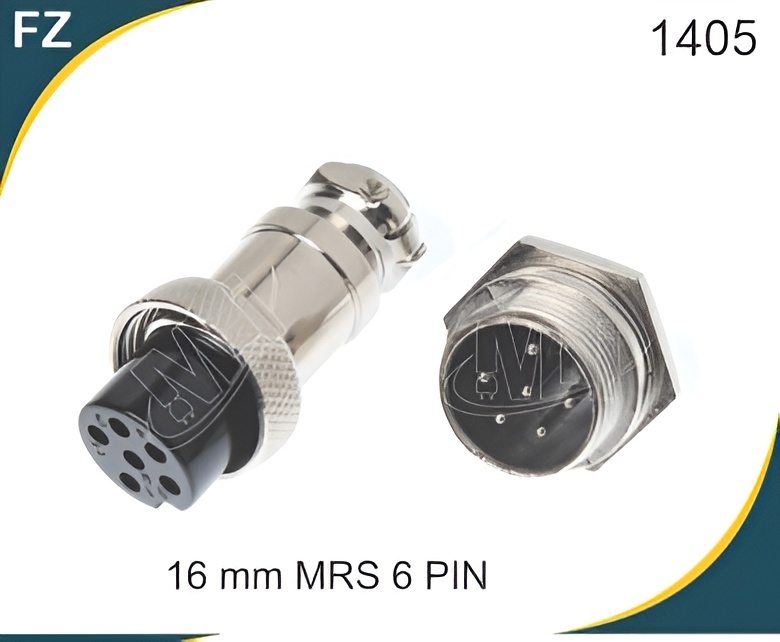

It is a GX-16 6-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-6 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.
The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them

Built for Reliability and Safety

With an IP20 rating and UL94V-2 flame resistance, the 6 Pin MRS Connector ensures consistent performance in demanding environments. The snap-fit latch adds an extra layer of security while preventing accidental disconnection. Its compliance with IEC 61984 and RoHS standards guarantees industry-wide safety and environmental responsibility.

Versatile Application and Customization

Ideal for automotive, machinery, and industrial applications, this connector supports customizable cable lengths and is suitable for panel or cable mounting. With a conductor specification of 22 AWG and an outer diameter of about 4.5mm, it provides flexibility and adaptability for different wiring requirements.

FAQs of 6 Pin MRS CONNECTOR:

Q: How does the snap-fit latch locking mechanism benefit the user during installation?

A: The snap-fit latch ensures a secure and quick connection, reducing the risk of accidental disconnection and minimizing installation time. This mechanism allows for repeatable and reliable operations, especially in environments where vibration is present.

Q: What type of environments can the 6 Pin MRS Connector withstand regarding humidity and temperature?

A: The connector can operate in high humidity conditions up to 95% without condensation and temperatures ranging from -25C to +85C. This makes it suitable for industrial and automotive applications where environmental variability is common.

Q: When is it recommended to use this connector for electrical systems?

A: This connector is recommended for low and medium voltage signal applications where robust, reliable connectivity is requiredespecially in automotive wiring, machinery, and various industrial equipment.

Q: Where can the connector be mounted, and what mounting types are supported?

A: The 6 Pin MRS Connector supports both panel mount and cable mount installations, providing flexibility for integration in various system designs and enclosure types.

Q: What is the process for customizing the cable length and configuration?

A: Cable length can be customized according to application needs, with a standard offering of 1 meter. Users can specify their requirements during the procurement process to receive tailored cable assemblies that fit their project dimensions.

Q: What are the advantages of using brass contacts with tin plating and polyamide housing?

A: Brass contacts with tin plating ensure low contact resistance (10 m) and excellent conductivity, while the polyamide (Nylon 66) housing offers mechanical strength, flame resistance, and durability, ensuring long-term reliability.

Q: How does IEC 61984 and UL approval enhance the connectors safety and quality assurance?

A: Compliance with IEC 61984 and UL standards certifies that the connector meets strict safety, performance, and quality guidelines, instilling confidence for manufacturers, exporters, distributors, and end-users.
