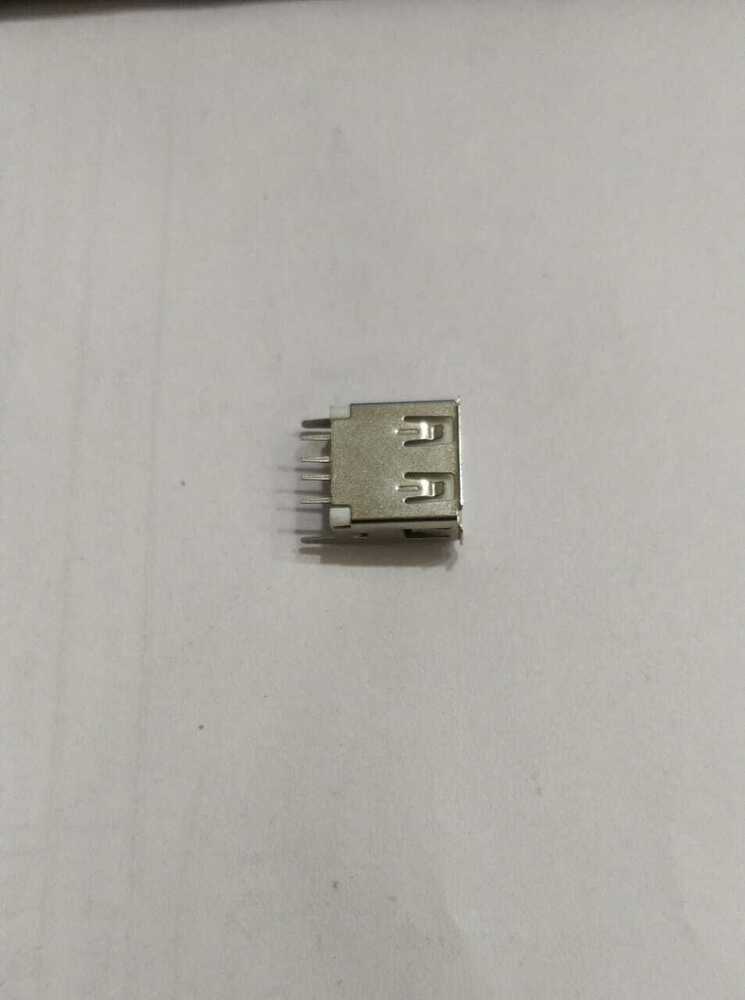

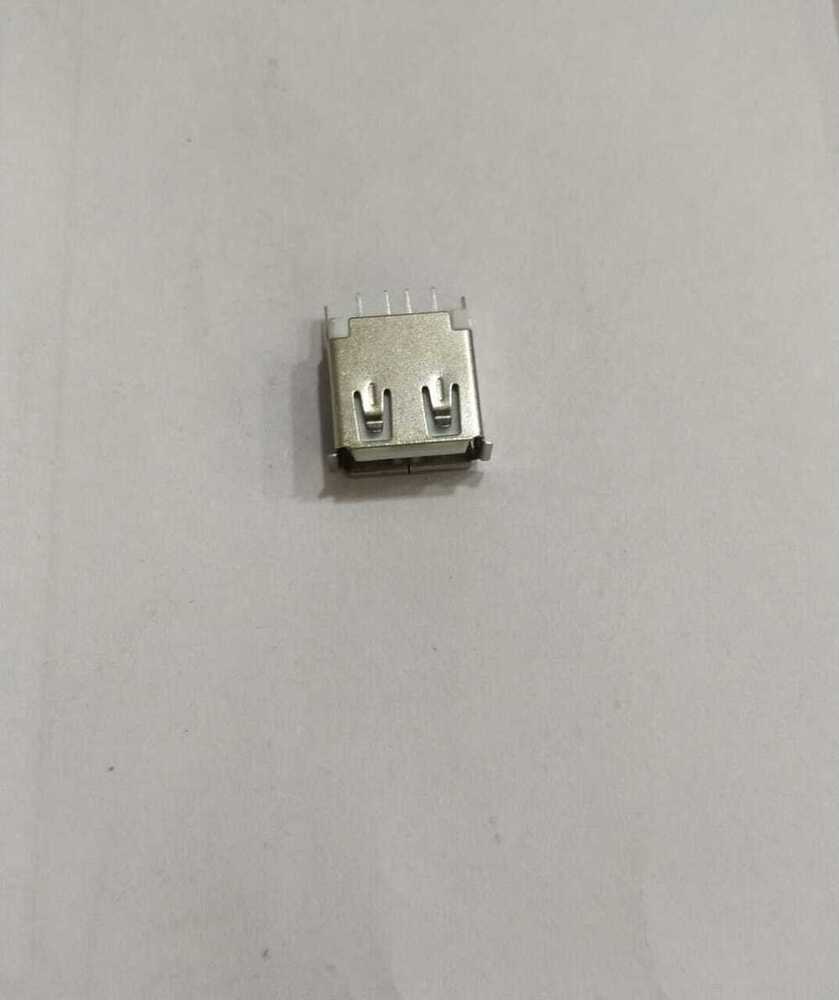

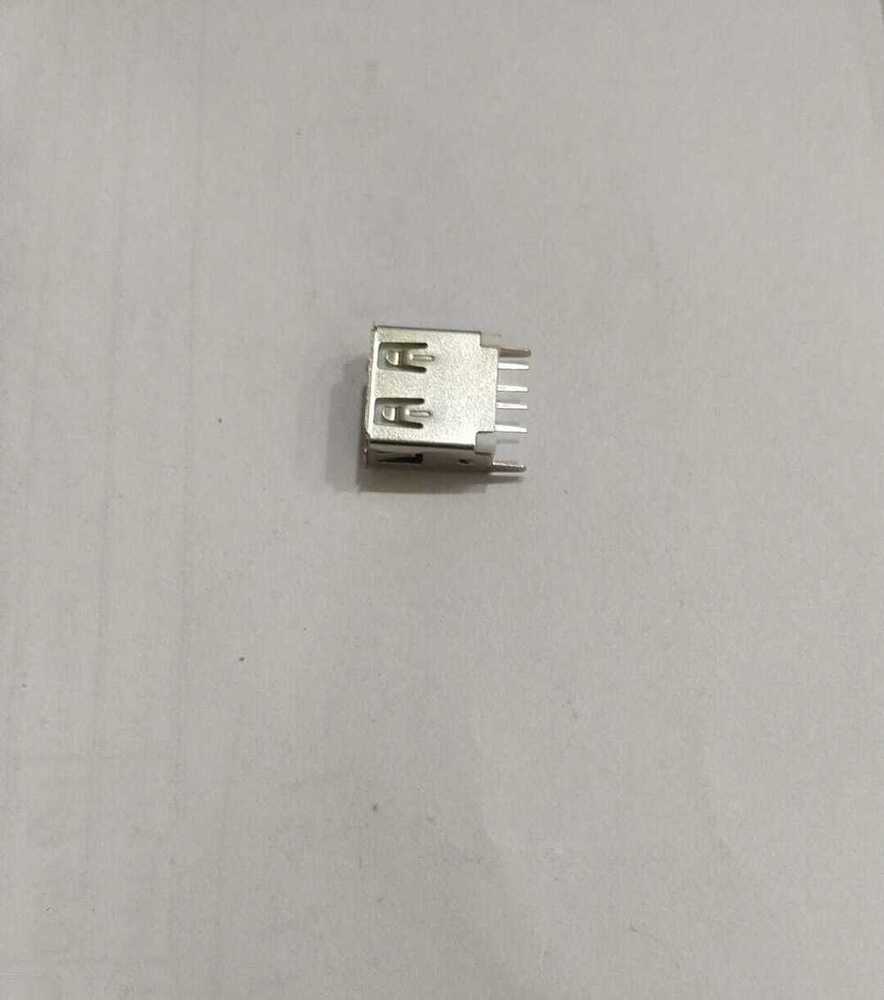

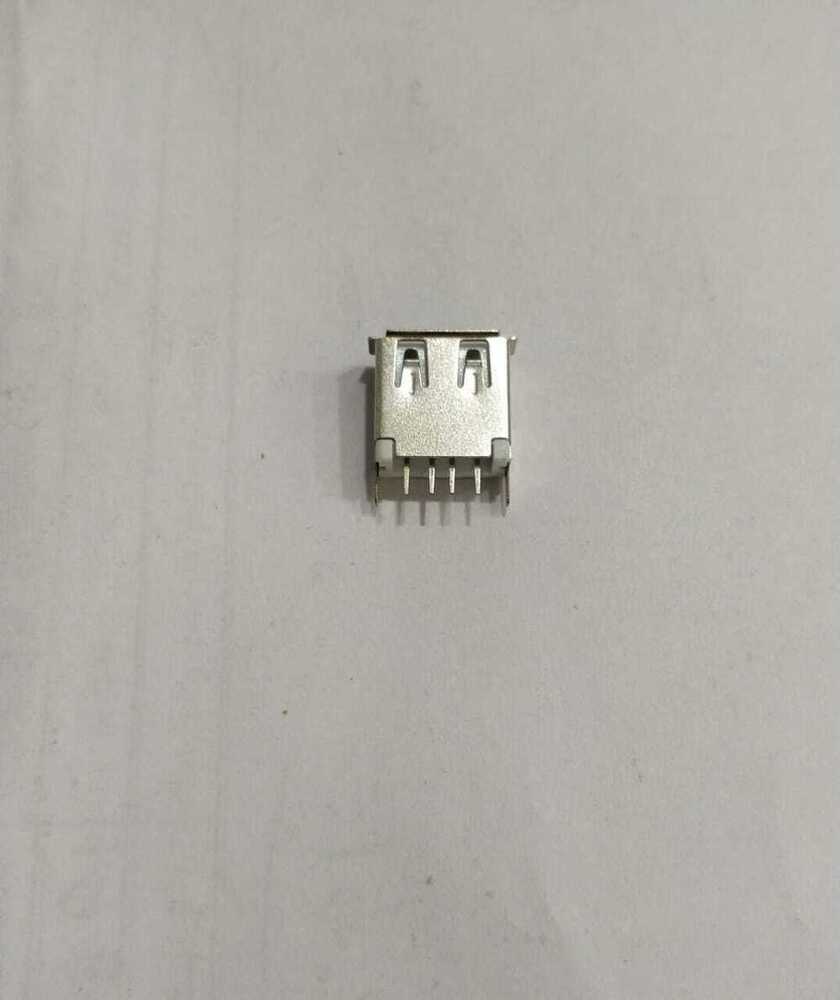

TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB

Price 1.50 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB Specification

Capacity
Standard USB 3.0

Pairs
Single Pair

Material
High Grade Plastic & Copper Alloy

Application
Data Transfer, Peripheral Cable Assembly

Connector
USB Type A Female

Voltage Rating
30V

Temperature
Operating Range -20°C ~ +85°C

Female End Type
USB A 4-Pin Female

Connector Type
Straight USB Type A Female

Length
13mm

Color
Blue

Outer Diameter
Standard USB Port OD

Flame Resistance Level
UL94V-0

Jacket Material
ABS Plastic

Wire Gauge
Standard 28 AWG

Insulation
PVC Insulated

Number of Conductor
4

Sheild
Without Shield

Body Material
Thermoplastic UL94V-0

Durability
Up to 1500 Mating Cycles

Orientation
Vertical (Straight)

Insulation Resistance
1000 M Min at 500V DC

Mounting Type
Through Hole, PCB Mount

Insertion Force
35N Max

Contact Resistance
30 m Max

RoHS Compliance
Yes

Contact Plating
Gold Flash over Nickel

Withdrawal Force
10N Min

Current Rating
1.5A Max

Operating Humidity
85% RH

Pin Configuration
4 Pin

TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB

Brand	NO
Connector Type	Female
USB Type	USB
Current Rating	0.5A
Connector Orientation	STANDARD
Piece per box	100
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).

Superior Reliability for Data Applications

The USB Type A 4-pin straight connector delivers consistent performance with exceptional insulation resistance and low contact resistance. Its gold flash over nickel contacts and flame-resistant housing provide long-lasting durability, making it perfect for stable data transfer and frequent use in various electronic peripherals and cable assemblies.

Precision Engineering and Versatile Mounting

Designed for through-hole PCB mounting, this connector ensures straightforward integration into a wide array of devices. The vertical orientation and standard 13mm length make it easy to align and solder onto your circuit designs, while the PVC insulation and ABS jacket boost safety and compliance for demanding environments.

FAQs of TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB:

Q: How is the TYPE A-4 PIN STRAIGHT 13MM BLUE FEMALE USB connector typically used?

A: This connector is most commonly used for data transfer and peripheral cable assembly, offering a reliable female USB interface in electronics and computer hardware that require through-hole PCB mounting.

Q: What benefits does the gold flash over nickel contact plating provide?

A: Gold flash over nickel ensures superior conductivity, minimizes oxidation, and reduces contact resistance, which enhances performance and extends the connectors operational lifespan.

Q: When should I choose this USB connector for my design?

A: Choose this USB connector when you need a vertical (straight) mount, a robust 1.5A current rating, RoHS compliance, and excellent durabilityup to 1500 mating cyclesfor demanding device applications.

Q: Where can this connector be installed within a device?

A: It can be installed on PCBs using through-hole mounting, making it suitable for integration into the main boards of consumer electronics, industrial equipment, and custom USB interfaces.

Q: What is the process for mounting this connector onto a PCB?

A: The connector is placed into the designated through-holes on the PCB and soldered into place, ensuring strong mechanical retention and reliable electrical connections with minimal contact resistance.

Q: How does its construction benefit operation in rugged environments?

A: The use of UL94V-0 grade thermoplastic and ABS for the jacket ensures flame resistance and robust insulation, while PVC insulation and a high-quality copper alloy maintain safe operation in humidity up to 85% RH and temperatures from -20C to +85C.
