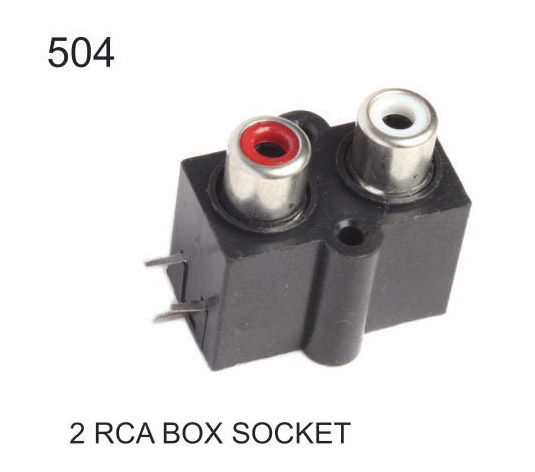

2 RCA BOX SOCKET

Price 5 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

2 RCA BOX SOCKET Specification

Cable Diameter
Supports up to 4mm

Thickness
Base thickness 2.2mm

Sealed
Non-sealed

Surface Treatment
Nickel plated contacts

Product Type
2 RCA box socket

Material
ABS body, nickel-plated brass contacts

Application
Widely used for AV equipment and electronic projects

Contact Resistance
<50m

Insulation Resistance
>100M at 500V DC

Diameter
RCA jack diameter 8mm

Terminal Socket
RCA female dual

Style
Box socket

Fittings
Panel mount, solder type

Rated Voltage
Up to 30V AC/DC

Weight
Approx 18 grams

Color
Black body with red and white RCA rings

Connector Type
Dual RCA female

Life Cycle
>5,000 mating cycles

Operating Temperature
-20C to +70C

RoHS Compliance
Yes

Panel Thickness Compatibility
Fits panel thickness 1mm - 4mm

Mounting Hole Size
18mm x 13mm rectangular cutout

Number of Terminals
4 terminals (2 per RCA jack)

Contact Material
Brass, nickel plated

Flammability Rating
UL94-V0

2 RCA BOX SOCKET Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About 2 RCA BOX SOCKET

Pin Type	2 Pin Socket
Socket With Shutter	No
Operating Temperature	-25 DegreeC 70 DegreeC
Gender	Female
Industry Recognized Mating Diameter	3.20mm ID, 9.00mm OD (RCA)
Voltage - Rated	24VDC
Minimum Order Quantity	100

Female RCA connector is great for connecting video games to your TV.
Join two RCA cables together to make one longer cable
RCA coupler allows you to connect two male RCA cables together
Gender: Female to Female
Type: Video Data Transmission, Audio Cables

Versatile Application and Reliable Connectivity

This dual RCA box socket is ideal for a wide range of audio-visual equipment and electronics projects, delivering consistent and low-loss signal connections. Its dual-color RCA female terminals support secure AV input and output configurations, making it highly suitable for panel-mounted applications in devices that require robust, removable connections.

Quality Materials and Robust Design

Manufactured with a UL94-V0 flame-retardant ABS housing and nickel-plated brass contacts, this socket withstands both environmental and operational stresses. The design fits securely into panels with thicknesses between 1mm and 4mm, and supports cable diameters up to 4mm, ensuring compatibility with a variety of setups.

FAQs of 2 RCA BOX SOCKET:

Q: How do I install the Dual RCA Box Socket into my panel or device?

A: The socket is designed for panel mount installation using an 18mm x 13mm rectangular cutout. Simply fit the socket into the pre-cut hole on a panel between 1mm and 4mm thick and solder the wires to the terminals as needed.

Q: What are the main benefits of using this box socket for AV equipment?

A: This socket offers secure, low-resistance connections ideal for audio and video signals. It supports durable, repeat mating with a life cycle exceeding 5,000 cycles, and its UL94-V0 flame retardancy and RoHS compliance enhance safety and reliability.

Q: When is this Dual RCA Box Socket typically used?

A: It is mainly used during the assembly or upgrading of AV equipment, control panels, and various electronics projects where reliable RCA connectivity is required. Its appropriate for both DIY and professional installations.

Q: Where can this connector be used or sourced from?

A: This product is available through electronics distributors, importers, exporters, manufacturers, and traders across India and can be integrated into devices by AV technicians or electronics enthusiasts.

Q: What process should be followed for wiring and mounting?

A: First, ensure the panel meets the thickness requirement and cut the recommended hole size. Insert the socket into the cutout, then solder your signal and ground wires to the corresponding terminals for each RCA jack.

Q: What are the specifications for contact and insulation resistance?

A: The box socket provides excellent electrical performance with contact resistance less than 50m and insulation resistance greater than 100M at 500V DC, ensuring reliable signal integrity and minimal interference.
