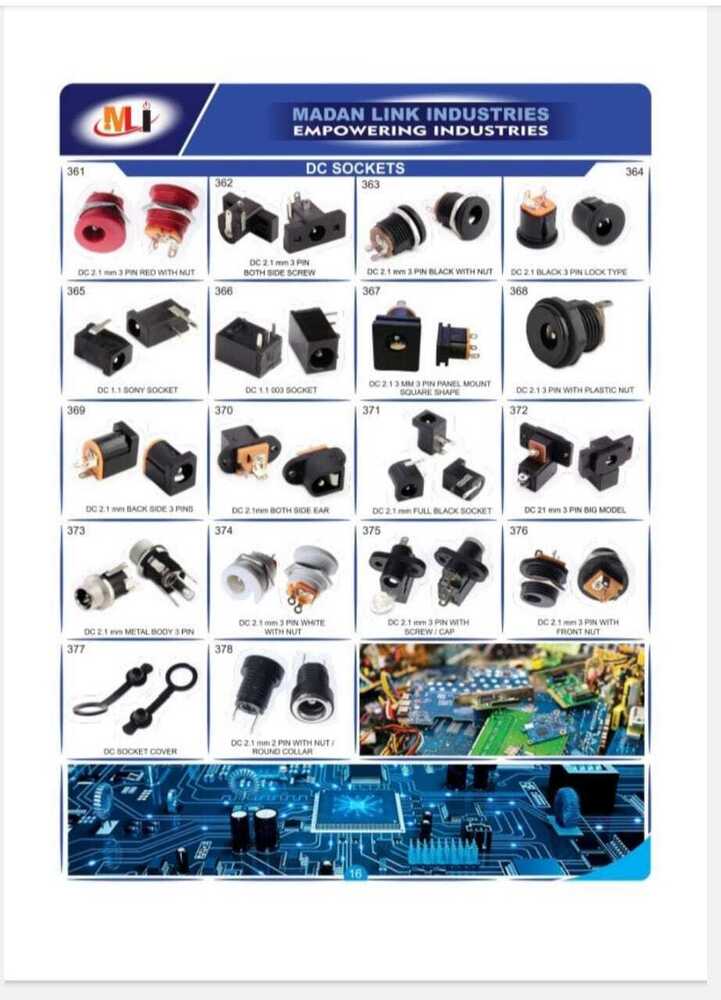

DC 2.21 MM BOTH EAR

Price 3 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DC 2.21 MM BOTH EAR Specification

Sealed
NO

Surface Treatment
Nickel Plating

Cable Diameter
2.21 mm

Thickness
Standard

Product Type
DC Socket

Material
ABS Plastic Body, Nickel Plated Connectors

Application
Suitable for electronic projects and devices

Contact Resistance
<50 m

Insulation Resistance
>100 M at 500 V DC

Diameter
2.21 mm

Terminal Socket
2.21 mm

Style
Both Ear Mount

Fittings
Panel Mount

Rated Voltage
DC 12 V Max

Weight
Approx 4 g

Color
Black

Smart TV Features
Built-in WiFi, Screen Mirroring

Remote Battery Type
AAA

Refresh Rate
60 Hz

USB Ports
2

Sleep Timer
Yes

Operating System
Android

Viewing Angle
178

DC 2.21 MM BOTH EAR Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About DC 2.21 MM BOTH EAR

Current Rating	1 A
Voltage rating	12 V
Mounting	PCB
Gender Type	Female jack
Material	ABS Plastic
Brand	IMPORTED
Colour	BLACK
Minimum Order Quantity	1000 Piece

A reliable and consistent straight direct current (DC) power socket designed for vertical mounting directly to the circuit board.
The PCB mounted DC socket is encased in a strong plastic shell and is constructed with hardwearing Nickel-plated Brass pins for excellent conductivity and protection from moisture and corrosion, fitted with spring contacts.

Reliable Power Connectivity for Diverse Applications

This connector suits manufacturers, exporters, distributors, and traders requiring dependable 2.21 mm sockets for Indias electronics sector. Its flexible mounting optionsPCB and panel/chassismake it ideal for custom projects, including prototyping, device assembly, and repair. The robust construction and high insulation resistance ensure sustained performance even in demanding environments.

Engineered for Safety and Durability

Featuring a UL 94V-0 flammability-rated ABS plastic body and nickel-plated contacts, this connector offers superior safety. Withstand voltage up to AC 500V and an insulation resistance over 100 M at 500V DC help prevent electrical hazards, while a tested operating life beyond 5,000 cycles means long-lasting use in industrial and consumer electronics.

FAQs of DC 2.21 MM BOTH EAR:

Q: How can this DC 2.21 mm both ear connector be mounted in electronic devices?

A: This connector offers both PCB mount and chassis (panel) mount options, making it suitable for direct installation onto circuit boards or secure attachment to device casings using both ear-style fittings for added mechanical strength.

Q: What are the advantages of using this connector in my application?

A: Benefits include a high operating life of over 5,000 mating cycles, excellent electrical safety with low contact resistance (<50 m) and high insulation (>100 M), as well as robust material selection like ABS plastic and nickel-plated brass for improved durability and fire resistance.

Q: When should I consider using this female socket connector?

A: This connector is ideal for applications operating at up to 12V DC and 2A where frequent connect/disconnect actions occur. Its wide temperature range and UL 94V-0 rating make it preferable for environments prioritizing safety and reliability.

Q: Where is this DC connector commonly used?

A: Its widely applied in electronic devices and projects such as power supplies, development boards, consumer electronics, and custom instrument panels. Its design is tailored for professional usage in manufacturing and prototyping within Indias electronics industry.

Q: What is the typical process for installing this connector?

A: For PCB mounting, solder the terminals directly onto the board. For chassis/panel mounting, secure the connector using the provided ears to the device enclosure, then connect wiring according to your schematic, ensuring correct polarity and voltage compliance.

Q: How does the nickel plating and phosphor bronze contact material contribute to the connectors performance?

A: Nickel plating resists corrosion, extending lifespan and maintaining conductivity. Phosphor bronze contacts provide reliable springiness and consistent electrical contact, reducing transmission loss and ensuring stable operation over thousands of mating cycles.
