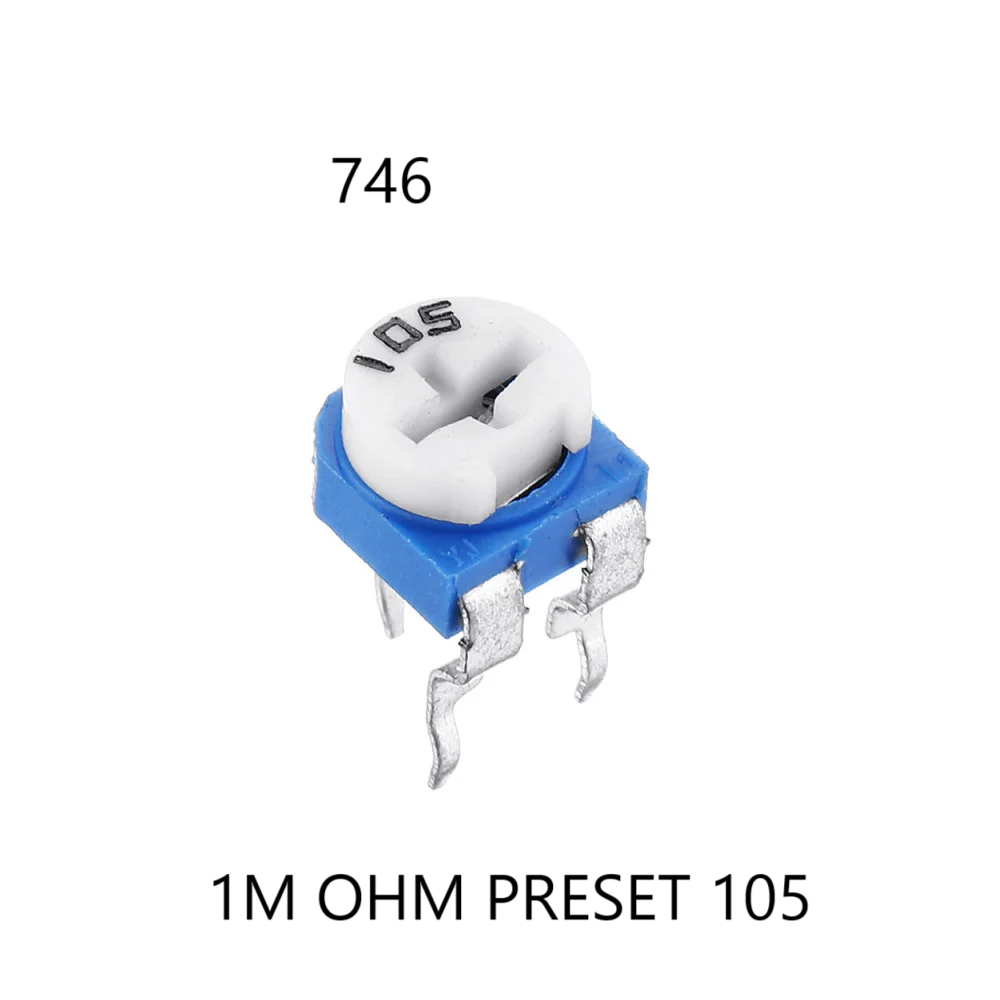

1 M OHM PRESET 105

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

1 M OHM PRESET 105 Specification

Product Type
Variable Resistor (Preset)

Material
Ceramic base, metal alloy contact

Handles
Single turn screw type

Withstand Voltage
500 VAC for 1 minute

Application
Electronic circuits, resistance adjustment

Insulation Resistance
1000 M min at 500 VDC

Height
10 mm (approx)

Weight
2 g (approx)

Color
Blue

Adjustment Type
Top adjustment

Resistance Value
1 M (1 Mega Ohm)

Power Rating
0.25W (1/4 Watt)

Tolerance
20%

Operating Temperature Range
-25C to +85C

Mounting Type
PCB Mount

1 M OHM PRESET 105 Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Paypal, Cash in Advance (CID)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 1 M OHM PRESET 105

Resistance Values	1 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	1M
Material	PLASTIC
Color	WHITE / BLUE
Part Number	PT02
Minimum Order Quantity	100

Applications: Used in electronic circuits for calibration, tuning, and adjustment
Usage: Ideal for setting reference voltages, adjusting signal levels, and other precision applications
Durability: Long lifespan with reliable performance over time
Compatibility: Suitable for use in a variety of electronic devices and projects
Packaging: Available in single units or bulk packaging for larger projects

Adjustable Precision for Circuit Customization

This 1 M OHM PRESET 105 offers easy and accurate resistance adjustment, making it perfect for fine-tuning electronic circuit parameters. Whether you're designing a new device or servicing an existing one, its top-mounted screw adjustment ensures hassle-free calibration and reliable results. The single-turn design delivers predictable, precise changes with every rotation.

Robust Construction for Longevity

Built with a high-quality ceramic base and metal alloy contacts, the 1 M OHM PRESET 105 withstands demanding conditions. Its blue enclosure, compact size, and lightweight build facilitate seamless integration onto PCBs, ensuring lasting operation even in variable environments. The preset's endurance is further enhanced by its ability to withstand 500 VAC for 1 minute.

Versatile Applications in Electronics

Ideal for electronic circuits requiring resistance adjustment, this preset is trusted by manufacturers, exporters, and traders throughout India and beyond. Its dependable insulation and operational range make it suitable for consumer devices, instrumentation, and industrial control panels. The product's versatility supports both experimental setups and mass production alike.

FAQ's of 1 M OHM PRESET 105:

Q: How do I adjust the resistance value on the 1 M OHM PRESET 105?

A: The resistance can be adjusted using the top-mounted single-turn screw. By rotating the screw with a suitable screwdriver, you can finely tune the resistance to the desired value for your application.

Q: What are the primary applications for this preset resistor?

A: This component is commonly used in electronic circuits for resistance adjustment, calibration, tuning, and setting reference values. Typical applications include amplifiers, timers, voltage dividers, and test instruments.

Q: When should I select a preset with a 20% tolerance?

A: A 20% tolerance is suitable when precise accuracy isn't critical, such as in general-purpose tuning or where circuit designs allow for adjustment. If your application requires exact resistance values, consider your tolerance requirements during design.

Q: Where is the ideal mounting location for this preset resistor?

A: The 1 M OHM PRESET 105 is designed for PCB (Printed Circuit Board) mounting. Its compact 10 mm height and 2 g weight make it suitable for a variety of PCB layouts and electronic assemblies.

Q: What is the benefit of the high insulation resistance and withstand voltage ratings?

A: High insulation resistance (1000 M minimum at 500 VDC) and a robust withstand voltage (500 VAC for 1 minute) protect circuits from leakage currents and dielectric breakdown, enhancing safety and device reliability.

Q: What is the recommended process for installing this preset on a PCB?

A: Solder the preset's terminals securely onto the designated pads on your PCB, ensuring proper orientation and robust mechanical connection. Allow solder joints to cool before making any adjustments to the screw.
