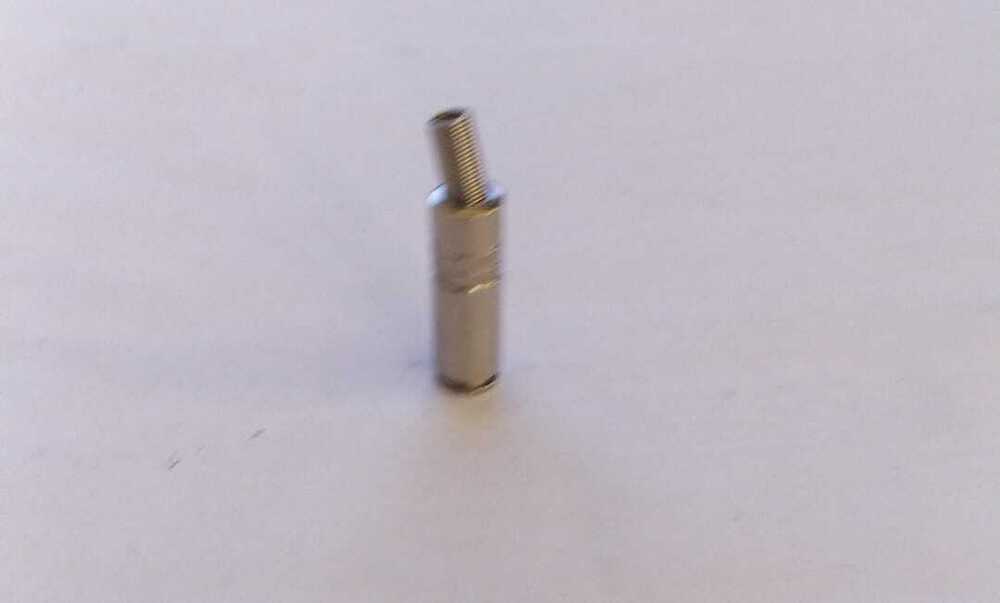

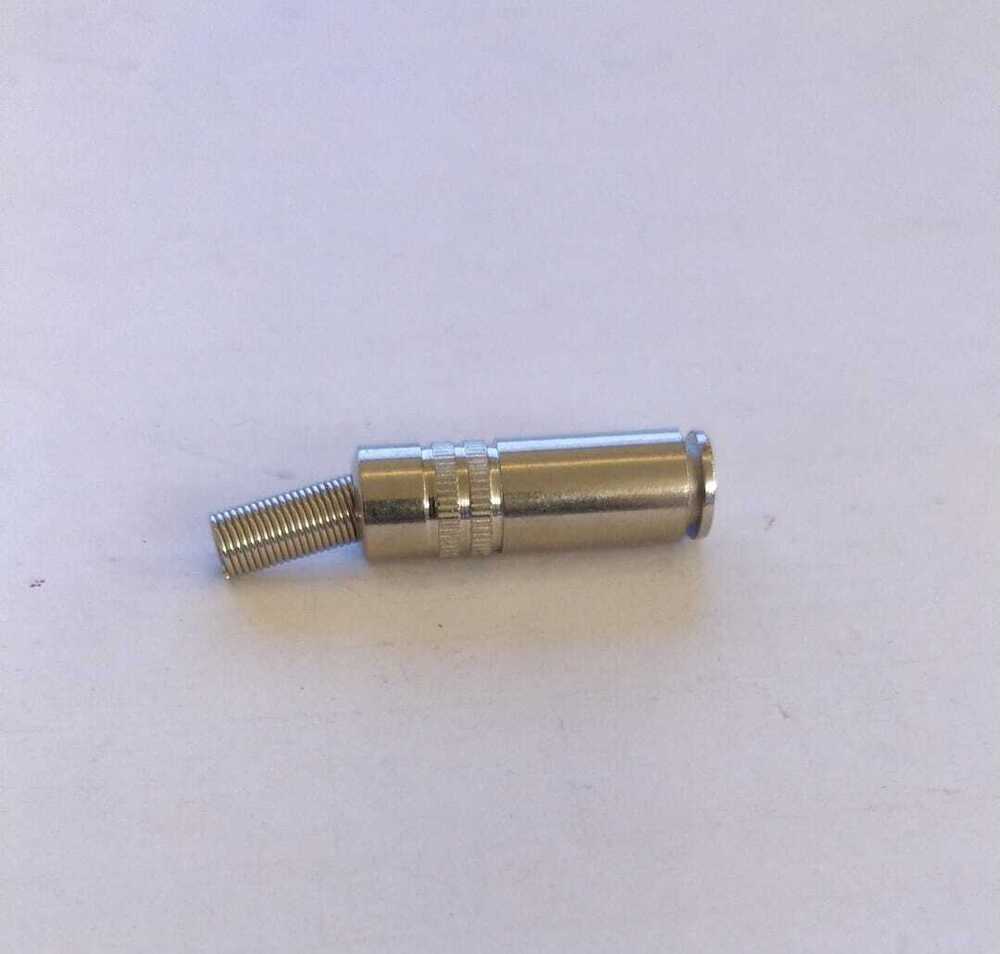

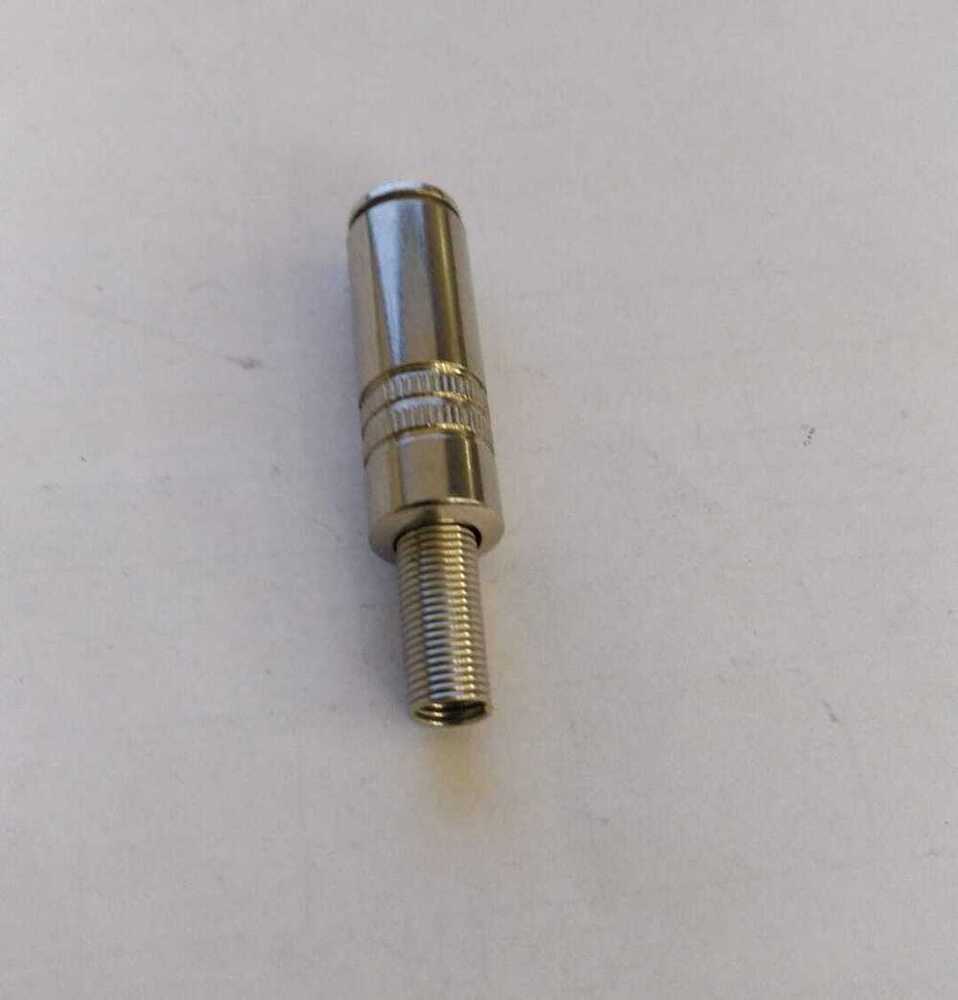

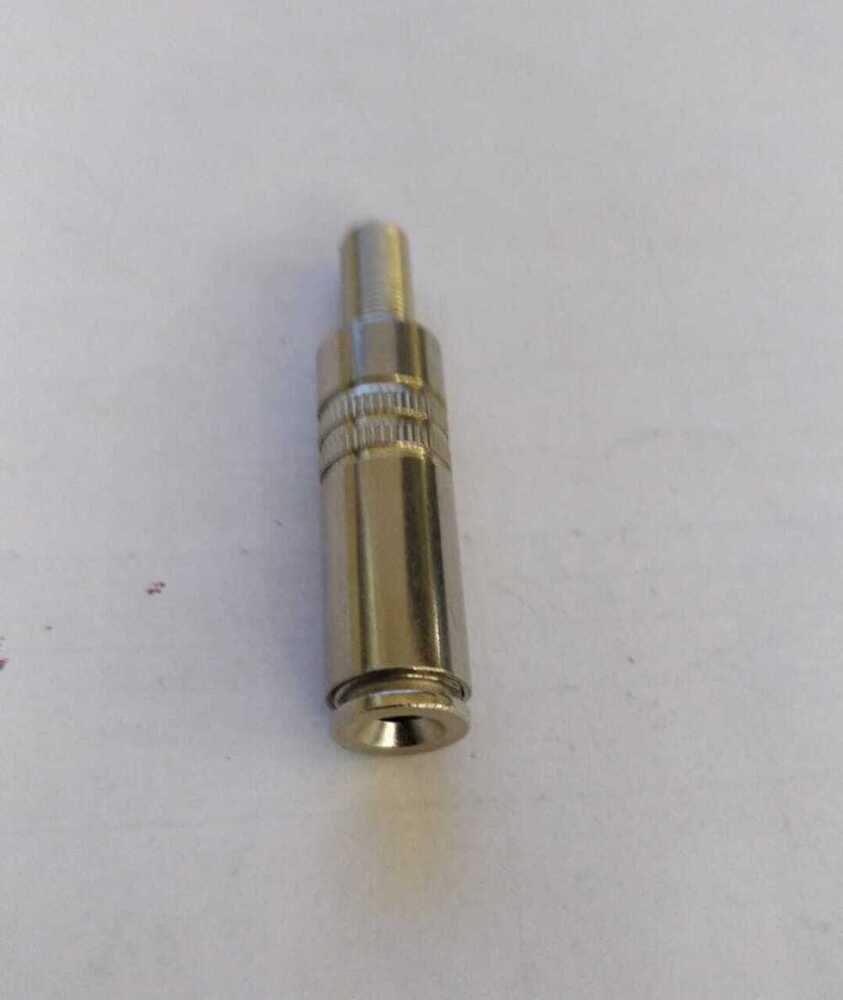

3.5MM STEREO FEMALE METAL

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

3.5MM STEREO FEMALE METAL Specification

Product Type
3.5mm Stereo Audio Jack Female

Material
Metal body with nickel plating

Withstand Voltage
AC 500V/min

Application
Audio device connection, stereo headphones, multimedia equipment

Insulation Resistance
100M at DC 500V

Height
Approximately 26mm

Weight
Approx. 5g

Color
Silver

Connector Type
3.5mm Stereo Female

Termination Style
Solder Lug

Diameter
8mm

Shell Finish
Nickel Plated

Operating Temperature Range
-25C to +85C

Current Rating
1A Max

Gender
Female

Mounting Type
Panel Mount

Durability
Insertion/Withdrawal cycle 5000

Contact Material
Copper Alloy

Number of Contacts
3 (Stereo: L, R, Ground)

RoHS Compliant
Yes

Compatibility
Standard 3.5mm Stereo Plugs

3.5MM STEREO FEMALE METAL Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 3.5MM STEREO FEMALE METAL

Color	AS PER ODER
Brand	NO
Cable Type	NO
Diameter	STANDARD
Length	SAME AS DISPLAY
Material	METAL
Packaging Type	BOX
Minimum Order Quantity	100 Piece

- Prevent ground loops in audio systems.
- Isolate and protect components from voltage spikes.
- Interface different audio equipment with varying impedances.
Advantages:
- Electrical isolation between input and output.
- Noise reduction and signal integrity improvement.
- Compatibility with various audio standards.

Robust Panel Mount Design

Engineered for stability and longevity, the 3.5MM Stereo Female Metal connector offers a panel mount configuration suitable for audio devices, multimedia equipment, and stereo headphone interfaces. Its nickel-plated metal shell provides enhanced protection against corrosion, supporting usage in varied environments.

Exceptional Connectivity and Compatibility

With copper alloy contacts and a three-contact stereo designhandling left, right, and ground signalsthis connector ensures reliable, high-quality audio transmission. It is fully compatible with standard 3.5mm stereo plugs, making device integration straightforward and flexible.

Safe and Reliable Construction

Tested to operate between -25C and +85C, the connector maintains performance across diverse operating conditions. It features insulation resistance 100M at DC 500V and can withstand 500V AC for one minute, ensuring electrical safety and operational reliability.

FAQs of 3.5MM STEREO FEMALE METAL:

Q: How do you install the 3.5MM Stereo Female Metal connector onto a panel?

A: To install this connector, create an 8mm mounting hole in your panel, insert the connector, and secure it using the provided locking nut. Solder your device wires to the solder lugs, matching the left, right, and ground contacts accordingly.

Q: What types of devices are best suited for this connector?

A: This stereo female connector is ideal for audio applications such as stereo headphones, multimedia equipment, amplifiers, and any device requiring a standard 3.5mm audio interface.

Q: When should I use the solder lug termination style?

A: The solder lug termination is recommended when you require a durable and secure wire connectionespecially in applications where vibration resistance or electrical reliability are essential.

Q: Where can I purchase or source this connector in India?

A: This connector is available through distributors, exporters, importers, manufacturers, and electronic component traders throughout India. It is typically stocked by suppliers specializing in audio hardware or electrical components.

Q: What process is involved in wiring the stereo contacts?

A: Identify the three solder lugs on the rear: usually, one each for the left and right audio channels and one for ground. Solder your respective wires securely to these designated lugs following the device wiring diagram, then double-check for proper insulation and contact.

Q: What are the benefits of using a metal, nickel-plated shell for this connector?

A: A metal body with nickel plating offers increased mechanical strength, superior corrosion resistance, and better electromagnetic shielding compared to plastic alternatives, contributing to enhanced durability and signal integrity.

Q: How does the connectors durability impact long-term usage?

A: With a design rated for over 5000 insertion and withdrawal cycles, this connector provides reliable connections and longevity, making it well suited for applications needing frequent cable changes or extended service life.
