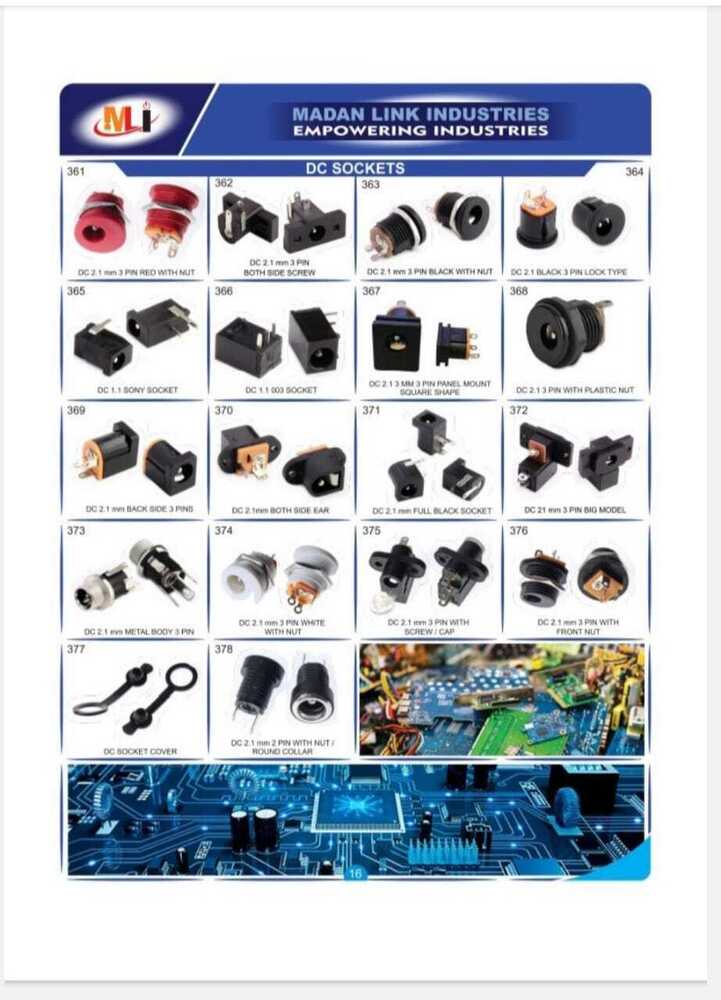

DC 2.1 MM 2 PIN WITH NUT / ROUND COLLAR

Price 3 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DC 2.1 MM 2 PIN WITH NUT / ROUND COLLAR Specification

Sealed
Non-sealed

Surface Treatment
Nickel-plated contacts

Cable Diameter
Up to 5.5 mm

Thickness
Body thickness 7mm (excluding collar)

Product Type
DC Power Socket

Material
ABS Plastic & Metal Contacts

Application
Power supply connection

Contact Resistance
30 m

Insulation Resistance
100M at 500V DC

Diameter
Panel hole required: 8 mm

Terminal Socket
2 Pin

Style
Panel Mount

Fittings
With Nut / Round Collar

Rated Voltage
DC 12V 24V

Weight
Approx. 3 grams

Color
Black

Mounting Type
Through Hole / Panel Mount

Locking Mechanism
Nut tightened from front panel

Flammability
UL94V-0

Connector Gender
Female Socket

Number of Poles
2 pin

Operational Temperature
-20°C to +70°C

Contact Material
Copper Alloy

RoHS Compliant
Yes

Collar Type
Round collar with fix nut

Usage
For DC barrel jack compatible equipment

Pin Size
2.1 mm inner diameter, 5.5 mm outer diameter

Body Color
Black

Current Rating
Up to 2A

DC 2.1 MM 2 PIN WITH NUT / ROUND COLLAR Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About DC 2.1 MM 2 PIN WITH NUT / ROUND COLLAR

Current Rating	1 A
Voltage rating	24 V
Mounting	Panel
Gender Type	Female jack
Material	ABS Plastic
Brand	IMPORTED
Colour	BLACK
Minimum Order Quantity	1000 Piece

Metal panel mounting plastic/metal 2.1mmx5.5mm DC socket 2 terminal type-positive & negative Fitting hole of 7.8mm required. Complete with rear fixing locking nut. It will take 3.2mm push on connectors or solder fit. Requires total clearance behind panel of 13mm

Secure Panel Mounting

The round collar and front nut design provide stable panel mounting, making installation quick and straightforward. Locking the connector from the front ensures a firm fit and reliable connection during operation, minimizing risk of accidental disengagement. Its design is ideal for applications demanding sturdy and lasting connectivity.

Reliable Performance in Power Supply Connections

Engineered for DC barrel jack compatible equipment, this female socket delivers rated voltage support from 12V to 24V and handles currents up to 2A. Nickel-plated copper alloy contacts maintain low contact resistance, while ABS housing withstands diverse environments and temperatures, ensuring consistent performance for industrial, commercial, or hobbyist usage.

FAQs of DC 2.1 MM 2 PIN WITH NUT / ROUND COLLAR:

Q: How is the DC 2.1mm 2 Pin Socket installed on a panel?

A: The socket is installed by fitting its body through an 8mm panel hole and tightening the supplied nut from the front side of the panel. This secures the round collar evenly and ensures a stable, fixed connection.

Q: What equipment is compatible with this connector?

A: The DC 2.1mm 2 Pin socket is compatible with DC barrel jack-equipped devices, including power supply systems for electronics, hobby projects, and various commercial equipment requiring reliable DC power input.

Q: When should I choose a panel mount socket with a round collar and nut?

A: You should select this socket when your application requires secure panel mounting, easy front-side installation, and strong mechanical retention for equipment that may experience vibration or movement.

Q: Where can this connector be used?

A: This connector is commonly used in enclosures, control panels, audio/visual equipment, and industrial devices across distributor, manufacturer, exporter, importer, and trading sectors throughout India and globally.

Q: What safety and compliance certifications does the socket have?

A: The socket offers UL94V-0 rated flammability for enhanced fire resistance, RoHS compliance for environmental safety, and insulation resistance of at least 100M at 500V DC, ensuring user protection and meeting international standards.

Q: How does the nut locking mechanism benefit applications?

A: The nut mechanism enables easy, tool-free front panel tightening, delivering a steadfast electrical connection and physical anchoring without requiring access to the backside of the panel, improving efficiency and durability.

Q: What are the operational temperature limits and current rating of this socket?

A: The socket functions effectively in temperatures from -20C to +70C and safely carries up to 2A current, making it suitable for a wide range of power supply scenarios.
