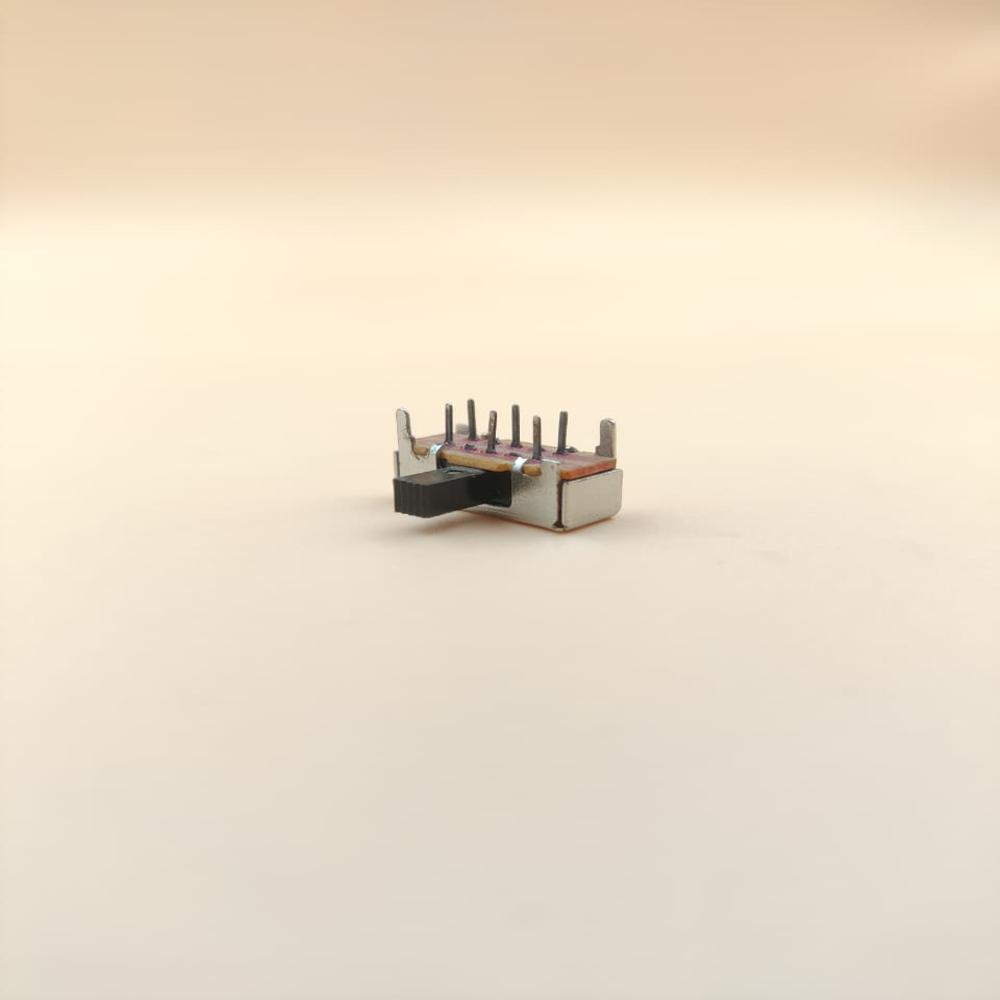

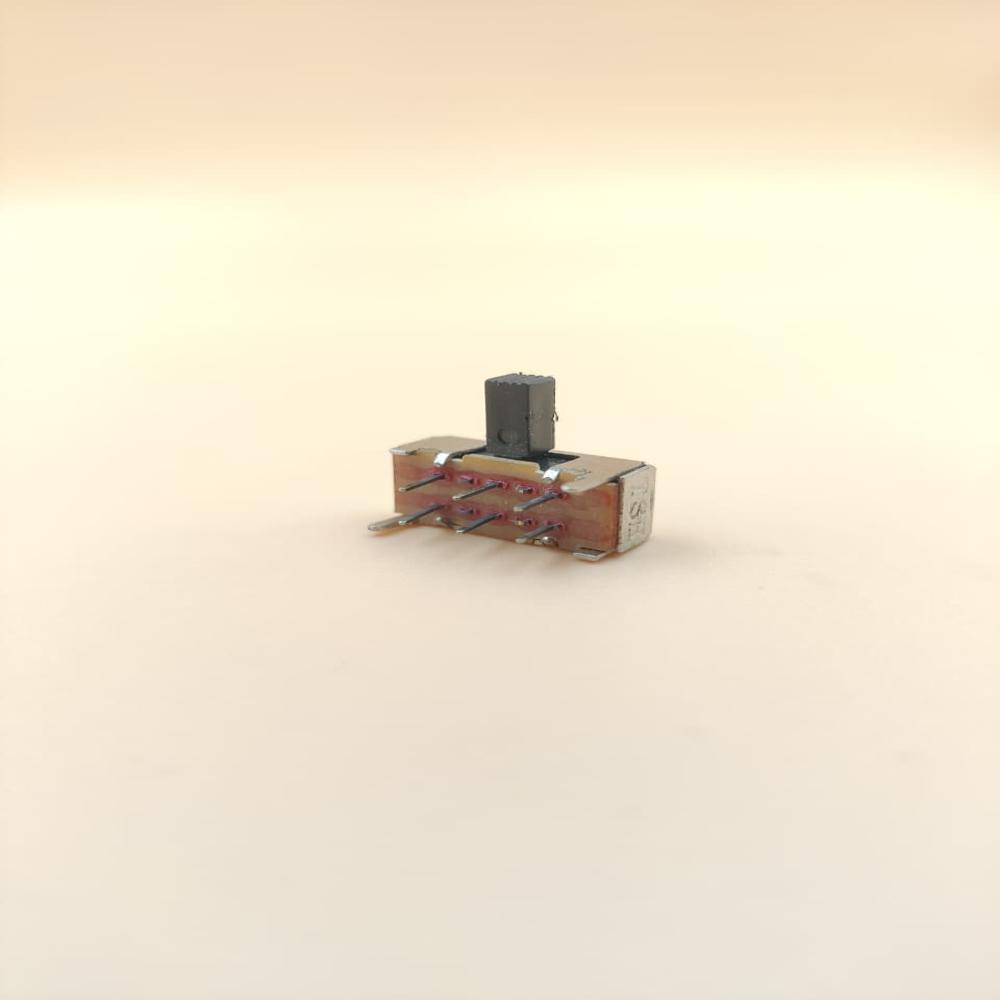

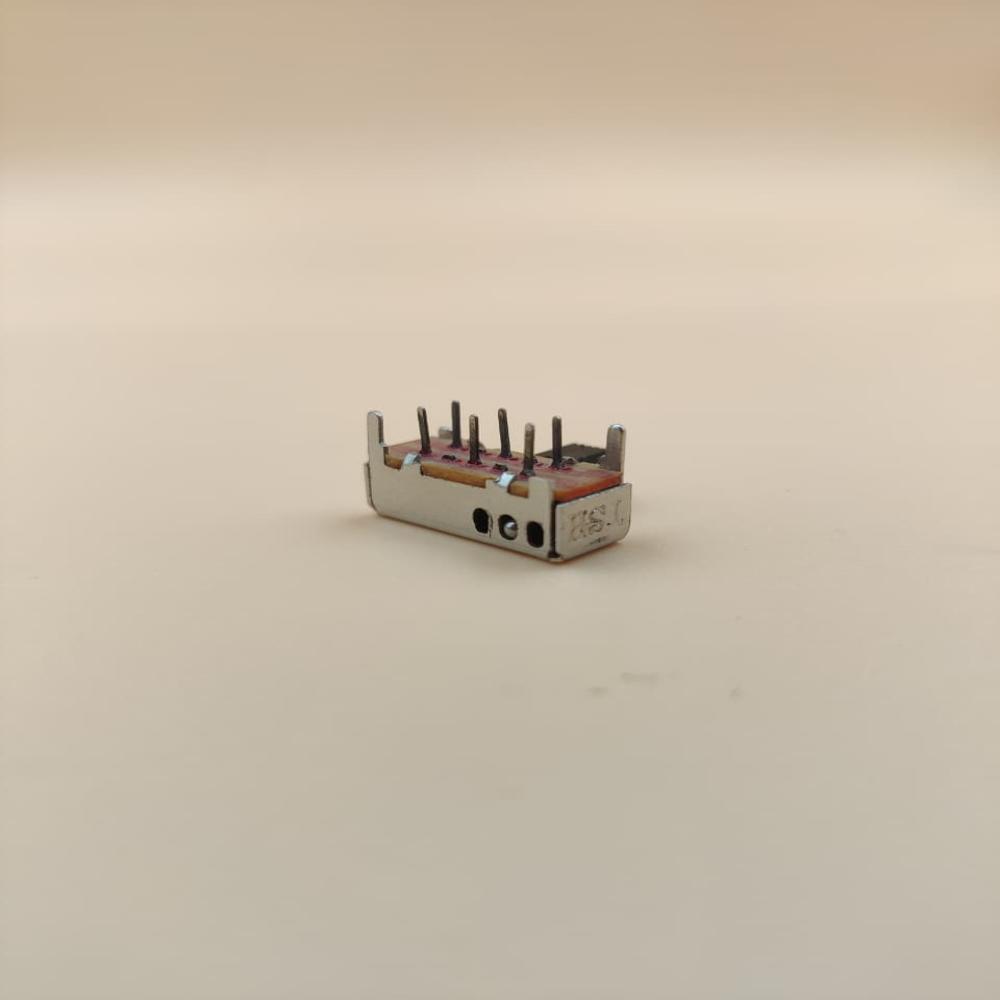

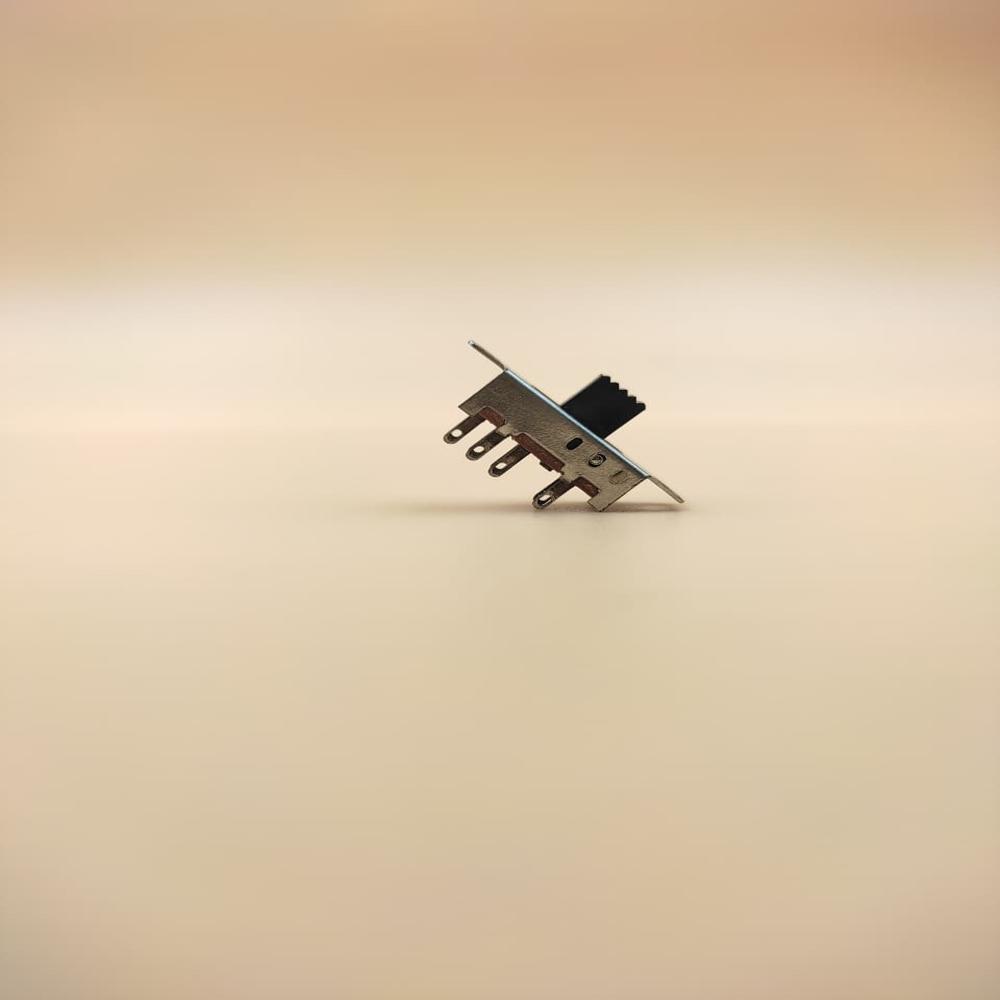

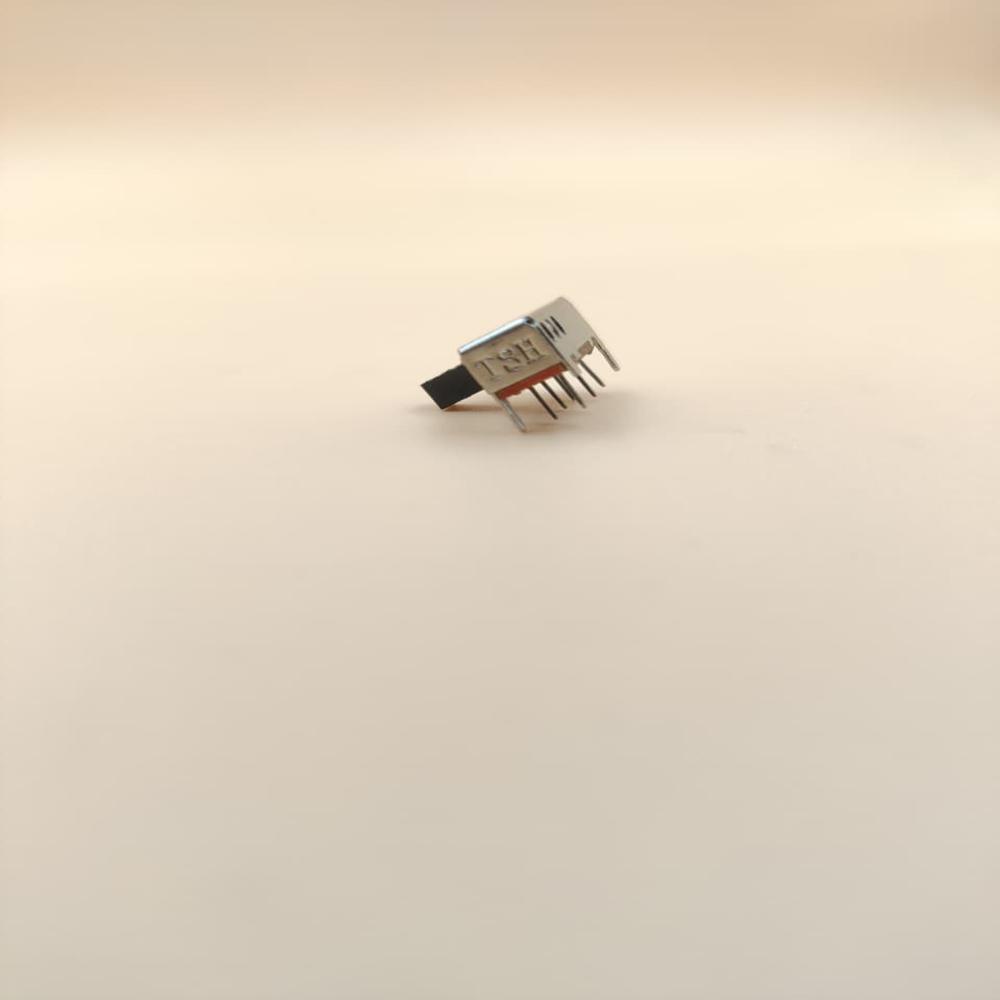

Slide Switch Without Screw L Type 6 Pin Center Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide Switch Without Screw L Type 6 Pin Center Off Specification

Max. Current
3A Ampere (amp)

Temperature Range
-25 C to +85 C Celsius (oC)

Circuit Type
DPDT (Double Pole Double Throw)

Rated Voltage
250V AC Volt (V)

Mechanical Life
10,000 cycles Months

Response Time
Instantaneous Seconds

Protection Level
IP20

Number of Module
Single Module

Automation Grade
Manual

Finish Type
Matte

Power Rating
12V DC

Product Type
Slide Switch

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m Ohm ()

Max. Voltage
250V AC Volt (V)

Warranty
No Warranty

Stoke
3.0mm (approx)

Usage & Applications
Toy and electrical Components

Size
23mm x 7mm x 9mm

Operating Temperature
-25 C to +85 C Celsius (oC)

Color
Black

Cable Type
Without Screw

Weight
2 grams (approx) Grams (g)

Display Type
No display Type

Material
Metal case

Mounting Type
PCB Mount (L-Type)

Current Rating
3A

No Of Poles
6 Pole

Storage Temperature
-40C to +90C

Dielectric Strength
1000V AC/min

Actuator Type
Slide

Contact Plating
Silver plated contacts

Environmental Compliance
Lead-Free

Terminal Type
Through Hole

Number of Pins
6

Screw Provision
Without Screw

RoHS Compliance
Yes

Vibration Endurance
10~55Hz, 1.5mm amplitude

Switch Function
On-Off-On

Handle Position
Center Off (L-Type)

Slide Switch Without Screw L Type 6 Pin Center Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Slide Switch Without Screw L Type 6 Pin Center Off

Discover the rare 6 PIN CENTER OFF L TYPE SLIDE SWITCH WITHOUT SCREW, offering an unbeatable price for flawless performance and outstanding reliability. Highlighted by silver-plated contacts and a robust plastic housing, this DPDT switch features a towering dielectric strength of 1000V AC/min and instantaneous response time. Its center-off (L-Type) actuator provides precise ON-OFF-ON functionality without screws, ensuring superb mounting flexibility. RoHS and lead-free compliant, it excels in rigorous environments, supporting up to 3A current and 250V AC. Experience a rare blend of durability, safety, and unbeatable quality in every unit.

Versatile Application Areas and Plant Uses

The 6 PIN CENTER OFF L TYPE SLIDE SWITCH WITHOUT SCREW is widely used in electronics manufacturing, automation panels, test equipment, and precision instrumentation. Its DPDT circuit allows control over various loads and switching modes, making it a top choice in assembly plants, quality testing setups, and industrial automation. Frequently employed for prototyping, switching tasks, and signal modulation, this outstanding component ensures dependable service across diverse technical sectors.

Sample Availability, List Price & Delivery

Samples of the 6 PIN CENTER OFF L TYPE SLIDE SWITCH WITHOUT SCREW are available to qualified buyers, ensuring confident outlay decisions. The list price is competitive, offering excellent value for distributors, exporters, manufacturers, and traders. Delivery is prompt, with lead times optimized for quick turnarounds. FOB Port options include major locations in India, supporting seamless international and domestic shipping for bulk and sample orders.

FAQs of 6 PIN CENTER OFF L TYPE SLIDE SWITCH WITHOUT SCREW:

Q: How can the 6 PIN CENTER OFF L TYPE SLIDE SWITCH be used in automation panels?

A: Its DPDT circuit function allows seamless ON-OFF-ON switching, making it ideal for controlling circuits and loads in automation panels. The L-type slide actuator offers precise manual control within diverse industrial setups.

Q: What is the advantage of silver-plated contacts in this switch?

A: Silver plating enhances conductivity and reduces contact resistance, ensuring reliable signal transmission and minimal power loss during operation for outstanding performance.

Q: When are samples available and what is the delivery process?

A: Samples are available upon request, with quick lead times. Once an order is confirmed, delivery is arranged from major India ports through streamlined logistics, ensuring your outlay meets project deadlines efficiently.

Q: Where is this slide switch most commonly applied?

A: This switch is commonly applied in PCB assemblies for industrial machinery, laboratory test equipment, signal switching boards, and prototyping circuits across assembly and manufacturing plants.

Q: What environmental standards does the switch comply with?

A: The switch is RoHS and lead-free compliant, guaranteeing adherence to global environmental and safety standards for manufacturing and usage.

Q: How does the mechanical life of this switch benefit users?

A: With an outstanding mechanical life of 10,000 cycles, users enjoy long-term reliability, reduced maintenance costs, and consistent operation in demanding conditions.
